Blackmagic Design

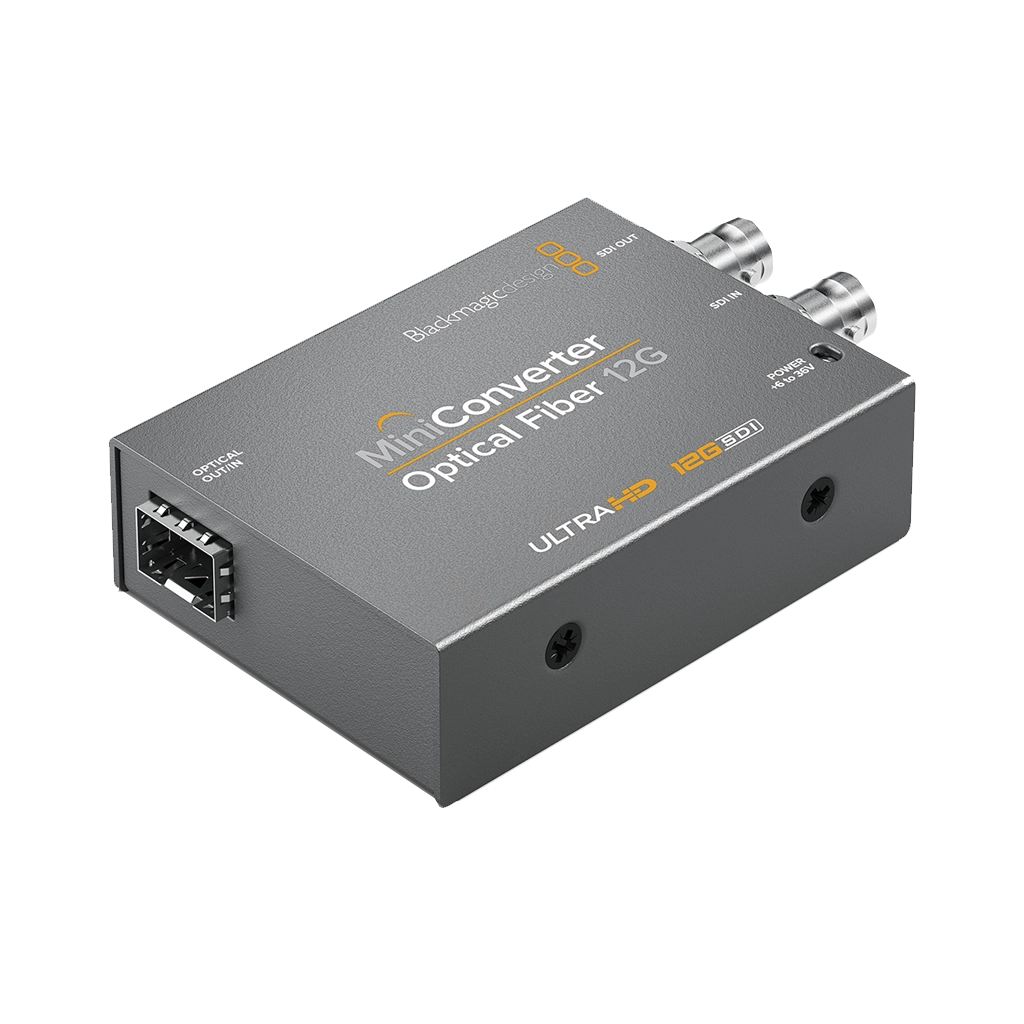

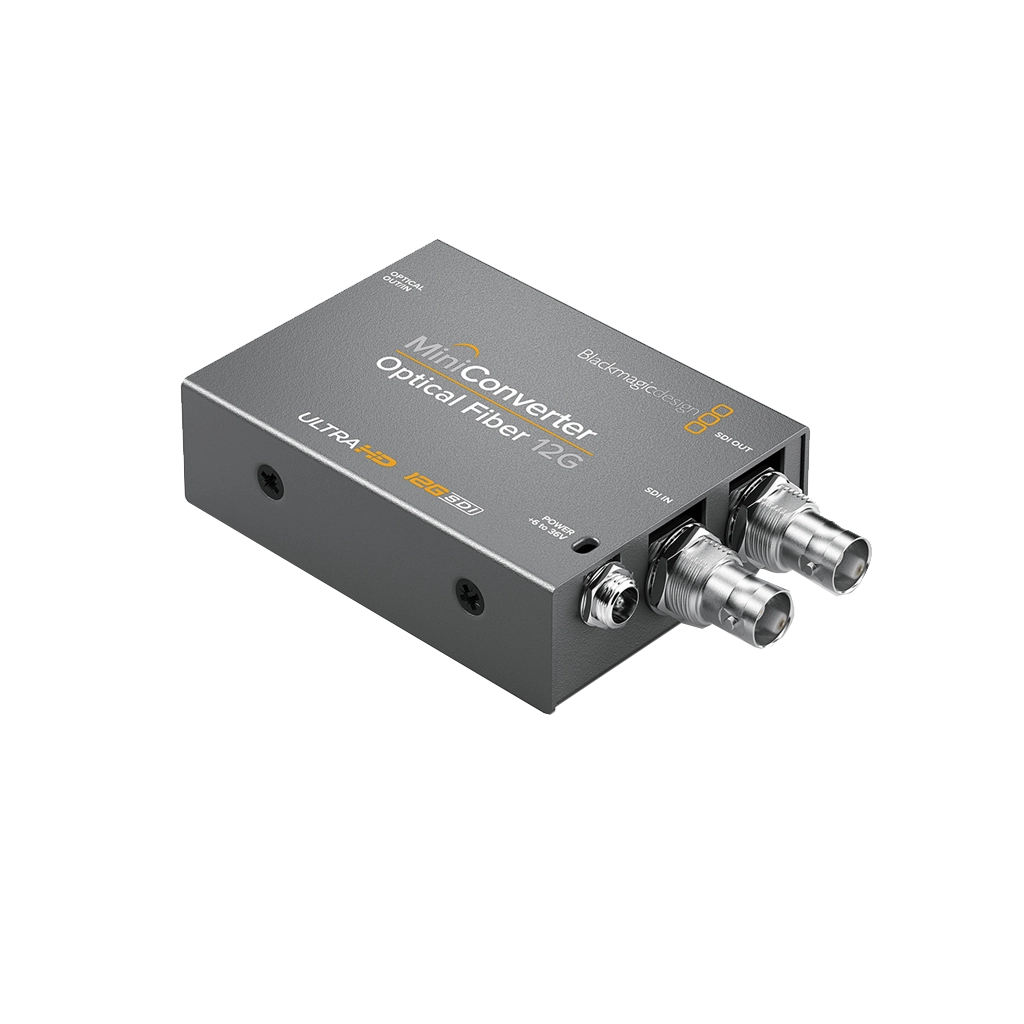

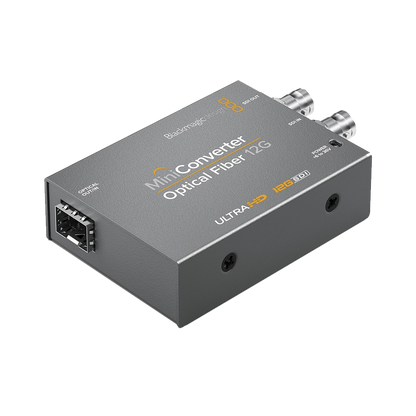

Blackmagic Design Mini Converter Optical Fiber 12G-SDI

R 3,570.00
R 3,570.00 R 3,570.00
Tax included. Shipping calculated at checkout.

BLA-CONVMOF12G

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Convert 12G/HD/SD-SDI to Optical Fiber
  • Multi-Rate, Bidirectional Capability
  • Supports Signals up to DCI 4K
  • Automatic Input Signal Detection
  • 16-Channel Embedded Audio Support
  • Diagrammed Function Switches
  • Update via Converter Utility Software
  • Locking, Universal Power Supply
  • Compact Metal Housing

    The Blackmagic Design Mini Converter Optical Fibre 12G-SDI features a bidirectional conversion that allows you to convert 12G/ HD/ SD-SDI to optical fibre. Also supports for up to DCI 4K signals. The interface include one LC-type optical fibre input/output, one 12G/HD/SD-SDI input and output  with a 10-bit rate, making it perfect for lengthy fibre cables for your HD-SDI and SD equipment out in the field or studio use.

    • Bidirectional, multi-rate SDI to optical fibre conversion
    • Supports video signals up to DCI 4K25 and UHD 4K60
    • Automatic signal detection
    • Supports up to 16-channel embedded audio
    • Change settings with function switches or the macOS/Windows-compatible software
    • Universal power supply with locking connector
    • Rugged, compact metal housing
    • One SMPTE optical fibre SFP socket (requires separate module)
    • 12G/6G/3G-SDI input and output

    • Blackmagic Design Mini Converter Optical Fiber 12G-SDI
    • Universal Power Supply

    Blackmagic Design Mini Converter Specs

    Connections
    Video Input12G/HD/SD-SDI: 1 x BNC
    Video Output12G/HD/SD-SDI: 1 x BNC
    Fiber ConnectorIn/Out: 1 x LC
    Optical Fiber Audio Input16-channel embedded
    Optical Fiber Audio Output16-channel embedded
    Standards
    Supported Video Standards4096 x 2160: 25/24/23.98
    3840 x 2160: 30/29.97/25/24/23.98
    2048 x 1080: 25/24/23.98
    2048 x 1080: 25PsF/24PsF/23.98PsF
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    625i: 50
    525i: 59.94
    SDI ComplianceSMPTE ST-2081/425M/424M-B/296M/292M/259M
    SMPTE 297M for fiber
    ITU-R BT.656/.601
    SDI Color Precision4:4:4, 4:2:2
    SDI Color SpaceYUV, RGB
    ASI SupportYes
    Operating System
    Supported Operating SystemsMacOS 10.12 Sierra
    MacOS High Sierra 10.13 or later
    Windows 8.1
    Windows 10
    Power
    Power Consumption2 W
    Operational Voltage Range6-36 VDC
    Physical & Environmental
    Operating Temperature32 to 104°F / 0 to 40°C
    Storage Temperature-4 to 113°F / -20 to 45°C
    Relative Humidity0 to 90%, non-condensing
    Dimensions4.33 x 2.32 x 0.9" / 11 x 5.9 x 2.3 cm
    Weight210 g
