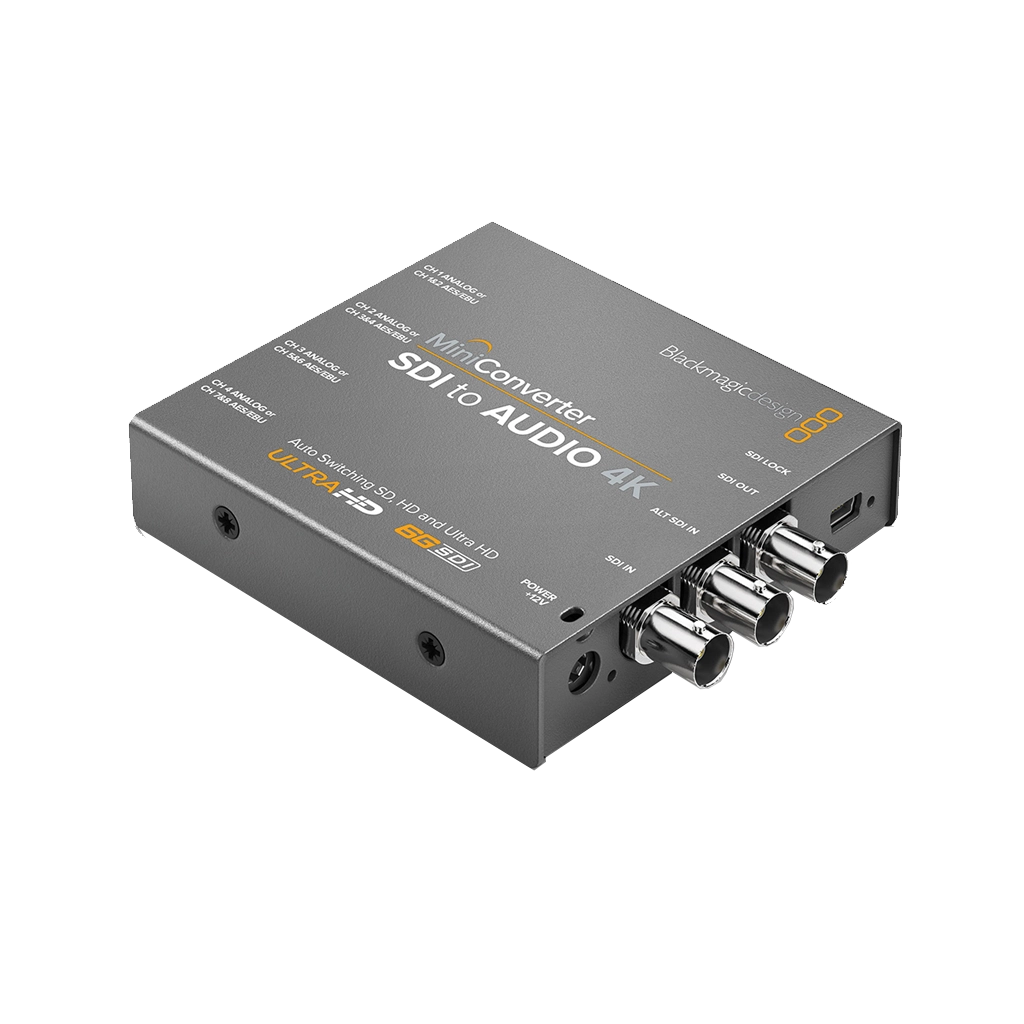

Blackmagic Design Mini Converter SDI to Audio 4K

R 7,295.00
R 7,295.00 R 7,295.00
Tax included. Shipping calculated at checkout.

BLA-CONVMCAUDS4K

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • De-Embeds Audio from SDI Signal
  • Single Link 6G-SDI Input
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection

    The Blackmagic Design Mini Converter SDI to Audio 4K includes everything you need to deembed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more.

    Additional Features

    • 4:2:2 and 4:4:4 sampling and colour precision
    • 24-bit, 48 kHz audio sampling
    • Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601

    Blackmagic Design Mini Converter SDI to Audio 4K

    Connections

    SDI Video Inputs

    1 x SD, HD or 6G‑SDI. 1 x  ALT SDI Input for automatic switch over if main input fails.

    SDI Video Outputs

    1 x SDI Video Loop Output.

    SDI Redundant Inputs

    Automatically switches over if main SDI input is lost.

    Analog Audio Outputs

    4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

    Digital Audio Outputs

    8 channels of professional balanced digital with standard 1/4 inch jack connections.

    Multi Rate Support

    Auto detection SD, HD or 6G‑SDI.

    Updates and Configuration

    USB

    Reclocking

    Yes

    Mini Converter SDI to Audio 4K

    Standards

    SD Video Standards

    525i59.94 NTSC, 625i50 PAL

    HD Video Standards

    720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

    2K Video Standards

    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

    Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

    4K Video Standards

    4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

    SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, SMPTE ST-2036, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601

    SDI Video Rates

    SDI video connections are switchable between standard definition and high definition.

    SDI Video Sampling

    4:2:2, 4:4:4

    SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit.

    SDI Color Precision

    4:2:2, 4:4:4

    SDI Color Space

    YUV, RGB

    SDI Auto Switching

    Automatically selects between SD, HD, 3G and 6G‑SDI.
