Blackmagic Design

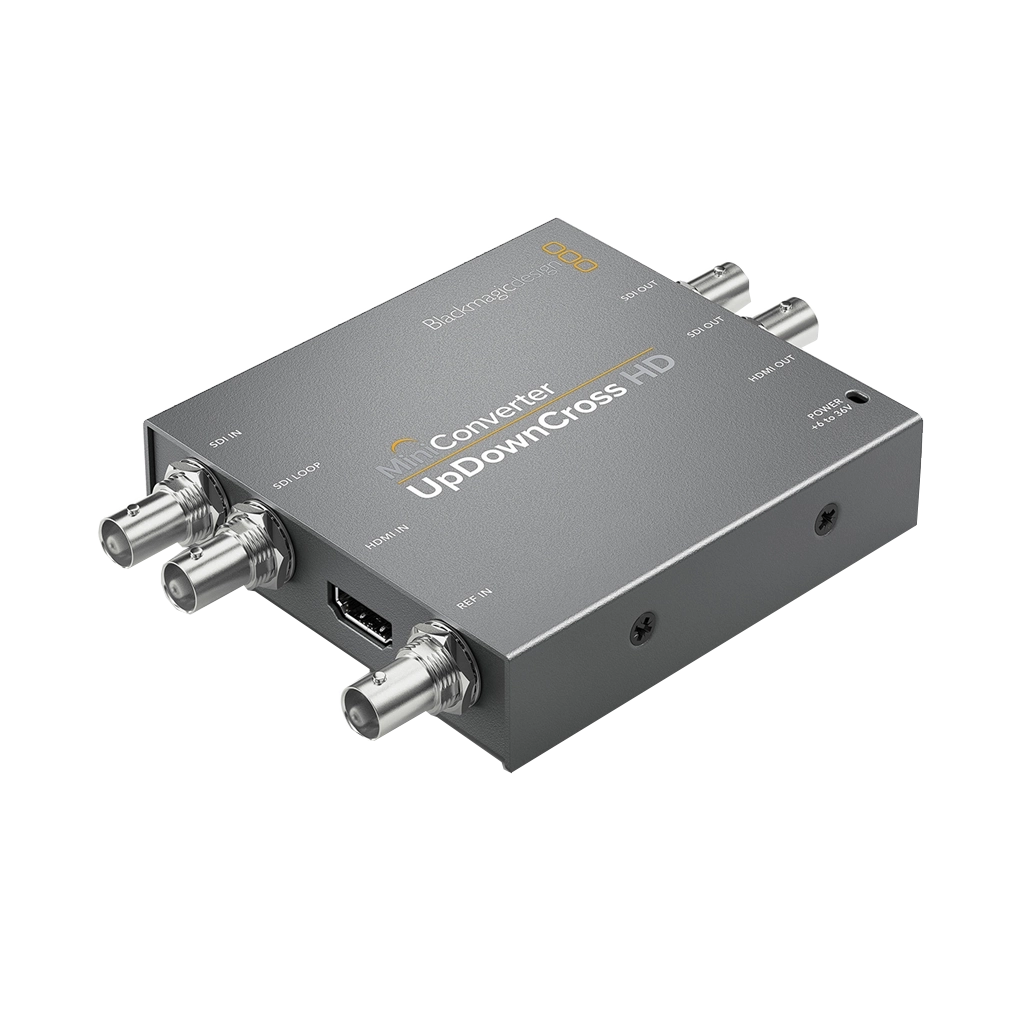

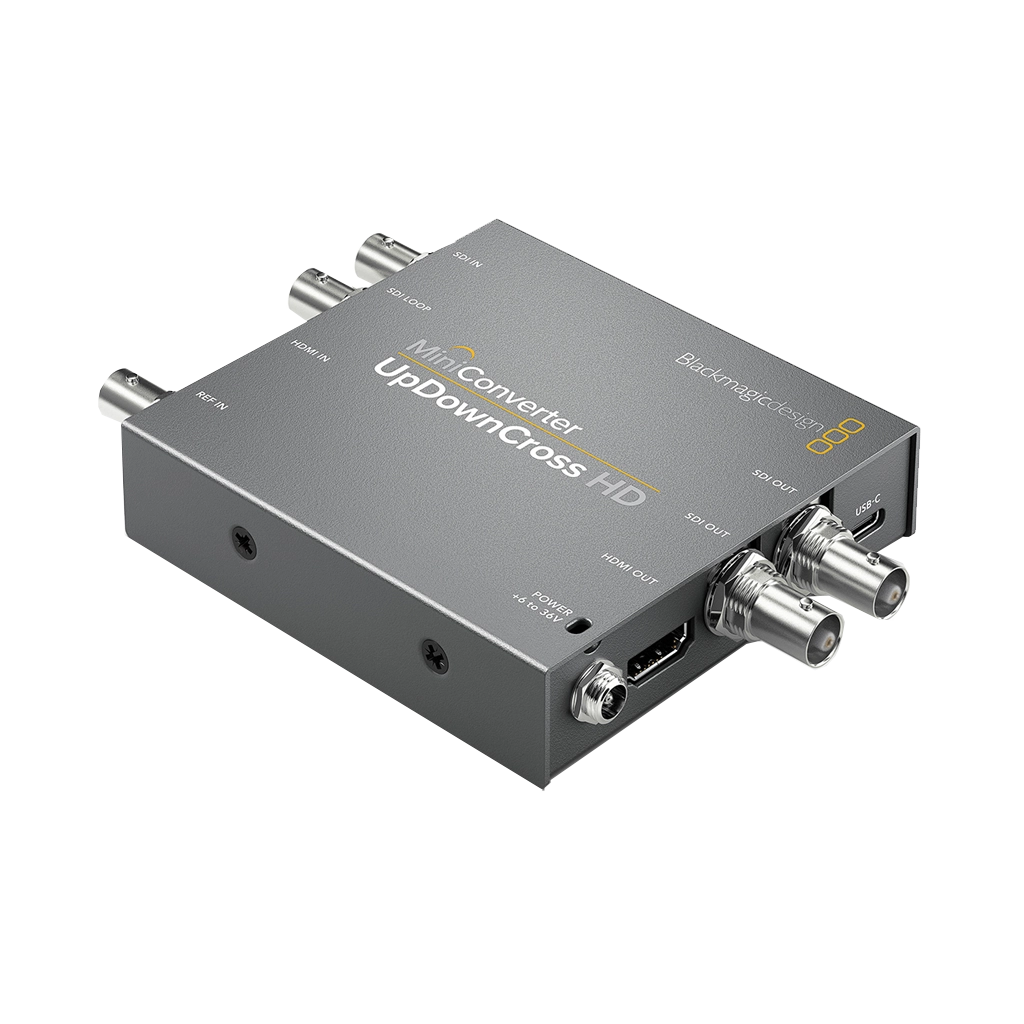

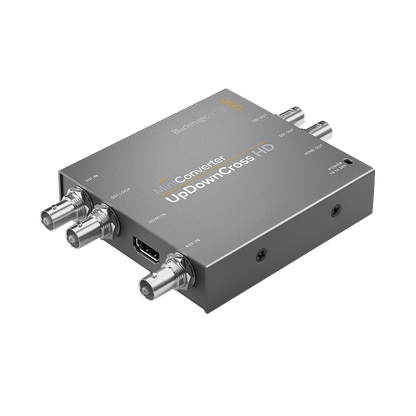

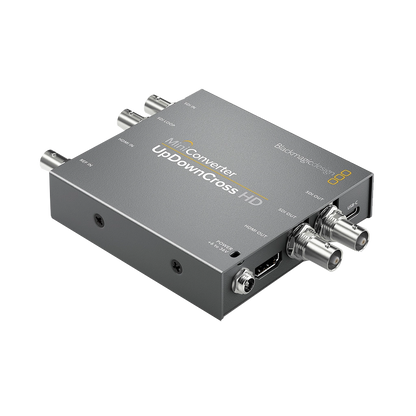

Blackmagic Design Mini Converter UpDownCross HD

R 3,560.00
R 3,560.00 R 3,560.00
Tax included. Shipping calculated at checkout.

BLA-CONVMUDCSTD/HD

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 3G/HD/SD-SDI Up/Down/Cross Conversion
  • 1 x 3G/HD/SD-SDI Input
  • 2 x 3G/HD/SD-SDI Outputs & 1 x Loopout
  • 1 x HDMI Input & 1 x HDMI Output
  • Support Signals up to 1080p60
  • Automatic Input Signal Detection
  • Automatic, Multirate Support
  • Reference Input & Reclocking
  • Control via DIP Switches or Software
  • 12V Universal Power Supply Included

    Cross-convert your video signals with the Blackmagic Mini Converter UpDownCross HD, anything between SD and HD video format with support for signals up to 1080p60. The UpDownCross Mini Converter interface include one 3G/HD/SD-SDI input, two 3G/HD/SD-SDI outputs and one loop-through output.

    Key Features

    • Full up, down, and cross conversion between HD and SD video formats up to 1080p60
    • Single 3G/HD/SD-SDI input
    • Two 3G/HD/SD-SDI outputs, one loop-through output
    • One HDMI input, one HDMI output
    • Automatic signal detection
    • Scales computer DVI resolutions
    • Automatic SD/HD switching
    • Universal power supply included with multiple socket adapters
    • Control via built-in mini switches or Mac/Windows-compatible software

    • Blackmagic Design Mini Converter UpDownCross HD
    • 12 VDC Universal Power Supply with International Adapters

    Connections
    Video Input3G/HD/SD-SDI: 1 x BNC
    HDMI: 1 x Type A
    Video Output3G/HD/SD-SDI: 2 x BNC
    Loop-Through Out: 1 x BNC
    HDMI: 1 x type A
    Reference InputBlack Burst & Tri-Level Sync: 1 x BNC
    ReclockingYes
    SDI ComplianceSMPTE 424M-B/296M/292M/259M
    ITU-R BT.656/BT.601
    SDI Video Sampling4:2:2
    SDI Color SpaceYUV
    SDI Audio Sampling48 kHz, 24-bit
    Supported Video StandardsSDI:
    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080PsF 24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50

    HDMI:
    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50

    NTSC SD: 525i 59.94
    PAL SD: 625i 50
    Computer Formats
    ScalingDVI Resolutions:
    1080p 60/59.94/50/30/29.97/25/24/23.98
    1080i 60/59.94/50
    720p 60/59.94/50
    625i 50
    525i 59.94
    1024 x 768
    800 x 600
    640 x 480
    Power
    Power Supply12 VDC
    Operation Voltage6 to 36 VDC
    Power Consumption5 W
    Physical & Environmental
    Operating Temperature32 to 104°F / 0 to 40°C
    Storage Temperature-4 to 113°F / -20 to 45°C
    Relative Humidity0 to 90%, non-condensing
    Dimensions5.32 x 3.63 x 0.9" / 13.5 x 9.2 x 2.3 cm
    Weight247 g
