The Blackmagic Design MultiDock 10G unit features a premium all metal rack mount design that offers extremely fast rack mount, 4 slot USB-C disk docks so that professionals in the film and television industry will be able to edit directly from their media disks.
The advanced SSD docks allows one to access 4 separate SSDs which can all be done via a single high-speed 10 Gb/s USB-C connection. The rack design also sports an independent SATA driver chip on each disk for blistering data transfer speeds; making it well-suited for colourists, editors, and media management on set.
Premium All Metal Rack Mount Design

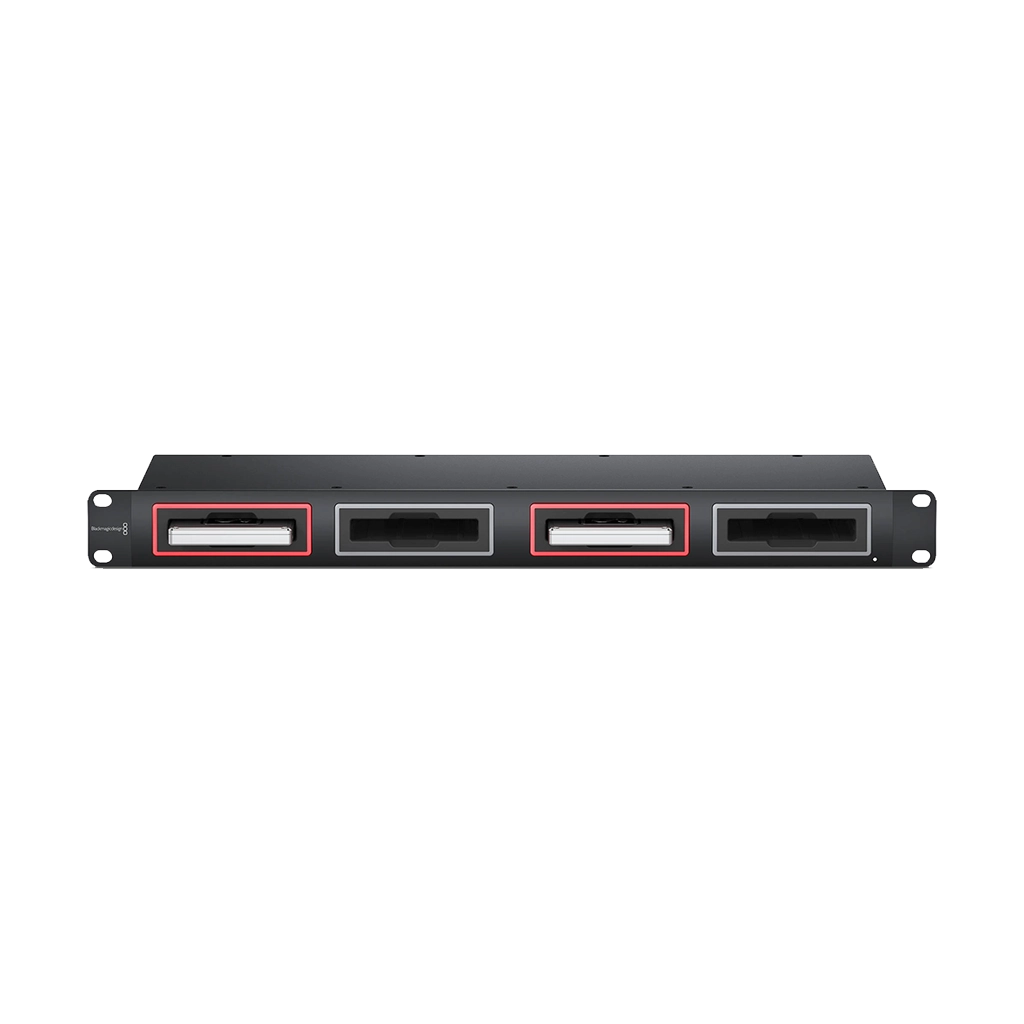

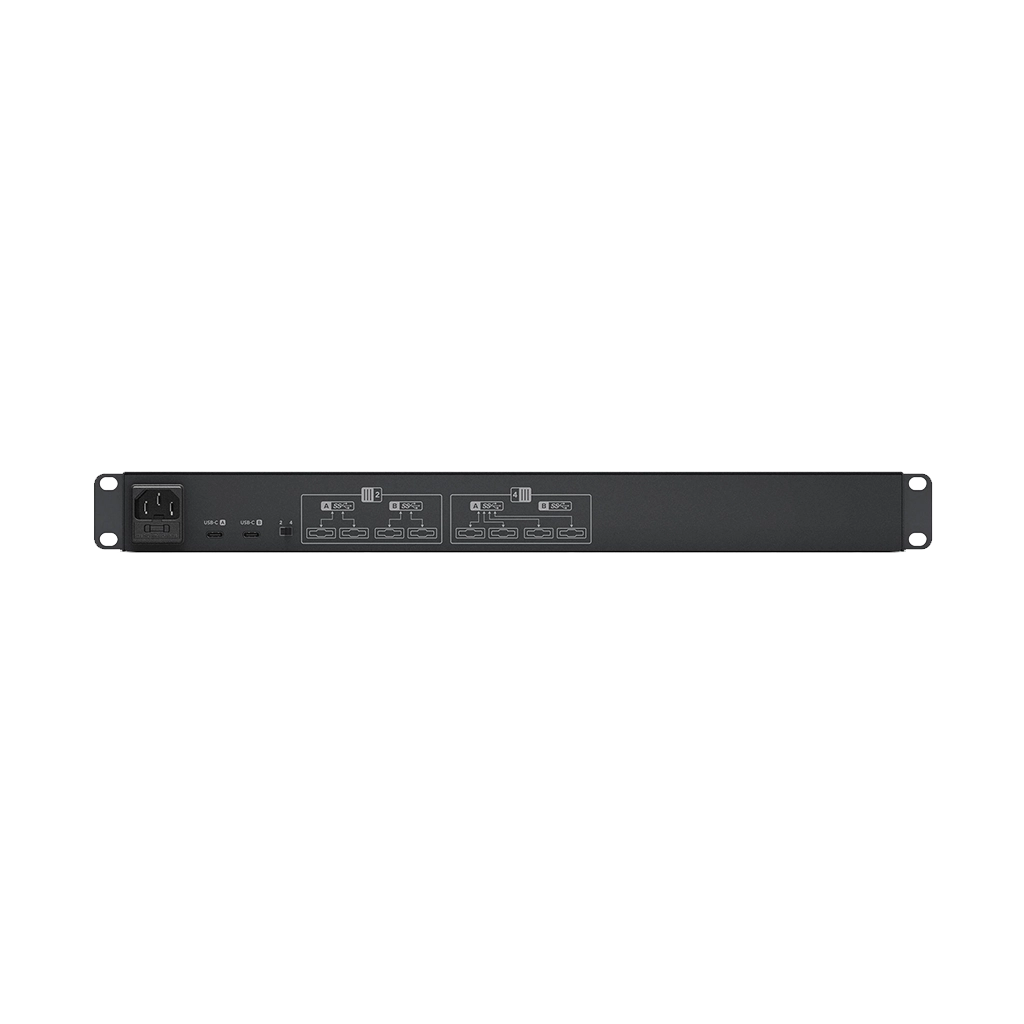

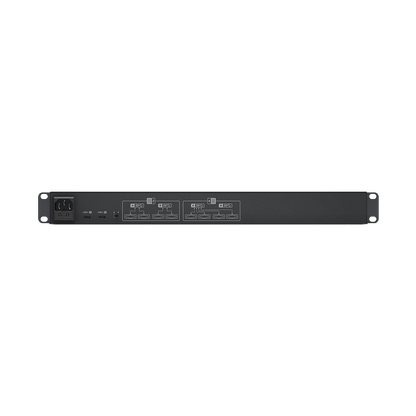

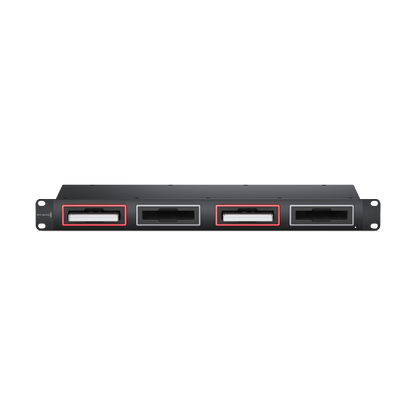

Unlike cheap SSD docking cables, the Blackmagic MultiDock 10G is a compact 1 RU all metal design you can mount in any professional rack. Each disk slot features an illuminated disk indicator so you can see when disks are being accessed. The design is also repairable so you can replace the socket connector in each slot. Simply plug into any USBC Mac or Windows computer and there is no software to install. The rear panel features 2 USBC connections and a slide switch to allow selecting between using 4 disk slots on a single USBC connection, or 2 slots on each USBC connection for shared use. Plus the built in AC power supply provides lots of power to run 4 SSDs or hard disks at the same time.
Dock and Edit
Blackmagic MultiDock supports up to 4 independent 2.5 inch SSDs so its possible to edit directly from the disks you recorded onto. Simply plug in your SSDs and they will mount on your Mac OS X and Windows computers like regular hard disks. Because Blackmagic MultiDock features 4 independent disk slots, you can mount all your media from a shoot all at the same time. Blackmagic MultiDock 10G is perfect for accessing media recorded with the URSA Mini Pro SSD Recorder. It's also the perfect solution to add SSD compatibility to HyperDeck Extreme 8K as it will let you interchange disks between HyperDeck Studio models. You can even stripe multiple disks together for a super fast RAID array.
Super Fast Solid State Disks
Solid state disks are the perfect storage solution for television because they are very fast and extremely large in size. Even a single solid state disk is much faster than a disk array because the memory based storage is accessed instantly without the mechanical lag, allowing a single SSD to record an entire event or film shoot. This means you get reliable, fast recording with the speed for the largest video files. With Blackmagic MultiDock 10G, its possible to plug in any brand of 2.5 inch solid state disk or if you need high capacity backup at low cost, a regular 2.5 inch laptop hard disk can be used. Best of all the driver is built into the operating system so no extra software is needed.
Extreme 10 Gb/s USBC Speed
Blackmagic MultiDock uses advanced USBC technology so you get blazingly fast transfer speeds to your computer at up to 10 Gb/s with a single cable connection. Thats more than enough bandwidth to handle the highest resolution video formats including 8K in H.265 from HyperDeck Extreme 8K. MultiDock features a completely independent disk interface chip per disk slot so you never get slowdowns because of SATA bandwidth issues. Even though you get all 4 disks connected to a single USBC connection, you can also split Blackmagic MultiDock 10G and get 2 disks on one USBC connection and 2 disks on the second USB-C connection. That's perfect for dual computer use or increased speed.
Flexible RAID Storage
Unlike consumer disk arrays, Blackmagic MultiDock is a compact and robust 1 rack unit all metal design that can be quickly installed into equipment racks. The built in power supply ensures no power is used from laptop batteries and it has enough power to run 4 high performance disks all at the same time for use in RAID configurations. Blackmagic MultiDock 10G even supports the RAID software built in to most operating systems, so you can customize your disk array for your needs. Each disk slot also features an attractive illuminated disk access indicator so you can see when your disks are being accessed.
Use Any Software
SSDs are so incredibly fast it's no longer necessary to use RAID arrays to get enough speed for editing. That means you can add up to 4 media disks to editing software such as DaVinci Resolve, Final Cut Pro X, Premiere Pro CC, Avid Media Composer, Autodesk Smoke and more. Blackmagic MultiDock 10G is also fantastic for backup as you can insert mechanical hard disks into the slots and backup direct to the disks. Mechanical hard disks are used on laptop computers and are extremely large and very low cost. If you're working with HyperDeck Extreme, you can also use Blackmagic MultiDock 10G to get compatibility with SSDs for interchange between HyperDeck models.
Works with HyperDeck Extreme 8K HDR
The secret to using Blackmagic MultiDock 10G with HyperDeck Extreme is the high speed USBC port on the rear panel called External Disk. When you plug MultiDock into the HyperDeck External Disk port, it can see the SSDs and use them for recording. When using 2 HyperDeck Extreme units mounted side by side its possible to switch to 2 channel mode and use 2 disks with each HyperDeck. This also means it's possible to use 2 computers with a single MultiDock, one using each channel, or multiple rack mount servers can access the same MultiDock. When an SSD is inserted in MultiDock, it can be seen on the HyperDeck Extreme on screen menus and you can select it for record and playback.
Move Media Between Editing Systems
If you're working in large facilities, then Blackmagic MultiDock allows media disks to be relocated simply by unplugging the disks and walking to a new location. That eliminates slow file copying and there is no need for complex network storage. This means you get the flexibility to change and move workflow as your client demands. You can even take your job from an editing room into a dedicated DaVinci Resolve colour correction room and then move to a larger theater style room when your client arrives to review your job. With instant unplugging of media you eliminate clunky devices hanging off cables plus you can always access the disks right from the front of the rack equipment.
- Blackmagic Design MultiDock 10G
- User Manual
|4 x 2.5" SATA 3 6 Gb/s
|2 x USB Type-C 3.1 Gen 2 (Up to 10 Gb/s)
|1 x Internal 100-240 VAC
|Supported Operating Systems
|Mac 10.13 High Sierra, 10.14 Mojave, or Later
Windows 10 or 8.1
|0 to 40°C
|-20 to 45°C
|0 to 90% Non-Condensing
|48.3 x 35.1 x 4.4 cm
