Blackmagic Design

Blackmagic Design MultiView 4 HD

R 4,295.00
R 4,295.00 R 4,295.00
Tax included. Shipping calculated at checkout.

BLA-HDL-MULTIP3G/04HD

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 4 x SD/HD/3G-SDI Inputs
  • 1 x SDI & 1 x HDMI Outputs
  • Automatic Signal Detection
  • SDI Re-Clocking on Output
  • Monitor EDID Support
  • Display Custom Labels & Audio Metering
  • Compact Metal Housing
  • Quad Multiviewer

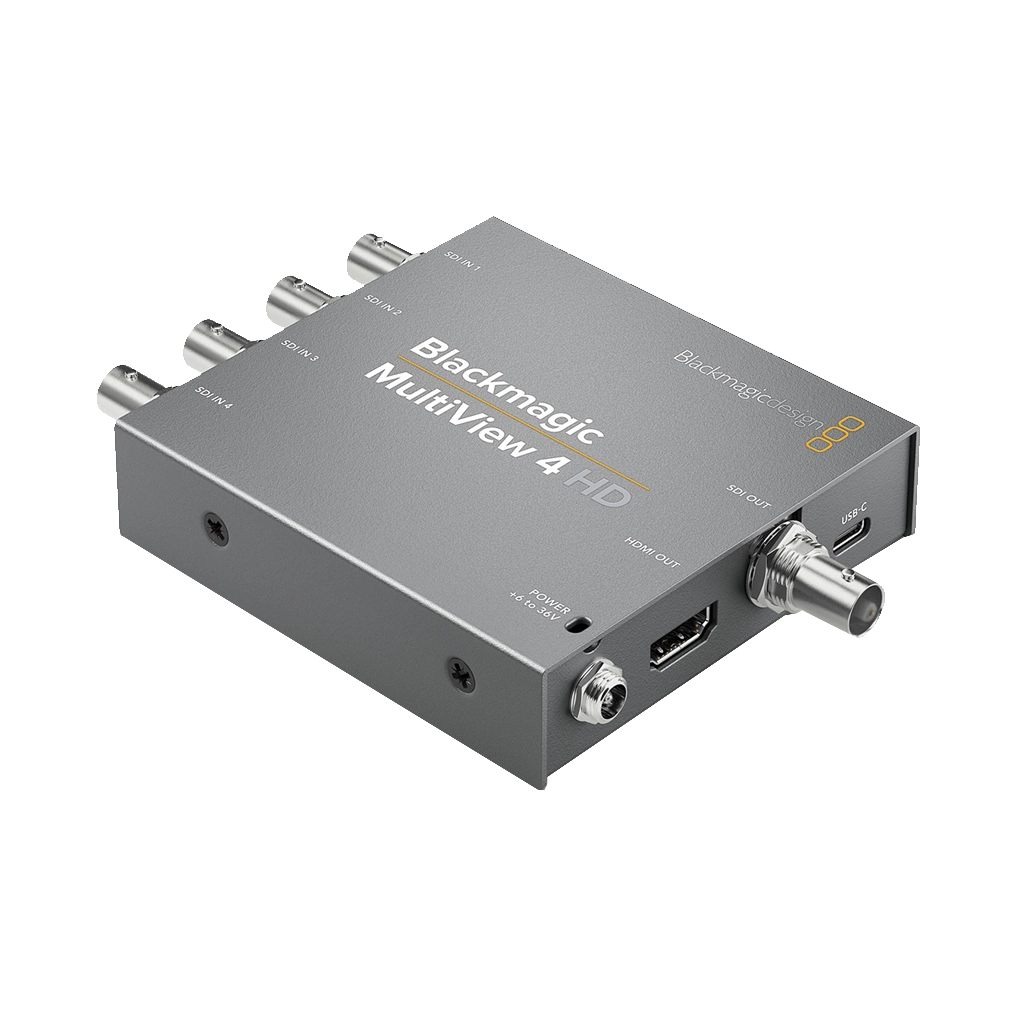

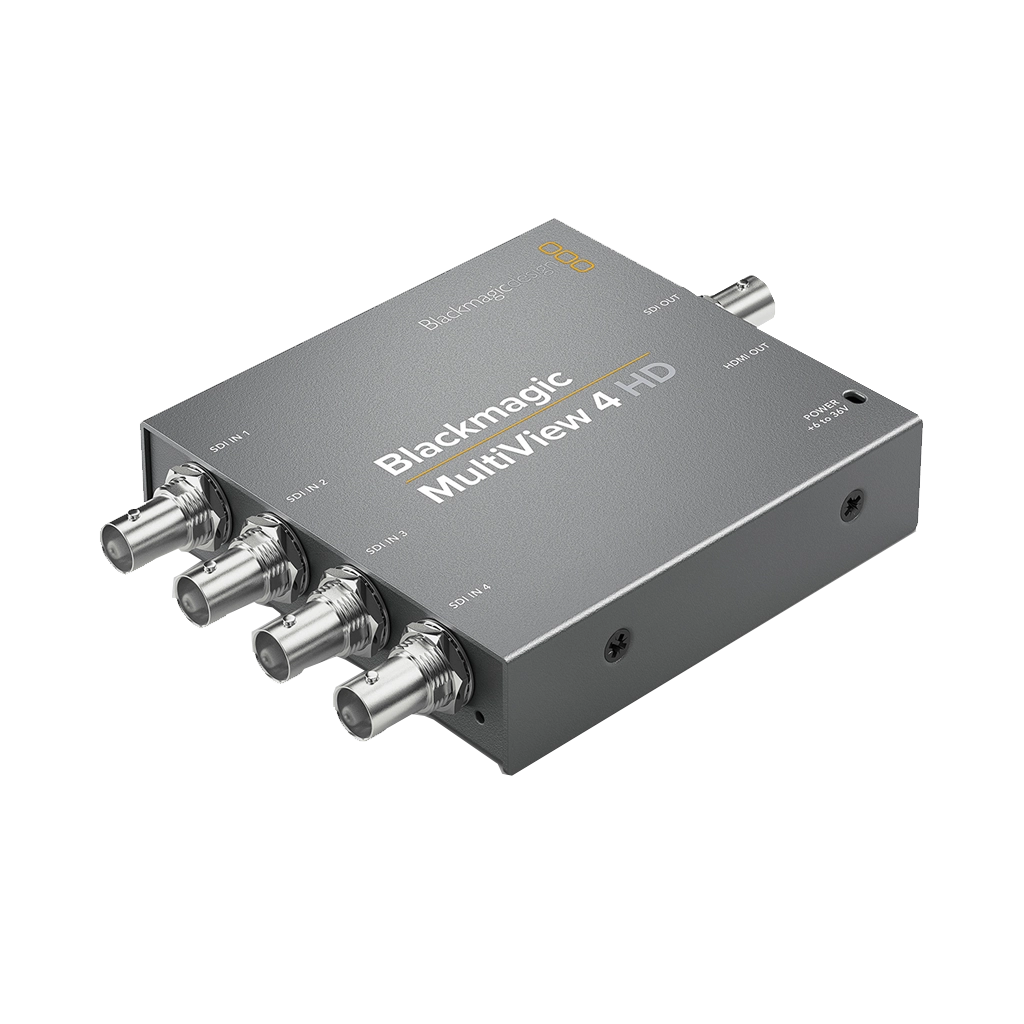

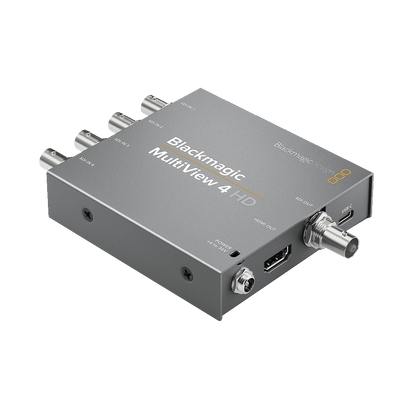

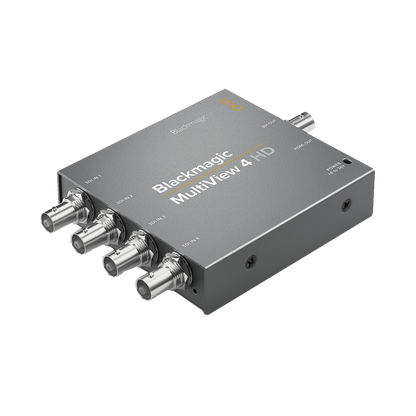

    The Blackmagic Design MultiView 4 HD mini-converter features a metal construction that's compact, it allows you to display up to four individual SDI streams through its HDMI or 10-bit SDI Multiview outputs. This converter supports the following formats - SD/HD/3G-SDI and also features automatic signal detection, monitor EDID support and SDI re-clocking.

    Features

    • Four SDI inputs output to one SDI and one HDMI multiview
    • Automatic signal detection, SDI output re-clocking
    • Monitor any combination of HD or SD formats, and frame rates
    • Display custom labels, audio metering, and more on each view

    • Blackmagic Design MultiView 4 HD
    • 12V Universal Power Supply
    • International Socket Adapters

    Connections
    InputsSD/HD/3G-SDI: 4 x BNC
    OutputsSD/HD/3G-SDI: 1 x BNC, 10-bit HDMI: 1 x Type A
    Standards
    Supported Video Standards2K DCI:
    1080p: 25/24/23.98

    HD:
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50

    NTSC SD:
    525i: 59.94
    PAL SD:
    625i: 50
    SDI ComplianceSMPTE 425M-B/310M/296M/292M/259M
    ITU-R BT.656/BT.601
    SDI Color Precision10-bit 4:4:4, 4:2:2
    SDI Color SpaceInputs: YUV, RGB
    Output: YUV
    SDI Video Sampling4:4:4, 4:2:2
    SDI Audio Sampling24-bit, 48 kHz
    SDI Metadata SupportSMPTE 352M
    Operating System Support
    Compatible Operating SystemsMacOS 10.12 Sierra
    MacOS 10.13 High Sierra, or later
    Windows 8.1, or 10
    Power
    Power Consumption5.5 W
    Operational Voltage Range6 to 36 VDC
    Physical and Environmental
    Operating Temperature32 to 104°F / 0 to 40°C
    Storage Temperature-4 to 113°F / -20 to 45°C
    Relative Humidity (non-condensing)0 to 90%
    Dimensions3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm
    Weight0.24 kg
