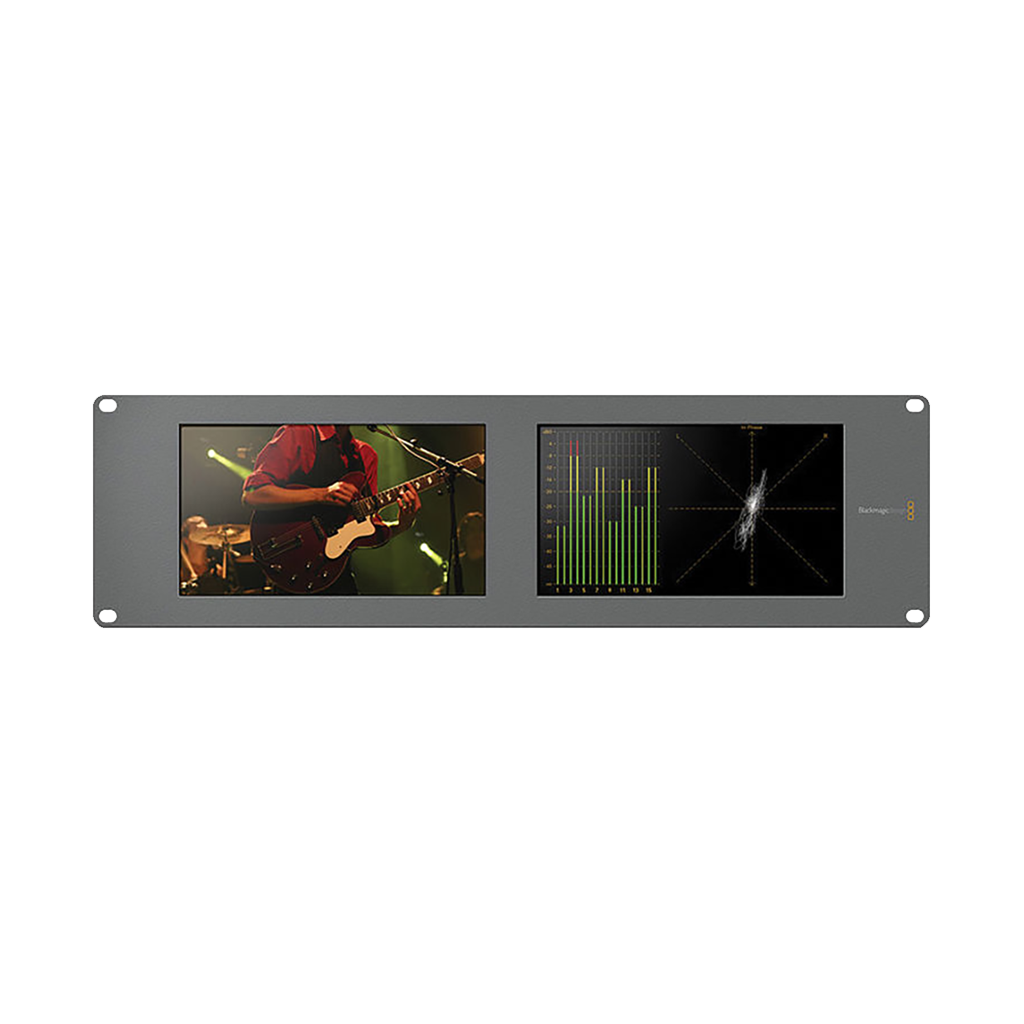

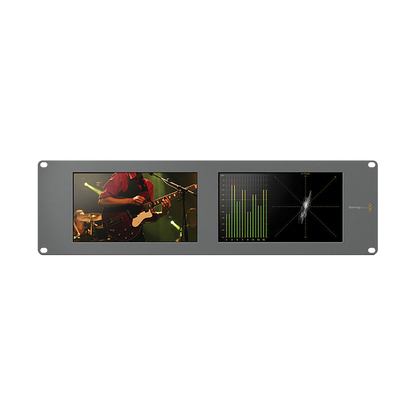

The Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors can be used on location, or in studio as a monitoring solution with video resolutions of up to 3840 x 2160 at 30p. Featuring two loop-through SDI inputs and output and a screen size of 8". All inputs are auto-selecting, which means you do not need to select the input format. You can choose to select to display either the input video or one of six scope displays, while the input video passes through the monitor to downstream devices.

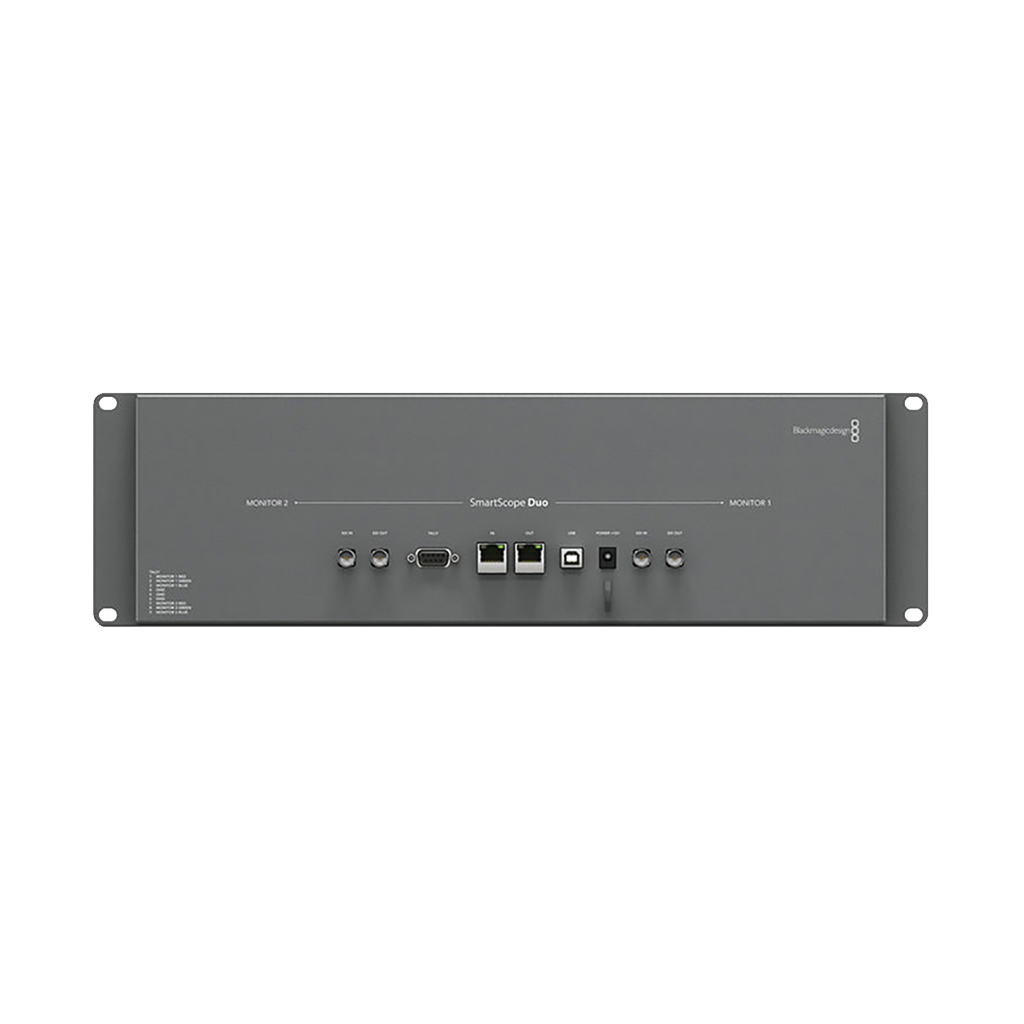

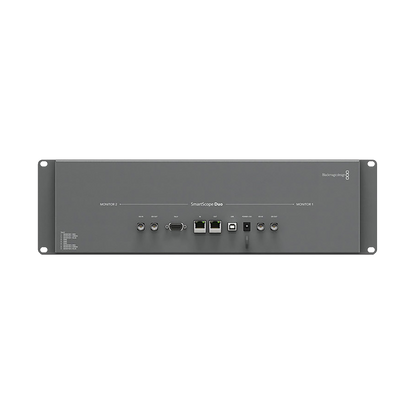

The USB connector can be used to initialise the monitor on your network, thereafter you can control the monitors using the supplied software via the Ethernet connector. The industry standard Tally system is also included in the Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors where the image features a red border when live. Your image is automatically flipped if the SmartScope is mounted upside down.
Note: SmartScope Duo v1 and v2 are functionally identical, with v2 containing a slightly different internal component set.
Monitors SD/HD/3G/6G-SDI Signals
The Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors allow you to monitor SD, HD, 2K, and UHD 4K (3840 x 2160) video.
All inputs are auto-selecting, which means you do not need to select the input format.
Video or Scope View
You can select from either the video feed or one of six scope views of the video signal:
- Waveform: Displays the luminance component of the video signal on an IRE scale.
- Vectorscope: Allows you to accurately measure colours in the video signal, and is a valuable tool when matching cameras, or when you need to align the hue on the output of decks.
- Parade: You can choose to display either RGB or YUV Parade. RGB Parade lets you check for illegal colours, plotting them against an IRE Scale. The YUV Parade display shows the YUV component video as it is transmitted down the SDI cable.
- Audio Views: allows you to monitor 16 channels of audio, checking the levels and the audio phase. You can monitor the levels of all 16 channels at the same time, or monitor the stereo phase of SDI audio pairs. The stereo phase meter plots left and right audio as an XY scope display and out-of-phase audio can be seen as either a left or right-leaning display.
- Histogram: The Histogram view lets you see where the pixels are in your video, and how they are distributed from black to white. You can see where the overall exposure is, and if you are exposing the brighter areas of your image with enough detail.
Software Control
Tally
Each monitor on the SmartScope Duo supports the Tally protocol where different coloured borders are displayed (preview, on air, recording). The Tally connector is compatible with all Blackmagic Switchers and automation systems.
Reversible
The Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors may be installed at the extreme top or bottom of equipment racks. The monitor will automatically flip the image to the orientation the monitor is mounted in.
- Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors
- 12V Universal Power Supply
- Set of International Wall Socket Adapters
