Blackmagic Design

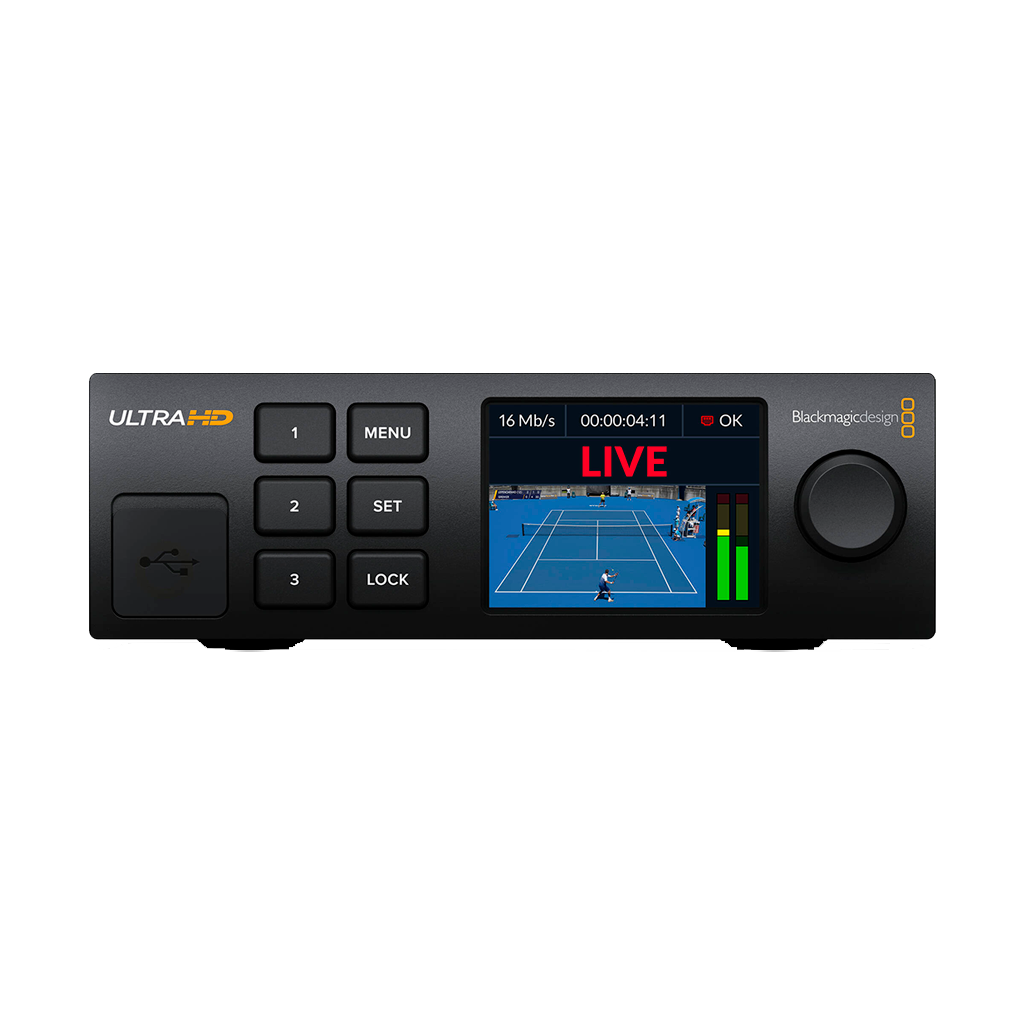

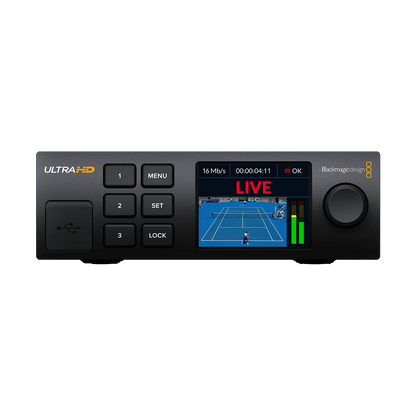

Blackmagic Design Streaming Decoder 4K

Regular price R 14,595.00
Sale price R 14,595.00 Regular price R 14,595.00
Tax included. Shipping calculated at checkout.

BLA-BDLKWEB/J/DES4K

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Decodes H.264 and H.265 to SDI and HDMI
  • Camera Control, Talkback and Tally Support
  • USB-C Ports for Phone Tethering
  • Tethers to 4G and 5G Phones for Streaming
  • Blackmagic Streaming Utility Software

Payment methods

    The Blackmagic Design Streaming Decoder 4K converts an H.264 or H.265 stream from the Streaming Encoder into SDI or HDMI video. A wide range of Blackmagic Design cameras comes equipped with built-in streaming capabilities that allow for point-to-point transmission between remote locations. These include the Blackmagic Studio Camera Pro, PYXIS, URSA Cine, and URSA Broadcast G2.

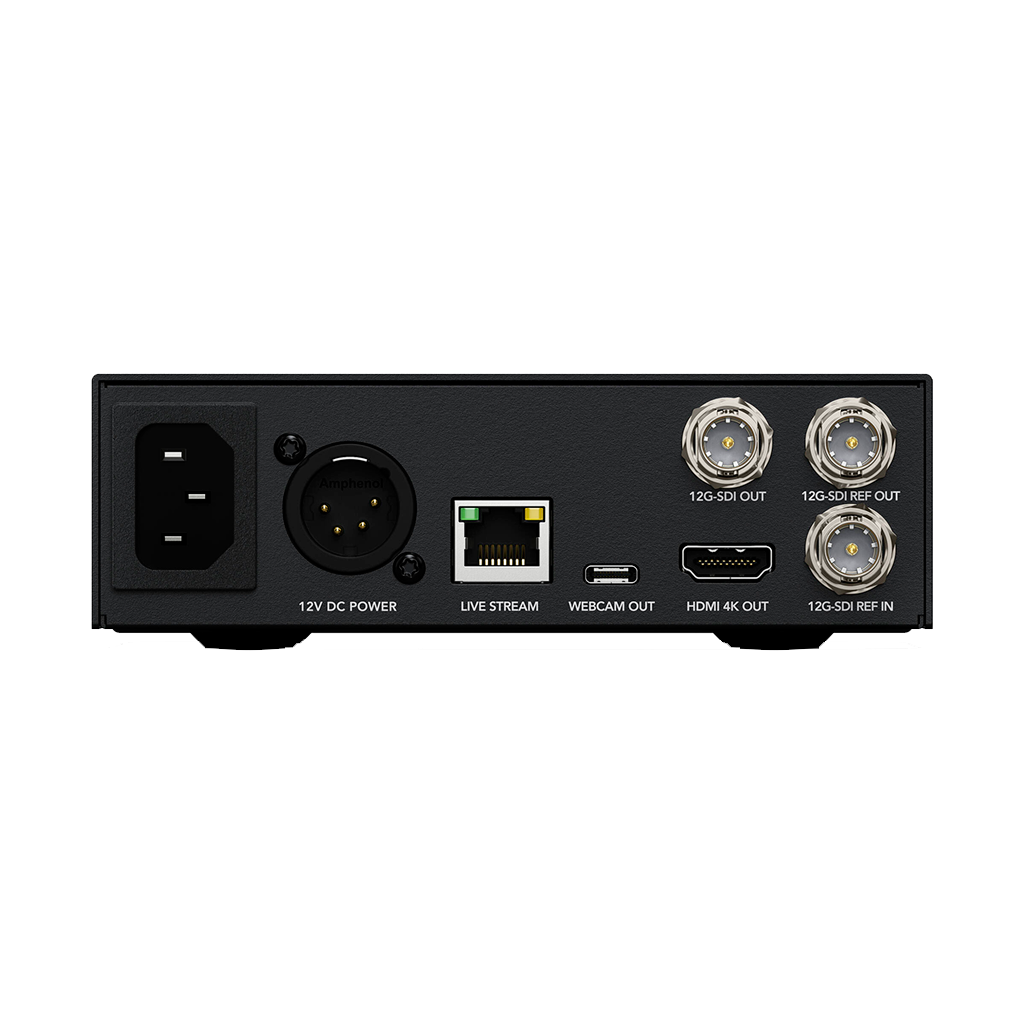

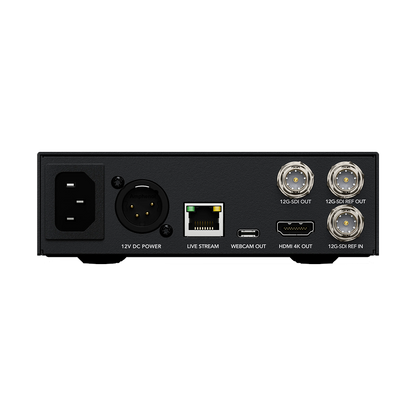

    On the front as well as the rear of the Blackmagic Design Streaming Decoder 4K, you will find USB-C connectivity that allows for tethering high-speed 5G and 4G mobile phones. Should the internet connection fail, the decoder will automatically switch to the mobile data connection, though you are able to select preferences depending on specific needs.

    Blackmagic Design Streaming Decoder 4K

    IP Encoding/Decoding
    IP Video
    H.264/H.265:
    4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Decoding
    Transport Protocols
    RTMP, SRT
    Wireless
    Wireless
    No
    Wi-Fi
    No
    Bluetooth
    No
    Cellular Support
    5G NR / 4G LTE via Unspecified SIM Type
    SIM Card Slots
    Not Specified by Manufacturer
    Interfaces
    Video I/O
    1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input
    2x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output
    1x HDMI (HDMI 2.0) Output
    Other I/O
    1x RJ45 Fast Ethernet Input/Output
    Embedded Audio
    SDI Input: 16-Channel
    SDI Output: 16-Channel
    SDI Output: 2-Channel
    HDMI Output: 8-Channel
    LAN (RJ45)/USB
    Power
    Power I/O
    1x IEC C14 Input
    1x Mini-XLR 4-Pin (12 VDC) Input
    General
    Operating Conditions
    0 to 40°C at 0 to 90% Humidity
    Storage Conditions
    -20 to 45°C at 0 to 90% Humidity
    Display
    LCD
    Rackmount Size
    1 U
    Dimensions
    17.5 x 14 x 4.45 cm
    Weight
    753 g
