BlackMagic Design Studio Converter
Choose PayGate at checkout for MobiCred Payments.
- Compatible with Studio Camera 4K Pro
- 10G Ethernet Support
- Connect all camera signals using one Ethernet IP link connection
- Built in Mono Speaker
Orms Bellville
Orms Cape Town
BlackMagic Design Studio Converter
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Compatible with Studio Camera 4K Pro
- 10G Ethernet Support
- Connect all camera signals using one Ethernet IP link connection
- Built in Mono Speaker
Choose PayGate at checkout for MobiCred Payments.
- Compatible with Studio Camera 4K Pro
- 10G Ethernet Support
- Connect all camera signals using one Ethernet IP link connection
- Built in Mono Speaker

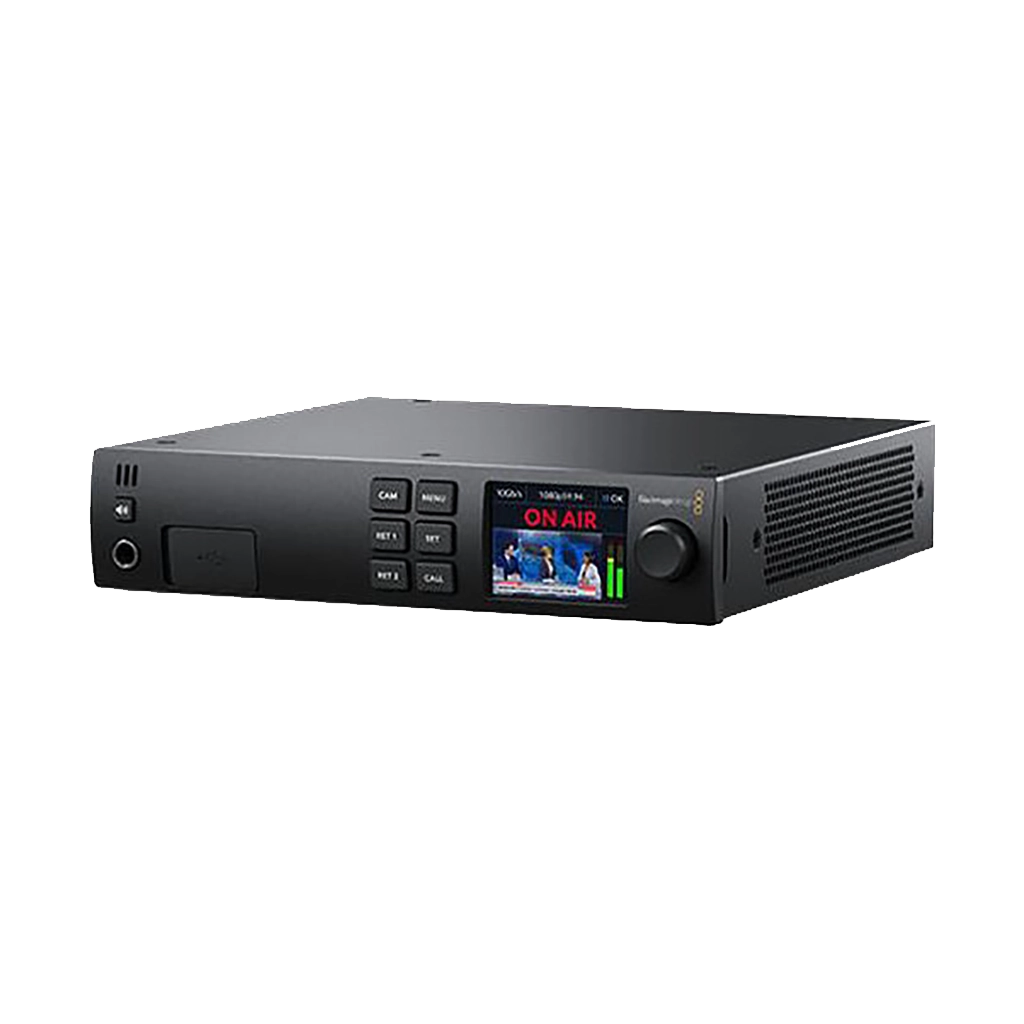

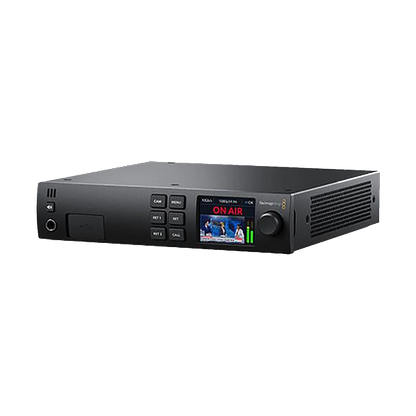

The 19G Ethernet BlackMagic Design Studio Converter is designed to connect all BlackMagic Studio 4K Pro Cameras together using one Ethernet IP link connection. Using the Studio Converter camera feed, return program feed, timecode, reference, tally, talkback control are sent down one single cable.
The BlackMagic Design Studio Converter allows breakout of all the video, audio, and talkback connections at studio end. There is also no need for a power source near the camera as this unit includes a power supply powering the camera down the Ethernet cable.
- The BlackMagic Studio Converter is compatible with Studio Camera 4K Pro Camera
- Equipped with 10G Ethernet Support
- Connect all camera signals using one Ethernet IP link connection
- The BlackMagic Design Studio Converter has built in Mono Speaker
- Accessory Type: Video Format Converter Audio Interface, Video Format Converter I/O Module
- Converts From: SDI
- Converts To: SDI
BlackMagic Studio Converter

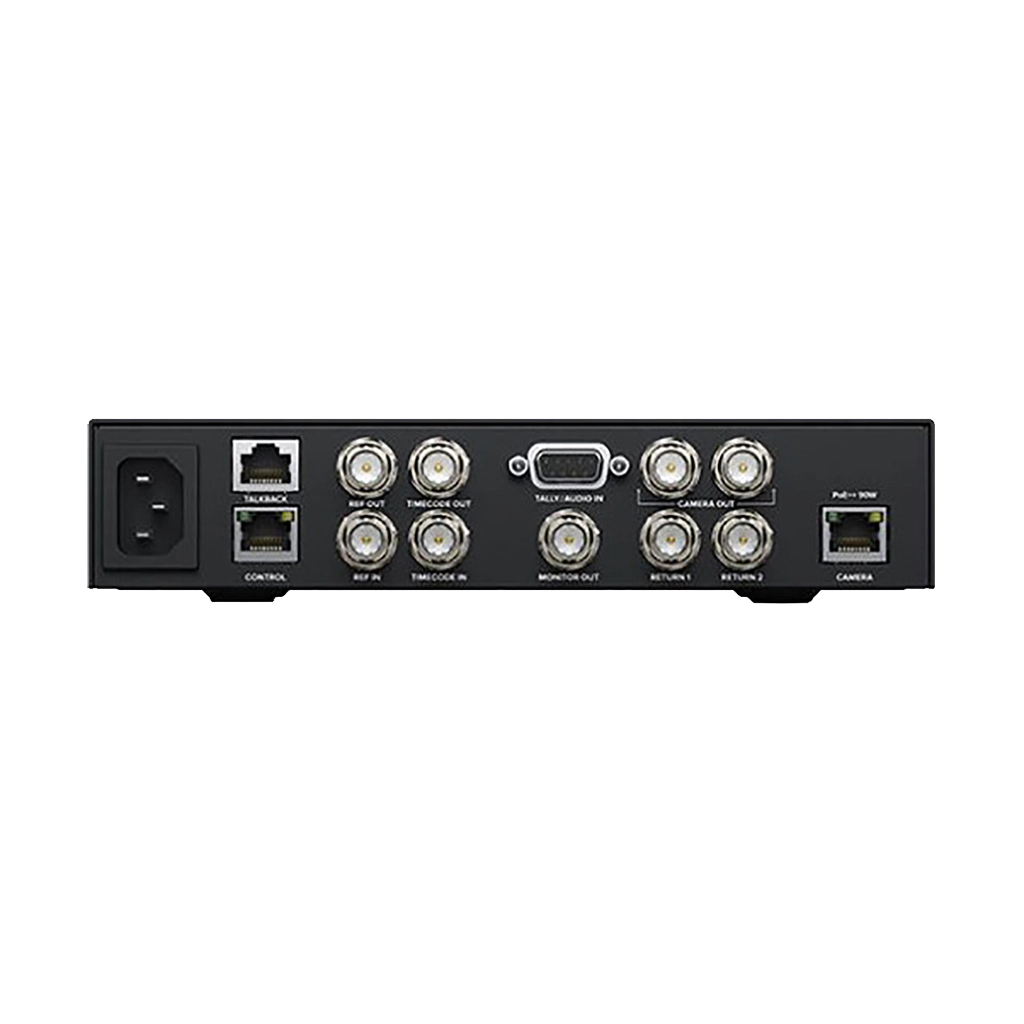

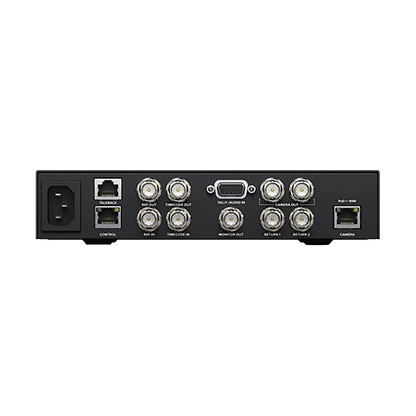

Connections
SDI Video Inputs | 2 x |
SDI Video Outputs | 2 x |
SDI Monitor Outputs | 1 x |
SDI Rates | 1.5G, 3G, 6G, 12G |
Built in Speaker | Mono |
Analog Audio Inputs | 2 channel analog Program audio in supported via 9-pin connector |
Analog Audio Outputs | 1x 6.35mm headphone jack |
SDI Audio Input | Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI 4 talkback channels on 13, 14, 15 and 16 Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI |
SDI Audio Output | 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI 4 talkback channels on 13, 14, 15 and 16 |
Timecode Connections | 1x BNC In, 1x BNC Out |
Reference Connections | 1x BNC In, 1x BNC Out Tri-Sync or Black Burst |
Talkback Audio | SDI channels 13 and 14 for Engineering talkback SDI channels 15 and 16 for Production talkback RJ-45 Talkback connector for analog external talkback systems |
Screen | 2.2" LCD |
Ethernet | 1x 10Gb/s PoE RJ-45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable 1x 1Gb/s for external control and software updates |
Computer Interface | 1x USB-C |
Standards
HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
SDI Compliance | SMPTE 292M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10 |
Audio Sampling | Television standard sample rate of 48kHz and 24-bit |
Video Sampling | 4:2:2 |
Color Precision | 10-Bit |
Color Space | REC 709, REC 2020 |
Multiple Rate Support | SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI |
Control
Built in Control Panel | 7 buttons with spin knob control and 2.2 inch color display for device control and menu settings |
External Control | RJ-45 1Gb/s Ethernet |
Software
Software Included | Camera Utility for firmware update |
OS
Operating Systems |
Mac 10.15 Catalina Windows 10, 64-bit |
Power Requirements
Power | 100-240V AC Input |
Power Supply | 1 x Esternal 100-240V AC 50/60Hz |
Power Usage | 40W Max plus Camera Power Usage |
Environmental
Operating Temperature | 0 Degree to 45 Degree C |
Storage Temperature | -20 Degree to 45 Degree C |
Relative Humidity | 0% to 90% non-condensing |
Physical
Dimensions | 21 x 22.6 x 4.41 cm |
Weight | 1.43 kg |
