Blackmagic Design Studio Fiber Converter (Special Order)
Choose PayGate at checkout for MobiCred Payments.
- Connects to Camera Fiber Converter
- For HD and UHD 4K Productions
- Bi-Directional SMPTE Fiber Link
- XLR Audio Breakout
- Reference and Control Connections
Orms Bellville
Orms Cape Town
Orms Somerset West
Blackmagic Design Studio Fiber Converter (Special Order)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Orms Somerset West
Shop 25, Waterstone Village Shopping Centre
Somerset West
Cape Town
Western Cape
7130
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Connects to Camera Fiber Converter
- For HD and UHD 4K Productions
- Bi-Directional SMPTE Fiber Link
- XLR Audio Breakout
- Reference and Control Connections
Choose PayGate at checkout for MobiCred Payments.
- Connects to Camera Fiber Converter
- For HD and UHD 4K Productions
- Bi-Directional SMPTE Fiber Link
- XLR Audio Breakout
- Reference and Control Connections

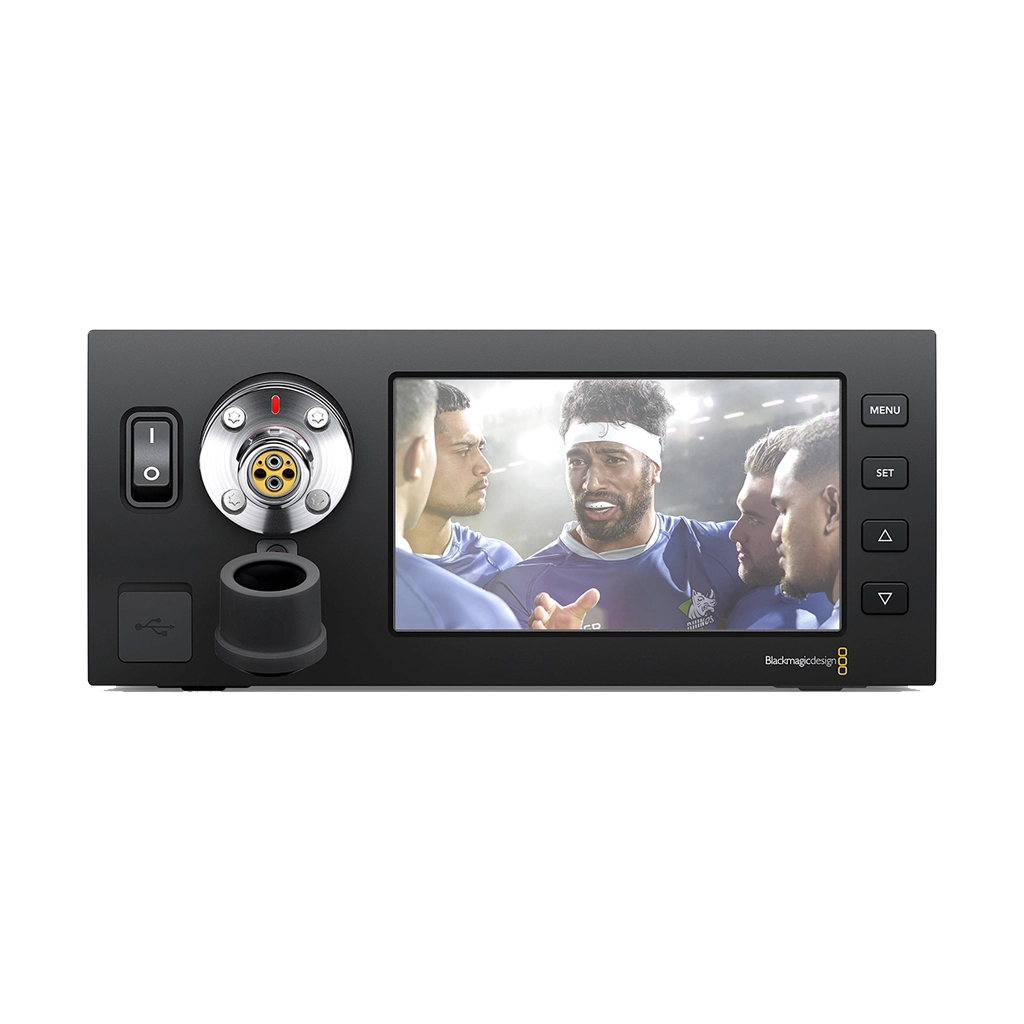

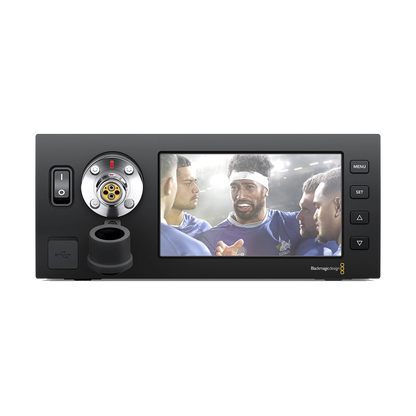

The Blackmagic Studio Fiber converter allows you to power and extend the camera up to 2km with the high capacity power supply from the production switcher with a simple SMPTE fiber optical cable which can be applied in television studios, outside broadcast vans and large venues to convert video, audio and control signals for HD and UHD 4K production. It's equipped with a main Ultra HD camera feed plus 3 independent HD return feeds with full access to remote camera control, PTZ, a tracker talkback and ethernet all thanks to the SMPTE fiber cable and a decent size 5-inch LCD screen that sits directly next to the SMPTE fibre connection on the front panel to monitor the signals from the remote camera.
- Blackmagic Design Studio Fiber Converter

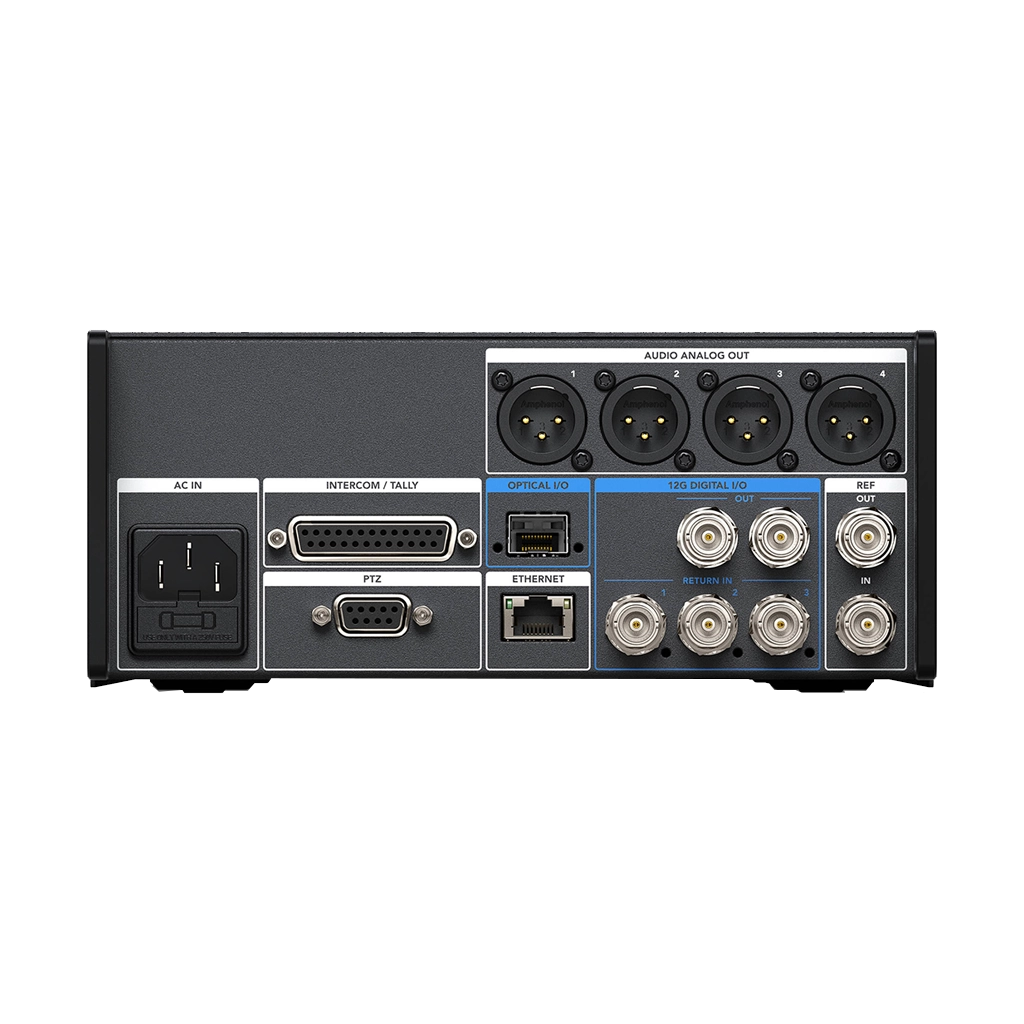

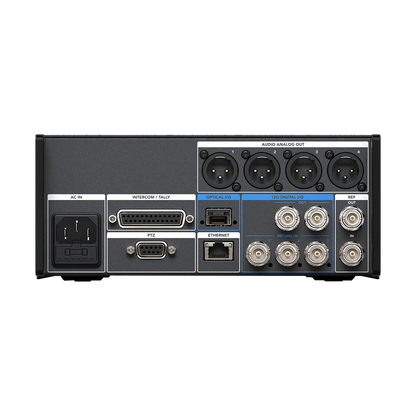

| Connections | SMPTE Optical Fiber: 1 x SMPTE 304 12G-SDI Input: 3 x BNC 12G-SDI Output: 2 x BNC Analog Audio Output: 4 x XLR Optical Fiber Output: 1 x SFP Computer: 1 x USB Type-C |
| Video Standards | 3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.9 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| SDI Standards | SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M |
| Audio Sampling | 24-bit, 48 kHz |
| Video Sampling | 4:2:2 |
| Bit Depth | 10-bit |
| Color Space | REC 709, REC 2020 |
| Power | 110 - 240 VAC |
| Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 113°F / -20 to 45°C Relative Humidity: 0-90%, non-condensing |
| Dimensions | 8.3 x 3.5 x 14.6" / 21 x 8.8 x 37.2 cm |
| Weight | 2.8 kg |
