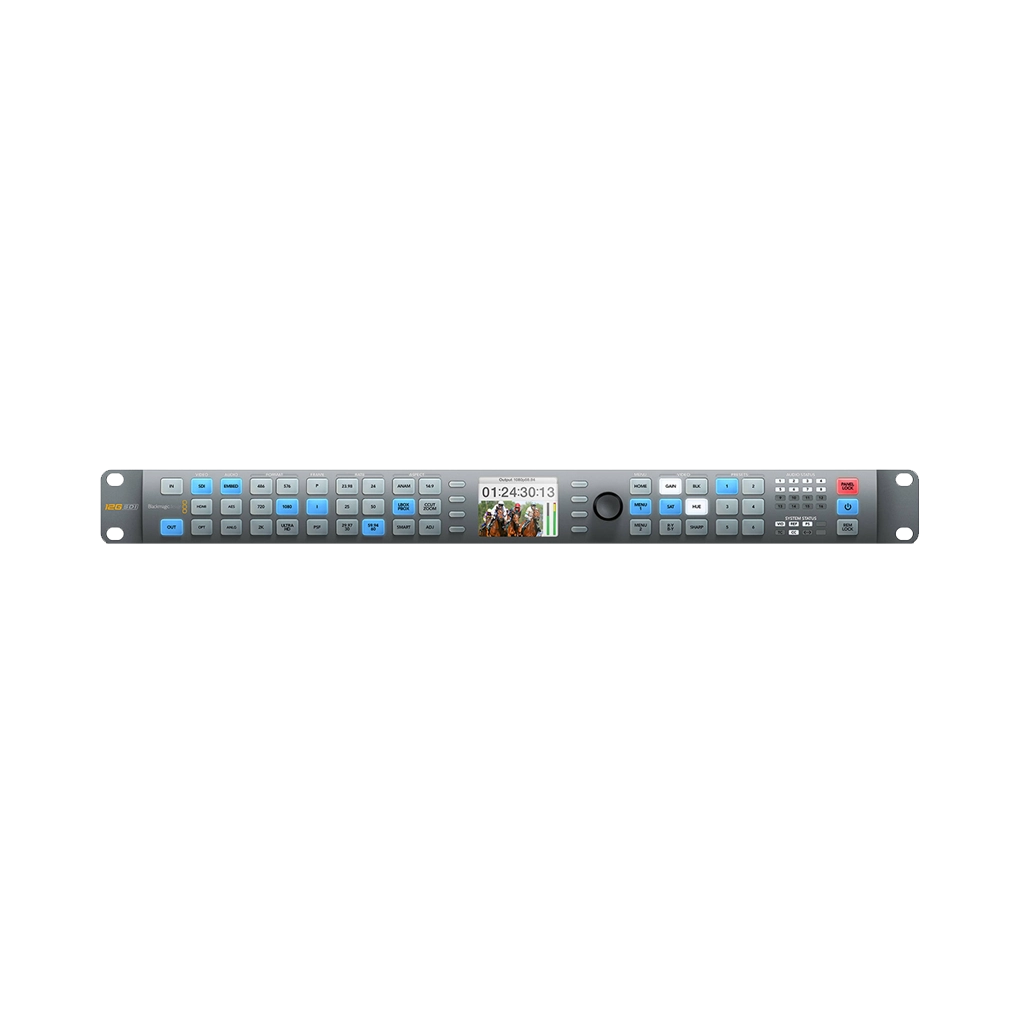

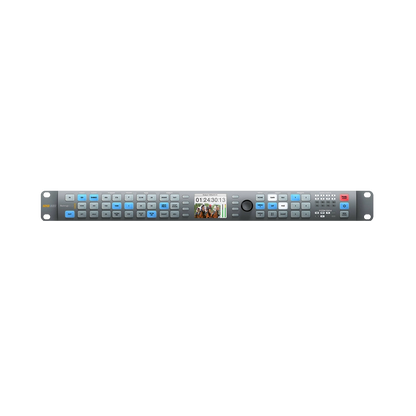

Blackmagic Design Teranex AV
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Dual SD/HD/3G/6G/12G-SDI I/O
- Quad-Link SDI Output
- HDMI 2.0 Input and Output
- Supports SD, HD, 2K, and UHD 4K
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- 24-Bit, 48 kHz Audio
- XLR Audio Inputs and RCA Audio Outputs
- Front Panel Controls
- Software Control via RJ45 Ethernet
Choose PayGate at checkout for MobiCred Payments.
- Dual SD/HD/3G/6G/12G-SDI I/O
- Quad-Link SDI Output
- HDMI 2.0 Input and Output
- Supports SD, HD, 2K, and UHD 4K
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- 24-Bit, 48 kHz Audio
- XLR Audio Inputs and RCA Audio Outputs
- Front Panel Controls
- Software Control via RJ45 Ethernet
The Blackmagic Design Teranex AV is designed to achieve extremely high-quality broadcast conversions that you can seamlessly up, down and cross convert between SD, HD and Ultra HD signals right up to 2160 at 60 fps with impressive high quality realtime conversions. Some important features of the Blackmagic Design Teranex AV include low latency and also a still store for adding logos and graphics, a live freeze frame and it can also generate a reference signal.
The Teranex AV is equipped with a professional 12G-SDI and quad SDI connections which is simultaneously used, consumer HiFi, XLR audio, HDMI in, loop and outputs and many more connections.
Low Latency for Live Conversions
The Blackmagic Design Teranex AV offers very low latency for such complex conversions which is perfect for the use of live events and productions with a low latency of 67ms. You can make use of the Teranex AV at live concerts and any other event to project live cameras onto extremely huge screens.
Still Store
The Teranex AV from Blackmagic Design is equipped with still store to capture a video frame and retain it in the memory, although the power has been switched off. You can also capture a still at any resolution in order to match with your projection or the output settings.
Freeze Frame
The freeze frame function makes things so much easier so that you can always change frames or settings while the frame is still running on screen or projector without having the audience to see the changes being made.
Teranex Quality
The Blackmagic Design Teranex AV is equipped with advanced algorithms for the processing of millions of pixels simultaneously in X/Y positions as well as between video frames in order to get the best of computer imaging power. Additionally, you’ll get full 10-bit image processing with extremely high quality de-interlacing and optical quality scaling, which means that your video is converted in real time with impressive detail, clarity and sharpness.
- Blackmagic Design Teranex AV
Inputs | 2 x BNC, SD/HD/3G/6G/12G-SDI (inputs can be separate or unified for dual-link functionality) 1 x HDMI Type A, v2.0 1 x Optical fiber (optional) 1 x Stereo RCA, analog audio 2 x XLR, balanced analog audio, AES/EBU digital audio 1 x BNC, reference 1 x USB-C 1 x RJ45, Ethernet |
Outputs | 2 x BNC, SD/HD/3G/6G/12G-SDI (outputs can be separate or unified for dual-link functionality) 4 x BNC, SD/HD/3G-SDI (quad-link 4K output or replicated SDI output option) 1 x HDMI Type A, v2.0 1 x Optical fiber (optional, not available with dual-link operation) 1 x BNC, reference output |
Format Support | 3840 x 2160 23.98/24/25/29.97/30/50/59.94/60 2048 x 1080p 23.98/24 2048 x 1080PsF 23.98/24 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080i 50/59.94/60 720p 50/59.94/60 NTSC PAL |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M |
SDI Metadata Support | VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M. |
Audio Sampling | HD: 24-bit, 48 kHz SD: 20-bit, 48 kHz |
Video Sampling | 4:2:2 |
Color Depth | 10-bit |
Color Space | REC 601, REC 709 |
Operating System Support | Mac OS X 10.10 or later Windows 8.1, 10 |
Power Input | 1 x IEC, 100-240 VAC, 50-60 Hz |
Environmental | Operating Temperature: 41 to 122°F / 5 to 50°C Storage Temperature: -4 to 113°F / -20 to 45°C Relative Humidity: 0-90%, non-condensing |
Dimensions | 19 x 1.75 x 5" / 48.3 x 4.4 x 12.7 cm |
Weight | 2 kg |
