Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
Choose PayGate at checkout for MobiCred Payments.
- Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
- Accepts Third-Party Calibration Probes
- 12G-SDI I/O / DisplayPort/USB-C D.P. Out
- 2 x Selectable, On-Screen Scopes
- Auto-Convert 2SI and Square Division
- Supports HDR Workflows
- Supports 33-Point 3D LUTs
- Front-Panel Interface, Audio Meters
- Rack-Mountable with Separate Kit
Orms Bellville
Orms Cape Town
Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
- Accepts Third-Party Calibration Probes
- 12G-SDI I/O / DisplayPort/USB-C D.P. Out
- 2 x Selectable, On-Screen Scopes
- Auto-Convert 2SI and Square Division
- Supports HDR Workflows
- Supports 33-Point 3D LUTs
- Front-Panel Interface, Audio Meters
- Rack-Mountable with Separate Kit
Choose PayGate at checkout for MobiCred Payments.
- Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
- Accepts Third-Party Calibration Probes
- 12G-SDI I/O / DisplayPort/USB-C D.P. Out
- 2 x Selectable, On-Screen Scopes
- Auto-Convert 2SI and Square Division
- Supports HDR Workflows
- Supports 33-Point 3D LUTs
- Front-Panel Interface, Audio Meters
- Rack-Mountable with Separate Kit
The Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter is designed for an advanced 8K monitoring solution. Pro monitors like the Apple 32" Display Pro Display XDR can now be used as part of your on-set or post-production monitor setup.

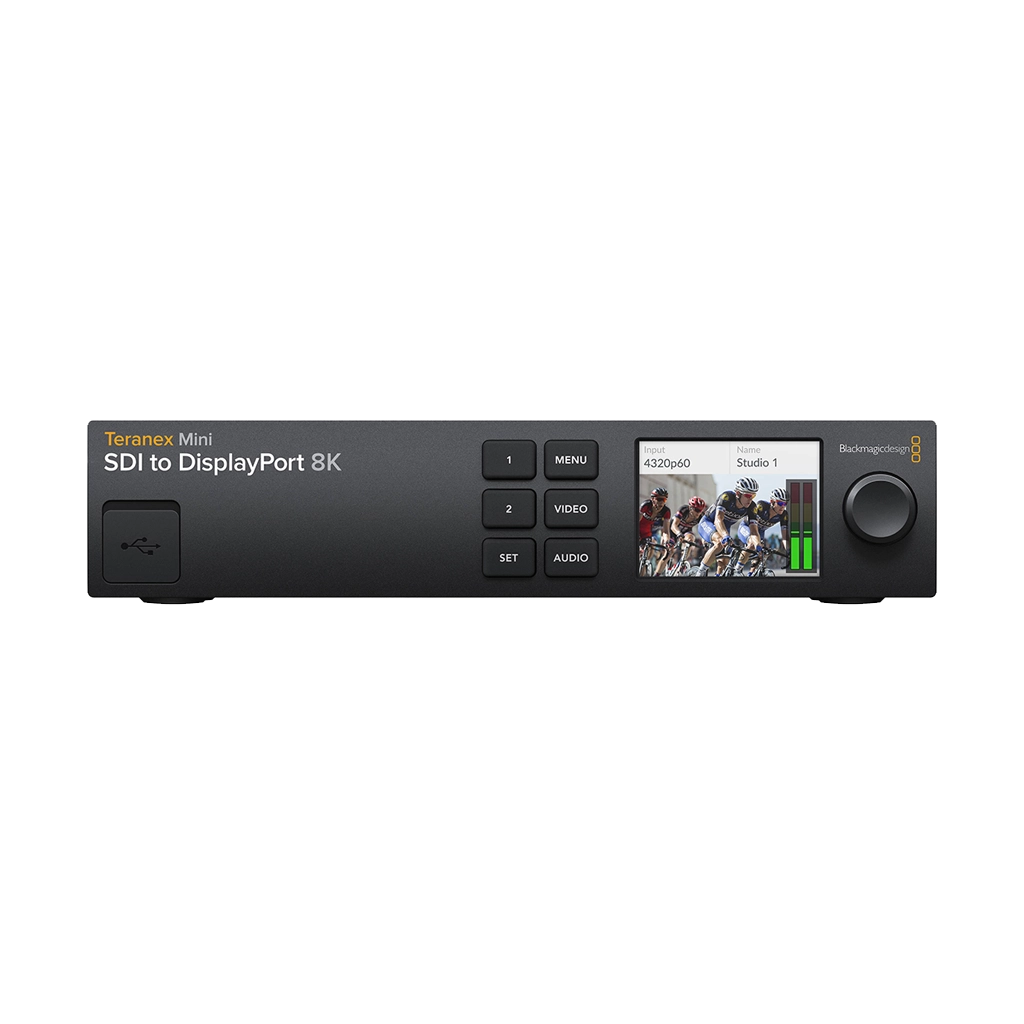

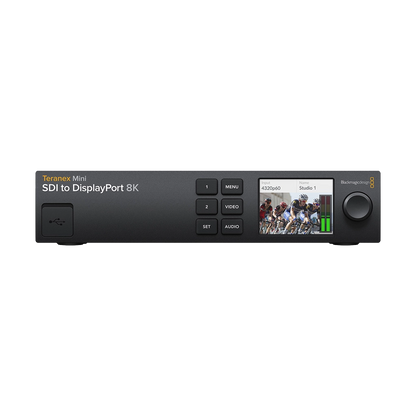

With the Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter two separate 3D LUT's can be loaded simultaneously, and one can switch between them straight from the front panel. Added to the features along with the LCD video screen on the Taranex DisplayPort Converter, six front-panel buttons, as well as a rotating selection knob, can be found for navigation.
Note:
The USB-C port is for DisplayPort over USB-C. Note that this requires a certified DisplayPort over USB-C cable, which is different from a generic USB-C cable or a Thunderbolt cable.
- The Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter converts SDI sources to DisplayPort while supporting up to DCI 8K60 input.
- Four 12G-SDI inputs supports 4K signals independently or 8K input signal together.

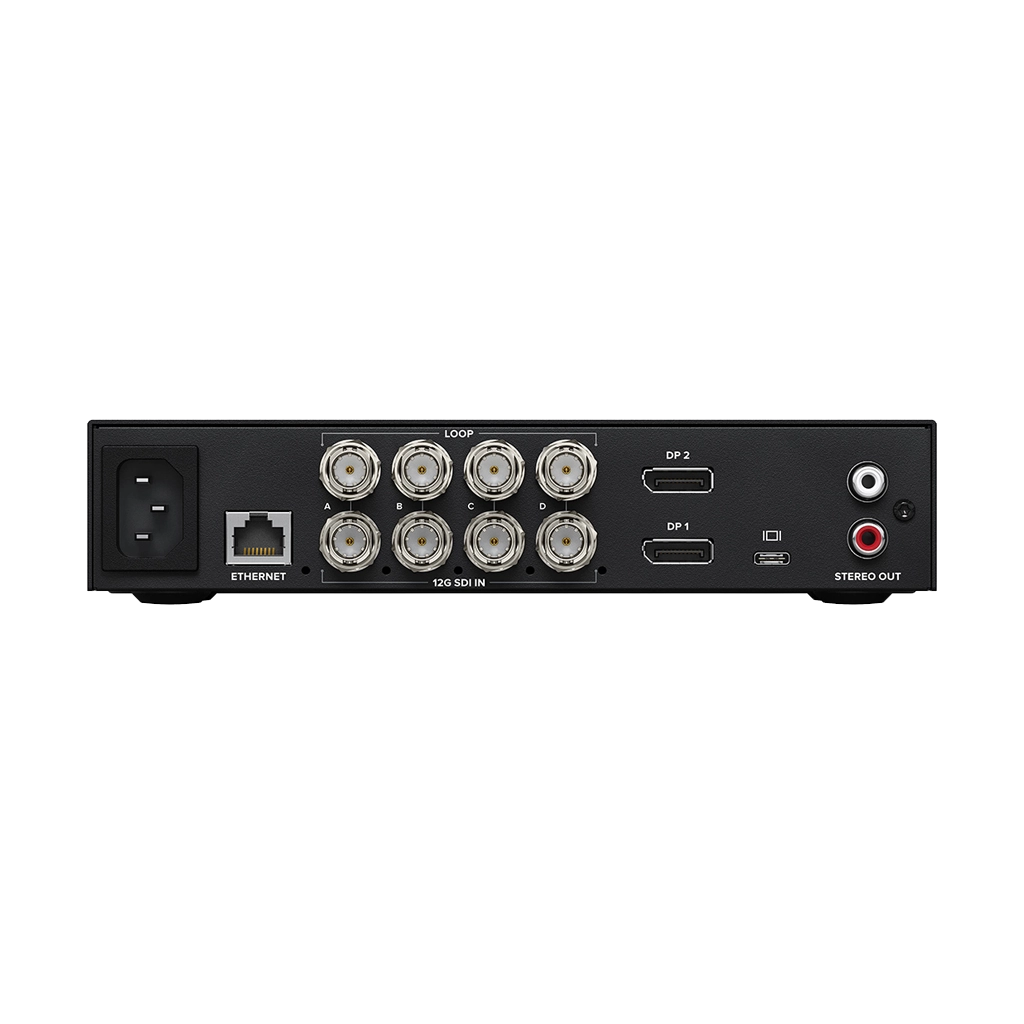

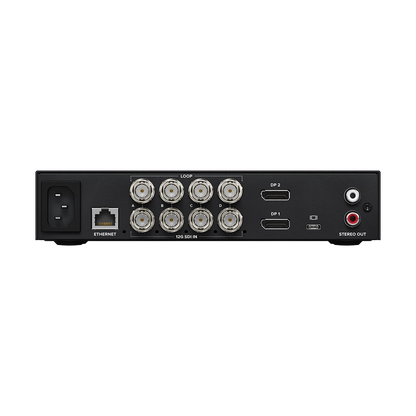

- This unit features Quad-link 12G-SDI output, two full-sized DisplayPort outputs as well as one USB-C DisplayPort output.
- Compatible with a wide variety of pro monitors such as the Apple 32" Pro Display XDR.
- On connected displays third party calibration probes can be used like the SpectraCal C6, X-Rite i1 Display Pro, and the Klein K10-A for accurate alignment.
- Overlay two live scopes on the monitor.
- The Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter supports SDR and both HLG or PQ HDR via the SDI and DisplayPort outputs.
- Supports 3D, 10-bit LUT with two front-panel control buttons.
- BlackMagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
- 4 x Rubber Foot
Input
Video Input Connectors | 4 x BNC (12G-SDI) |
Input Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps |
Audio Input Connectors | None |
Embedded Audio Input | SDI: 16-Channel (per Input) |
Output
Video Output Connectors | 4 x BNC (12G-SDI) (Loop Output) 2 x DisplayPort (DisplayPort 1.4) 1 x USB Type-C (DisplayPort 1.4) |
Output Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K: 25/29.97/30/47.95/48/50/59.94/60 fps 8K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF: 23.98/24/25/29.97/30 fps 1080p: 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps |
Audio Output Connectors | 2 x RCA Analog |
Output Audio Format | Analog: 48 kHz / 24-Bit |
Embedded Audio Output | SDI: 16-Channel (per Output) |
Standards
Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
Connectivity
Other I/O | 1 x RJ45 Control 1 x USB Type-C |
Hardware
Display Size | 2.2" |
OS Compatibility | Windows 10 macOS 10.14 macOS 10.1 or Later |
Power Connector | 1 x IEC C14 Input |
Power Consumption | Device: 100 to 240 VAC (35 W) |
Environmental
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 60°C |
Operating Humidity | 0 to 90% |
General
Dimensions | 21.01 x 4.39 x 17.6 cm |
Weight | 1.18 kg |
