Blackmagic Design Ultimatte Smart Remote 4 (Special Order)
Choose PayGate at checkout for MobiCred Payments.
- Controls up to 8 Ultimatte Units
- Capacitive Touchscreen LCD
- Rotary Encoders
- User-Friendly Interface
- On Line and On Air Indicators per Unit
Orms Bellville
Orms Cape Town
Blackmagic Design Ultimatte Smart Remote 4 (Special Order)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Controls up to 8 Ultimatte Units
- Capacitive Touchscreen LCD
- Rotary Encoders
- User-Friendly Interface
- On Line and On Air Indicators per Unit
Choose PayGate at checkout for MobiCred Payments.
- Controls up to 8 Ultimatte Units
- Capacitive Touchscreen LCD
- Rotary Encoders
- User-Friendly Interface
- On Line and On Air Indicators per Unit

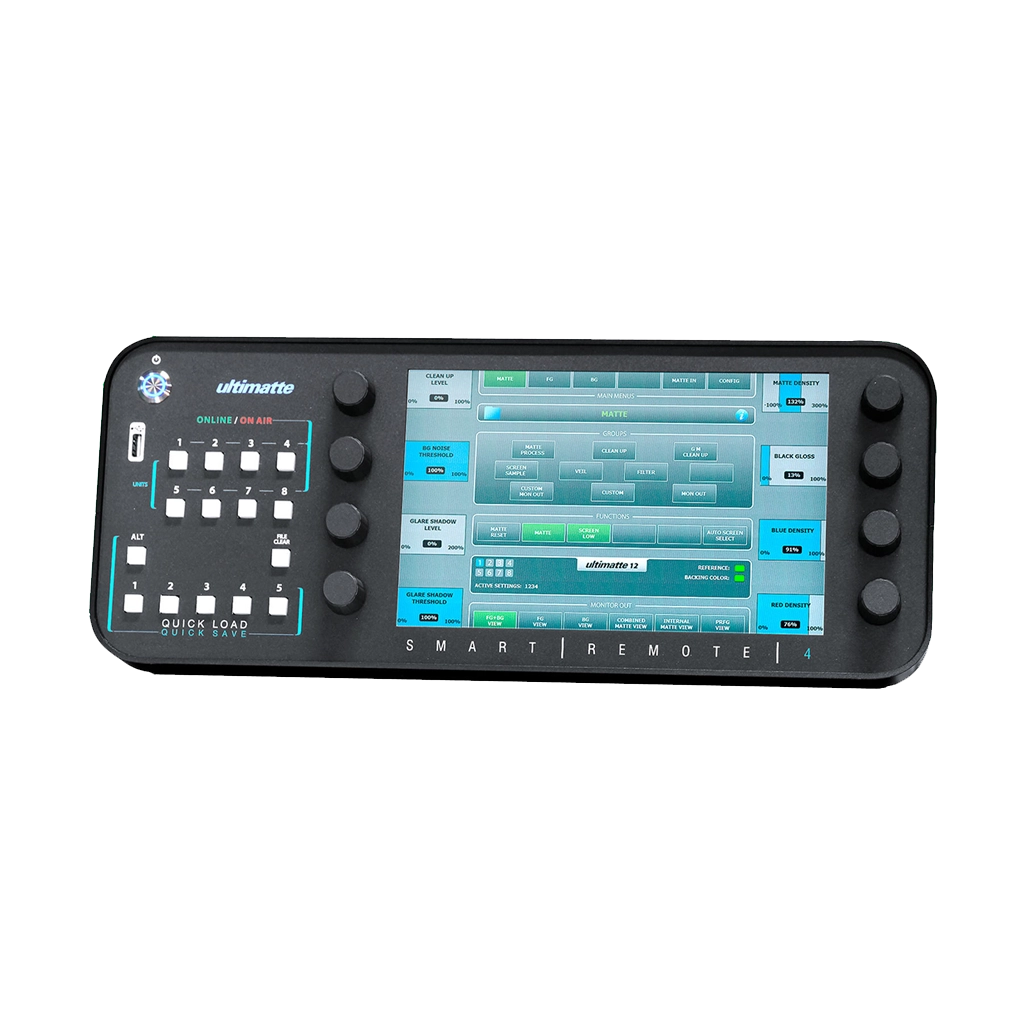

The advanced Blackmagic Design Ultimatte Smart Remote 4 features a touchscreen that has been designed to give you all the power of controlling up to 8 Ultimatte 12 Processor units by a simple ethernet connection. All units can be daisy chained while being connected to the same Smart Remote so that you don't have to worry about connecting a hub or video router. The Blackmagic Design Ultimatte Smart Remote 4 includes physical buttons and knobs so that you can switch and control any of the connected Ultimatte 12 Processors, as well as buttons for loading and saving presets.
Additionally, you can even Telnet into the Blackmagic Design Ultimatte 12 over your network in order for you to develop and test custom control solutions.
- Capacitive touchscreen LCD screen
- Eight optical encoder knobs and unit selection buttons
- On Line and On Air indicators for each unit
- Five quick-save and quick-load buttons
- Blackmagic Design Ultimatte Smart Remote 4
- SD card contains software and manual
- Rack mount ears
Connections | |
Software Updates | 2 x USB 2.0 and 1 x USB 3.0 for firmware updates. |
SVGA Output | SVGA output allows for graphics to be viewed on an external VGA monitor. |
Ethernet | 2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12. |
RS-422 | 2 x for controlling Ultimatte 11. |
Product Specifics | |
Rotary Knobs | 8 x rotary knobs for adjusting parameters. |
Unit ID Buttons | 8 x buttons. Illuminated blue for active. |
Unit ID LED Indicators | Illuminated green for on line and red for on air. |
Alt + Quick Load/Save Buttons | Alt button plus 5 buttons for saving files into volatile RAM. |
Quick Load/Save Buttons | 5 x buttons for loading files stored in volatile RAM. |
File Clear Button | 1 x button for One Touch Keying. |
Alt + File Clear | Alt button plus file clear button for One Touch Keying using some user defined presets. |
Customizable Menus | 4 x menus for building your own menu with your most used controls. |
LED Control | User adjustable brightness control for LEDs. |
Fan Speed Control | User adjustable. |
Software | |
Software Updates | Software updates via USB to load Smart Remote utility. |
Control | |
Touchscreen | 10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus. |
Operationg Systems | Windows 10, 64-bit. |
Environmental Specifications | |
Operating Temperature | 0° to 35°C (32° to 95°F) |
Storage Temperature | -20° to 60° C (-4° to 140° F) |
Relative Humidity | 0% to 90% non-condensing. |
