Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit
Choose PayGate at checkout for MobiCred Payments.
- 12G-SDI & HDMI 2.0 Input/Output
- 1 x 40 Gb/s Thunderbolt 3 Interface
- 3" LCD Status/Preview Screen
- DCI 4K60 4:2:2 Single-Link 12G-SDI I/O
Orms Bellville
Orms Cape Town
Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 12G-SDI & HDMI 2.0 Input/Output
- 1 x 40 Gb/s Thunderbolt 3 Interface
- 3" LCD Status/Preview Screen
- DCI 4K60 4:2:2 Single-Link 12G-SDI I/O
Choose PayGate at checkout for MobiCred Payments.
- 12G-SDI & HDMI 2.0 Input/Output
- 1 x 40 Gb/s Thunderbolt 3 Interface
- 3" LCD Status/Preview Screen
- DCI 4K60 4:2:2 Single-Link 12G-SDI I/O
The Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit is a compact and portable Thunderbolt 3 capture and playback system, thats packed with cutting-edge broadcast technology.
Powered into this feature-packed system includes 12G-SDI, HDMI 2.0 and analog connections; broadcast quality 8 and 10-bit high dynamic range capture in all formats up to 4K DCI @ 60p 4:2:2, and 12-bit high dynamic range capture in all formats up to 4K DCI @ 30p. The compact design incorporates push button controls, and an LCD for monitoring purposes on the front panel, as well an XLR microphone input and 1/4" headphone jack, and a 16-channel SDI and 8-channel HDMI embedded input and output. Additionally, the UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit from Blackmagic Design also supports both compressed and uncompressed video, which is compatible for Windows, Mac and Linux, and supports most popular codecs, and supports 3D capture and playback via HDMI, including 3D SDI playback with rates up to DCI 4K30.
Thunderbolt 3 Connectivity
Lightning-fast Thunderbolt 3 connection with trickle-charging for a connected laptop
Supports up to DCI 4K60 Video
8/10/12-bit HDR capture and playback with multi-rate support from SD to DCI 4K60
Compact Design

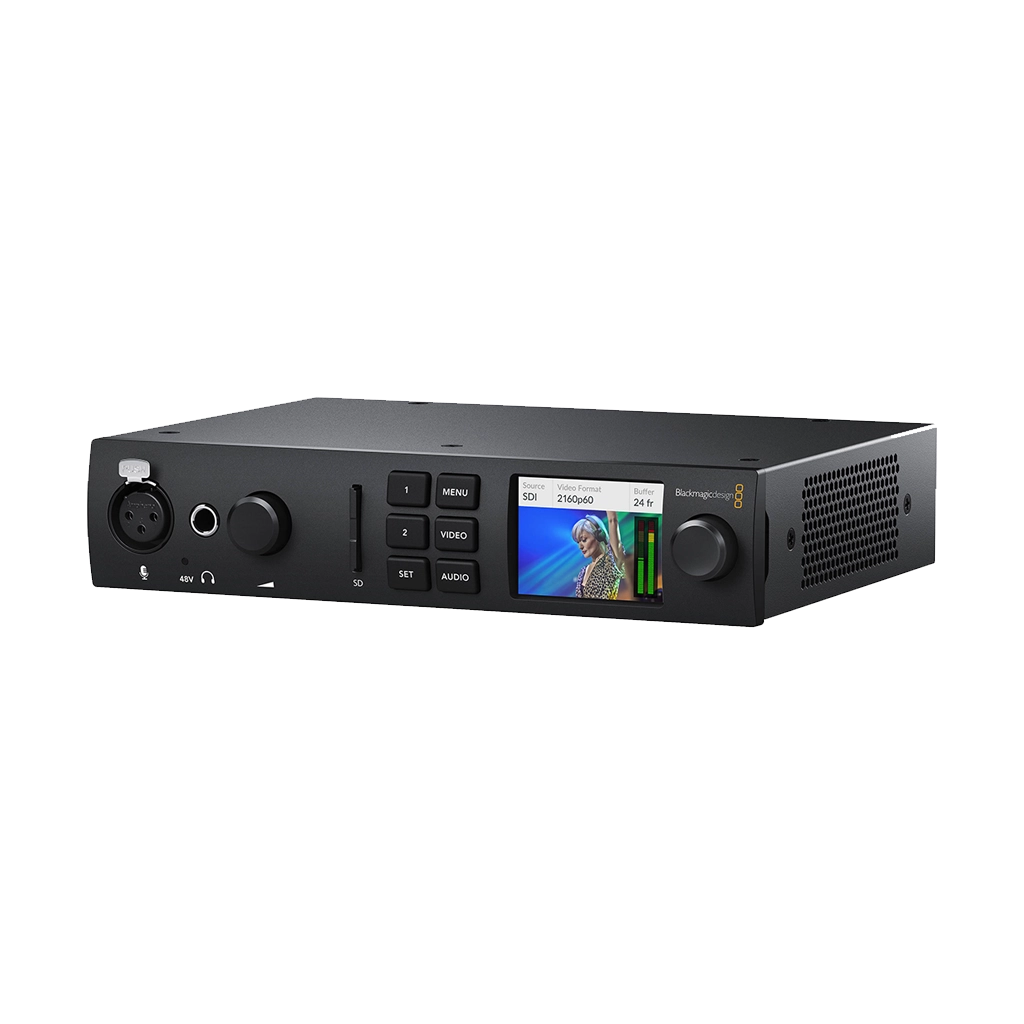

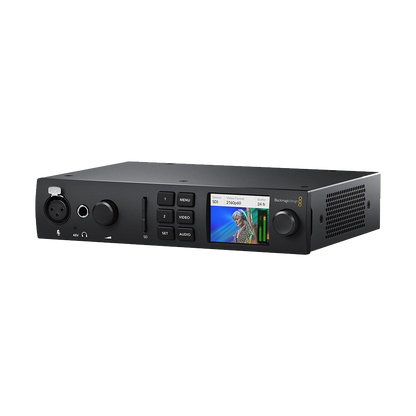

Portable design with front-panel control buttons, LCD with video, audio and status information, XLR mic input, and an SD card slot
Supported Software
- DaVinci Resolve
- Adobe Premiere Pro CC, After Effects CC, Photoshop CC
- Avid Media Composer, Pro Tools
- Final Cut Pro X
- Fusion
- Steinberg Cubase, Nuendo
System Requirements
- Mac 10.13 High Sierra, 10.14 Mojave, or later
- Windows 7, 8.1, and 10, all 64-bit
- Linux
Included Software
See the Includes section for a list of the Mac, Linux, and Windows software on the included SD card
Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit

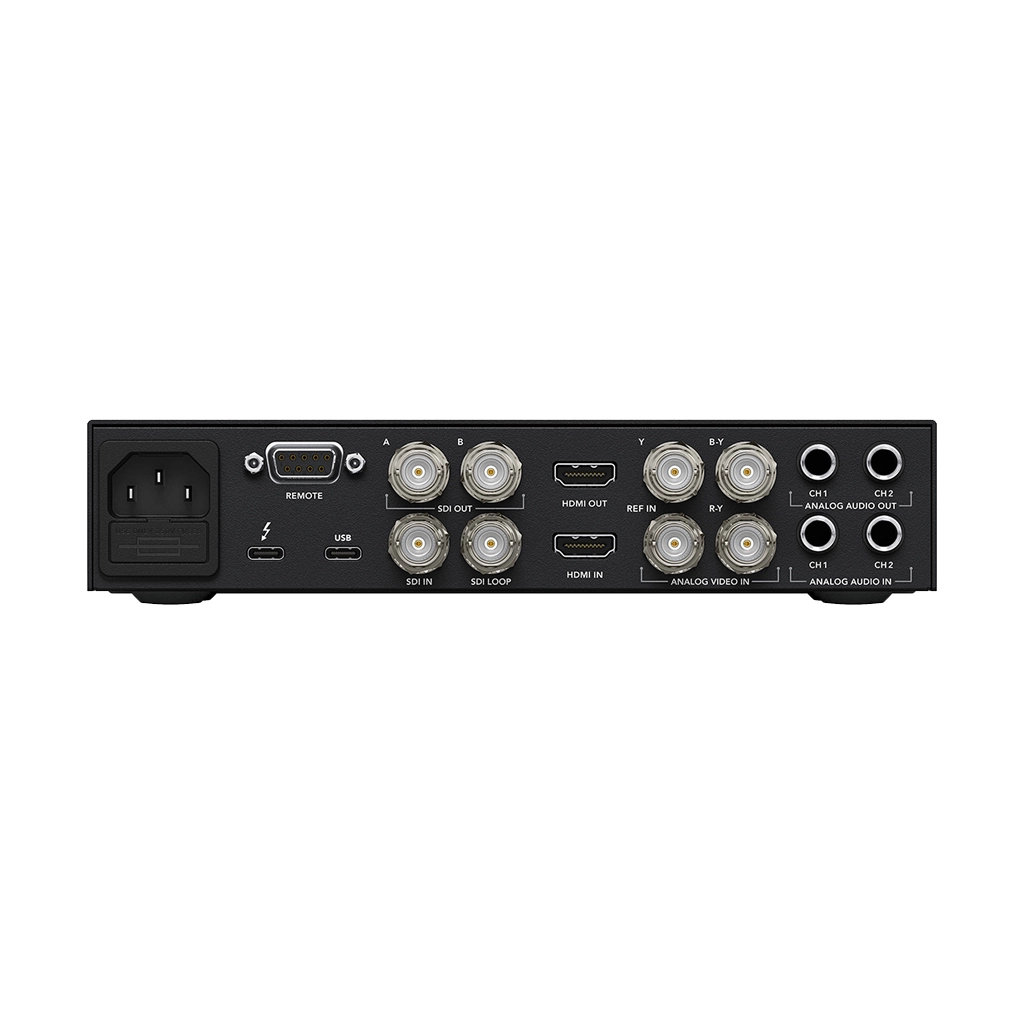

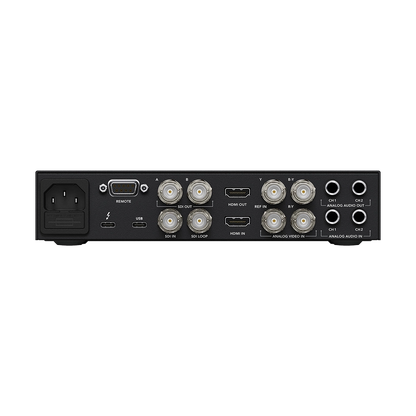

Video Input | 1 x BNC. SDI 1 x HDMI Type A, HDMI 2.0b 1 x 3BNC, Component/Composite 1 x BNC, Reference |
Video Output | 2 x BNC, SDI Program Out 1 x BNC, SDI Loop Out 1 x HDMI Type A, HDMI 2.0b |
SDI Rate | 12G, 6G, 3G, 1.5G, 270 Mb |
Supported Video Resolutions | SDI Input/Output: DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2KPsF: 30/29.97/25/24/23.98 UHD 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 525i: 59.94 625i: 50 3D SDI Playback: DCI 4K: 30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2KPsF: 30/29.97/25/24/23.98 UHD 2K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
SDI Video Sampling | 4:2:2, 4:4:4 |
SDI Color Precision | 8-, 10-, 12-Bit RGB 4:4:4 in 2D Modes up to 4Kp30 DCI 8-, 10-Bit YUV 4:2:2 in All 2D Modes 8-, 10-, 12-Bit RGB 4:4:4 in 3D Modes up to 2Kp60 DCI 8-, 10-Bit YUV 4:2:2 in All 3D Modes |
SDI Color Space | Rec. 601, Rec. 709, Rec. 2020 |
SDI Compliance | SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2082-10, SMPTE ST2108-1 |
SDI Metadata Support | RP 188/SMPTE 12M-2 and Closed Captioning |
Supported Video Resolutions | HDMI Input/Output: DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 525i: 59.94 625i: 50 3D HDMI Playback: DCI 4K: 30/29.97/25/24/23.98 UHD 2K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
HDMI Video Sampling | 4:4:4, 4:2:2, 4:2:0 |
HDMI Color Precision | 8-, 10-, 12-Bit |
Sync Input | 1 x BNC, Tri-Sync/Black Burst |
Thunderbolt | 1 x Thunderbolt 3 Connector Host Charging: 45 W |
USB | 1 x USB Type-C, USB 3.1 Gen 1 (Up to 5 Gb/s) |
Remote | 1 x D-Sub 9, RS-422 (Sony Compatible) |
Audio Input | 2 x 1/4" RCA. Analog Audio 1 x 3-Pin XLR, Mic In (48 V Phantom Power Switchable via Software) |
Audio Output | 2 x BNC, 3G/HD/SD-SDI 1 x HDMI Type A |
Embedded Audio | Input/Output: SDI: 16-Ch HDMI: 8-Ch |
Audio Sampling | 24-Bit, 48 kHz |
Card Reader Slot | 1 x SD Card (UHS-I & UHS-II) |
Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD Apple ProRes 4444, 422 HQ, 422 Apple ProRes LT, Apple 422 Proxy Uncompressed: 8‑Bit 4:2:2, 10‑Bit 4:2:2, 10‑Bit 4:4:4 |
Power Requirements, Internal | 100 to 240 VAC |
Maximum Power Consumption | 75.3 W |
Environmental | Operating Temperature: 5 to 40°C Storage Temperature: -20 to 45°C Humidity: 0 to 90%, Non-Condensing |
Dimensions | 21 x 17.78 x 4.57 cm |
Weight | 1.2 kg |
