Blackmagic Design UltraStudio HD Mini
Choose PayGate at checkout for MobiCred Payments.
- SD/HD/3G-SDI and Analog Inputs
- HDMI and Dual SDI Outputs
- Thunderbolt 3 Interface
- Supports SD and HD Resolutions
- 4:2:2 and 4:4:4 Color Sampling Support
- 8/10/12-Bit Color Depth
- RS-422 Deck Control
- HD to SD Down-Conversion
Orms Bellville
Orms Cape Town
Blackmagic Design UltraStudio HD Mini
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- SD/HD/3G-SDI and Analog Inputs
- HDMI and Dual SDI Outputs
- Thunderbolt 3 Interface
- Supports SD and HD Resolutions
- 4:2:2 and 4:4:4 Color Sampling Support
- 8/10/12-Bit Color Depth
- RS-422 Deck Control
- HD to SD Down-Conversion
Choose PayGate at checkout for MobiCred Payments.
- SD/HD/3G-SDI and Analog Inputs
- HDMI and Dual SDI Outputs
- Thunderbolt 3 Interface
- Supports SD and HD Resolutions
- 4:2:2 and 4:4:4 Color Sampling Support
- 8/10/12-Bit Color Depth
- RS-422 Deck Control
- HD to SD Down-Conversion
With professional capabilities from the Blackmagic Design UltraStudio HD Studio, it features connections that include 3G-SDI, analog YUV and composite NTSC/PAL video inputs which means that you can import video from latest or old existing video equipment with the support of a Thunderbolt 3 cable - the UltraStudio HD Mini send and receive SD and HD video quality up to 1080p at 60 fps with up to 16 channels of embedded audio. The built-in RS-422 connection of the UltraStudio HD Mini allows you to remotely control professional broadcast decks.
Outputs included for monitoring video with a high definition on a big screen will be an HDMI connection and a dual link 3G-SDI with fill and key. Please note that the Thunderbolt 3 cable is not included.
Control
Built in Control Panel
None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status.
Device Control
1 x RS-422 deck control.
Processing
Colourspace Conversion
Hardware based real time.
HD Down Conversion
Real time 10-bit hardware down conversion on SDI B output when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
Real Time Effects
Final Cut Pro X internal effects.
Premiere Pro CC Mercury Playback Engine effects.
Avid Media Composer internal effects.
DaVinci Resolve.
- Blackmagic Design UltraStudio HD Mini
- SD card with software and manual
- DaVinci Resolve SD card

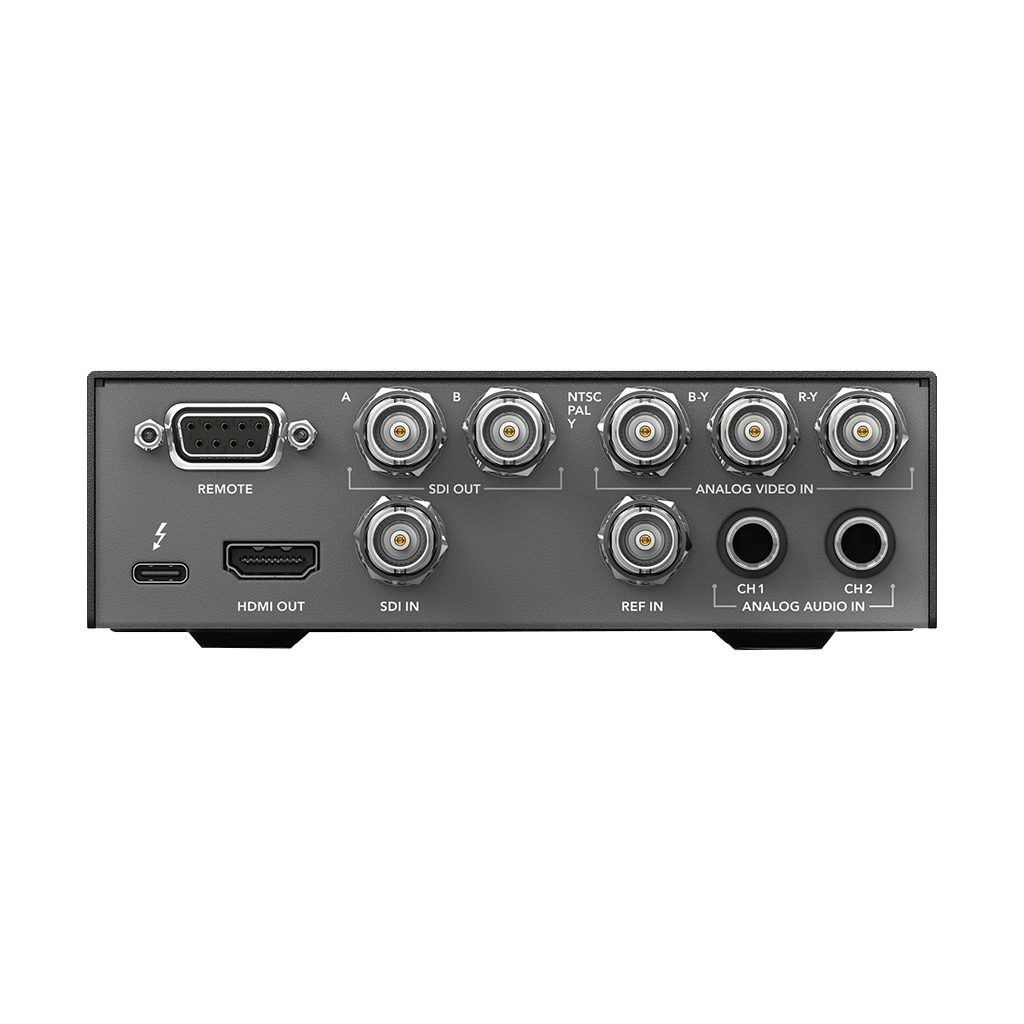

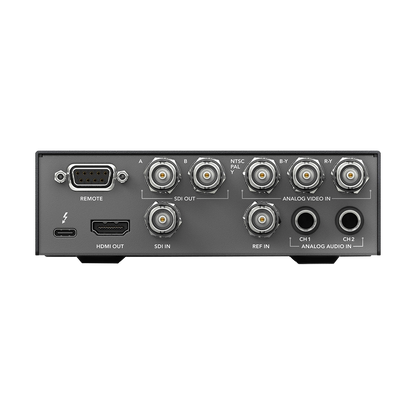

Inputs | 1 x BNC, SD/HD/3G-SDI 1 x 3BNC, component/composite analog video 1 x BNC, Reference Input for Tri-Sync or Black Burst 2 x 1/4" TS, analog audio |
Outputs | 2 x BNC, SD/HD/3G-SDI 1 x HDMI Type A |
Other I/O | 1 x DB-9, RS-422 1 x USB Type-C, Thunderbolt 3.0 |
Resolution Support | 2048 x 1080 23.98/24/25 2048 x 1080PsF 23.98/24/25 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080i 50/59.94/60 720p 50/59.94/60 NTSC PAL |
Embedded Audio | Input: 16 channels via SDI Output: 16 channels via SDI, 2 channels via HDMI |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M A/B |
SDI Video Sampling | 8/10/12-bit, 4:2:2, 4:4:4 (12-bit and 4:4:4 sampling not supported above 1080p30) |
Audio Sampling | 24-bit, 48 kHz |
SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning |
Color Space | REC 601, REC 709 |
Operating System Support | Apple Mac OS X 10.11 El Capitan or later Microsoft Windows 7/8.1/10 (64-bit only) Linux |
Environmental | Operating Temperature: 32 to 104°F / 5 to 40°C Storage Temperature: -4 to 113°F / -20 to 45°C Humidity: 0-90%, non-condensing |
Dimensions | 5.5 x 6.7 x 1.75" / 14 x 17 x 4.4 cm |
Weight | 544 g |
