Blackmagic Design

Blackmagic Design URSA Cine EVF

R 40,395.00
R 40,395.00 R 40,395.00
Tax included. Shipping calculated at checkout.

BLA-CINEURSAB/EVF

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • For URSA Cine 12K Cinema Camera
  • Also Works with PYXIS 6K Cameras
  • 1920 x 1080p60 Resolution OLED Display
  • USB-C Connection to Camera
  • Zoom, Exposure, Record Buttons
  • Rotating Bracket, Tally LED
  • +5/-5 Diopter, 15mm Rod Clamp
  • 19 and 15mm Carbon Fiber Rods

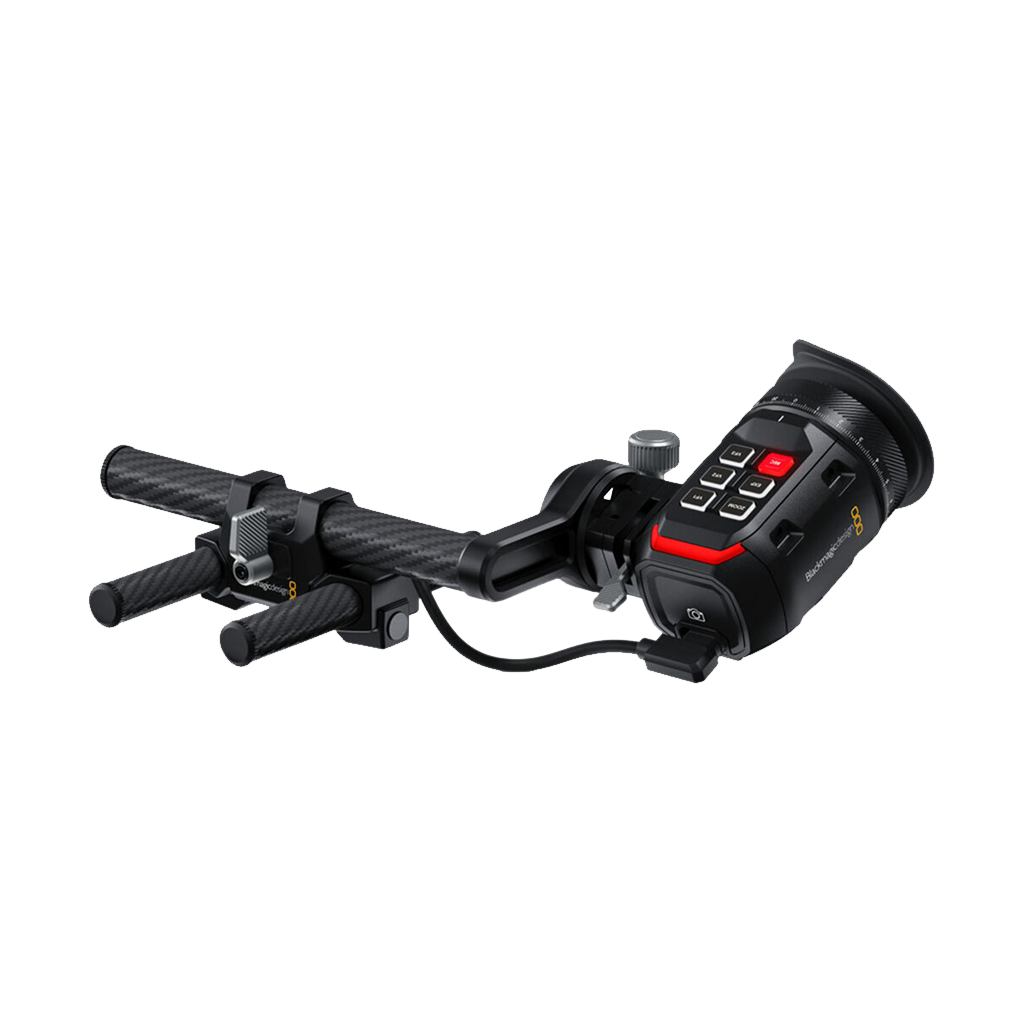

    The Blackmagic Design URSA Cine EVF is designed to make shooting easy in any environment, by adding the URSA Cine EVF to your rig for clear and crisp images.

    The Blackmagic Design URSA Cine EVF features a 1920 x 1080 colour display capable of supporting up to 60fps and you are also able to see status information, frame guides, and even a built-in focus chart to assist in getting the sharpest focus. A tally light allows you to clearly see when the camera is rolling.

    The URSA EVF features a built-in proximity sensor that automatically switches the EVF on when in use to save power. Along with a 4-element glass diopter with a range of adjustments. The EVF connects to the URSA Cine 12K or PYXIS 6K using a USB-C cable, which is also used for firmware updates.

    Note: The Blackmagic URSA Cine Handle is required for mounting the EVF onto Blackmagic URSA Cine 12K and Blackmagic PYXIS 6K cameras.

    Compatibility

    • Blackmagic URSA Cine 12K LF cameras
    • Blackmagic PYXIS 6K cameras
    • Blackmagic URSA Cine Handle
    • The included Blackmagic URSA Cine EVF Extension is compatible with standard extended viewfinder supports

    • Blackmagic Design URSA Cine EVF
    • Rotating Bracket
    • Carbon Fiber Rod (19mm)
    • 2 x Carbon Fiber Rod (15mm)
    • Extension
    • Right-Angle to Right-Angle USB Viewfinder Cable (Short)
    • Right-Angle to Straight USB Viewfinder Cable (Short)
    • Right-Angle to Straight USB Viewfinder Cable (Long)
    • 2 x Rubber Eyecup
    • Fabric Cloth
    • Sticker

    Display
    Colour/Monochrome
    Colour
    Panel Type
    OLED
    Screen Resolution
    1920 x 1080
    Aspect Ratio
    16:9
    Touchscreen
    No
    Colour Support
    16.2 Million Colors (6-Bit+FRC)
    Inputs / Outputs
    Video I/O
    1x USB-C 3.0 / 3.1/3.2 Gen 1 Input
    Video Format
    USB
    DCI 4K: 60
    Optics
    Diopter Correction
    -5.0 to +5.0
    Environmental
    Operating Humidity
    0 to 90%
    Operating Temperature
    0 to 40°C
    Storage Humidity
    0 to 90%
    Storage Temperature
    -20 to 60°C
    General
    Mounting
    1x Accessory Rail
