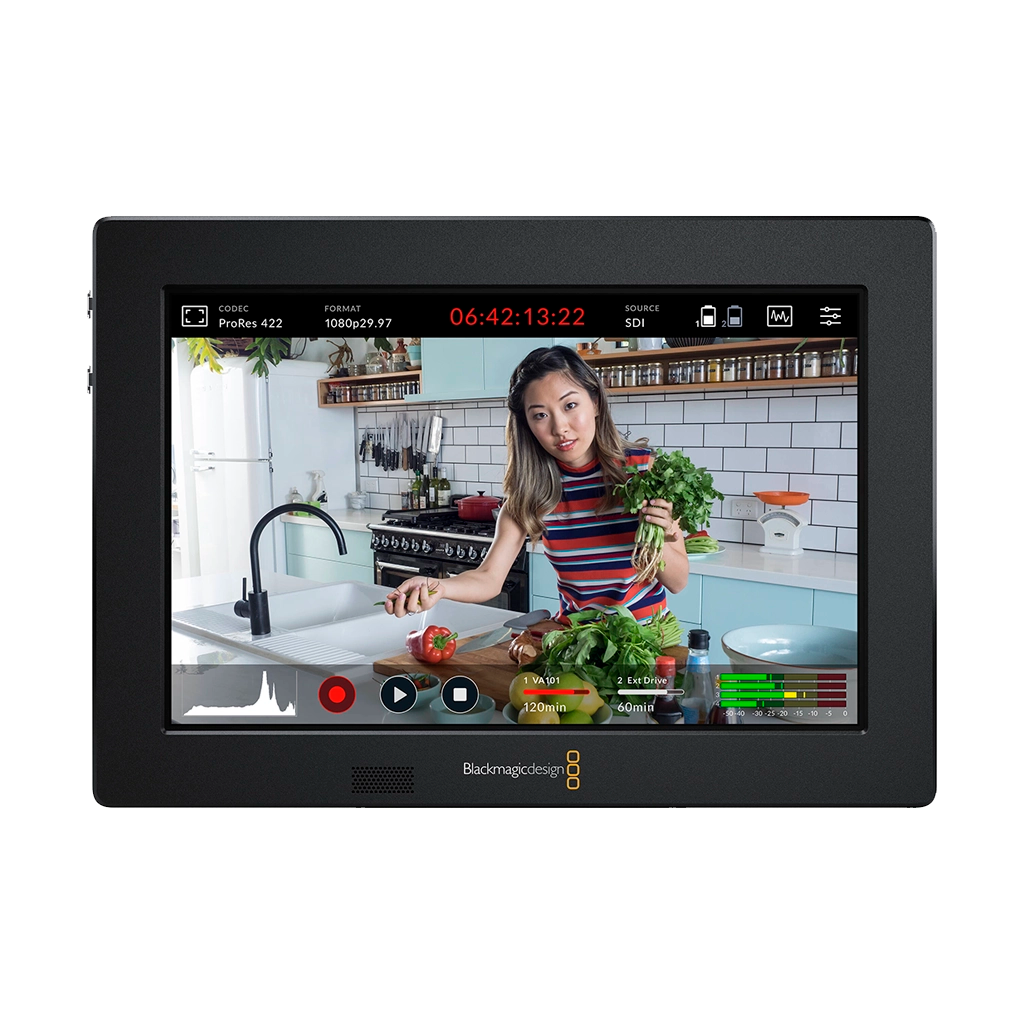

BlackMagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitor
Choose PayGate at checkout for MobiCred Payments.
- 1920 x 1200 7" Touchscreen LCD
- HDMI & 3G-SDI Video Inputs/Outputs
- Records up to 1080p60 Video
- USB Type-C Webcam Video Output
- Stores to 2 x SDXC/SDHC Memory Cards
- 2.5mm LANC Port for Record Start & Stop
- Waveform, Vectorscope & Histogram
- Focus Peaking, False Color & Zebra
- 11 x Display Language Options
- Dual Sony L-Series Type Battery Slots
Orms Bellville
Orms Cape Town
BlackMagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitor
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 1920 x 1200 7" Touchscreen LCD
- HDMI & 3G-SDI Video Inputs/Outputs
- Records up to 1080p60 Video
- USB Type-C Webcam Video Output
- Stores to 2 x SDXC/SDHC Memory Cards
- 2.5mm LANC Port for Record Start & Stop
- Waveform, Vectorscope & Histogram
- Focus Peaking, False Color & Zebra
- 11 x Display Language Options
- Dual Sony L-Series Type Battery Slots
Choose PayGate at checkout for MobiCred Payments.
- 1920 x 1200 7" Touchscreen LCD
- HDMI & 3G-SDI Video Inputs/Outputs
- Records up to 1080p60 Video
- USB Type-C Webcam Video Output
- Stores to 2 x SDXC/SDHC Memory Cards
- 2.5mm LANC Port for Record Start & Stop
- Waveform, Vectorscope & Histogram
- Focus Peaking, False Color & Zebra
- 11 x Display Language Options
- Dual Sony L-Series Type Battery Slots
The BlackMagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitor is designed to assist you in framing and focusing your shots. Featuring a bright 7" 1920 x 1200 display with 300cd/m² brightness, and it enables video output from professional as well as consumer camcorders through 3G-SDI and HMDI inputs.
The BlackMagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitor features a touchscreen interface that enables you to quickly access the settings as well as monitoring features such as histogram, waveform, RGB parade, and many more tools.
- The BlackMagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitor supports video formats up to 1080p60.
- Older cameras with limited viewing and recording capabilities can be upgraded by this unit.
- Featuring a 7" touchscreen LCD display with customizable overlays.
- 3G-SDI and HDMI input ports with loop-through outputs.
- 3D LUT supports customized viewing
- With this unit an connected camera can be used as a webcam by sending a streaming-friendly 1080p video signal to your computer.
- Using dual UHS-I SD card slots the Blackmagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitor records to an SDXC/SDHC memory card.
- This unit also adds XLR audio mapping to different channels, XLR external timecode and select select channel selection for audio monitoring.
- Multiple display tools can be accessed using the touchscreen such as focus peaking, zebra and false colour.
- BlackMagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitor
- BlackMagic Design Power Supply for Video Assist
Display
Panel Type | LCD |
Display Size | 17.8 cm |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 135° |
Touchscreen | Yes |
Maximum Brightness | 310 cd/m2 |
Pixels Per Inch (ppi) | 323 ppi |
Color Gamut | 100% Rec. 709 |
Real-Time LUT Monitoring | SDR |
Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
Wi-Fi | None |
I/O
Video | 1 x HDMI Type A Input 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input 1 x HDMI Type A Output 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Output |
HDCP Support | Yes |
Embedded Audio | HDMI: 8-Channel SDI: 16-Channel |
Audio | 2 x Mini-XLR Input 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | 1 |
Power | 1 x Barrel (12 VDC Input) |
Other I/O | 1 x USB Type-C 1 x LANC (2.5 mm) Input |
Format Support
Video Format | SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
Recording
Pulldown Conversion | None |
Camera Trigger | None |
Pre-Roll Record | None |
Encoding Formats | Up to 1920 x 1080 ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps |
Maximum Audio Tracks | 16 |
Recording Media | 1 x SDXC (UHS-I) |
Metadata Tagging | Yes |
Timecode Support | Yes |
Phantom Power | None |
Mounting
Mounting | 4 x 1/4"-20 Female |
Environmental
Operating Temperature | 0 to 40°C |
Operating Humidity | 0 to 90% |
Storage Temperature | -20 to 45°C |
General
Material of Construction | Aluminum |
Dimensions | 19.3 x 13.06 x 3.68 cm |
Weight | 825 g |
