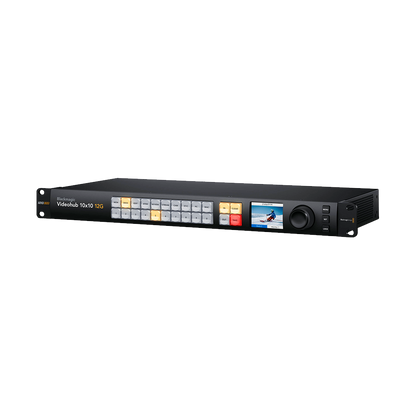

Blackmagic Design Videohub 10x10 12G Zero-Latency Video Router
Choose PayGate at checkout for MobiCred Payments.
- Zero-Latency Routing Switcher
- 10 x 12G-SDI Inputs/10 x 12G-SDI Outputs
- Supports Up to DCI 4K60 Video
- Combines SD, HD, UHD 4K and DCI 4K Video
- Push-Button, Knob and Ethernet Control
- 2.2" Front Panel LCD Status Display
- SDI Reclocking, 1 RU Form
- Includes Videohub Mac/Windows Software
Orms Bellville
Orms Cape Town
Orms Somerset West
Remote Warehouse (Available in 2 - 4 Business Days)
Blackmagic Design Videohub 10x10 12G Zero-Latency Video Router
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Orms Somerset West
Shop 25, Waterstone Village Shopping Centre
Somerset West
Cape Town
Western Cape
7130
South Africa
Remote Warehouse (Available in 2 - 4 Business Days)
Upper Canterbury Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Zero-Latency Routing Switcher
- 10 x 12G-SDI Inputs/10 x 12G-SDI Outputs
- Supports Up to DCI 4K60 Video
- Combines SD, HD, UHD 4K and DCI 4K Video
- Push-Button, Knob and Ethernet Control
- 2.2" Front Panel LCD Status Display
- SDI Reclocking, 1 RU Form
- Includes Videohub Mac/Windows Software
Choose PayGate at checkout for MobiCred Payments.
- Zero-Latency Routing Switcher
- 10 x 12G-SDI Inputs/10 x 12G-SDI Outputs
- Supports Up to DCI 4K60 Video
- Combines SD, HD, UHD 4K and DCI 4K Video
- Push-Button, Knob and Ethernet Control
- 2.2" Front Panel LCD Status Display
- SDI Reclocking, 1 RU Form
- Includes Videohub Mac/Windows Software
The Blackmagic Design Videohub 10x10 12G Zero-Latency Video Router provides you with 10 12G-SDI inputs and 10 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video.
One big benefit of this is that all SDI cables are centred in one hub, which enables you to connect any video input to any video output, or even multiple outputs, while eliminating clusters of cables and the need for complex diagrams.
The Blackmagic Design Videohub 10x10 12G Zero-Latency Video Router is a versatile unit that can be used with multiple BlackMagic HyperDeck Recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms or add extra inputs to an ATEM switcher.
12G-SDI Multi-Rate Connections
The Blackmagic Design Videohub 10x10 12G Zero-Latency Video Router features multi-rate 12|G-SDI connections that make it possible for you to route multiple different video standards at the same time with video resolutions supported up to DCI 4K60 video resolutions.
Providing 4:2:2 8 or 10-bit colour routing in any standard. Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.
SDI Reclocking
Reclocking on each 12G-SDI input regenerates the signal, which is to provide the maximum video quality. This then also reduces or eliminates signal loss and jitter when using longer cables.

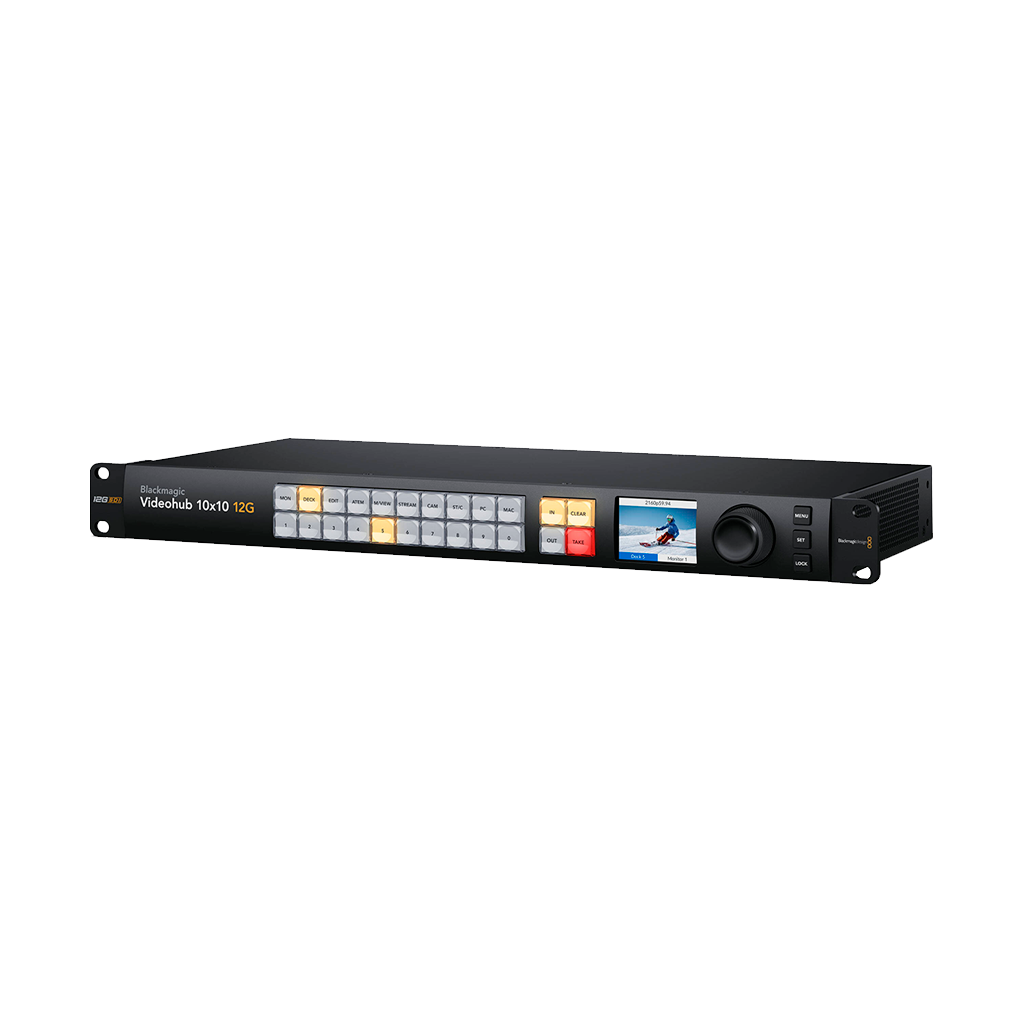

Front Panel Controls
You will find a sleek front panel that offers multiple control options. Shortcuts, such as In, Out, Clear, and Take buttons, can be found.
The machined metal spin knob provides precise control using an electronic clutch.
Optional Hardware Control Panels
The Blackmagic Design Videohub 10x10 12G Zero-Latency Video Router can be used with other hardware panels for easy control of larger facilities. This VideoHub is compatible with both the VideoHub Master Control Pro and the VideoHub Smart Control Pro.
Flexible Control
The macOS and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.
Built-In LCD
You can view your live input before routing the signal on the built-in 2.2" LCD screen. This eliminates the need for adding an external SDI monitor to your setup.
Setup Utility and SDK
The Blackmagic Design Videohub 10x10 12G Zero-Latency Video Router to get started, or the SDK to add protocol support for broadcast automation systems.
Blackmagic Design Videohub 10x10 12G Zero-Latency Video Router
Switching Type | |
Processing Resolution | |
Color Processing | |
Audio Processing |
Video Inputs | |
Input Video Format | |
Embedded Audio Input |
Video Outputs | |
Output Video Format | |
Embedded Audio Output |
Other I/O | |
Video Standard Compliance |
Display Size |
OS Compatibility | |
Wireless |
Power I/O | |
Power Consumption |
Operating Conditions | |
Storage Conditions | |
Rack Form Factor | |
Dimensions | |
Weight |
