Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router

R 51,895.00
R 51,895.00 R 51,895.00
Tax included. Shipping calculated at checkout.

BLA-VHUBSMAS12G2020

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Zero-Latency Routing Switcher
  • 20 x 12G-SDI Inputs/20 x 12G-SDI Outputs
  • Supports Up to DCI 4K60 Video
  • Combines SD, HD, UHD 4K and DCI 4K Video
  • Push-Button, Knob and Ethernet Control
  • 2.2" Front Panel LCD Status Display
  • SDI Reclocking, 1 RU Form
  • Includes Videohub Mac/Windows Software

    The Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router provides you with 20 12G-SDI inputs and 20 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video.

    One big benefit of this is that all SDI cables are centred in one hub, which enables you to connect any video input to any video output, or even multiple outputs, while eliminating clusters of cables and the need for complex diagrams.

    The Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router is a versatile unit that can be used with multiple BlackMagic HyperDeck Recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms or add extra inputs to an ATEM switcher.

    12G-SDI Multi-Rate Connections

    The Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router features multi-rate 12|G-SDI connections that make it possible for you to route multiple different video standards at the same time with video resolutions supported up to DCI 4K60 video resolutions.
    Providing 4:2:2 8 or 10-bit colour routing in any standard. Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.

    SDI Reclocking

    Reclocking on each 12G-SDI input regenerates the signal, which is to provide the maximum video quality. This then also reduces or eliminates signal loss and jitter when using longer cables.

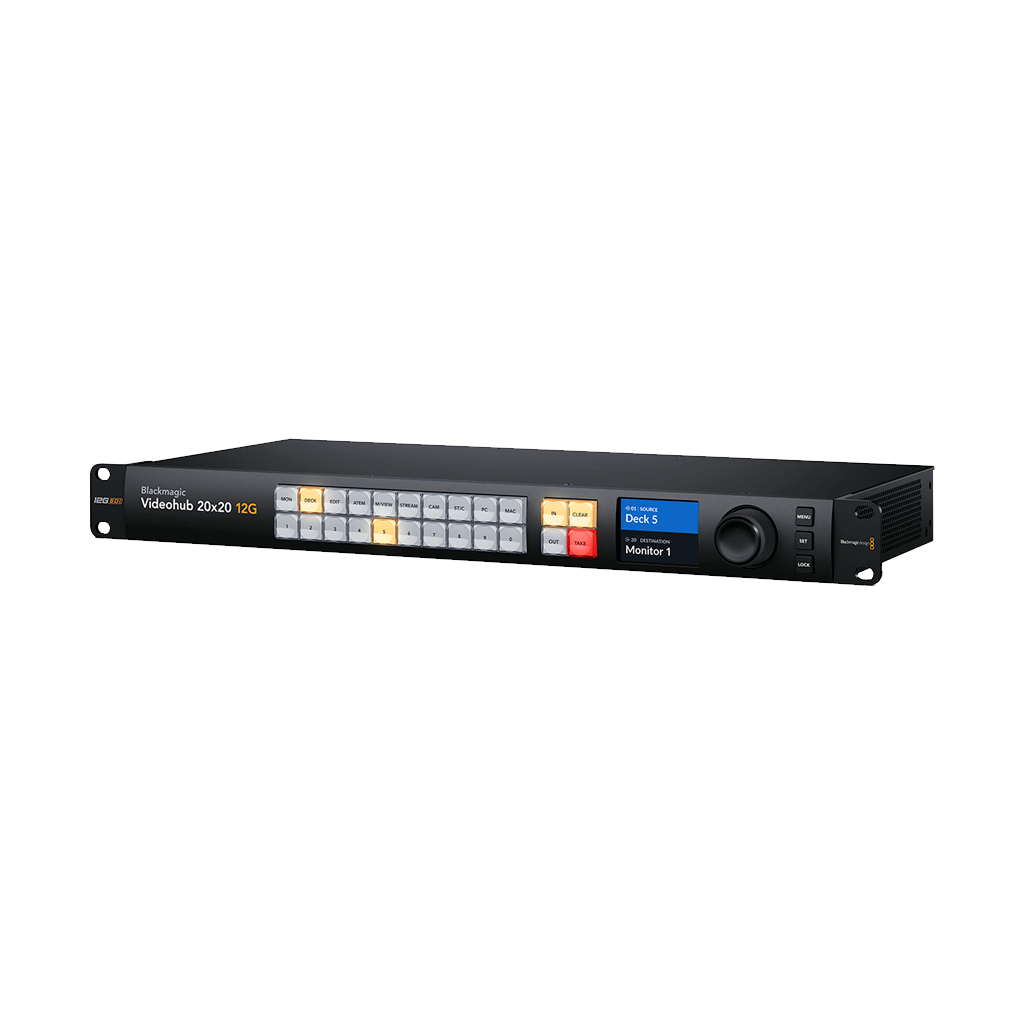

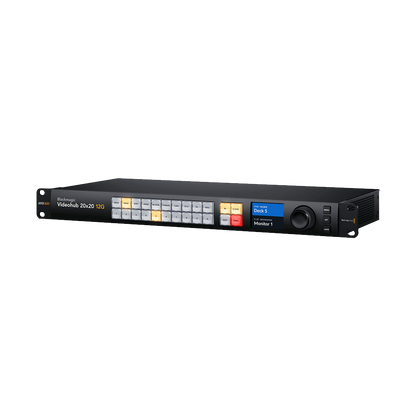

    Front Panel Controls

    You will find a sleek front panel that offers multiple control options. Shortcuts, such as In, Out, Clear, and Take buttons, can be found.
    The machined metal spin knob provides precise control using an electronic clutch.

    Optional Hardware Control Panels

    The Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router can be used with other hardware panels for easy control of larger facilities. This VideoHub is compatible with both the VideoHub Master Control Pro and the VideoHub Smart Control Pro.

    Flexible Control

    The macOS and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.

    Built-In LCD

    You can view your live input before routing the signal on the built-in 2.2" LCD screen. This eliminates the need for adding an external SDI monitor to your setup.

    Setup Utility and SDK

    The Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router to get started, or the SDK to add protocol support for broadcast automation systems.

    Blackmagic Design Videohub 20x20 12G Zero-Latency Video Router

    Processing
    Switching Type
    Pushbutton, Software
    Processing Resolution
    DCI 4K at 60
    Color Processing
    8-Bit 4:2:2
    10-Bit 4:2:2
    12-Bit 4:4:4
    Audio Processing
    48 kHz / 24-Bit
    Input
    Video Inputs

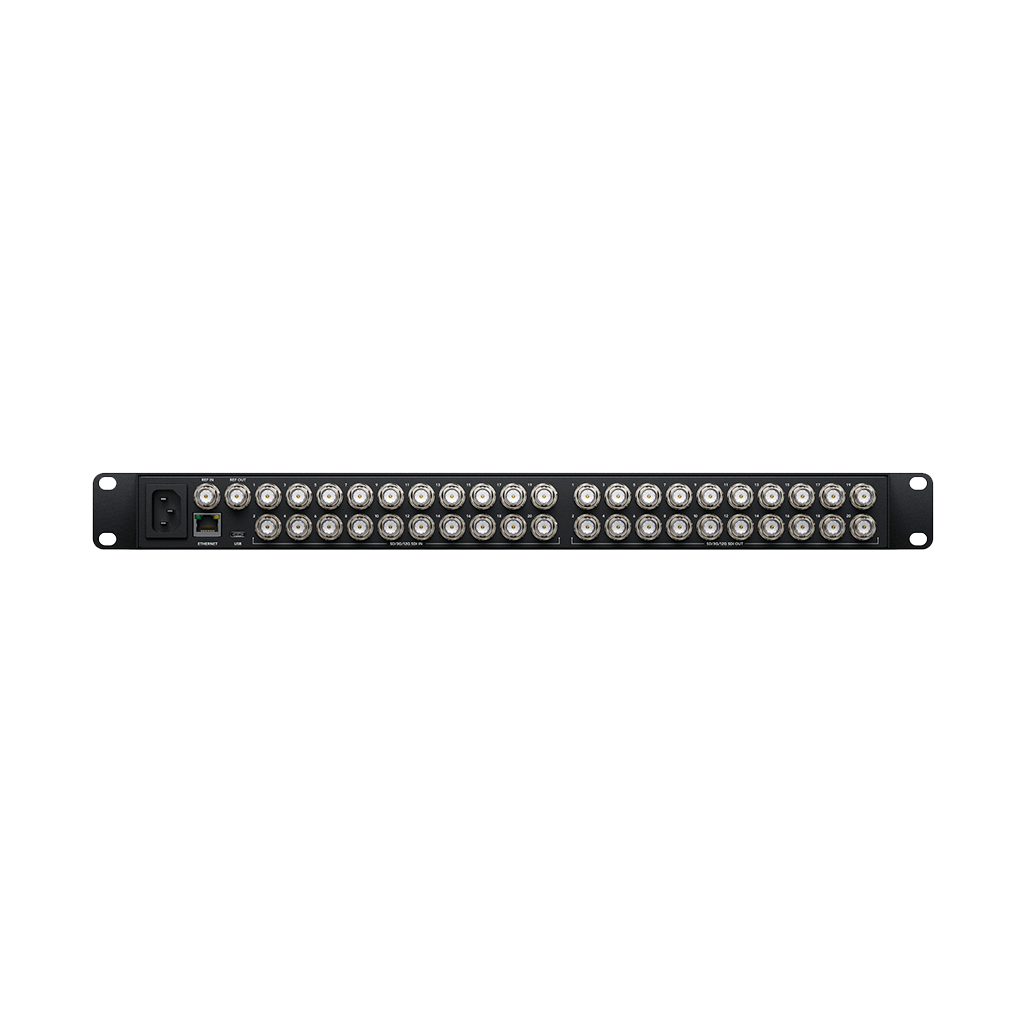

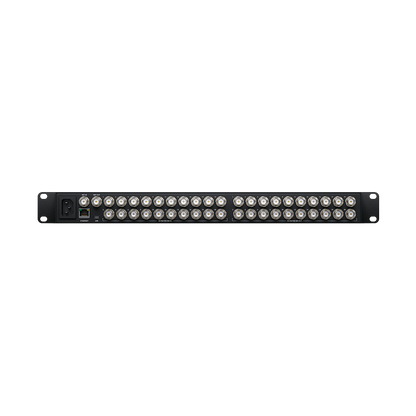

    20x BNC (12G-SDI)
    Input Video Format
    SDI (10/12-Bit 4:4:4 RGB, YUV)
    DCI 4K up to 30 fps
    UHD 4K up to 30 fps
    DCI 2K up to 60 fps
    DCI 2KPsF up to 30 fps
    1080p up to 60 fps
    1080PsF up to 30 fps
    1080i up to 60 fps
    SDI (10-Bit 4:2:2 RGB, YUV)
    DCI 4K up to 60 fps
    UHD 4K up to 60 fps
    DCI 2K up to 60 fps
    DCI 2KPsF up to 30 fps
    1080p up to 60 fps
    1080PsF up to 30 fps
    1080i up to 60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    Embedded Audio Input
    SDI
    Output
    Video Outputs
    20x BNC (12G-SDI)
    Output Video Format
    SDI (10/12-Bit 4:4:4 RGB, YUV)
    DCI 4K up to 30 fps
    UHD 4K up to 30 fps
    DCI 2K up to 60 fps
    DCI 2KPsF up to 30 fps
    1080p up to 60 fps
    1080PsF up to 30 fps
    1080i up to 60 fps
    SDI (10-Bit 4:2:2 RGB, YUV)
    DCI 4K up to 60 fps
    UHD 4K up to 60 fps
    DCI 2K up to 60 fps
    DCI 2KPsF up to 30 fps
    1080p up to 60 fps
    1080PsF up to 30 fps
    1080i up to 60 fps
    720p at 50/59.94/60 fps
    576i / 625 lines at 50 fps
    480i / 525 lines at 59.94 fps
    Embedded Audio Output
    SDI
    Connectivity
    Other I/O
    1x RJ45 LAN
    1x USB-C
    Video Standard Compliance
    SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10
    ITU -R BT.601/BT.656
    Display
    Display Size
    2.2"
    Hardware
    OS Compatibility
    macOS 12 or Later / Windows 10 or Later
    Wireless
    No
    Power
    Power I/O
    1x IEC C14 (100 to 240 VAC ) Input
    Power Consumption
    27.5 W
    General
    Operating Conditions
    0 to 40°C up to 90% Humidity
    Storage Conditions
    -20 to 60°C
    Rack Form Factor
    1 U
    Dimensions
    48.3 x 23.6 x 4.42 cm
    Weight
    3.57 kg
