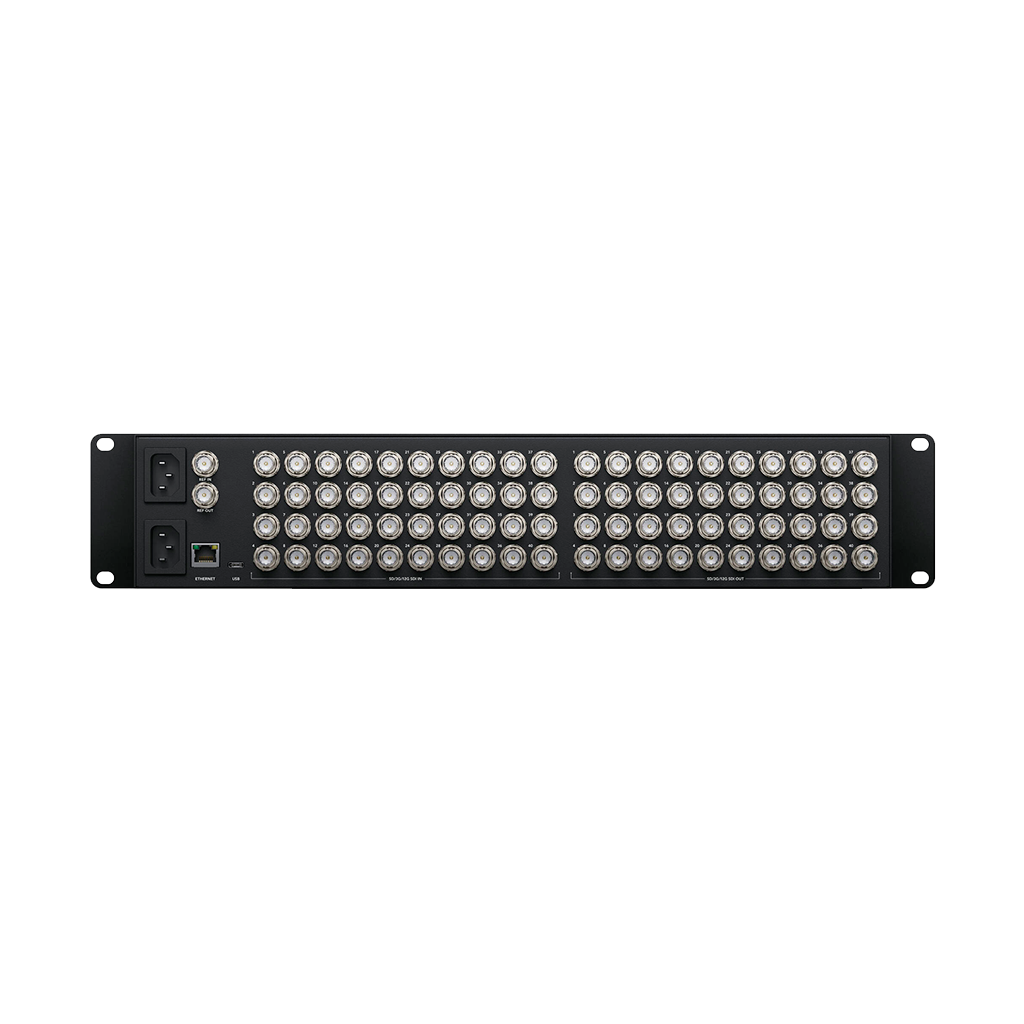

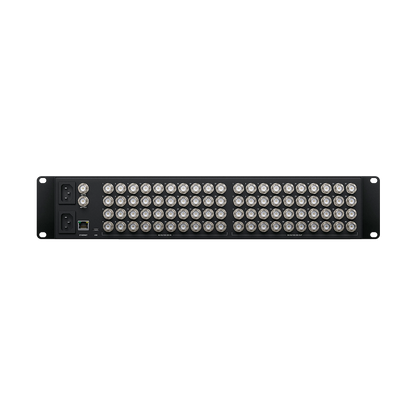

The Blackmagic Design Videohub 40x40 12G Zero-Latency Video Router provides you with 40 12G-SDI inputs and 40 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video.
One big benefit of this is that all SDI cables are centred in one hub, which enables you to connect any video input to any video output, or even multiple outputs, while eliminating clusters of cables and the need for complex diagrams.
The Blackmagic Design Videohub 40x40 12G Zero-Latency Video Router is a versatile unit that can be used with multiple BlackMagic HyperDeck Recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms or add extra inputs to an ATEM switcher.
12G-SDI Multi-Rate Connections
The Blackmagic Design Videohub 40x40 12G Zero-Latency Video Router features multi-rate 12|G-SDI connections that make it possible for you to route multiple different video standards at the same time with video resolutions supported up to DCI 4K60 video resolutions.
Providing 4:2:2 8 or 10-bit colour routing in any standard. Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.
SDI Reclocking
Reclocking on each 12G-SDI input regenerates the signal, which is to provide the maximum video quality. This then also reduces or eliminates signal loss and jitter when using longer cables.

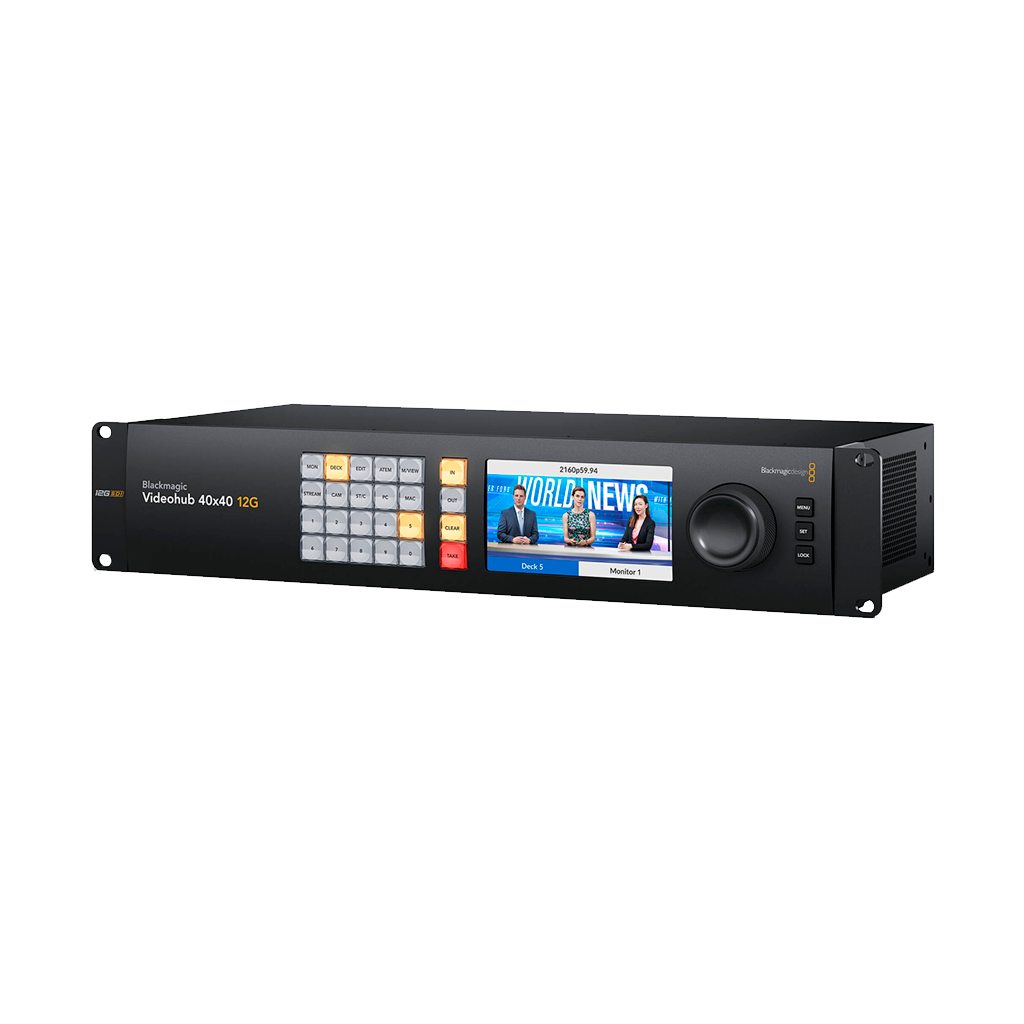

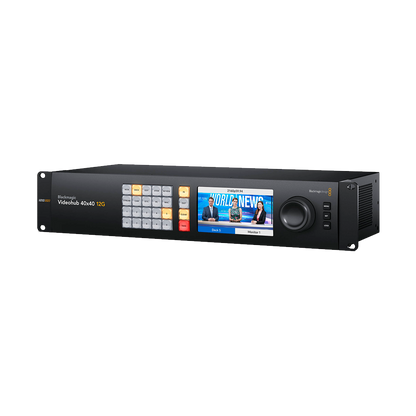

Front Panel Controls
You will find a sleek front panel that offers multiple control options. Shortcuts, such as In, Out, Clear, and Take buttons, can be found.
The machined metal spin knob provides precise control using an electronic clutch.
Optional Hardware Control Panels
The Blackmagic Design Videohub 40x40 12G Zero-Latency Video Router can be used with other hardware panels for easy control of larger facilities. This VideoHub is compatible with both the VideoHub Master Control Pro and the VideoHub Smart Control Pro.
Flexible Control
The macOS and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.
Built-In LCD
You can view your live input before routing the signal on the built-in 2.2" LCD screen. This eliminates the need for adding an external SDI monitor to your setup.
Setup Utility and SDK
The Blackmagic Design Videohub 40x40 12G Zero-Latency Video Router to get started, or the SDK to add protocol support for broadcast automation systems.
Blackmagic Design Videohub 40x40 12G Zero-Latency Video Router
Processing Switching Type Pushbutton, Software Processing Resolution DCI 4K at 60 Color Processing 8-Bit 4:2:2 10-Bit 4:2:2 12-Bit 4:4:4 Audio Processing 48 kHz / 24-Bit Input Video Inputs 40x BNC (12G-SDI) Input Video Format SDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps Embedded Audio Input SDI Output Video Outputs 40x BNC (12G-SDI) Output Video Format SDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps Embedded Audio Output SDI Connectivity Other I/O 1x RJ45 LAN 1x USB-C Video Standard Compliance SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10 ITU -R BT.601/BT.656 Display Display Size 2.2" Hardware OS Compatibility macOS 12 or Later / Windows 10 or Later Wireless No Power Power I/O 1x IEC C14 (100 to 240 VAC ) Input Power Consumption 27.5 W General Operating Conditions 32 to 72°F / 0 to 40°C up to 90% Humidity Storage Conditions -4 to 140°F / -20 to 60°C Rack Form Factor 2 U Dimensions 19 x 9.37 x 3.46" / 48.3 x 23.8 x 8.79 cm Weight 12.3 lb / 5.6 kg
