Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router
- Zero-Latency Routing Switcher
- 80 x 12G-SDI Inputs/80 x 12G-SDI Outputs
- Supports up to DCI 4K60 Video
- Combines SD, HD, UHD 4K and DCI 4K Video
- 4:2:2 and 4:4:4 Video Sampling Supported
- Push-Button, Knob and Ethernet Control
- 32 Channels of Embedded Audio
- SDI Reclocking
- Includes Videohub Mac/Windows Software
Choose options
- Zero-Latency Routing Switcher
- 80 x 12G-SDI Inputs/80 x 12G-SDI Outputs
- Supports up to DCI 4K60 Video
- Combines SD, HD, UHD 4K and DCI 4K Video
- 4:2:2 and 4:4:4 Video Sampling Supported
- Push-Button, Knob and Ethernet Control
- 32 Channels of Embedded Audio
- SDI Reclocking
- Includes Videohub Mac/Windows Software
- Zero-Latency Routing Switcher
- 80 x 12G-SDI Inputs/80 x 12G-SDI Outputs
- Supports up to DCI 4K60 Video
- Combines SD, HD, UHD 4K and DCI 4K Video
- 4:2:2 and 4:4:4 Video Sampling Supported
- Push-Button, Knob and Ethernet Control
- 32 Channels of Embedded Audio
- SDI Reclocking
- Includes Videohub Mac/Windows Software
The Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router offers support for a mix of multiple video formats. This advanced router provides 80 x 12G-SDI inputs and 80 x 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video.
The Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router enables you to connect any video input to any video output, you can even input a single video input to multiple outputs, this eliminates the need for a cluster of cables and the need for complex diagrams. This allows you to centralise all the SDI cables in one hub.
This is a versatile unit that can also be used with multiple HyperDeck recorders for redundant mastering to route video to more than one streaming process for all your broadcast platforms. You can also add additional inputs to an ATEM switcher.
12G-SDI Multi-Rate Connections
The Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router offers the ability to route up to 80 different video standards at the same time with the multi-rate 12G-SDI connections.
It is capable of supporting up to DCI 4K60 video resolutions. It also provides 4:2:2 8 or 10-bit colour routing in any standard. Furthermore, it works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.
SDI Reclocking
Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality and it reduces or eliminates signal loss and jitter when using longer cables.

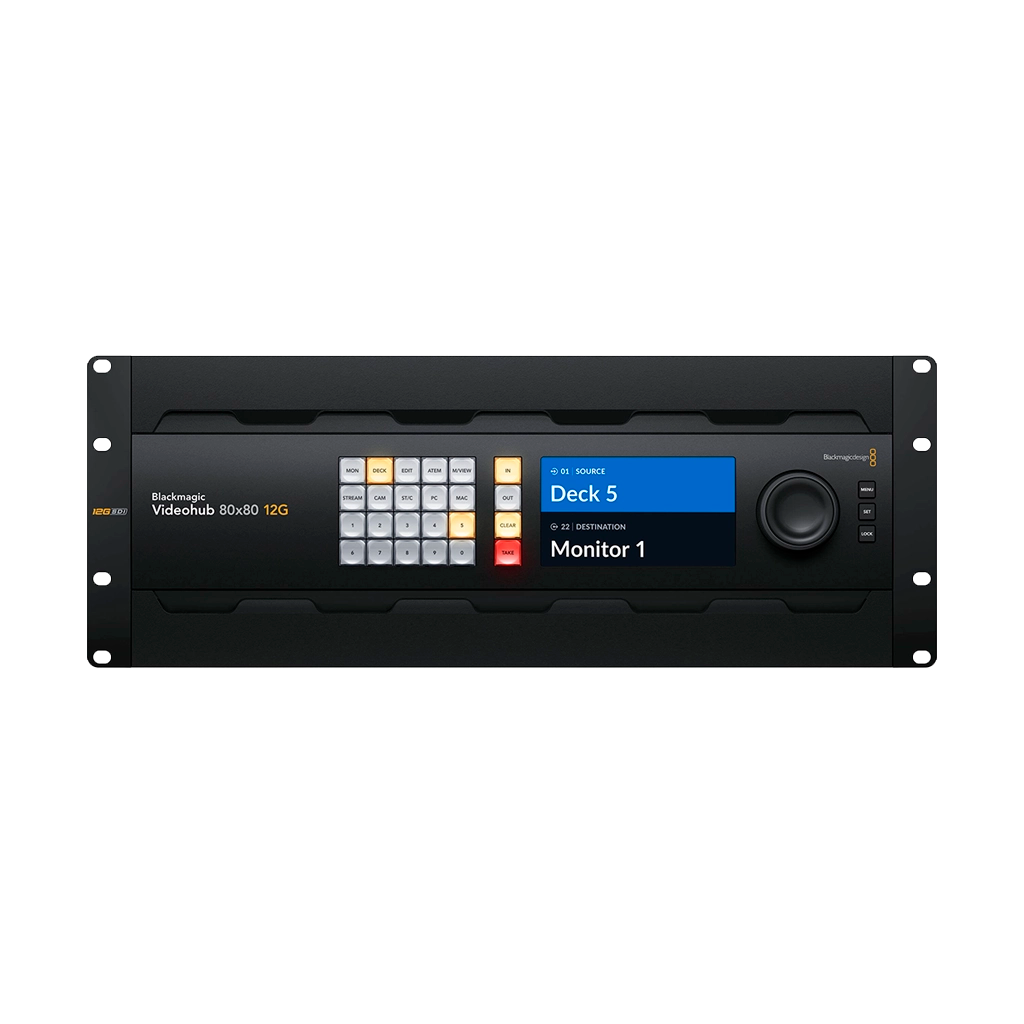

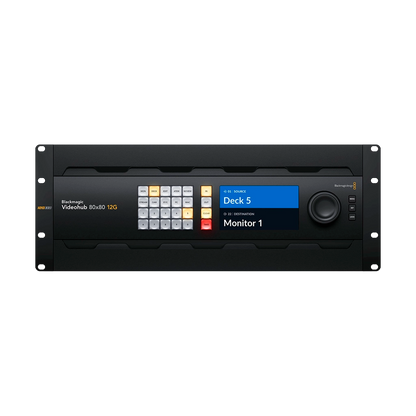

Front-Panel Controls
The front control panel offers multiple control options, the buttons include assignable shortcuts that include In, Out, Clear, and Take buttons. The machined metal spin knob provides precise control using an electronic clutch.
Optional Hardware Control Panels
When components are spread over a larger area the Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router can be used with optional hardware panels. Furthermore, it is also compatible with the Videohub Master Control Pro and the VideoHub Smart Control Pro.
Flexible Control
The Mac and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control.
Built-In LCD
The Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router allows you to view the live input before routing signals on the built-in 5" LCD screen.
The built-in LCD screen eliminates the need for an external SDI monitor to the setup.
Setup Utility and SDK
Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.
