Blackmagic Design Videohub Mini 8x4 12G Router
Choose PayGate at checkout for MobiCred Payments.
- 8 x 12G-SDI Inputs, 4 x 12G-SDI Outputs
- Dedicated Reference I/O
- Combines SD, HD, UHD 4K and DCI 4K Video
- Push-Button, Knob and Ethernet Control
- Front 12G-SDI I/O, USB-C Output
- Front SDI Ports Override Back Panel I/O
- Clean Switch Function
Orms Bellville
Orms Cape Town
Orms Somerset West
Remote Warehouse (Available in 2 - 4 Business Days)
Blackmagic Design Videohub Mini 8x4 12G Router
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Orms Somerset West
Shop 25, Waterstone Village Shopping Centre
Somerset West
Cape Town
Western Cape
7130
South Africa
Remote Warehouse (Available in 2 - 4 Business Days)
Upper Canterbury Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 8 x 12G-SDI Inputs, 4 x 12G-SDI Outputs
- Dedicated Reference I/O
- Combines SD, HD, UHD 4K and DCI 4K Video
- Push-Button, Knob and Ethernet Control
- Front 12G-SDI I/O, USB-C Output
- Front SDI Ports Override Back Panel I/O
- Clean Switch Function
Choose PayGate at checkout for MobiCred Payments.
- 8 x 12G-SDI Inputs, 4 x 12G-SDI Outputs
- Dedicated Reference I/O
- Combines SD, HD, UHD 4K and DCI 4K Video
- Push-Button, Knob and Ethernet Control
- Front 12G-SDI I/O, USB-C Output
- Front SDI Ports Override Back Panel I/O
- Clean Switch Function

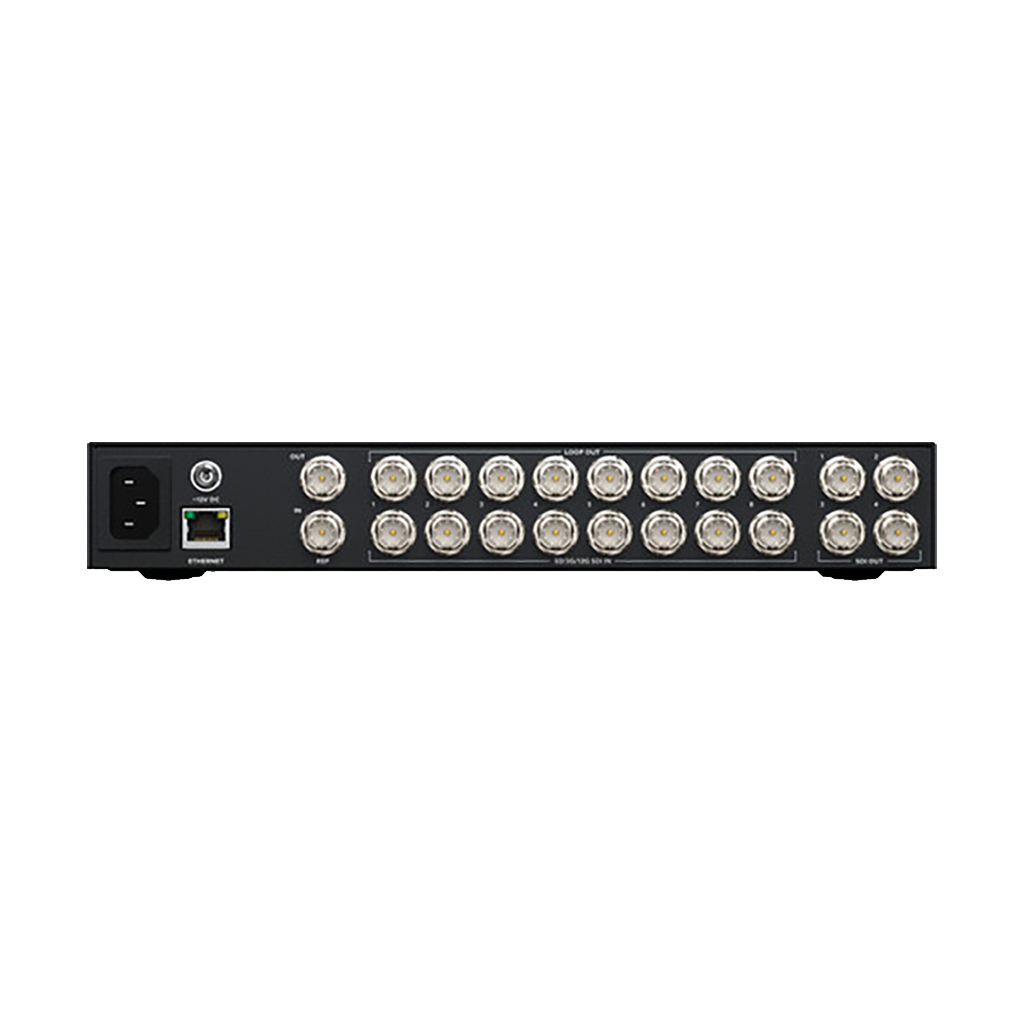

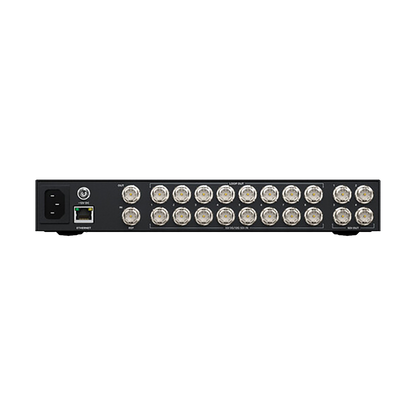

The Blackmagic Design Videohub Mini 8x4 12G Router is the ultimate device for live production flexibility. It features eight 12G-SDI inputs, eight 12G-SDI loop outputs, and four 12G-SDI outputs on the back panel.
Total control over the I/O ports can be achieved using the buttons, knob, or via the Ethernet connection to automate functions. On the front panel, you will find a 12G-SDI input, a 12G-SDI output, and a USB-C output that override the functions of the back panel when you route new sources on the fly.
The Blackmagic Design Videohub Mini 8x4 12G Router features a clean switch that is programmed to the router's outputs. This enables you to route a specific source to a single output while switching that same source as a direct feed to other outputs. Dedicated reference I/O ports allow the clean switch function to lock to a Blackburst or Tri-sync signal.
Streamlines Cable Connections
The Blackmagic Design Videohub Mini 8x4 12G Router allows you to add extra inputs to SDI broadcast equipment without taking up much space. Extra inputs can be added to ATEM Switchers or add input selection to streaming encoders and HyperDeck recorders. These routers are useful, as you can make changes to connections without patching cables in the middle of a job, and you can even connect gear to the front of the panel on the fly.

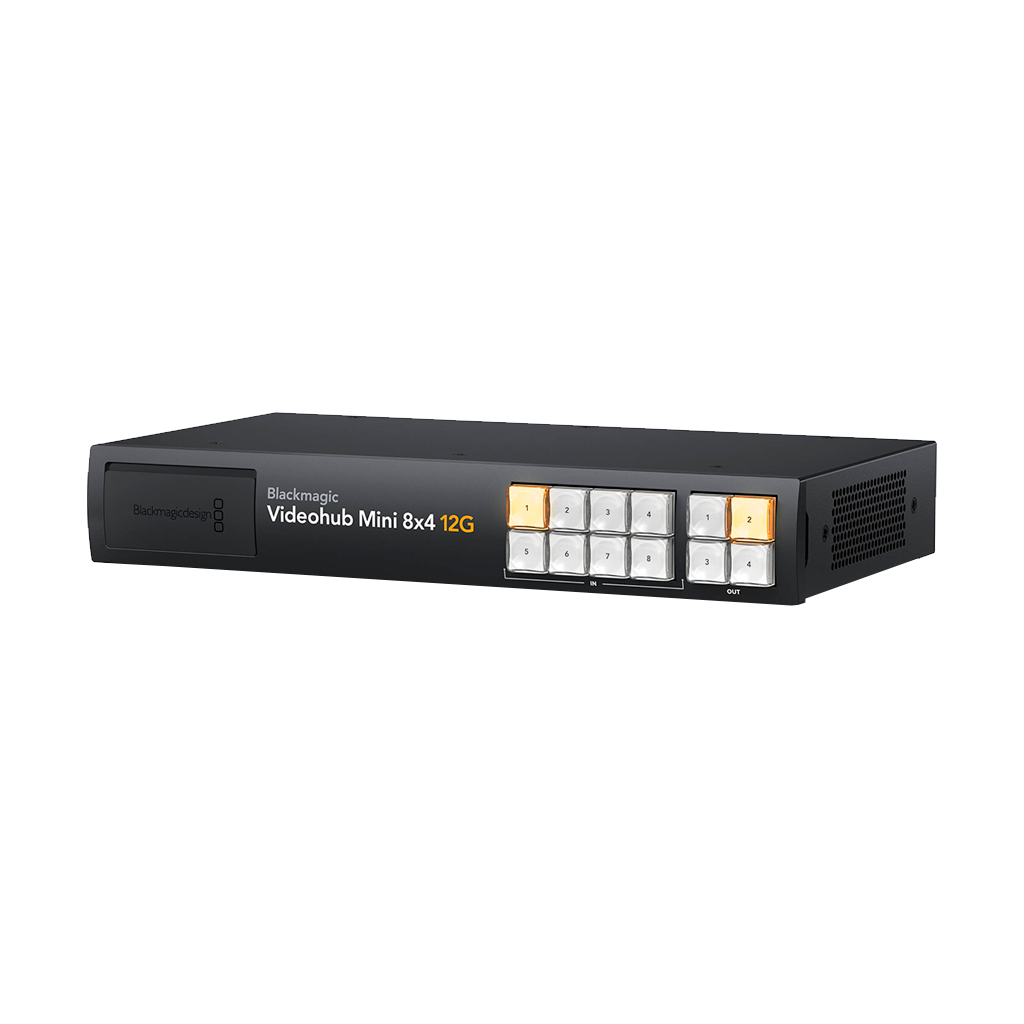

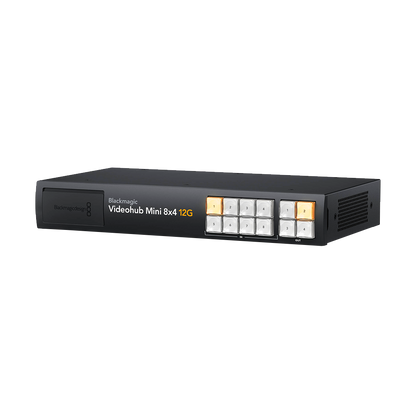

Front Panel Router Control and Video Patching
Designed for fast bus-cut-style switching, featuring dedicated buttons for outputs and inputs. All the routing control needed can be found in this compact and portable design, where you simply select the destination button and then press the source button.
On the front, you will find 12G-SDi video connections for patching in external gear that will also override the highest rear input connection when video is connected.
Advanced 12G-SDI Connections
The Blackmagic Design Videohub Mini 8x4 12G Router, as with all other VideoHub Minis, features advanced 12G-SDI connections that are multirate and support SD, HD, and UHD video formats up to 2160p60, so you can connect any SD, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI equipment.
The 12G-SDI provides high frame rates UHD via a single BNC connection, allowing you to work with all your regular HD equipment. This allows you to seamlessly switch between different video inputs, while the SDI output standard will change automatically.
Clean Switch on Each Video Output
The Clean Switch Function is available on this model to ensure stable video transitions when switching between sources. The feature is set on the outputs, not inputs, because the re-sync processors needed can add or remove frames from the video. This then ensures seamless source changes as you can set a HyperDeck recorder to a non-clean switch direct feed with no extra frames inserted.
Full SDI Re-Clocking
This router features built-in SDI re-clocking on every 12G-SDI input. This generates the video signal to ensure optimal video quality and prevent SDI data errors. This is useful as longer video cables tend to degrade the signal.
Front Panel Emergency Patch Connections
Direct video access can be achieved via the useful 12G-SDI patch connectors. With this feature, you do not need to go to the back of the router and accidentally unplug crucial connections. This is ideal when extra external gear needs to be done in an emergency.
This model also feature a front panel 12G-SDI output that's the same video as the highest output number.
USB Webcam Output
The Blackmagic Design Videohub Mini 8x4 12G Router allows you to live stream directly from the front panel, as the front USB-C port functions as an HD webcam video source. You now have full compatibility with any video software in full resolution 1080 HD quality. The UHD video source will then be down-converted to HD for the webcam output.
SDI live video can be routed into common software like Zoom, Microsoft Teams or Skype. When broadcast-quality presentations are needed, you can stream to software like Open Broadcaster, XSplit Broadcaster, and more.
Remote or Hardware Control
Depending on the needs of the production, the router is connected to a compatible Master Control Pro panel or the Videohub Software for hardware or remote control. Then you can assign different functions to buttons or software settings.
Redundant Power Supply
The Blackmagic Design Videohub Mini 8x4 12G Router power supply via the built-in AC power supply or 12 VDC power connection. This allows you to use a standard wall outlet and an IEC cable or DC power sources to power the unit.
Blackmagic Design Videohub Mini 8x4 12G Router
Switching Type | |
Audio Processing |
Video Inputs | |
Input Video Format | |
Embedded Audio Input |
Video Outputs | |
Output Video Format | |
Embedded Audio Output |
Inputs/Outputs | |
Other I/O | |
Video Standard Compliance |
Wireless |
Power I/O | |
Power Consumption |
Operating Conditions | |
Storage Conditions | |
Dimensions | |
Weight |
