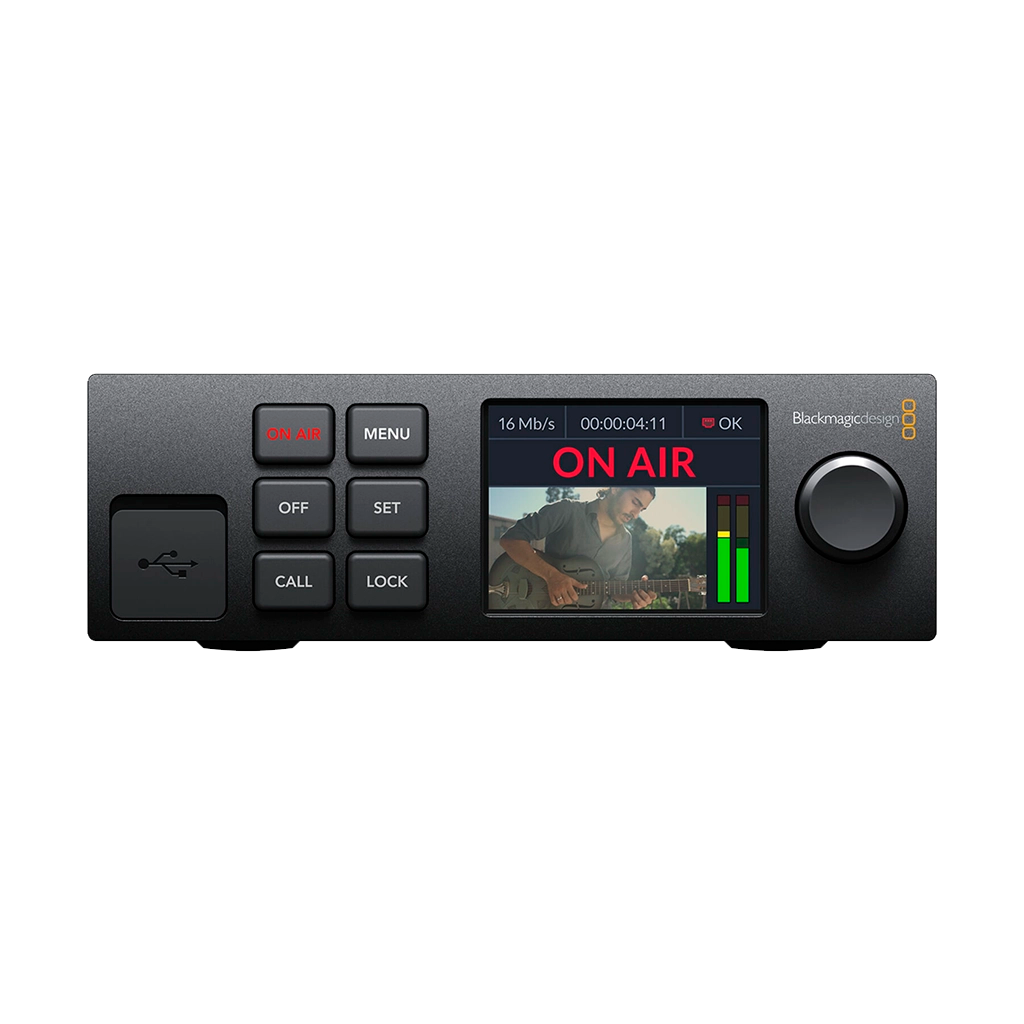

Blackmagic Design Web Presenter HD
Choose PayGate at checkout for MobiCred Payments.
- Live Stream SDI Video Source to Internet
- Input 12G/6G/3G-SDI Video up to UHD 4K
- SDI/HDMI Monitor Output up to 1080p60
- Supports H.264/RTMP Streaming Protocol
- Use USB Type-C as Webcam or 5G/4G Tether
- SDI Loop Output, 10/100/1000 Ethernet
- Redundant AC and DC Power Inputs
- Mac, Win, Linux & Chromebook Compatible
- Works with ATEM Streaming Bridge Option
Orms Bellville
Orms Cape Town
Blackmagic Design Web Presenter HD
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Live Stream SDI Video Source to Internet
- Input 12G/6G/3G-SDI Video up to UHD 4K
- SDI/HDMI Monitor Output up to 1080p60
- Supports H.264/RTMP Streaming Protocol
- Use USB Type-C as Webcam or 5G/4G Tether
- SDI Loop Output, 10/100/1000 Ethernet
- Redundant AC and DC Power Inputs
- Mac, Win, Linux & Chromebook Compatible
- Works with ATEM Streaming Bridge Option
Choose PayGate at checkout for MobiCred Payments.
- Live Stream SDI Video Source to Internet
- Input 12G/6G/3G-SDI Video up to UHD 4K
- SDI/HDMI Monitor Output up to 1080p60
- Supports H.264/RTMP Streaming Protocol
- Use USB Type-C as Webcam or 5G/4G Tether
- SDI Loop Output, 10/100/1000 Ethernet
- Redundant AC and DC Power Inputs
- Mac, Win, Linux & Chromebook Compatible
- Works with ATEM Streaming Bridge Option
The compact desktop Blackmagic Design Web Presenter HD offers a complete streaming solution to professionals seeking to present quality video feed to the internet. You'll be able to live stream from any 12G/6G/3G/HD-SDI video source directly to YouTube, Facebook Live, Twitter and many other platforms.
The Web Presenter HD from Blackmagic Design features advanced features that allows you to connect via any SDI video input and stream it live onto the internet, which can easily be done via an Ethernet or tethering via a USB from your smartphone using either 4G or 5G connection. Other key features to the Blackmagic Design Web Presenter HD includes a technical monitoring output that includes video, audio meters, trend graphs and even SDI technical data; two USB connections that operate as a simple Webcam source - giving full compatibility with any video software and in full resolution 1080 HD quality; and it supports the H.264 codec and streams via RTMP.
Input Any SDI Signal
The Blackmagic Design Web Presenter HD supports any SDI input and includes a 12G-SDI input with support for all HD and Ultra HD formats of up to 2160p @ 60 fps. The web presenter HD also includes a 12G-SDI loop output to give you access to loop video through more than just one web presenter - making it easy enough to stream to multiple services. Additionally, the unit also features Teranex conversion technology on the SDI input for remarkable clean looking video.
Live Streaming Options
The Web Presenter HD from Blackmagic Design also supports H.264/RTMP Streaming Protocols to the internet such as YouTube, Facebook Live, Twitter and many other platforms, that can be done either via an Ethernet or tethering via a USB from your smartphone using either 4G or 5G connection.
USB Source as Webcam
The compact and advanced Web Presenter HD features a built-in USB connection that works like a webcam - allowing you to connect to a computer and use any streaming software, or even Skype and Zoom.
Monitor Outputs
You can send program output in high quality 1080p to an HDMI or SDI monitor, or you the original video can be sent via an SDI loop output to a switcher or monitor.
Built-in Technical Monitoring
The Blackmagic Design Web Presenter HD includes a built-in feature rich technical monitoring output to provide critical information on video view, audio meters with accurate ballistics, trend graphs for codec data rates and cache fill, a summary of the streaming settings and detailed SDI technical information. Additionally, the technical monitoring output works in full 1080 HD and outputs to both SDI and HDMI.
Built-in Redundancy Keeps You On Air
Serious broadcasters love redundancy because it increases reliability. Blackmagic Web Presenter includes redundant features to help ensure you stay online. You get dual internet connections, so you connect to the internet using the built in Ethernet or a tethered phone for 5G or 4G mobile data. Plus the internet automatically switches in case of an outage. Or you can use 2 separate units to stream to both the primary and secondary YouTube servers. With both AC and DC inputs, you can use a broadcast battery pack for redundant power. There are even front panel buttons and menus, plus the Blackmagic Web Presenter Utility software for control.
Broadcast Links with ATEM Streaming Bridge
The Blackmagic Web Presenter allows you to send video to a wide range of streaming services, and it can also be used as a private broadcast SDI video link between studios. The ATEM Streaming Bridge is a video converter that lets you receive the H.264 stream from Blackmagic Web Presenter and then convert it back to SDI video. This means you can send video between remote locations across your local Ethernet network, or via the internet globally. That's all possible due to the built in H.264 hardware codec that decodes the Web Presenter stream. Imagine setting up multiple television studios and using ATEM Streaming Bridge and Web Presenter for video links between sites.
- Blackmagic Design Web Presenter HD
IP Encoding/Decoding | |
IP Video | H.264: 1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
Transport Protocols | RTMP |
Simultaneous Streams | 1 Streams |
Compatible Services | Facebook Live, Livestream, Skype, Twitch, YouTube Live |
Interfaces | |

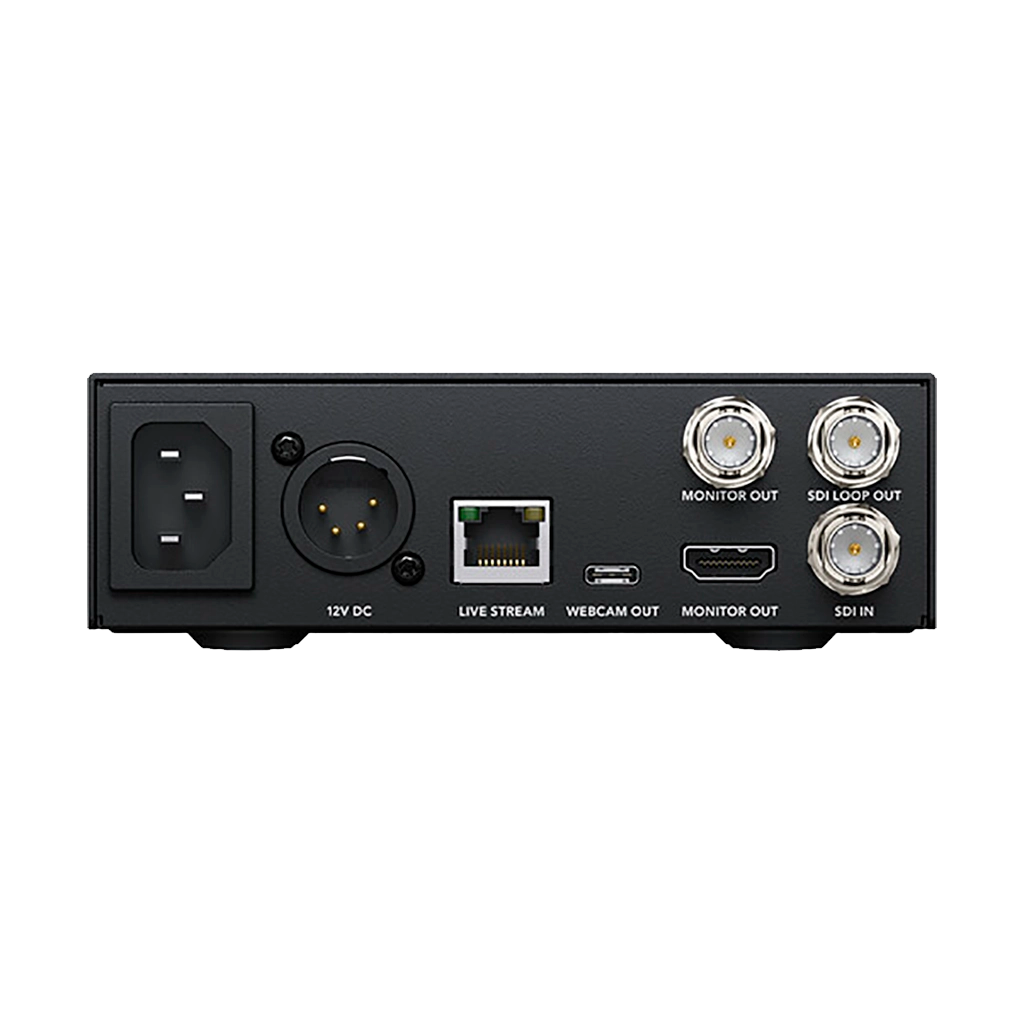

Video Connectors | 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Output 1 x HDMI Output |
Other I/O | 1 x RJ45 10/100/1000 Ethernet Input/Output 1 x USB Type-C Input |
Embedded Audio | SDI/USB Type-C |
Power | |
Power Connector | 1 x 4-Pin XLR (12 VDC) Input 1 x NEMA 5-15R Input |
Power Consumption | Device: 100 to 240 VAC (21 W) |
Environmental | |
Operating Temperature | 0 to 40°C |
Operating Humidity | 0 to 90% |
Storage Temperature | -20 to 45°C |
General | |
Display | LCD |
Dimensions | 17.5 x 14 x 4.45 cm |
Weight | 0.75 kg |
