Blackmagic Design

Blackmagic GPI and Tally Interface

R 10,695.00
R 10,695.00 R 10,695.00
Tax included. Shipping calculated at checkout.

BLA-SWTALGPI8

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Displays Tallies for Video Signals
  • Indicates On-air Status
  • For ATEM Switchers / Videohub Routers
  • 8 Contact Closure Inputs & Outputs
  • Connects with Multiple Interfaces

    Adds GPI and tally interface to a Blackmagic ATEM switcher. With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines and monitors so everyone knows which camera is 'on-air'. If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher.

    Features:

    • Displays Tallies for Video Signals
    • Indicates On-air Status
    • For ATEM Switchers / Videohub Routers
    • 8 Contact Closure Inputs & Outputs
    • Connects with Multiple Interfaces

    Blackmagic GPI and Tally Interface

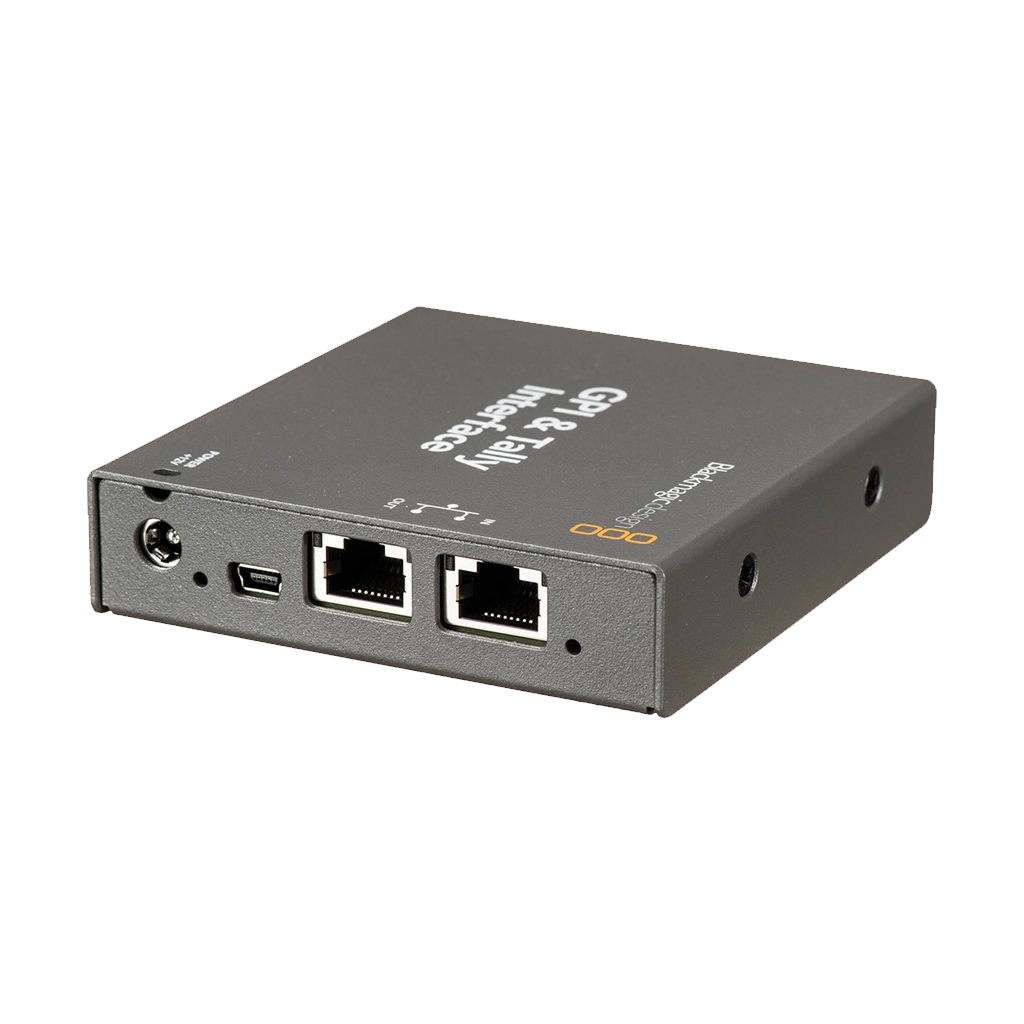

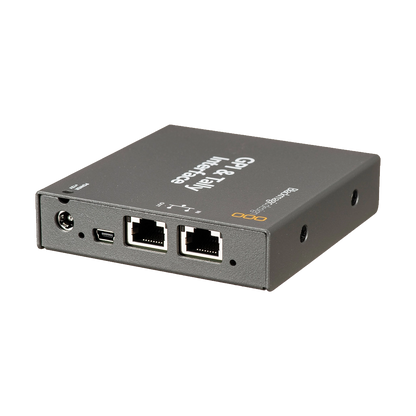

    Connections

    Contact Closure

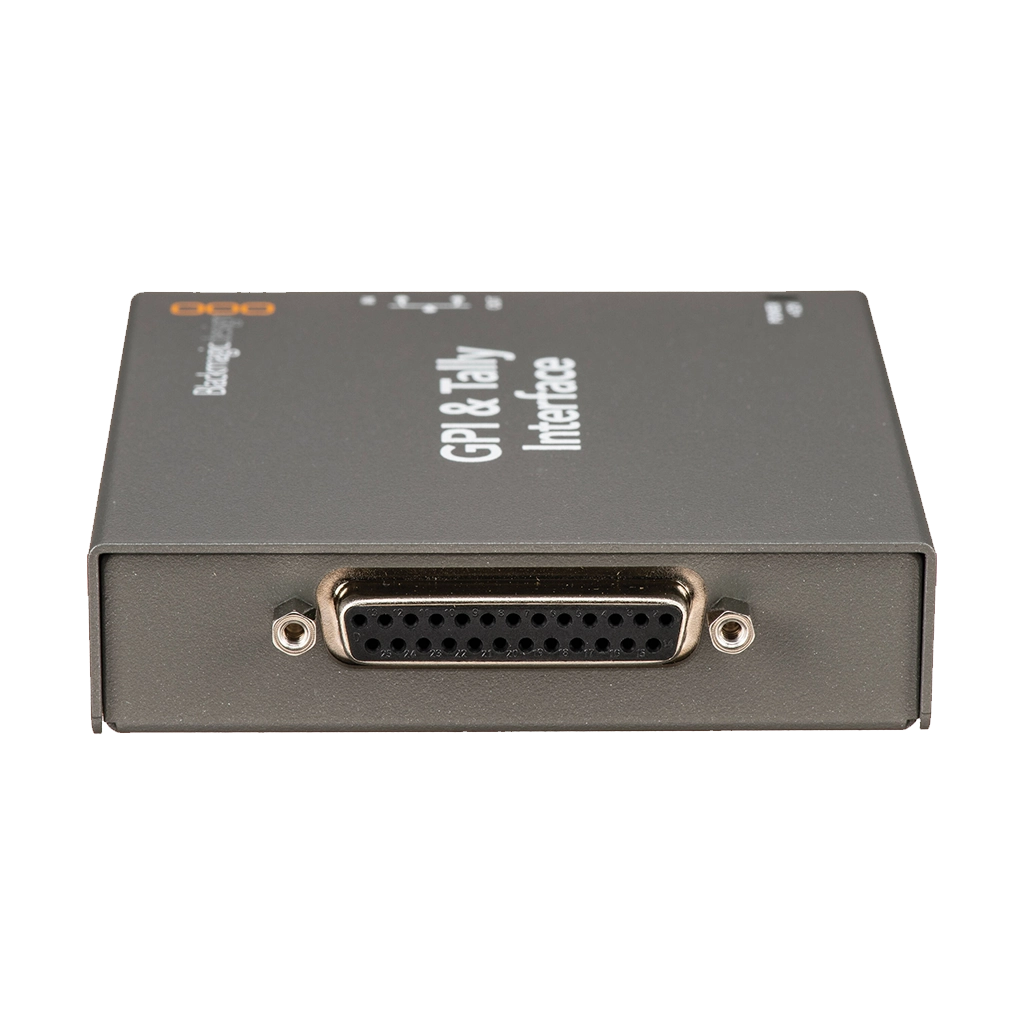

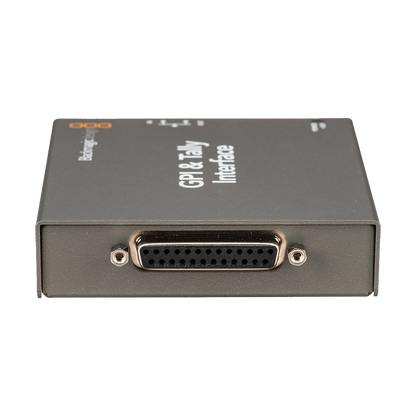

    25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.

    Computer Interface

    1 x USB 2.0 high speed interface for configuration and firmware updates.

    Inputs

    Optical isolators triggered by connection to ground.
    Max 5V at 14mA.

    Outputs

    Mechanical relay contact closure to ground. Max 30V at 1A.

    Ethernet

    10/100 BaseT with loop through for connecting to other ethernet enabled equipment.

    Software

    Software Included

    Configured via ATEM Switcher Utility.

    Internal Software Upgrade

    Firmware built into software driver. Loaded at system startup or via updater software.

    Operating Systems

    Mac OS X 10.9 Mavericks,
    Mac OS X 10.10 Yosemite or later.

    Windows 7 or Windows 8.


    Power Requirements

    Power Supply

    12V power supply included with international socket adaptors for all countries.
