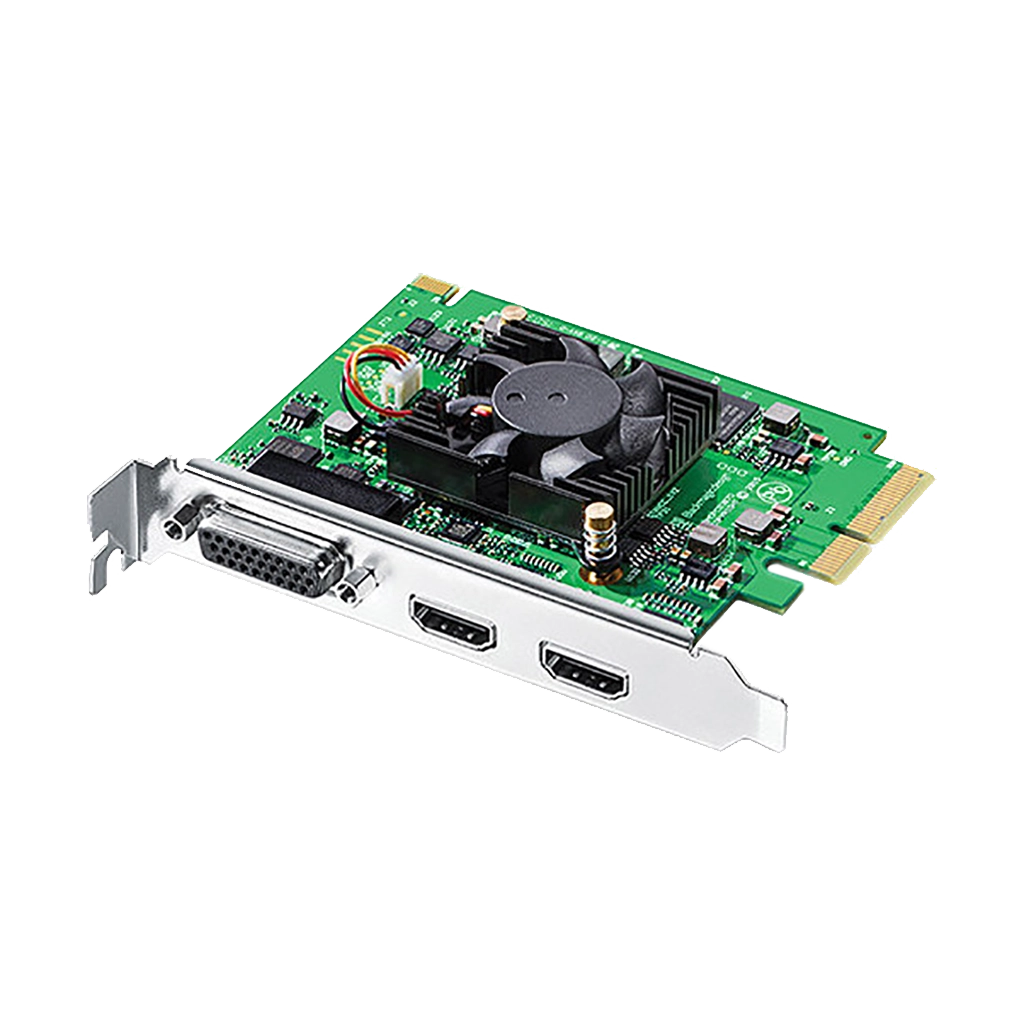

Blackmagic Design Intensity Pro 4K
Choose PayGate at checkout for MobiCred Payments.
- Capture & Playback in Ultra HD at 30 fps
- Capture 1080p at 60 fps
- 4-Lane PCIe Card for 4, 8, 16 Lane Slots
- HDMI 1.4b Standard
- Ingest HDMI, YUV, S-Video, and NTSC/PAL
- Save Video Compressed or Uncompressed
Orms Bellville
Orms Cape Town
Blackmagic Design Intensity Pro 4K
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Capture & Playback in Ultra HD at 30 fps
- Capture 1080p at 60 fps
- 4-Lane PCIe Card for 4, 8, 16 Lane Slots
- HDMI 1.4b Standard
- Ingest HDMI, YUV, S-Video, and NTSC/PAL
- Save Video Compressed or Uncompressed
Choose PayGate at checkout for MobiCred Payments.
- Capture & Playback in Ultra HD at 30 fps
- Capture 1080p at 60 fps
- 4-Lane PCIe Card for 4, 8, 16 Lane Slots
- HDMI 1.4b Standard
- Ingest HDMI, YUV, S-Video, and NTSC/PAL
- Save Video Compressed or Uncompressed
The Intensity Pro 4K lets you capture and playback on computers. The card features HDMI and analog breakout connections and works with NTSC/PAL, HD and Ultra HD video with or without compression and is compatible with all popular video editing, audio, and streaming software. DaVinci Resolve Lite and Media Express software are included free so you get professional editing, grading and media management without having to buy extra software.
Features:
- Capture & Playback in Ultra HD at 30 fps
- Capture 1080p at 60 fps
- 4-Lane PCIe Card for 4, 8, 16 Lane Slots
- HDMI 1.4b Standard
- Ingest HDMI, YUV, S-Video, and NTSC/PAL
- Save Video Compressed or Uncompressed
- Capture Directly to Popular NLEs
- Output to High Resolution HDTVs
- Connect Cameras for Live Streaming
- Create 60 fps Gameplay Walk-Throughs
Blackmagic Design Intensity Pro 4K
Connections
HDMI Video Input
1 x HDMI type A connector.
HDMI Video Output
1 x HDMI type A connector.
HDMI Audio Input
8 Channels embedded in SD, HD and Ultra HD.
HDMI Audio Output
8 Channels embedded in SD, HD and Ultra HD.
Analog Video Input
Component, Composite or S-Video.
Analog Video Output
Component, Composite or S-Video.
Analog Audio Input
2 Channel RCA HiFi audio in 24-bit.
Analog Audio Output
2 Channel RCA HiFi audio in 24-bit.
SPDIF Audio Output
2 Channel 24-bit.
Multiple Rate Support
HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.
Computer Interface
PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.
Standards
SD Format Support
625i/50 PAL and 525i/59.94 NTSC, 480p
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97 and 2160p30.
HDMI Video Sampling
RGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD.
HDMI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
Color Space
REC 601, REC 709.
HDMI Color Precision
10-bit
HDMI Configuration
HDMI 1.4b supports Deep Color and automatically configures to connected display.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
UHD/HD Down Conversion
Software based down conversion during video playback.
HD Up Conversion
Real time SD to 1080HD and 720HD during video capture.
Real Time Effects
Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Software
Software Included
DaVinci Resolve Lite, Media Express, Disk Speed Test, Blackmagic Desktop Video.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Operating Systems
Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.
Linux
