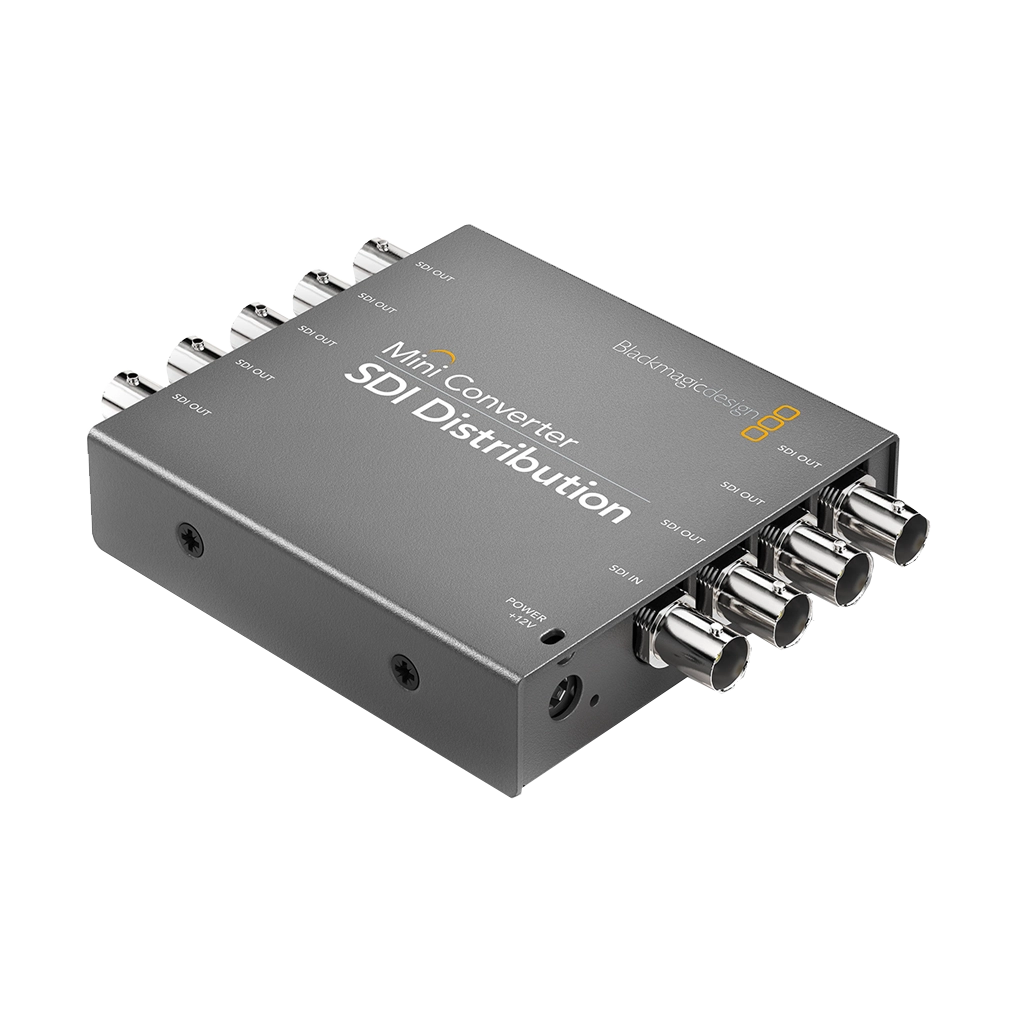

Blackmagic Mini Converter SDI Distribution
Choose PayGate at checkout for MobiCred Payments.
- (1) SDI Input, (8) SDI Outputs
- 3G/HD/SD-SDI Auto-Switching Input
- Re-Clocked Outputs
- Ancillary Data & Embedded Audio
- 1080p & 2K Distribution
- Supports ASI Signals
Orms Bellville
Orms Cape Town
Blackmagic Mini Converter SDI Distribution
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- (1) SDI Input, (8) SDI Outputs
- 3G/HD/SD-SDI Auto-Switching Input
- Re-Clocked Outputs
- Ancillary Data & Embedded Audio
- 1080p & 2K Distribution
- Supports ASI Signals
Choose PayGate at checkout for MobiCred Payments.
- (1) SDI Input, (8) SDI Outputs
- 3G/HD/SD-SDI Auto-Switching Input
- Re-Clocked Outputs
- Ancillary Data & Embedded Audio
- 1080p & 2K Distribution
- Supports ASI Signals
Now you can distribute a single SD or HD-SDI connection to up to 8 different SDI outputs at the same time! You get a true 3G-SDI design with fully re-clocked outputs and automatic switching between all SD and HD formats up to 1080p60. You also get support for all ASI, ancillary and embedded audio formats. Mini Converter SDI Distribution is the perfect SD/HD SDI distribution converter for when you dont need the cost of the Ultra HD model!
Blackmagic Mini Converter SDI Distribution
Connections
SDI Video Input
Switchable between SD, HD and 3G-SDI.
SDI Video Output
8 outputs automatically match the SDI video input.
Multi Rate Support
Auto detection of SD, HD, 2K, or 3G-SDI.
Reclocking
Yes
Standards
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60.
2K Format Support
2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B and SMPTE 425M
SDI Video Rates
SDI video connections are switchable between SD, HD, and DCI 2K.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects SD, HD or 3G-SDI.
ASI Support
Yes
Operating Systems
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
4.80 Watts
Operational Voltage Range
12 - 31V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Mini Converter SDI Distribution
Software CD
12V universal power supply with international socket adapters
