Blackmagic Design

Blackmagic SDI to Analog Mini Converter

R 4,795.00
R 4,795.00 R 4,795.00
Tax included. Shipping calculated at checkout.

BLA-CONVMASA

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • SDI to Analog Conversion

    The perfect way to convert from SD and HD-SDI to analog component, s-video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p60 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s-video and composite. Audio can be de-embedded to balanced analog or AES/EBU. Mini Converter SDI to Analog is ideal for converting to older analog equipment when you dont need the extra cost of the 6G-SDI 4K model.

    SDI to Analog Conversion

    Use this device to convert SDI video signals to analogue output.

    Embedded Audio

    The Converter can de-embed audio from an SDI signal so that you can output it via the analogue outs.

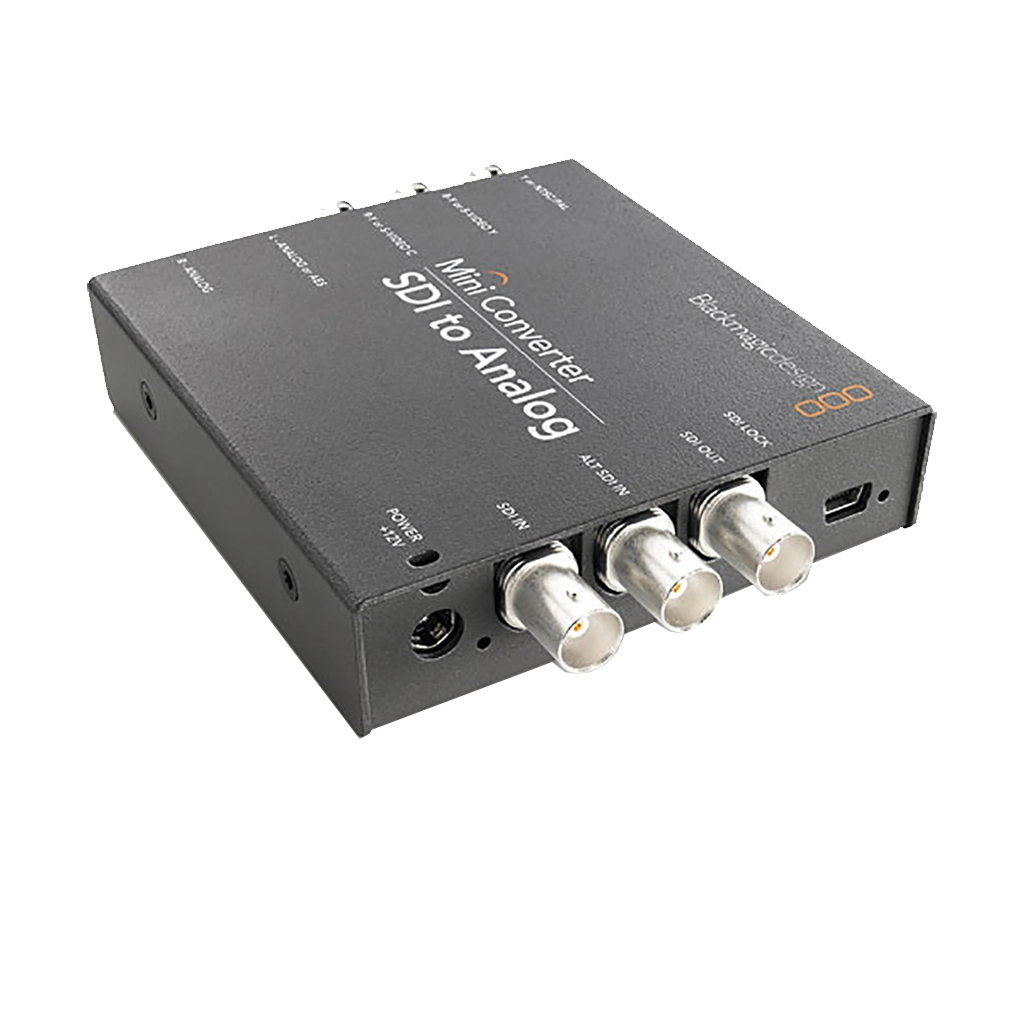

    Blackmagic SDI to Analog Mini Conveter

    Connections

    SDI Video Input

    Switchable between SD, HD and
    3G-SDI.

    SDI Video Output

    Automatically matches the SD, HD and 3G-SDI video input.

    Analog Video

    NTSC, PAL, S-Video and component SD/HD from 3G-SDI input.

    Analog Audio

    2 channels of professional balanced analog audio with standard 1/4 inch jack connections.

    AES/EBU Digital Audio

    2 channels of professional balanced digital with standard 1/4 inch jack connections.

    SDI Redundant Input

    Automatically switches over if main SDI input is lost.

    Multi Rate Support

    Auto detection of SD, HD, 2K or 3G-SDI.

    Updates and Configuration

    USB

    Reclocking

    Yes

    Standards

    SD Format Support

    525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL.

    HD Format Support

    720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60.

    2K Format Support

    2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25

    SDI Compliance

    SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M­â€B, SMPTE 425M, ITU‐R BT.656 and ITU­â€R BT.601.

    SDI Video Rates

    SDI video connections are switchable between SD, HD, and DCI 2K.

    SDI Video Sampling

    4:2:2

    SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit.

    SDI Color Precision

    4:2:2

    SDI Color Space

    YUV

    SDI Auto Switching

    Auto detection of SD, HD or 3G-SDI.

    Analog Format Support

    625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC. 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

    Analog Color Space

    YUV

    Analog Color Precision

    4:2:2

    Format Conversion

    SD down conversion

    Software

    Software Control

    Mac OS X™ and Windows™ software upgrade via USB.

    Internal Software Upgrade

    Via included updater application.

    Operating Systems


    Mac OS X 10.10 Yosemite,
    Mac OS X 10.11 El Capitan or later.


    Windows 8.1 or Windows 10.


    Settings Control

    Mini Switches or USB software.

    Power Requirements

    Power Supply

    +12V universal power supply included with international socket adapters for all countries. Cable tie point.

    Power Consumption

    8.04 Watts

    Operational Voltage Range

    12V DC



    Environmental Specifications

    Operating temperature

    0° to 40° C (32° to 104° F)

    Storage temperature

    -20° to 45° C (-4° to 113° F)

    Relative Humidity

    0% to 90% non-condensing

    What's Included

    Mini Converter SDI to Analog

    Software CD

    12V universal power supply with international socket adapters
