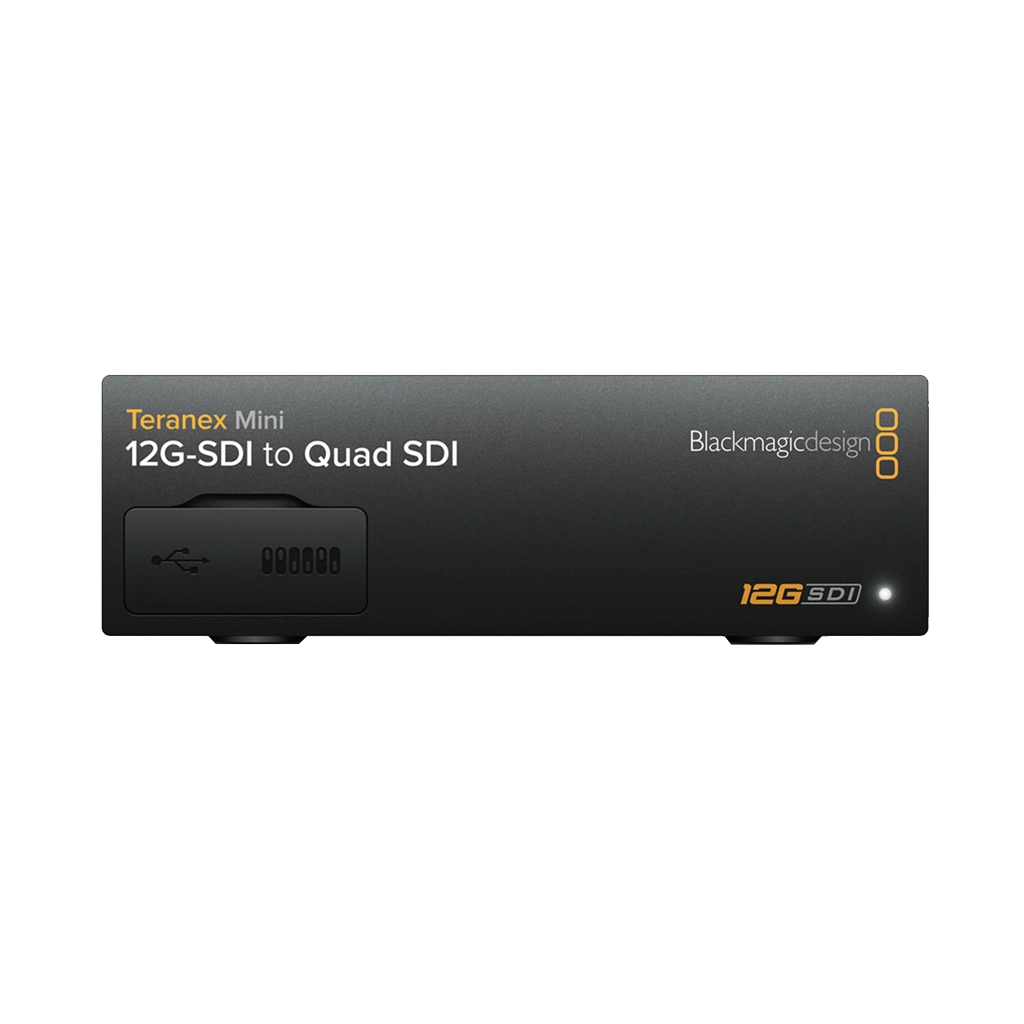

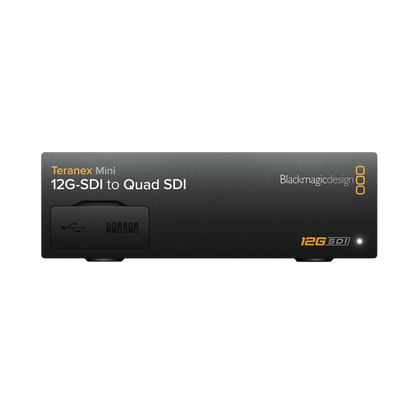

Blackmagic Teranex Mini 12G-SDI to Quad SDI
Choose PayGate at checkout for MobiCred Payments.
- 1 x 12G-SDI Input, 12G-SDI Loop Output
- 4 x 3G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 16-Channel, 24-Bit, 48 kHz Audio Support
- Control via DIP Switches or Software
- Power via PoE or IEC C14 Power Cable
- Ethernet or USB for Firmware Updates
Orms Bellville
Orms Cape Town
Blackmagic Teranex Mini 12G-SDI to Quad SDI
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 1 x 12G-SDI Input, 12G-SDI Loop Output
- 4 x 3G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 16-Channel, 24-Bit, 48 kHz Audio Support
- Control via DIP Switches or Software
- Power via PoE or IEC C14 Power Cable
- Ethernet or USB for Firmware Updates
Choose PayGate at checkout for MobiCred Payments.
- 1 x 12G-SDI Input, 12G-SDI Loop Output
- 4 x 3G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 16-Channel, 24-Bit, 48 kHz Audio Support
- Control via DIP Switches or Software
- Power via PoE or IEC C14 Power Cable
- Ethernet or USB for Firmware Updates
Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment. Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays. Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.
OS Compatibility
- macOS 10.14 Mojave, macOS 10.15 Catalina or later
- Windows 8.1 and 10
Blackmagic Teranex Mini 12G-SDI to Quad SDI

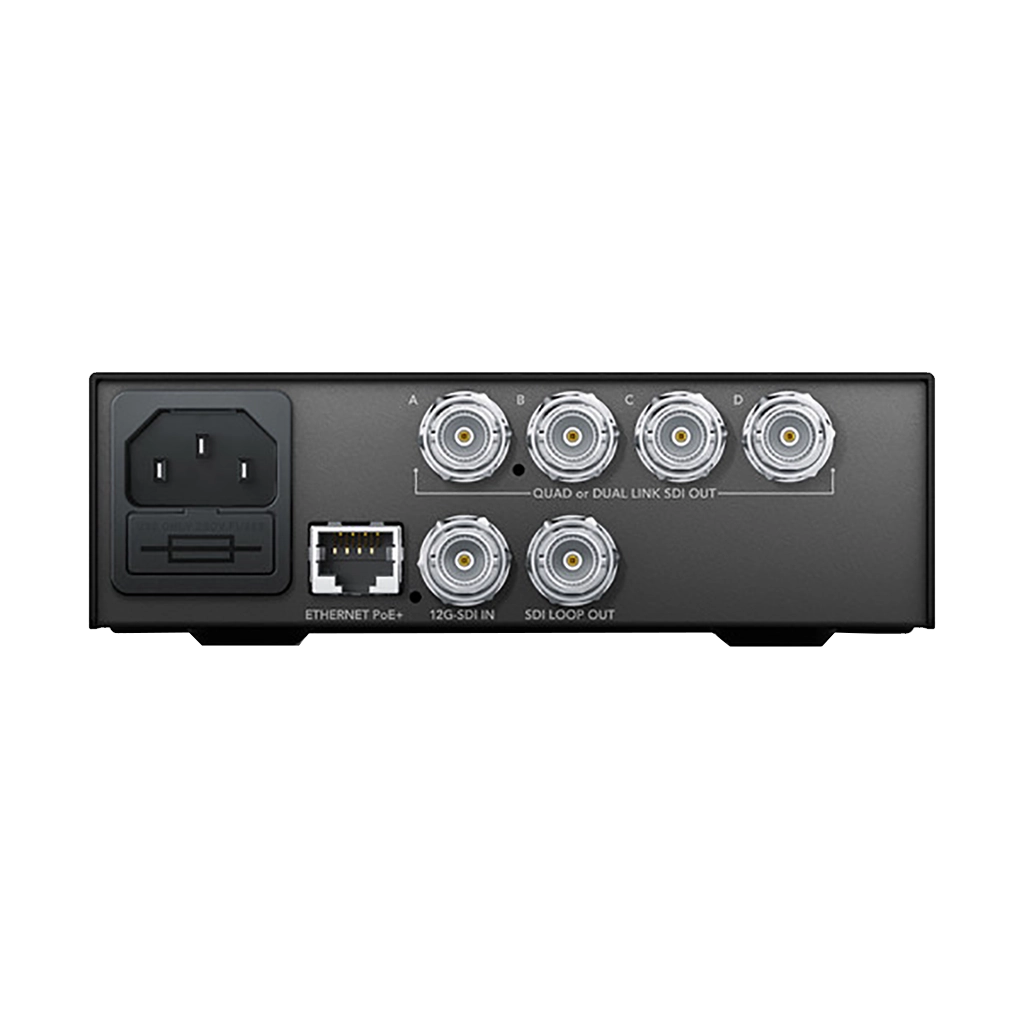

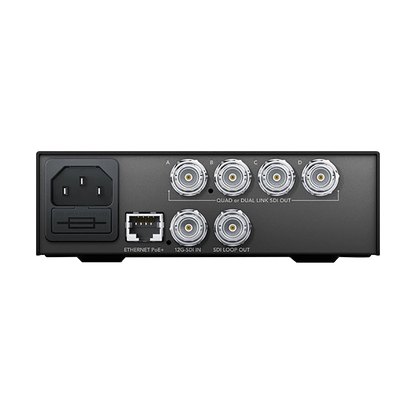

Connections
SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output
4 x 3G-SDI outputs
Multi Rate Support
Automatic switching between SD/HD/2K and 4K
Updates and Configuration
USB or Ethernet
Re-Clocking
Yes
Standards
SD Format Support
525i29.97 NTSC, 625i25 PAL
HD Format Support
720p50, 59.94, 60
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF23.98, 24, 25
1080i50, 59.94, 60
2K Format Support
1080p23.98, 24, 25, 30
1080PsF23.98, 24, 25
Ultra HD Format Support
2160p23.98, 24, 25, 29.97, 30, 50, 60
4K Format Support
2160p23.98, 24, 25, 29.97, 30.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space
YUV & RGB
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
16 Watts
Operational Voltage Range
90 - 240V AC
Environmental Specifications
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20°to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
What's Included
Teranex Mini - 12G-SDI to Quad SDI
SD card with software and manual
