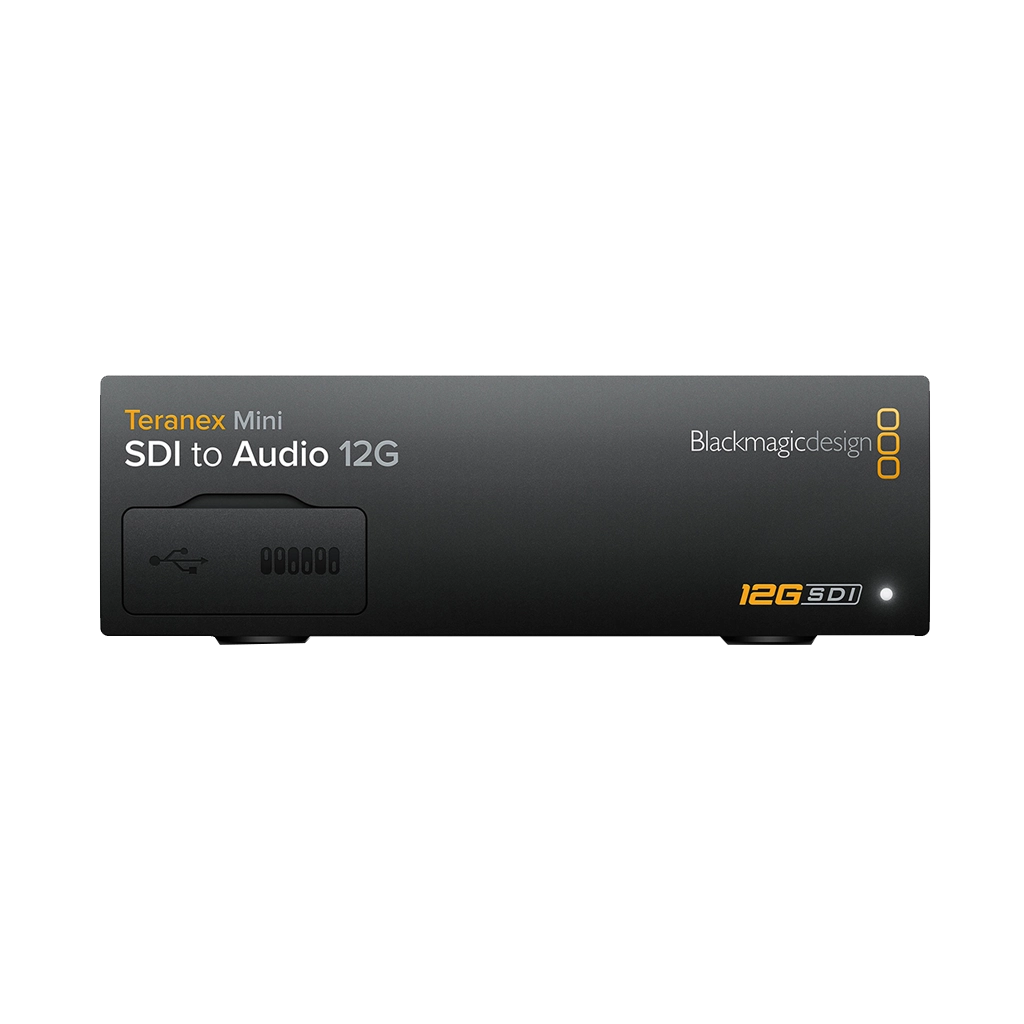

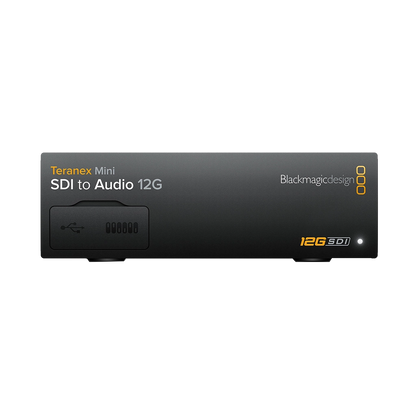

Blackmagic Teranex Mini SDI to Audio 12G
Choose PayGate at checkout for MobiCred Payments.
- Advanced High-Data Rate De-Embedder
- De-Embed Audio from up to 4K SDI Signals
- Output via XLR, AES/EBU, RCA, or S/PDIF
- 12G-SDI Input and Output
- Supports up to Full 4K DCI 4096x2160p
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
Orms Bellville
Orms Cape Town
Blackmagic Teranex Mini SDI to Audio 12G
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Advanced High-Data Rate De-Embedder
- De-Embed Audio from up to 4K SDI Signals
- Output via XLR, AES/EBU, RCA, or S/PDIF
- 12G-SDI Input and Output
- Supports up to Full 4K DCI 4096x2160p
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
Choose PayGate at checkout for MobiCred Payments.
- Advanced High-Data Rate De-Embedder
- De-Embed Audio from up to 4K SDI Signals
- Output via XLR, AES/EBU, RCA, or S/PDIF
- 12G-SDI Input and Output
- Supports up to Full 4K DCI 4096x2160p
- XLR Connections Switchable to AES/EBU
- Ethernet Port for Remote Control or PoE
- Supports Optional LCD Smart Front Panel
- Intelligent Thermal Heat Dissipation
- 3 Units 1U Rack-Mountable in 19" Rack
De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.
- De-embed audio from any SDI signal that's in up to 4K DCI 4096x2160p resolution
- Route the audio via XLR, AES/EBU, RCA, or S/PDIF TOSLINK outputs
- 12G-SDI input and output
- Full-size XLR connections switchable between balanced analogue and AES/EBU audio
- Ethernet remote control and PoE port
- Intelligent thermal design heat dissipation effectively prevents overheating
- Three units are rack-mountable in a 1U 19" rack using an optional rack tray
- Can be used desktop mounted or installed concealed in cable ducts
- Built-in 90-240V power supply requiring only a standard IEC power cable, sold separately
- An array of mini switches allow instant settings changes
- Front panel is replaceable with an optional Smart Panel featuring controls and an LCD
- Manage numerous units simultaneously using the included Converter Utility software
- Full SDI re-clocking and low jitter
Blackmagic Teranex Mini SDI to Audio 12G

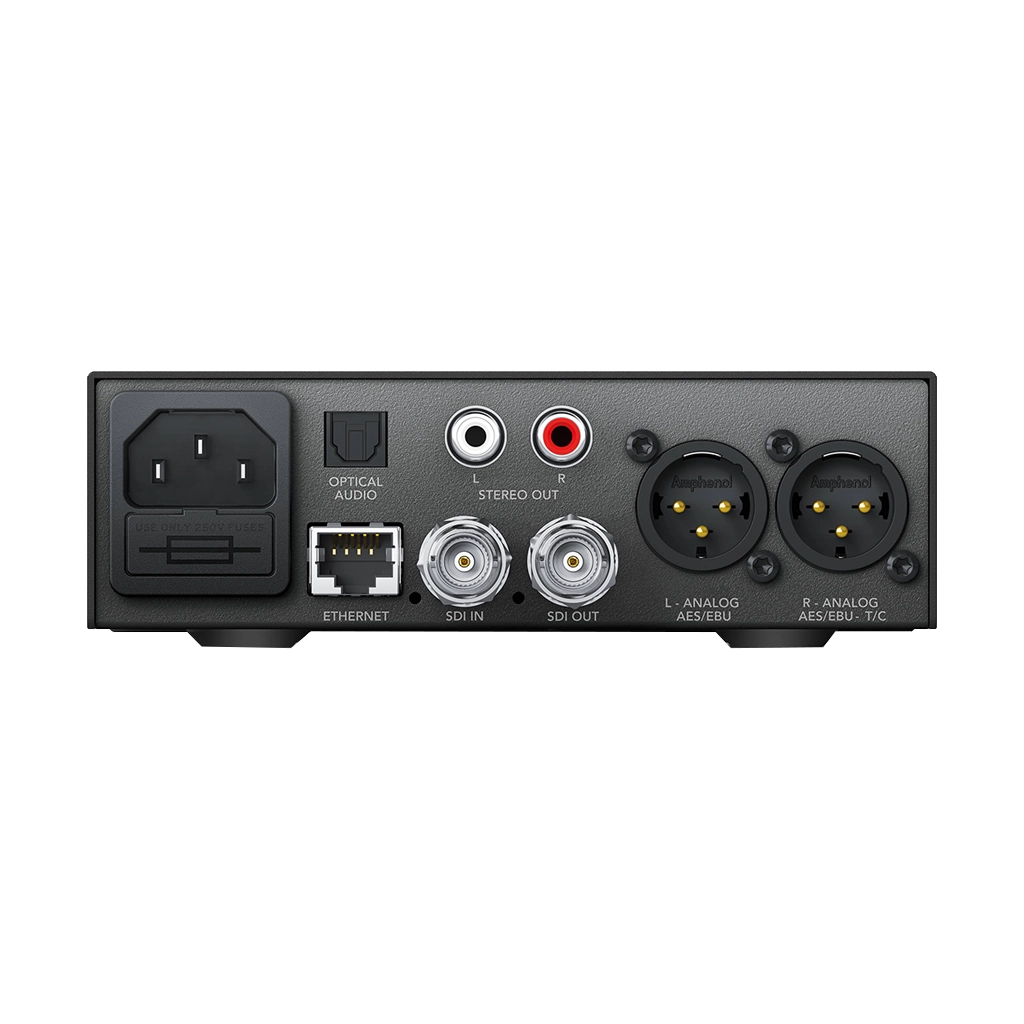

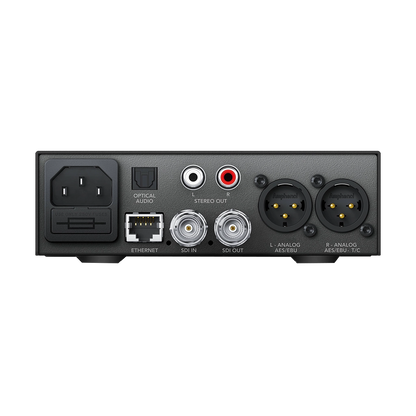

Connections
SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output
1 x 12G-SDI loop output.
AES/EBU Audio Output
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
Analog Audio Output
2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output.
Optical Audio Output
S/PDIF Signal with TOSLINK Connector.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K.
Updates and Configuration
USB or Ethernet.
Re-Clocking
Yes
Standards
SD Format Support
525i23.98, 29.97 NTSC, 625i25 PAL
HD Format Support
720p50, 59.94, 60
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF23.98,24, 25, 30
1080i50, 59.94, 60
2K Format Support
1080p23.98, 24, 25
1080PsF23.98, 24, 25
Ultra HD Format Support
2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
4K Format Support
2160p23.98, 24, 25, 29.97, 30
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-A, SMPTE 424M-B, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
SDI Video Rates
SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI.
SDI Auto Switching
Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
SDI Video Sampling
4:2:2, 4:4:4
SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
SDI Color Space
REC 601, REC 709
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power Requirements
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
16 Watts
Operational Voltage Range
90 - 240V AC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20°to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
What's Included
Teranex Mini - SDI to Audio 12G
SD card with software and manual
