BOYA BY-WM8 Pro-K1 Dual-Channel Wireless Lavalier System

R 4,580.00
R 4,580.00 R 4,580.00
Tax included. Shipping calculated at checkout.

VABY-WM8PROK1

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Dual-Channel Wireless Receiver
  • 1 x Wireless Bodypack Transmitters
  • 1 x Omnidirectional Lavalier Microphones
  • 48 Selectable UHF Channels
  • Mic and Line-In, Plus Mute Function
  • Easy-to-Read LCD Displays
  • Selectable Mono and Stereo Modes
  • Headphone Monitor Output on Receiver
  • Powered by Two AA Batteries
  • Includes Mic Clips and Foam Windscreens

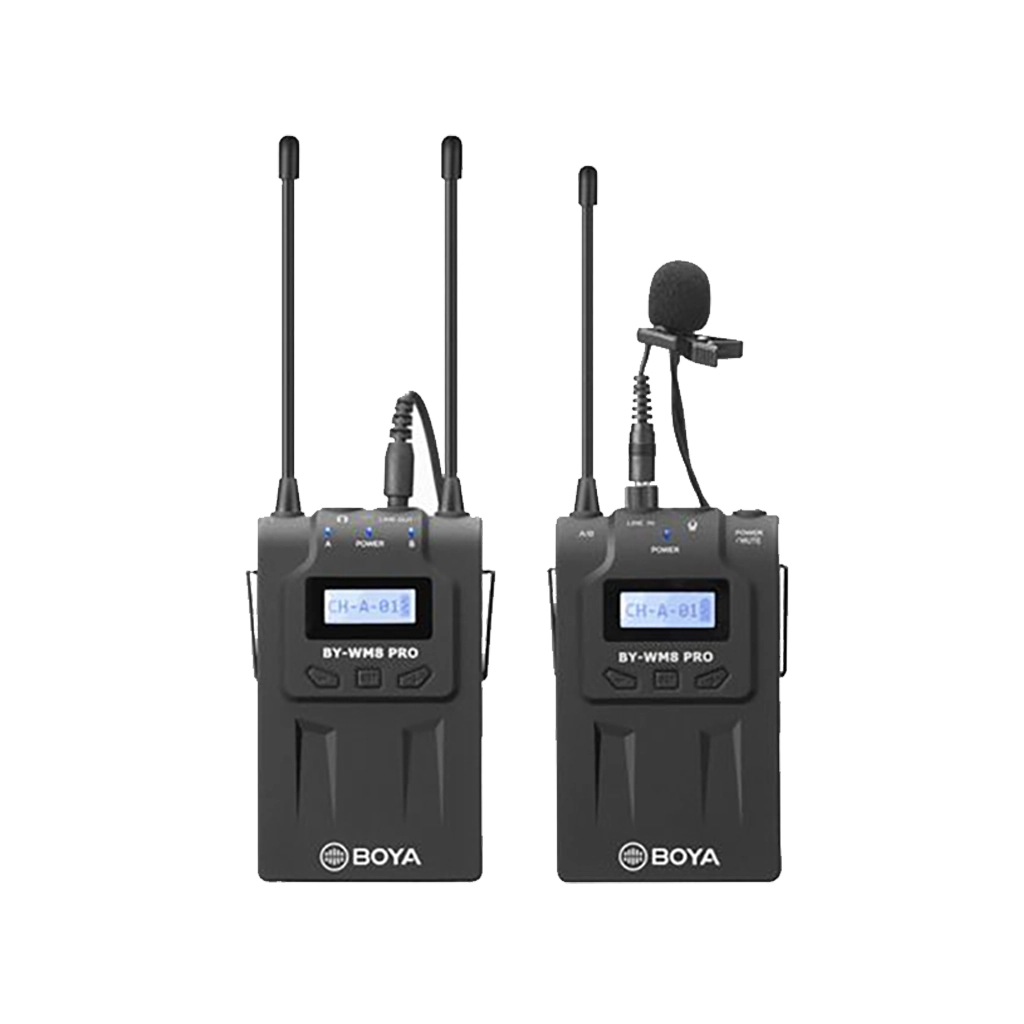

    The BOYA BY-WM8 Pro-K1 Dual-Channel Wireless Lavalier System consists of one wireless bodypack transmitter along with an omnidirectional lavalier microphone and one receiver to capture high quality sound; making it ideal for broadcast and film, ENG, talk shows, conferences and more.

    The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read and convenient LCD display, a 3.5mm headphone jack that enables real-time monitoring. The transmitter that feeds the sound through is equipped with a crystal-controlled PLL synthesizer, a 1/8 mic input, a 1/8 line-in jack, and a muting function. Between the two devices it allows a 100m working range.
    Included with this powerful microphone system is a shoe-mount adapter, a single 1/8 to XLR output cable, a single 1/8 to 1/8 output cable, and a carrying case.

    • Digital companding circuitry
    • User-friendly menu operation with more control options
    • Auto-lock function avoids accidental changing of settings
    • One mic input and one line input for transmitter
    • Monitoring of receiver via headphones directly
    • Wide range of accessories adapts the system to most of requirements

    • Dual-Channel Wireless Receiver
    • 1 x Wireless Bodypack Transmitters
    • 1 x Omnidirectional Lavalier Microphone
    • Foam Windscreen
    • Microphone Clip
    • Shoe-Mount
    • 3.5mm to XLR Output Cable
    • 3.5mm to 3.5mm Output Cable
    • Carrying Case

    Oscillator type: PLL Synthesized Control Oscillator
     Carrier Frequency Range: 556.71 MHz-575.98 MHz (Transmitter: A )
     576.39 MHz-595.66MHz (Transmitter: B )
     Channels:  48
     Frequency response: 40 Hz to 18 kHz (+/-3dB)
     Operation range: 100m (300')(without obstacle)



     Antenna: 1/4λ wire antenna
     Audio input connector: 3.5mm mini jack
     Signal to noise ratio 70dB or more
     Distortion: 0.5% or less
     Headphone output level:  30mW(16Ω)
     Audio output level: -60dBV
     Power supply Two AA size batteries
     Operation time: About 4 hours
     Dimensions:

     208(H)  × 67(W) × 29(L)mm

     Weight: 90g without batteries
