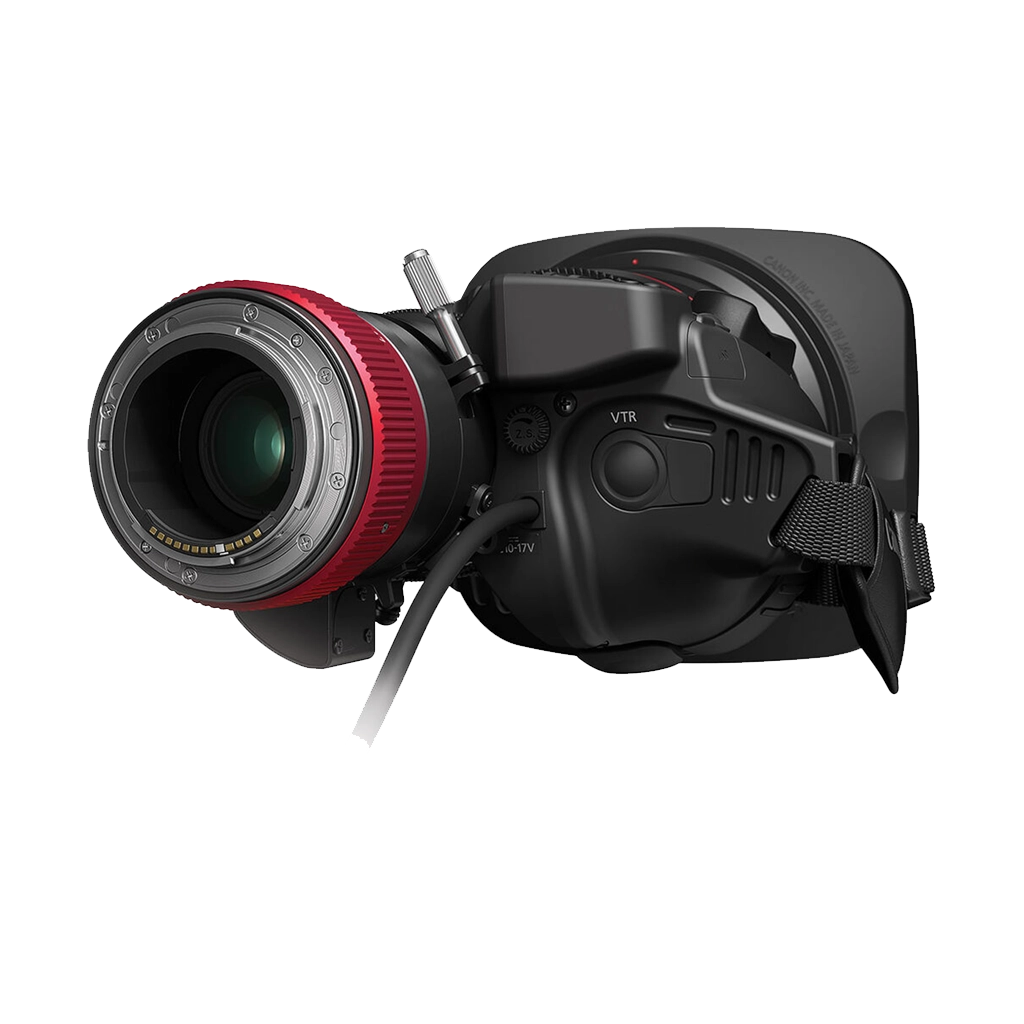

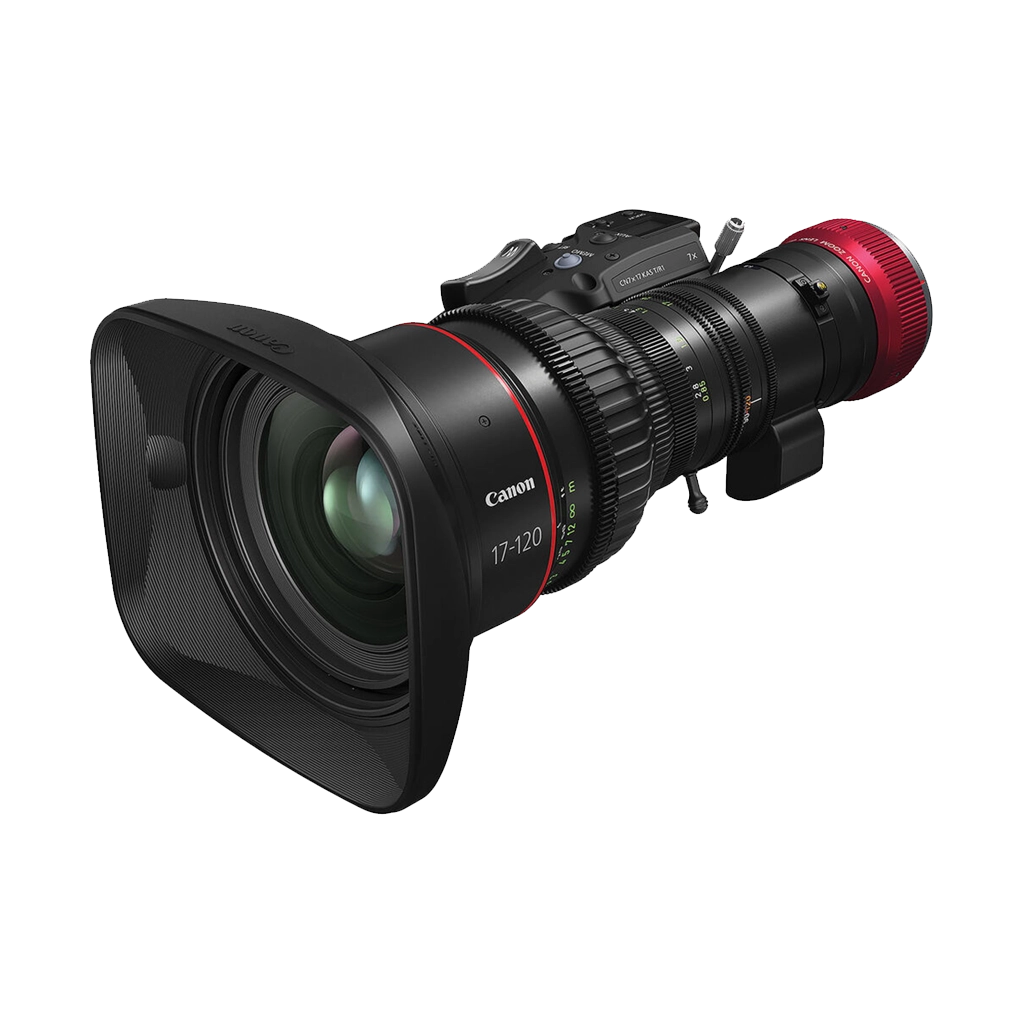

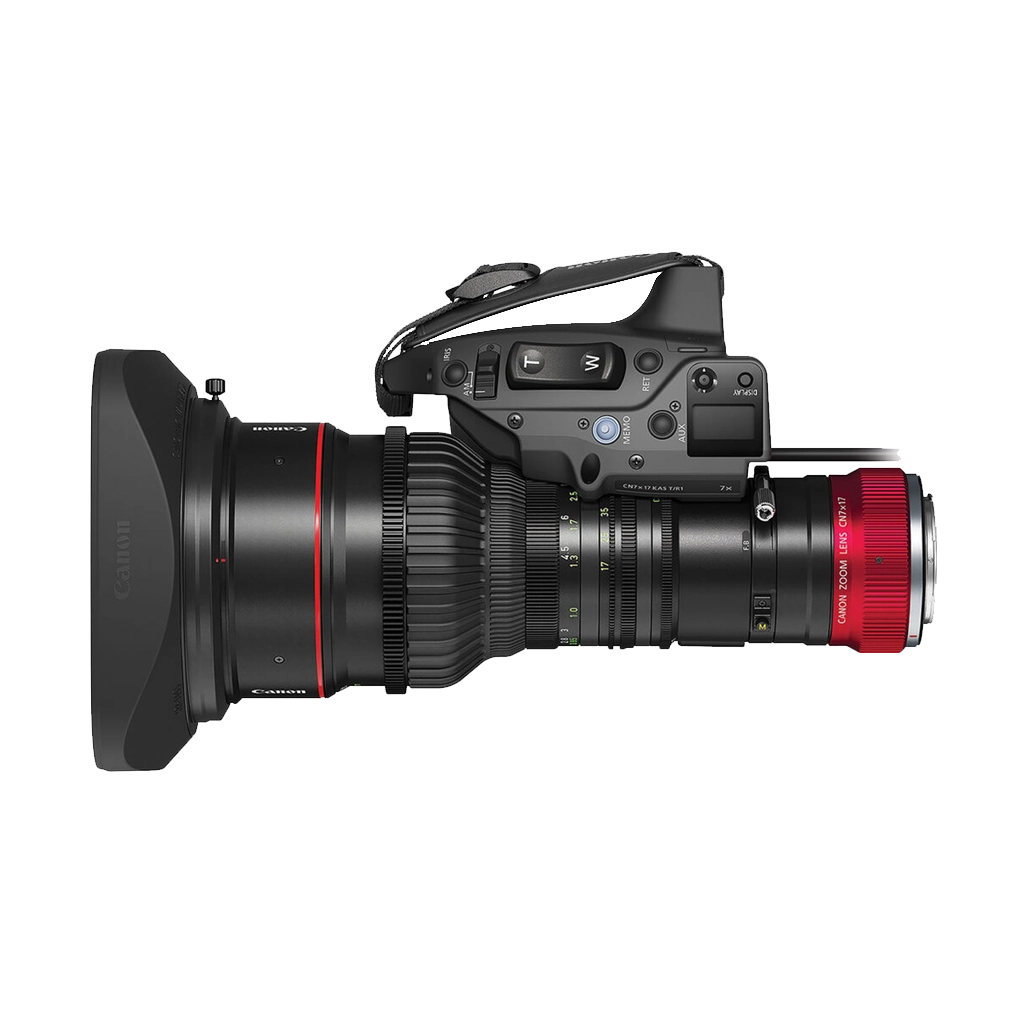

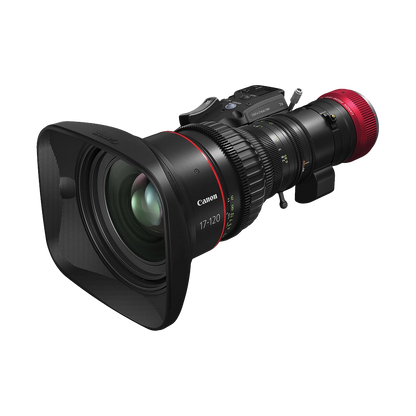

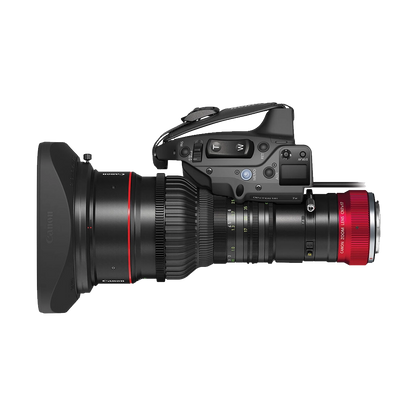

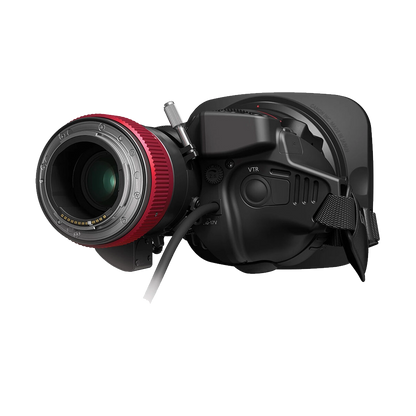

Canon Cine-Servo 17-120mm T2.95-3.9 Lens (Canon RF)
- Supports 8K/4K Cameras, Native RF Mount
- Servo Lens for Broadcast or Cinema
- Next-Gen e-Xs V Servo Drive Unit
- AF, Metadata, Distortion Correction
- Hirose 20-Pin for Zoom, Focus, Lens Data
- Zoom/Focus Breathing Compensation
- USB-C Data Terminal
- 11-Blade Aperture, 7x Zoom Ratio
- 127mm Hood/112mm Lens Filter Diameter
Choose options
- Supports 8K/4K Cameras, Native RF Mount
- Servo Lens for Broadcast or Cinema
- Next-Gen e-Xs V Servo Drive Unit
- AF, Metadata, Distortion Correction
- Hirose 20-Pin for Zoom, Focus, Lens Data
- Zoom/Focus Breathing Compensation
- USB-C Data Terminal
- 11-Blade Aperture, 7x Zoom Ratio
- 127mm Hood/112mm Lens Filter Diameter
- Supports 8K/4K Cameras, Native RF Mount
- Servo Lens for Broadcast or Cinema
- Next-Gen e-Xs V Servo Drive Unit
- AF, Metadata, Distortion Correction
- Hirose 20-Pin for Zoom, Focus, Lens Data
- Zoom/Focus Breathing Compensation
- USB-C Data Terminal
- 11-Blade Aperture, 7x Zoom Ratio
- 127mm Hood/112mm Lens Filter Diameter
The Canon Cine-Servo 17-120mm T2.95-3.9 Lens (Canon RF) combines the functions and form of a broadcast, ENG-style motorized zoom lens with the optical precision of a cinema zoom.
With a native RF mount, the Canon Cine-Servo 17-120mm T2.95-3.9 Lens is designed for cameras such as the Canon EOS C400 and covers sensors up to Super35, and it is suitable for 8K/4K acquisition.
Versatile Optical Performance
The Canon Cine-Servo 17-120mm T2.95-3.9 Lens is designed to produce a warm colour balance reproducing skin tones and working with HDR video. A natural circular bokeh is produced from fully open to the minimum aperture.
Support for 8K/4K Cameras
Canon's optical technology uses large-diameter aspherical lenses and anomalous dispersion glass to deliver optical performance that supports 4K and 8K cameras throughout the zoom range. Aberrations are controlled from edge to edge for clean image performance.
Next-Generation e-Xs V Servo Drive Unit
The next-generation servo e-Xs V drive unit found on the Canon Cine-Servo 17-120mm T2.95-3.9 Lens employs the same level of operability and usability as the ENG lenses, this adds faster iris speed, Focus Breathing Compensation, you will also have a USB-C connector. Using the 20-pin connectors, you can allow many Canon and third-party zoom, focus, and iris controllers to be connected. It can also be detached and used as a manual-style cinema configuration.
Remote and Virtual Support
RF-mount communication provides distortion and shading data for virtual production with compatible cameras. You will also find 12-pin serial communication for standard broadcast camera systems.
Supports AF Functions
Dual-Pixel CMOS AF II with an expanded distance measuring area is supported to significantly reduce focus problems when shooting 4K when combined with compatible cameras.
Other Main Features At a Glance
- Versatile 17-120mm focal length with 7x zoom ratio
- Supports 8K/4K cameras such as EOS C400
- Detachable next-generation eX-s V servo drive unit
- Supports virtual production with ZEISS eXtended data and Cooke /i technology
- 11-blade iris for soft bokeh
- 127mm filter diameter on hood; 112mm diameter on lens
- 114mm front diameter
- Supports ARIA (Automatic Restoration of Illumination Attenuation) with compatible cameras
- Canon Cine-Servo 17-120mm T2.95-3.9 Lens (Canon RF)
- Drive Unit
- Lens Cap
- Dust Cap
- Hood
- Hood Cap
- Lens Support with 19mm Holder
- 3x Screw
- Storage Bag for Drive Unit
Maximum Aperture | |
Minimum Aperture | |
Lens Mount | |
Interchangeable Mount | |
Lens Format Coverage | |
Image Circle | |
Angle of View | |
Focus Scales | |
Filter Thread | |
Zoom Ratio | |
Minimum Focus Distance | |
Maximum Magnification Ratio | |
Diaphragm Blades | |
Image Stabilization | |
Gear Standard | |
Gear Rotation | |
Electronic Communication | |
Camera Connection | |
Coatings | |
Environmental Protection | |
Dimensions (W x H) | |
Length | |
Weight |
