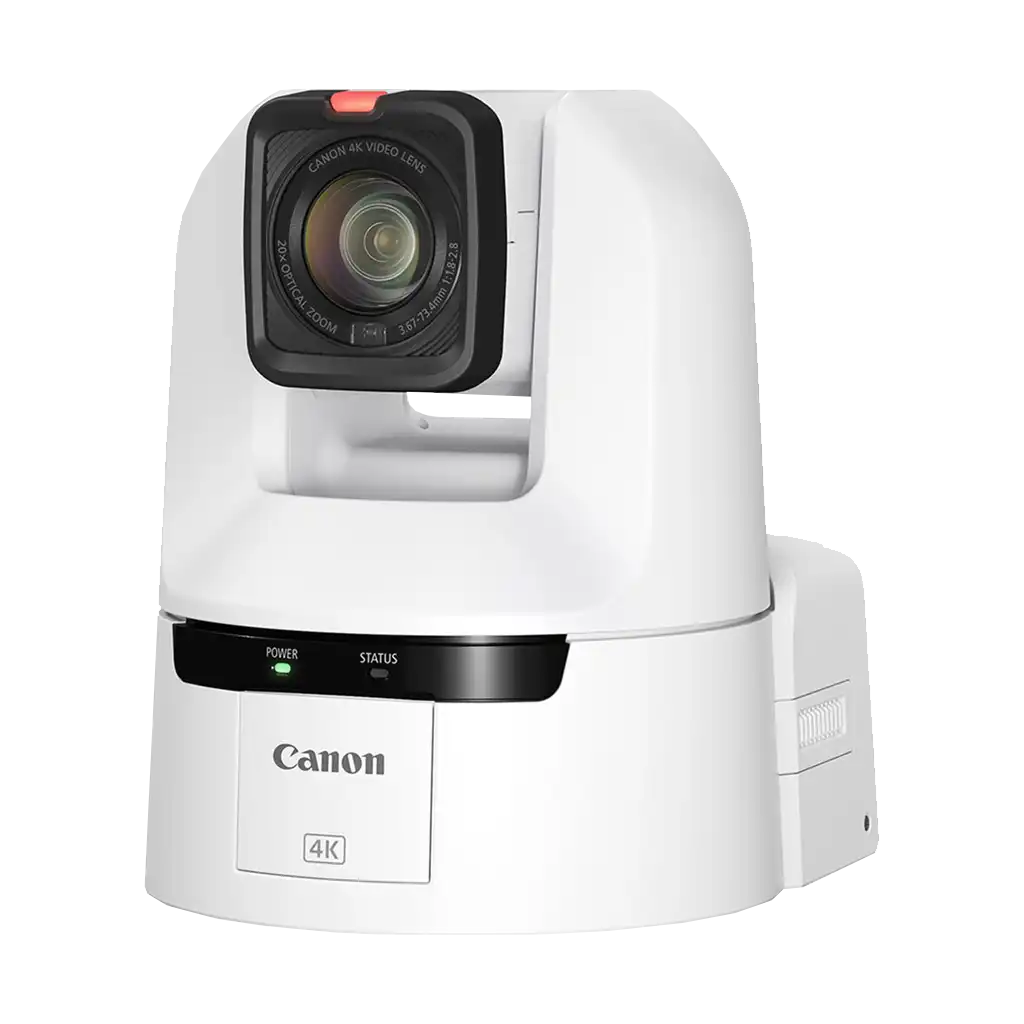

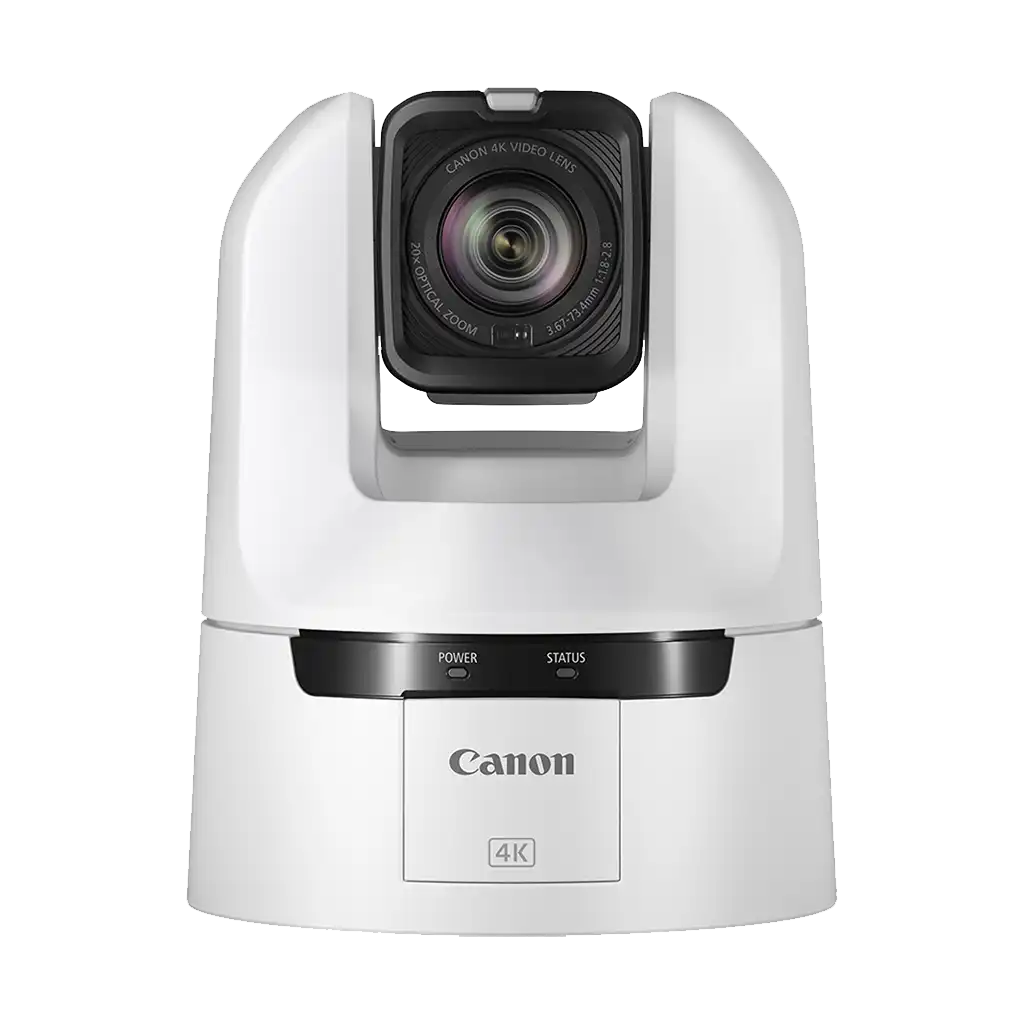

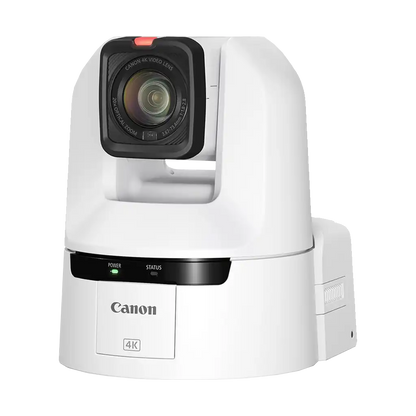

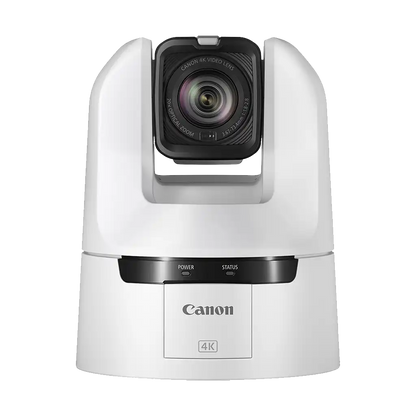

Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom (Titanium White)
Choose PayGate at checkout for MobiCred Payments.
- 1/2.3" CMOS Sensor with Hybrid Autofocus
- High-Quality UHD 4K60 Video Output
- 20x Optical, 40x Advanced Zoom Lens, OIS
- 12G-SDI, 3G-SDI, HDMI, and IP Video Out
- Renowned Canon Color Science, Wide DR
- Canon Log 3, HDR HLG/PQ, EOS Image Modes
- Built-In NDI HX2, Adaptive Bit Rate SRT
- Built-In Auto Tracking Lite, PoE++
- 3.5mm and Two XLR Audio Inputs
- FreeD AR/VR, Serial/IP Control, Canon XC
Orms Bellville
Orms Cape Town
Orms Somerset West
Remote Warehouse (Available in 2 - 4 Business Days)
Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom (Titanium White)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Orms Somerset West
Shop 25, Waterstone Village Shopping Centre
Somerset West
Cape Town
Western Cape
7130
South Africa
Remote Warehouse (Available in 2 - 4 Business Days)
Upper Canterbury Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 1/2.3" CMOS Sensor with Hybrid Autofocus
- High-Quality UHD 4K60 Video Output
- 20x Optical, 40x Advanced Zoom Lens, OIS
- 12G-SDI, 3G-SDI, HDMI, and IP Video Out
- Renowned Canon Color Science, Wide DR
- Canon Log 3, HDR HLG/PQ, EOS Image Modes
- Built-In NDI HX2, Adaptive Bit Rate SRT
- Built-In Auto Tracking Lite, PoE++
- 3.5mm and Two XLR Audio Inputs
- FreeD AR/VR, Serial/IP Control, Canon XC
Choose PayGate at checkout for MobiCred Payments.
- 1/2.3" CMOS Sensor with Hybrid Autofocus
- High-Quality UHD 4K60 Video Output
- 20x Optical, 40x Advanced Zoom Lens, OIS
- 12G-SDI, 3G-SDI, HDMI, and IP Video Out
- Renowned Canon Color Science, Wide DR
- Canon Log 3, HDR HLG/PQ, EOS Image Modes
- Built-In NDI HX2, Adaptive Bit Rate SRT
- Built-In Auto Tracking Lite, PoE++
- 3.5mm and Two XLR Audio Inputs
- FreeD AR/VR, Serial/IP Control, Canon XC
The Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom captures high-quality UHD 4K or HD imagery for your video productions. Ideal and designed to fit right into your educational, corporate, broadcast, or house of worship workflow.
Main features of the Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom include a 1/2.3" sensor, Canon DIGIC DV7 image processor, Hybrid AF, 20x optical zoom and 40x Advanced Zoom in HD.
Professional Video and Audio Interfaces

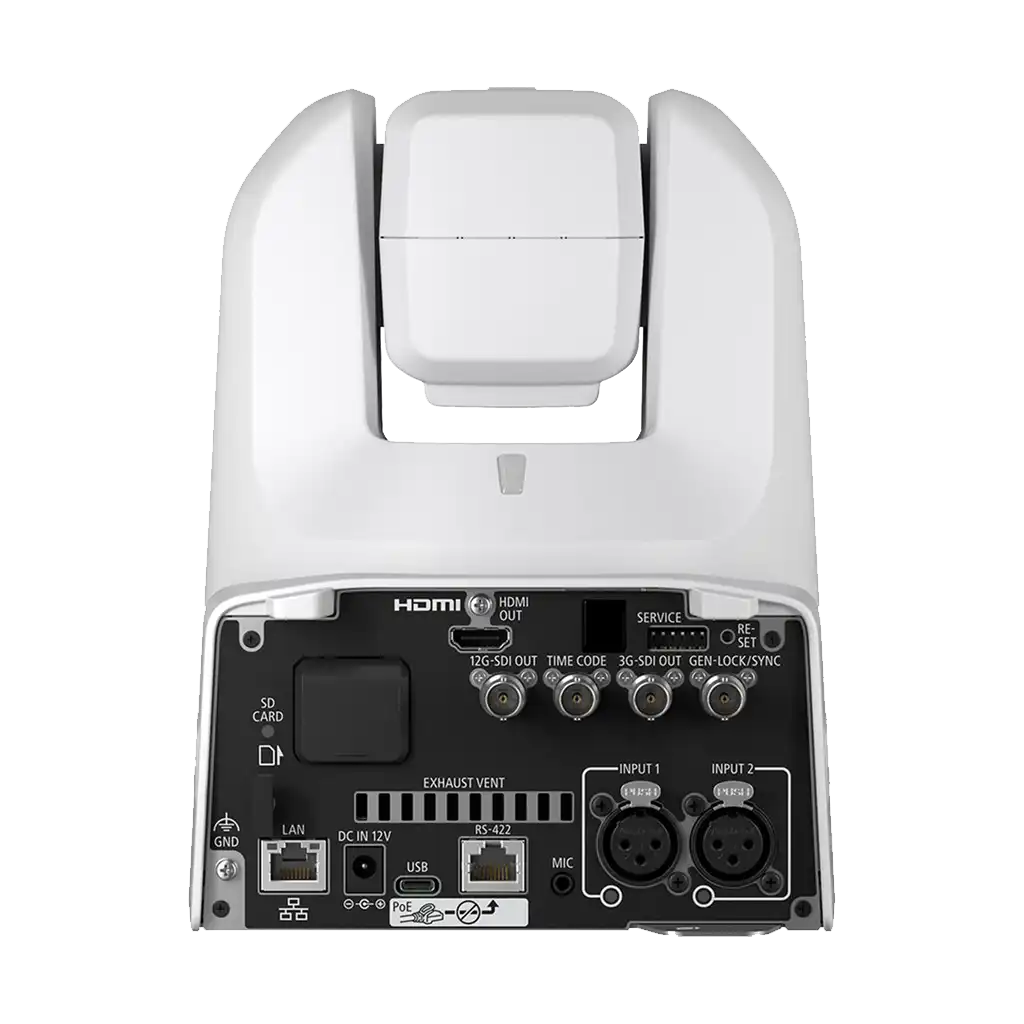

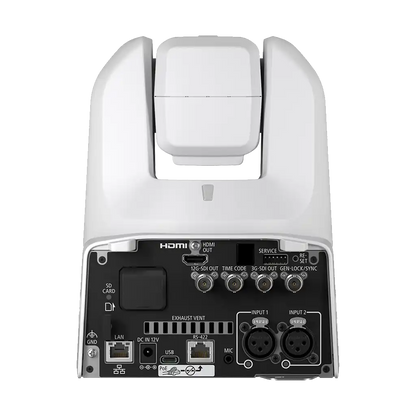

The Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zooms professional interfaces include 12G-SDI, 3G-SDI, HDMI, genlock, timecode, and single-cable PoE++ connectivity, letting you use NDI HX2 for video and audio streaming, IP control, tally, and power via one cable. Protocols like SRT, RTSP/RTP, and RTMP/RTMPS are supported for streaming to social media.
Audio inputs comprise one 3.5mm and dual 3-pin XLR inputs.
Remote control options include IP, Serial, or IR with support for multiple control standards, including Canon's XC protocol as well as Standard Protocol (serial and IP) for easy connectivity to a wide range of compatible 3rd party hardware controllers.
High-Quality 4K60p Video Output
With a 1/2.3" UHD 4K CMOS imaging sensor, this PTXZ camera is capable of UHD 4K video capture at 60p, making it well-suited for professional use.
Canon's DIGIC DV 7 Image Processor is an essential component in providing advanced performance, easy operation and processing power and speeds enabling features like 4K UHD video and precise Hybrid AF.
Crop for Social Media While Broadcasting
You will find a standard video crop, you will also find a vertical crop mode that enables you to have a separate, real-time 9:16 stream of the main video.
Stunning Optical Precision
The Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom high-performance lens has a 20x optical zoom, with a 35mm-equivalent 29.3-601mm in 23.98/29.97 fps, plus a 40x Advanced Zoom 35mm-equivalent 29.3-1202mm when shooting in HD. Where your shooting conditions are unstable, the Canon Image Stabilisation system enables you to still capture steady footage.
Oversampling HD Processing
Full HD capture and output (oversampling HD processing) takes full advantage of the image information gathered by the 4K sensor. Using these details, beautifully, stunningly detailed and high definition full HD video id produced.
Face, Eye, and Head Detection Autofocus
With outstanding autofocus support for face, eye, and head focusing, it ensures accurate focus when your subject turns around.
Powerful HDR imagery
You are able to capture stunning HDR imagery with direct recording in either PQ or HLG formats. Furthermore, a range of custom settings includes Canon Log 3 and Wide Dynamic Range to match other Canon cameras.
Smooth and Responsive Pan/Tilt Performance
The Canon CR-N400 4K 12G-SDI NDI PTZ Camera offers you a drive mechanism where you are able to change the pan/tilt speed in incremental steps. A variable pan speed of 0.1 to 100°/second or 200° with presets and a variable tilt speed of 0.1 to 100°/second or 180°/second with presets are supported.
Thumbnail Display for Presets and Recorded Trace Movement
Easier operation and shot recall are enabled by the ability to add thumbnail images for camera presets and for recorded trace movement in the user interface, in the Remote Camera Control Application (RCCA), and on supported hardware controllers.
Add-On Applications
The availability of Canon's Add-On Application System makes it possible for you to install additional paid applications directly to your Canon PTZ camera. They can then run without the need for a computer.
The Auto Tracking Application allows the camera to automatically track the speaker or specified individuals during recording. Aided by the high-performance pan and tilt mechanism.
The Auto Loop Application makes it possible for the camera to repeat pan/tilt/zoom movements that are normally performed by camera operators.
Built-In Auto Tracking Lite
The Canon CR-N400 4K 12G-SDI NDI PTZ Camera also includes a free version of Auto Tracking Lite for smooth and precise auto tracking in a basic configuration. You also have the option to quickly and easily upgrade to the paid version.
NDI HX2 and SRT Open Source
Numerous protocols, including adaptive bitrate SRT and NDI HX2 choices, to assist in producing high-quality video streams.
RTMP/RTMPS, RTP/RTSP, and Canon XC protocols are also included, as well as FreeD, which supports up to four destinations for virtual production integration.
Remote Camera Control Application
Along with the Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom, you also get the RCCA (Remote Camera Control Application) software controller application free of charge. This allows you to control up to 20 PTZ and professional video cameras over IP. Preview up to nine cameras on screen and adjust focus, pan, zoom, tilt, and exposure in real time, directly from your computer.
Multi-Camera Management Application
Along with the Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical ZoomThe MCMA (Multi-Camera Management Application) enables you to monitor and manage up to 200 cameras from your PC. You are then able to perform tasks like multiview monitoring, device backup, assignment and perform firmware updates.
Camera Color Matching Application
The Canon Color Match application allows you to add additional PTZ cameras to your primary production camera. When using the Canon Color Match application, you can add third-party cameras supporting 1080p HD or UHD 4K.
Webcam Driver
The Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom includes the Canon Webcam Driver, enabling you to turn this unit into a super webcam. This driver is a virtual USB driver enabling the CR-N400 to be used as a powerful webcam over a network.
- Canon CR-N400 4K 12G-SDI NDI PTZ Camera with 20x Optical Zoom (Titanium White)
- Canon IR Remote Control
- Canon Mounting Bracket with Screw
- Canon Safety Wire with Screw
- Canon Camera-to-Mount Safety Wire with Screw
- Canon IR Remote Controller
- 2 x Canon AAA Battery
- Canon AC Adapter
- Canon Power Cable
| Image Sensor | |
| Sensor Resolution | |
| IR Cut Filter | |
| Focus Control |
| Shutter Speed | |
| Minimum Illumination | |
| Flip / Mirror Support | |
| White Balance |
| Focal Length | |
| Max Optical Zoom | |
| Max Digital Zoom | |
| Field of View | |
| Maximum Aperture | |
| Minimum Focus Distance |
| Video Output | |
| Embedded Audio | |
| Audio Recording | |
| Broadcast Output | |
| Supported Protocols | |
| IP Streaming |
| Presets | |
| Pan/Tilt | |
| Tally Light |
| Media/Memory Card Slot | |
| Video I/O | |
| Audio I/O | |
| Other I/O | |
| Built-In Microphone | |
| Built-In Speaker |
| PoE Support | |
| Power I/O | |
| Power Consumption |
| Operating Conditions | |
| Storage Conditions | |
| Impact Resistance | |
| Environmental Resistance |
| Mounting | |
| Dimensions (W x H x D) | |
| Weight |
