Canon RC-IP100 Touchscreen PTZ Joystick Controller
Choose PayGate at checkout for MobiCred Payments.
- Control up to 100 PTZ Cameras via IP
- Operates with Canon XC Protocol, RS-422
- 7" Touchscreen Control-Panel Displa
- 6 x Assignable Controls, 100 Presets
- Precision Pan/Tilt Joystick, Zoom Rocker
- DB-9 Tally Input/Output
Orms Bellville
Orms Cape Town

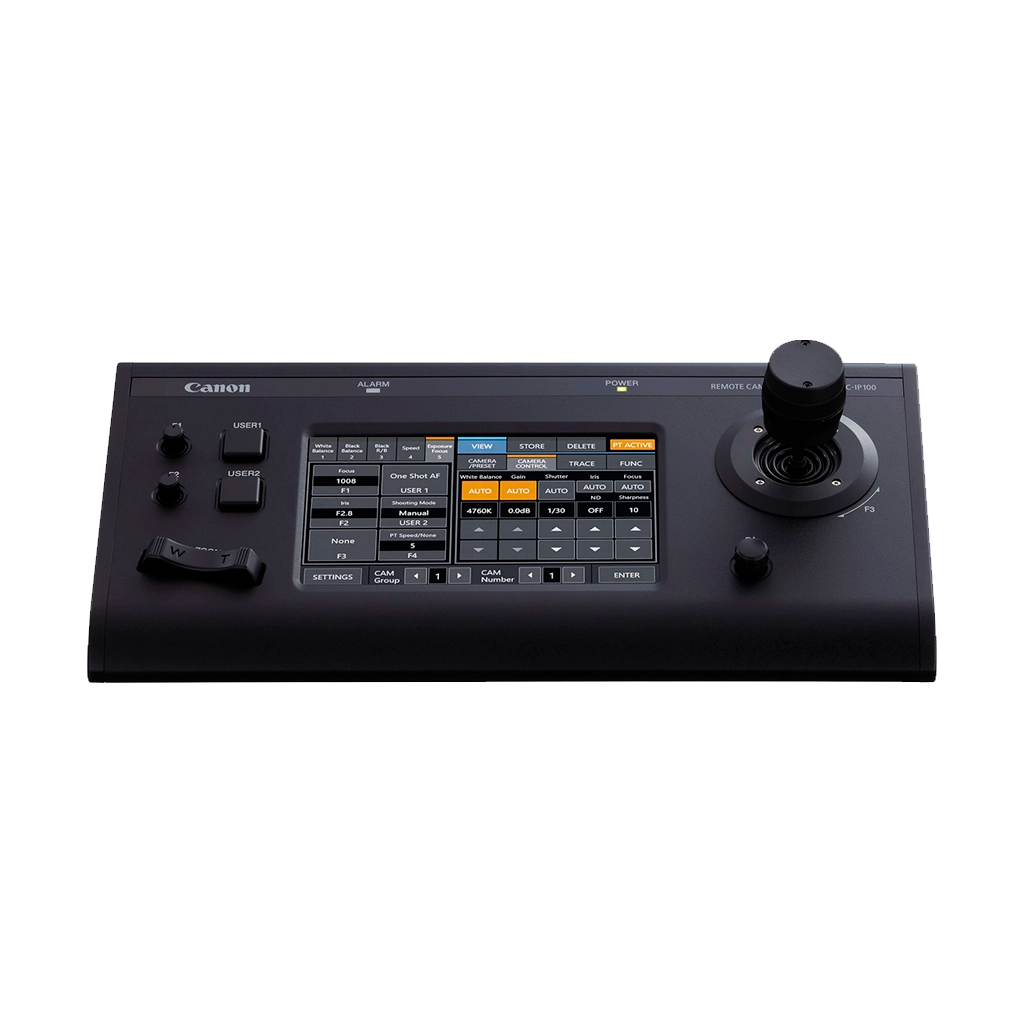

Canon RC-IP100 Touchscreen PTZ Joystick Controller
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Control up to 100 PTZ Cameras via IP
- Operates with Canon XC Protocol, RS-422
- 7" Touchscreen Control-Panel Displa
- 6 x Assignable Controls, 100 Presets
- Precision Pan/Tilt Joystick, Zoom Rocker
- DB-9 Tally Input/Output
Choose PayGate at checkout for MobiCred Payments.
- Control up to 100 PTZ Cameras via IP
- Operates with Canon XC Protocol, RS-422
- 7" Touchscreen Control-Panel Displa
- 6 x Assignable Controls, 100 Presets
- Precision Pan/Tilt Joystick, Zoom Rocker
- DB-9 Tally Input/Output
With the ability to have full control over your Canon PTZ cameras, the Canon RC-IP100 Touchscreen PTZ Joystick Controller. The Canon RC-PI 100 is compatible with the Canon RC-N300 as well as RC-N500 and enables a single controller full control over up to 100 cameras from a remote location.
The Canon RC-IP100 is compatible with the proprietary Canon XC IP protocol, not a standard LAN, so you can create a private, secure network to control your cameras using the LAN port. Additionally featuring a second RJ45 port allowing control cameras via RD-422 serial protocol.
Pan and tilt movements can be performed with precision while zoom can be controlled using the zoom rocker. This provides an ergonomic control layout where you can tilt, pan and zoom simultaneously.
Designed for use with:
- Canon CR-N300
- Canon CR-N500
- Canon CR-N700
- Canon CR-X300
- Canon CR-X500
- Canon XF605
Control up to 100 Canon-Supported Cameras
The Canon RC-IP100 Touchscreen PTZ Joystick Controller can control up to 99 compatible PTZ cameras using Canon's new XC protocol. Additionally, through the serial port, the CR-N500, CR-N300, and other legacy PTZ cameras that support the NU protocol can be simultaneously controlled.
Smooth PTZ Movement and Precise Control for Professional Productions
Using the Canon RC-IP100 you can easily achieve smooth and accurate PTZ movements using the joystick.
7" Touchscreen, Joystick, Zoom Lever, and 4 Customizable Buttons
The RC-IP100 Controller is equipped with a joystick, zoom lever, and large 7" LCD touch panel for intuitive operation. There are also two User and four Function buttons that are programmable for even more customization.
- Canon RC-IP100 Touchscreen PTZ Joystick Controller
- AC Adapter
Number of Supported Cameras | 100 Channels |
Supported Control Protocols | Canon XC RS-422 |
Control I/O | 1 x RJ45 (IP Control) Output 1 x RJ45 (RS-422) Output |
Other I/O | 1 x DE-9/DB-9 (Tally) Input/Output 1 x USB-A (3.0 / 3.1/3.2 Gen 1) Input |
Controls | 1 x Pan/Tilt Joystick 1 x Zoom Rocker 4 x Programmable Buttons 2 x Multifunction Buttons |
Presets | 100 via IP |
Size | 7" |
Touchscreen | Yes |
PoE Support | None |
Power Connectors | 1 x Barrel / Coaxial |
DC Input Power | 12 VDC |
Operating Temperature | 0 to 40°C |
Security Lock Support | None |
Dimensions | 350 x 182 x 110 mm |
Weight | 2.1 kg |
