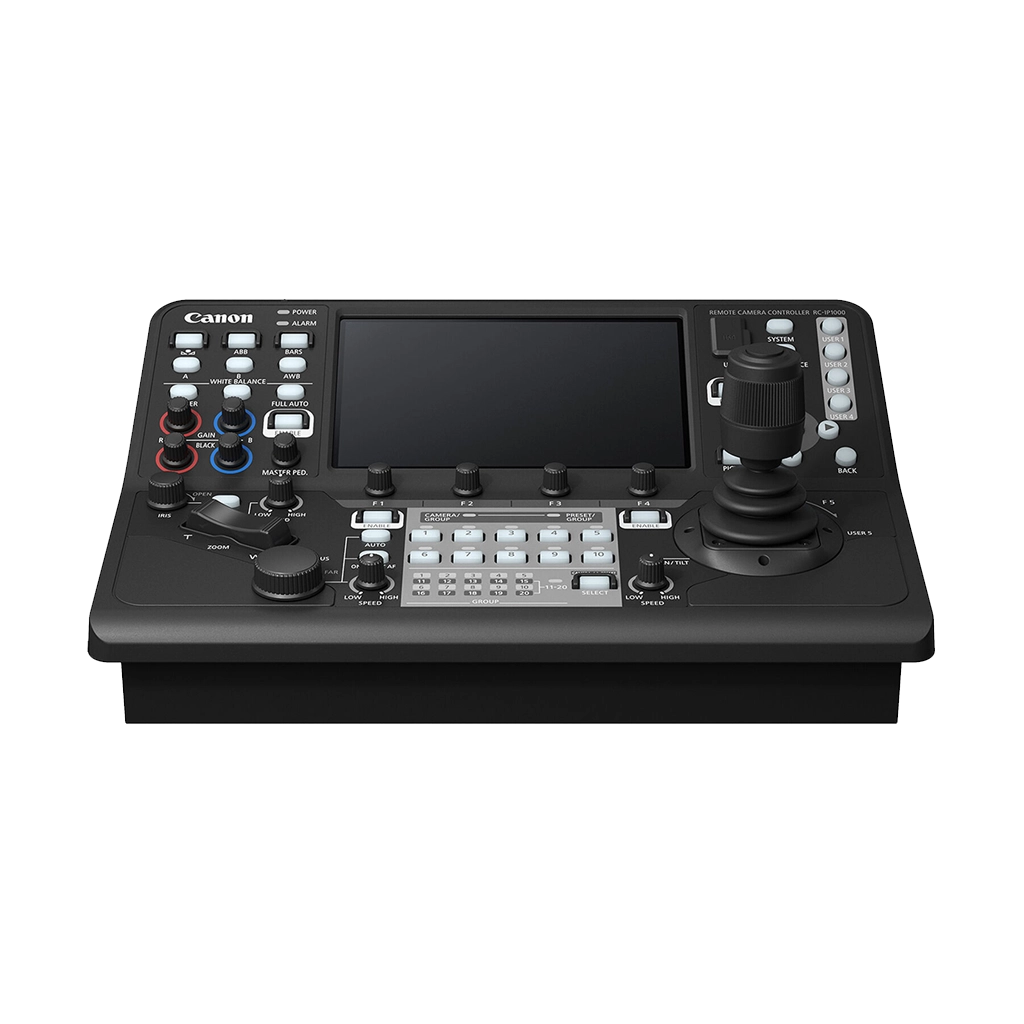

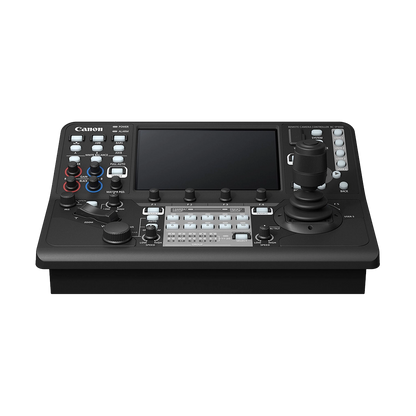

The Canon RC-IP1000 Advanced PTZ Controller is designed to enable you to control up to 200 compatible Canon PTZ cameras from a remote location. You can control the Canon PTZ camera using IP or serial control, offering precision controls and a touchscreen display. The 7" touchscreen provides configuration and camera settings control and allows you to view up to nine cameras on-screen at once.
Compatibility with the proprietary Canon XC IP protocol. This enables you to have secure and private network control using the LAN port. It also features a second RJ45 port that allows you to control the cameras via RS-422 serial protocol. Support for input and output of up to 4K60 video via 12G-SDI ports, it also supports HDMI output sending video switchers or additional displays. The tally light on the PTZ camera is also supported, sending information between the controller and the cameras.
The Canon RC-IP1000 Advanced PTZ Controller offers numerous controls to make accessing settings and control quick and easy, these include numerous buttons, dials, LEDs, a joystick, and zoom rocker. The Canon RCIP 1000 is powered via a power adapter, or with a PoE+ for power, data, and control over a single cable.
Tactile Precision, Professional Control

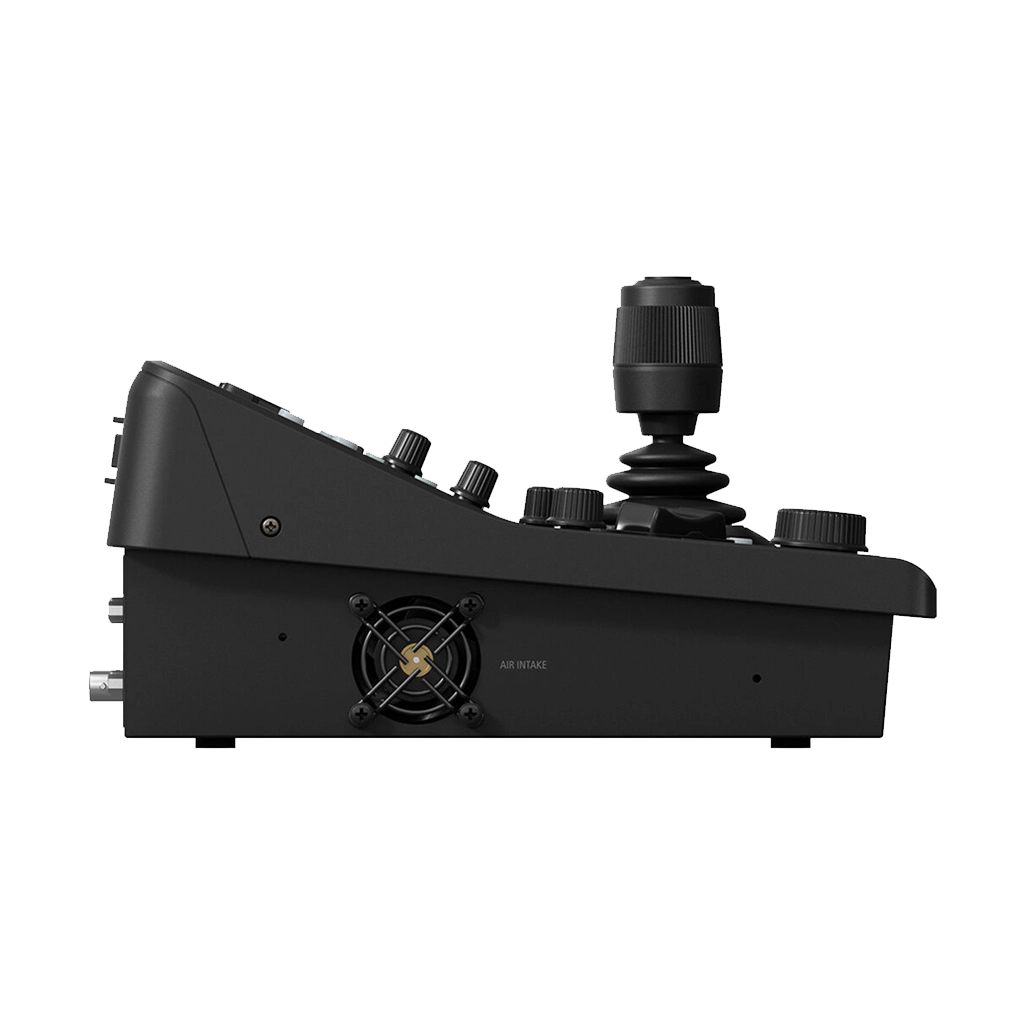

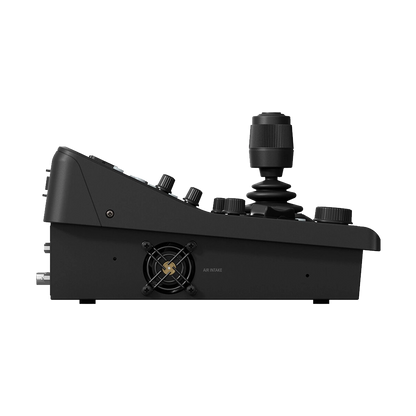

The Canon RC-IP1000 Advanced PTZ Controller allows you to fine-tune PTZ camera movements with the ergonomically designed joystick designed to fit comfortably into the palm of your hand for intuitive twisting control.
One customizable button on the top allows even greater versatility such as One Shot AF and Return to Home position.
Multiple Physical Buttons and Dials

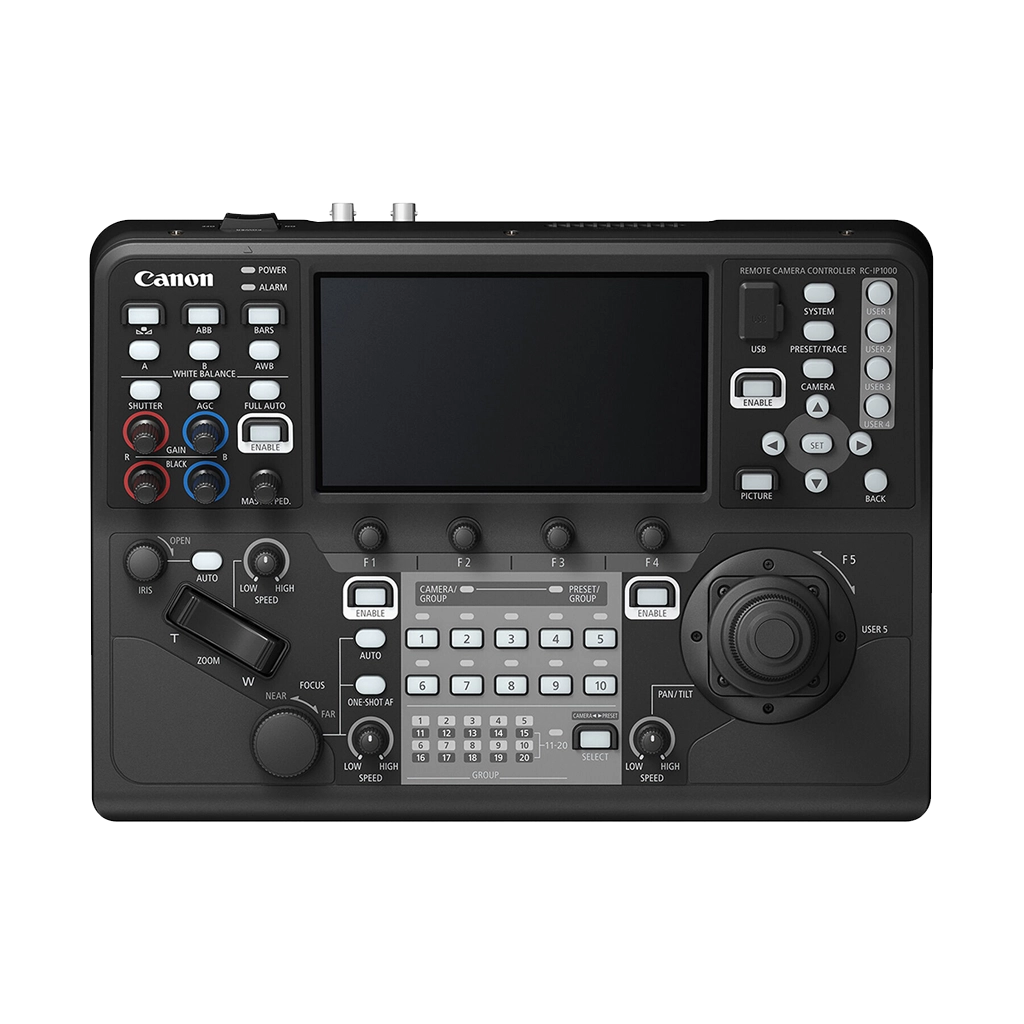

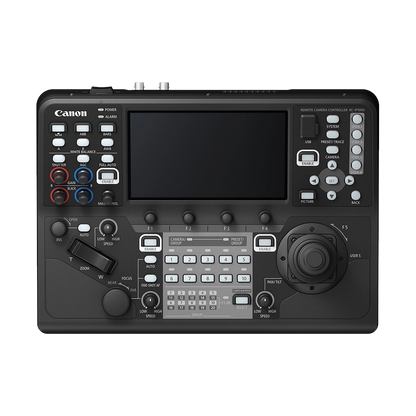

Up to 200 cameras can be controlled from one unit thanks to 42 buttons and 14 dials that control functions such as Iris, Gamma, Knee and white balance. Backlit LEDs help with general visibility. The professional zoom rocker offers pinpoint accuracy when adjusting the zoom.
IP Video and Input Monitoring
Camera feeds can easily be monitored and controlled using the 7" touchscreen via IP where up to nine cameras can be monitored at once in various layout options. Whatever camera is chosen, the touchscreen will automatically switch to show that live feed. Alternatively, output one full-screen feed to an external monitor via the 12G-SDI or HDMI port.
Easy Set Up Without a PC
The Canon RCIP1000 Advanced PTZ Controller can change all system settings of up to 200 connected cameras such as IP address, ID, and password. It can also perform the initial setup of the camera and controller without a PC.
Multi-Camera Control Made Easy
All cameras can be grouped together, or ten in a group. Implement presets for multiple PTZ cameras at once as well as control others from Canon’s PTZ and Cinema EOS ranges, plus the XF605 Pro Camcorder.
The touchscreen on the Canon RC-IP1000 Advanced PTZ Controller offers a wide range of settings available to you.
Allowing you to set focus points and settings within touch AF, Face and Eye detection, control Manual Focus Point and adjust crop areas to enable two feeds to be sent out from one camera.
Professional Inputs and Connections

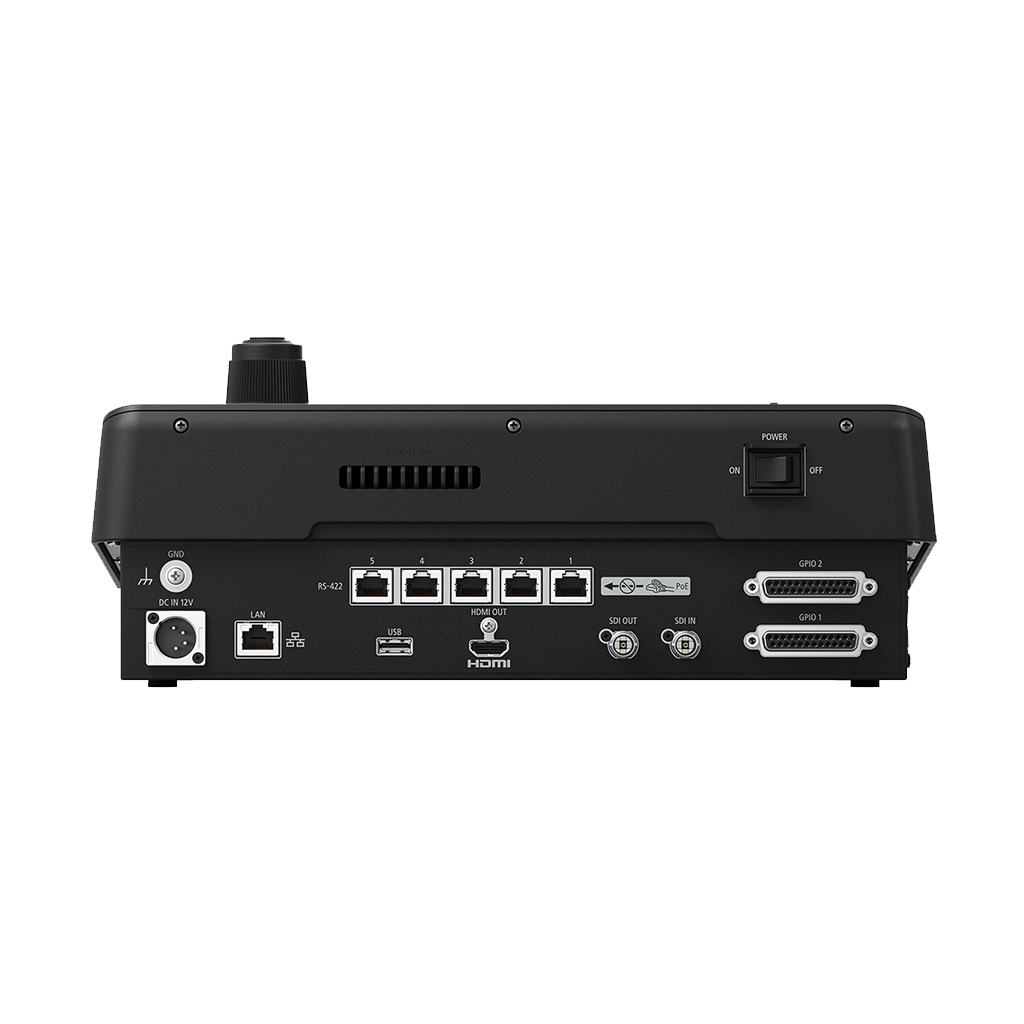

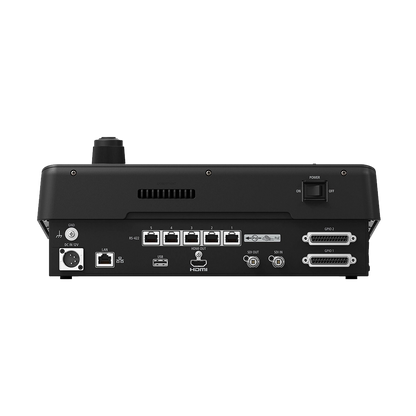

Merge the controller into existing setups, or use it remotely thanks to a range of inputs. These include DC 12V XLR port, five Serial RJ45 ports, LAN/POE+, USB, HDMI Out, 12G-SDI in/out and two GPIO D-Sub 25pin channels.
Using the GPIO/SDI connection with a video switcher, the camera selection on the controller is perfectly linked to the selection on the video switcher.
Advanced Pre-Set and Trace Control
The Canon RC-IP1000 Advanced PTZ Controller allows you to control another camera during a trace and set your other camera positions without waiting for the trace to finish. Register and manage presets and traces by naming them via the touchscreen and using the physical button on the Canon RC-IP 1000 for quick access to the pre-set and trace.
Canon RC-IP1000 Advanced PTZ Controller
|Number of Supported Cameras
200 Channels via IP (10 Per Group)
|Supported Control Protocols
1 x RJ45 (IP Control) Output
5 x RJ45 (RS-422) Output
1 x D-Sub 25-Pin (GPI, Tally) Input
1 x D-Sub 25-Pin (GPI, Tally) Output
1 x USB-A (3.0 / 3.1/3.2 Gen 1) Input
1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
1 x HDMI Output
1 x Pan/Tilt Joystick
1 x Zoom Rocker
4 x Programmable Knobs
13 x Multifunction Buttons
10 x Camera Selection Buttons
100 via IP
800 x 480
1 x XLR 4-Pin
|DC Input Power
0 to 40°C
|Security Lock Support
342 x 245 x 145 mm
