DJI

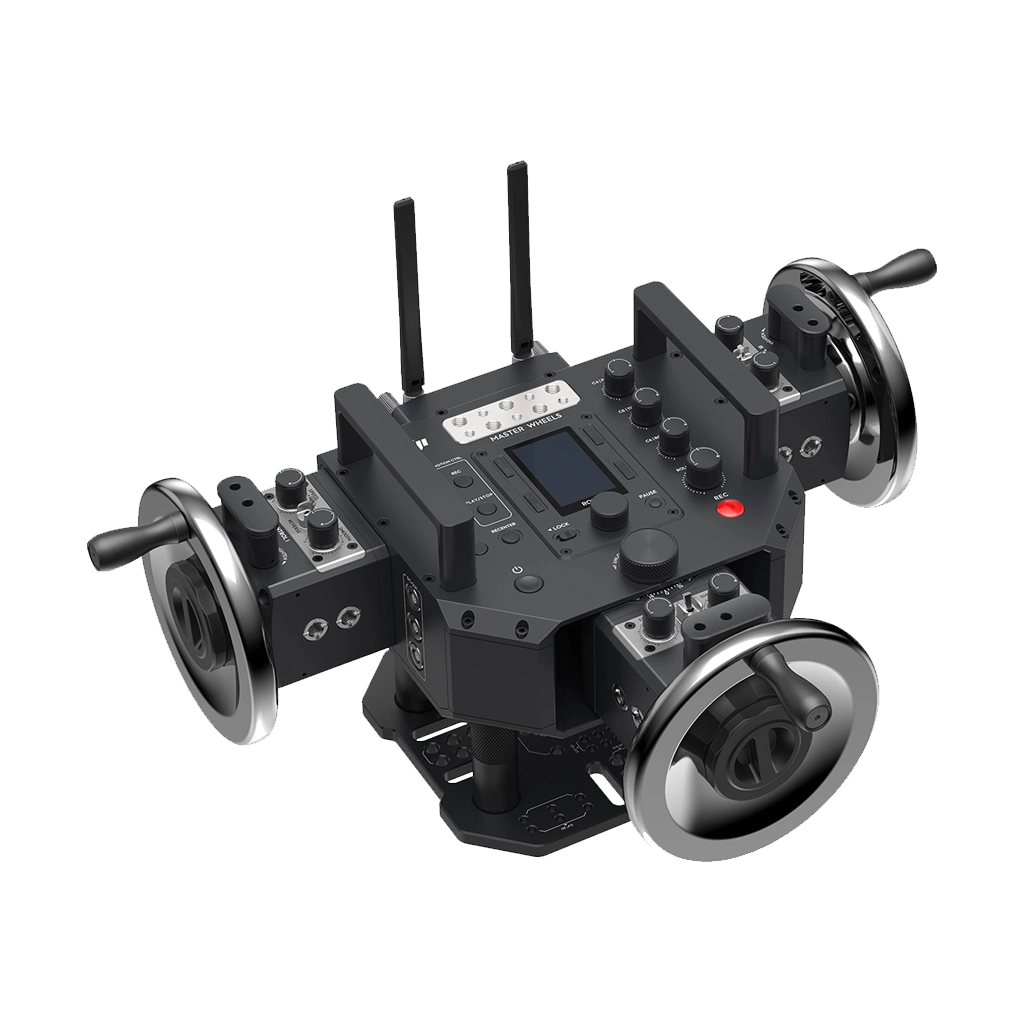

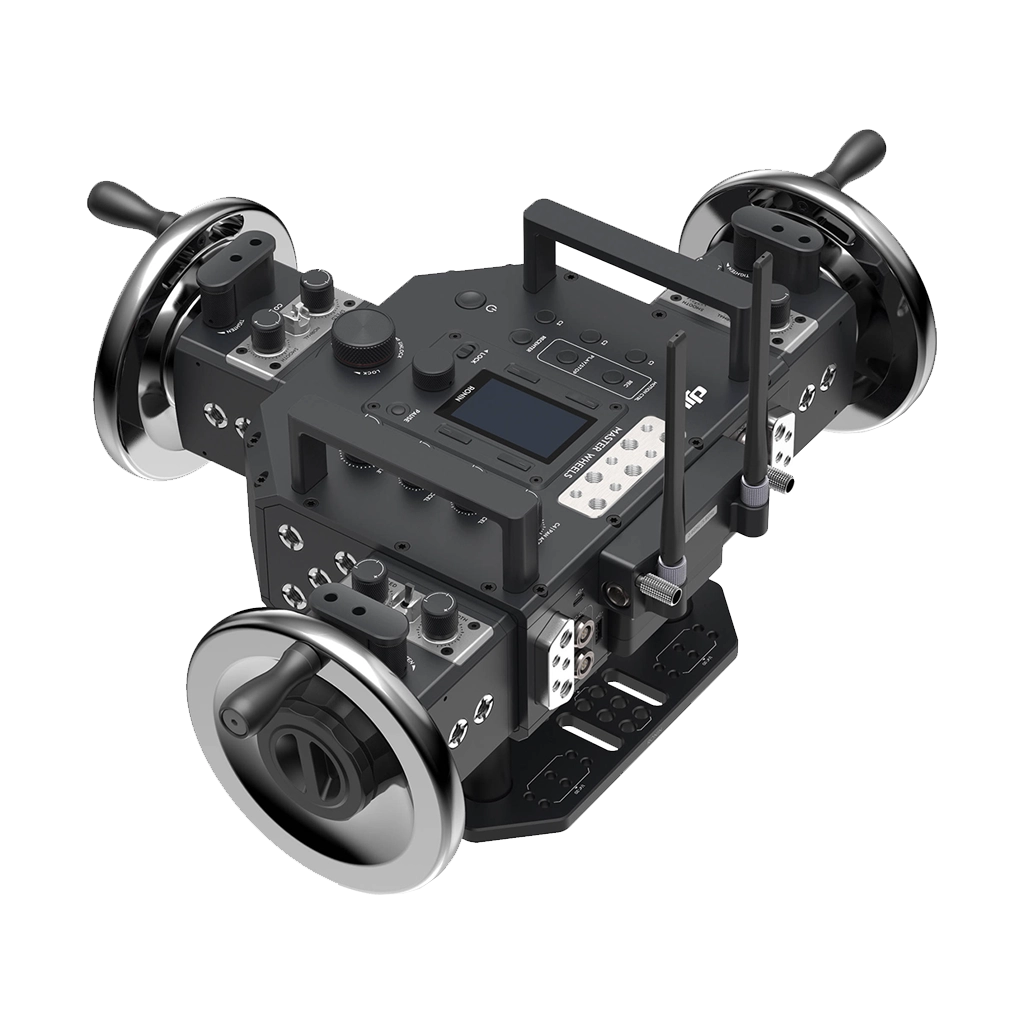

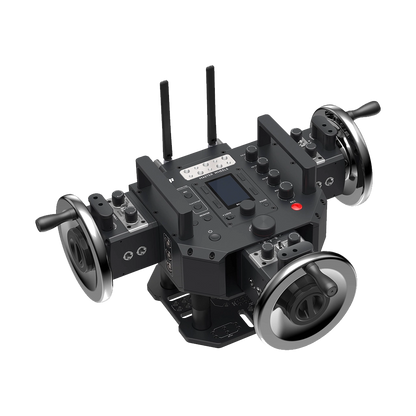

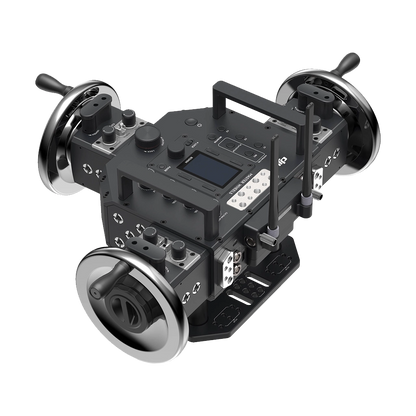

DJI Master Wheels 3 - Axis (RH)

R 199,995.00
R 199,995.00 R 199,995.00
Tax included. Shipping calculated at checkout.

CP.ZM.00000102.02

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Wireless Long-Range Gimbal Controller
  • 3 Wheel Control Modules, 1 Per Axis
  • Compatible with DJI Ronin 2 and Ronin-S
  • Supports 3rd-Party Gimbals via SBUS
  • 3Km Distance and 10 ms Latency
  • 3-Stop Gimbal Direction Toggle Switches
  • Speed, Smoothness, and Damping Dials
  • Savable and Repeatable Moves
  • 2.4 and 5.8 GHz Dual Frequency
  • Up to 18-Hr Operation in as Low as -20°

    The DJI Master Wheels 3 - Axis (RH) is designed to enable you to wirelessly control your DJI Ronin 2 or Ronin-S Gimbal over an extended range of up to 3km. Third-party compatibility is possible via SBUS connection.

    • Wireless long-range gimbal controller for professional productions
    • Three-wheel control modules, one for each gimbal axis
    • Compatible with the Ronin 2, Ronin-S, and select third-party gimbals (SBUS connection)
    • 3Km wireless transmission distance
    • 30m wired transmission distance over optional cable
    • 10 ms latency
    • High-precision sensors and advanced control algorithms achieve accurate and smooth camera movement
    • Savable, repeatable moves
      • Three-stop toggle switches control gimbal direction; dials control speed, smoothness, and damping
    • 2.4 and 5.8 GHz dual frequency
    • Self-heating batteries feature up to 18-hour battery life and allow operation in as low as -20°C
    • Adjustable centre wheel control module (positions closer to left or right module)
    • Wheel modules can be used attached or detached and connected via cables
    • Detachable control wheels
    • Standard Mitchell mount
    • 1/4"-20 and 3/8"-16 mounting threads
    • Built-in display screen

    • DJI Master Wheels 3-Axis
    • Monitor Power Cable
    • USB-C Cable
    • Mitchell Mount Adapter
    • 2 x TB50 Batteries
    • Battery Charging Hub
    • 2 x Allen Wrenches
    • 4 x Antennas
    • Video Link Power Cable
    • RF Power Cable (40cm)
    • 3 x Communication Cables (16.5cm)
    • Power Adapter
    • Power Cable
    • Wireless Receiver
    • Wireless Receiver Antenna
    • Wireless Receiver to D-Bus Cable

    Compatibility DJI Ronin 2 and Ronin-S, third-party gimbals with SBUS connection
    Transmission 3 Km wireless, 30 m wired
    Latency 10 ms
    Frequency 2.4 and 5.8 GHz dual frequency
    Mount Type Mitchell mount, 1/4"-20 and 3/8"-16 mounting threads for accessories
    Voltage 22.8 V
    Battery 2 x TB50 batteries, 4280 mAh / 97.58 Wh each, 18-hour battery life, 1.5-hour charge time
    DC In 12-27 V
    DC Out 14.4 V / 8 A (max)
    Operating Temperature -20 to 40°
    Charging Temperature 5 to 45°
