DJI

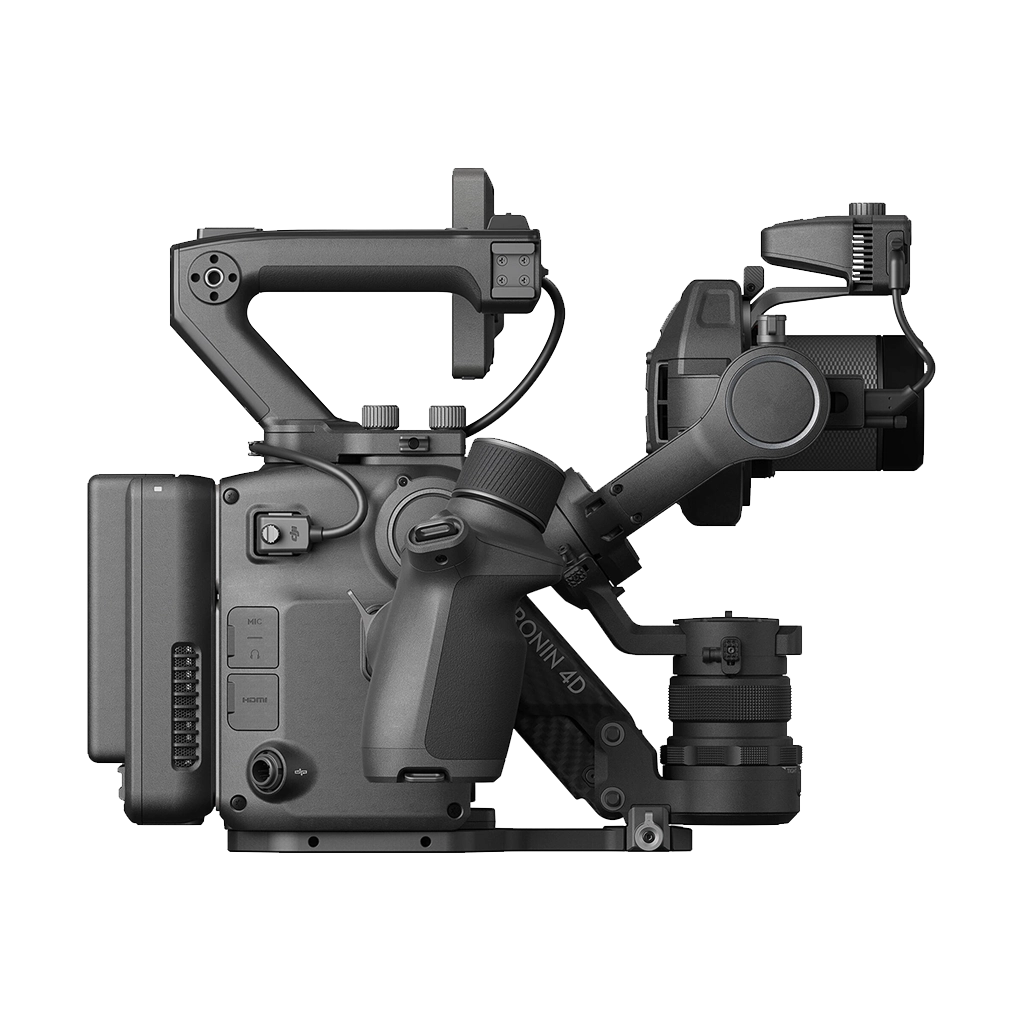

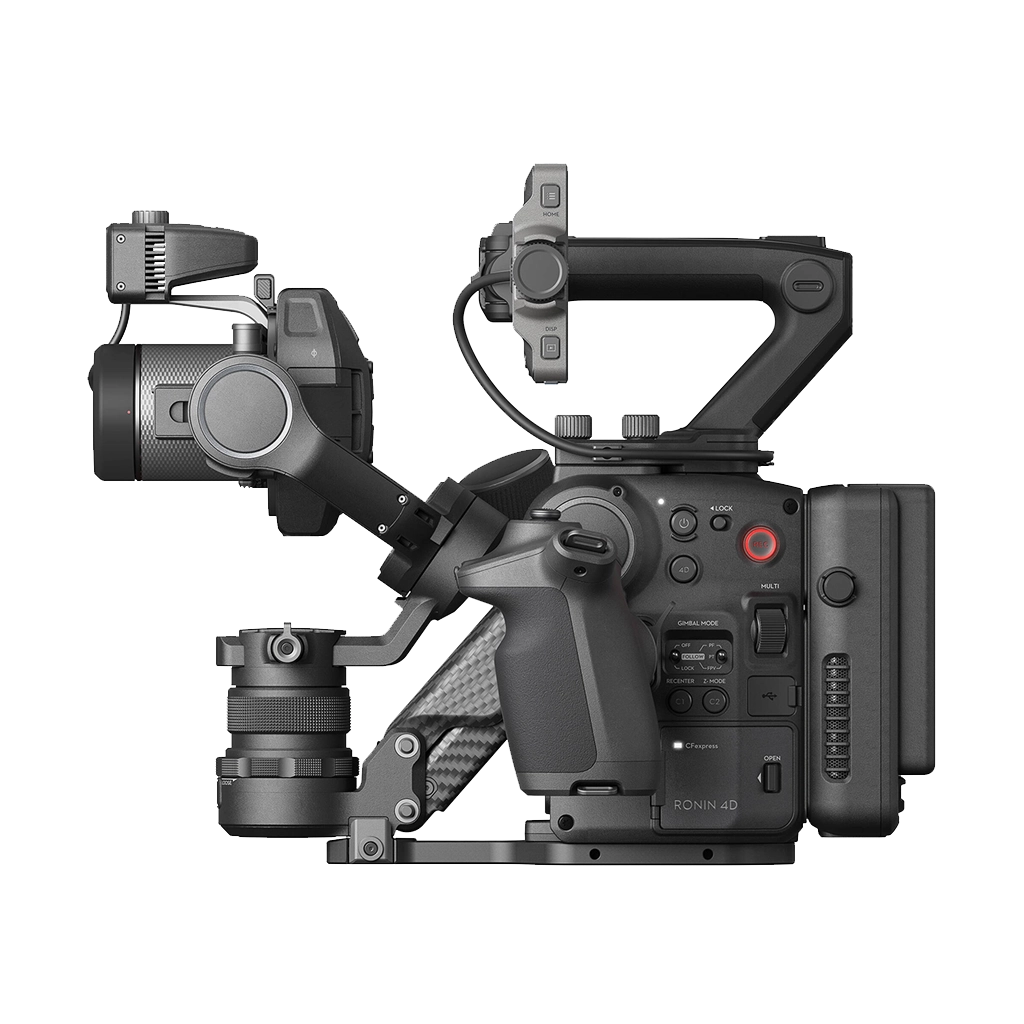

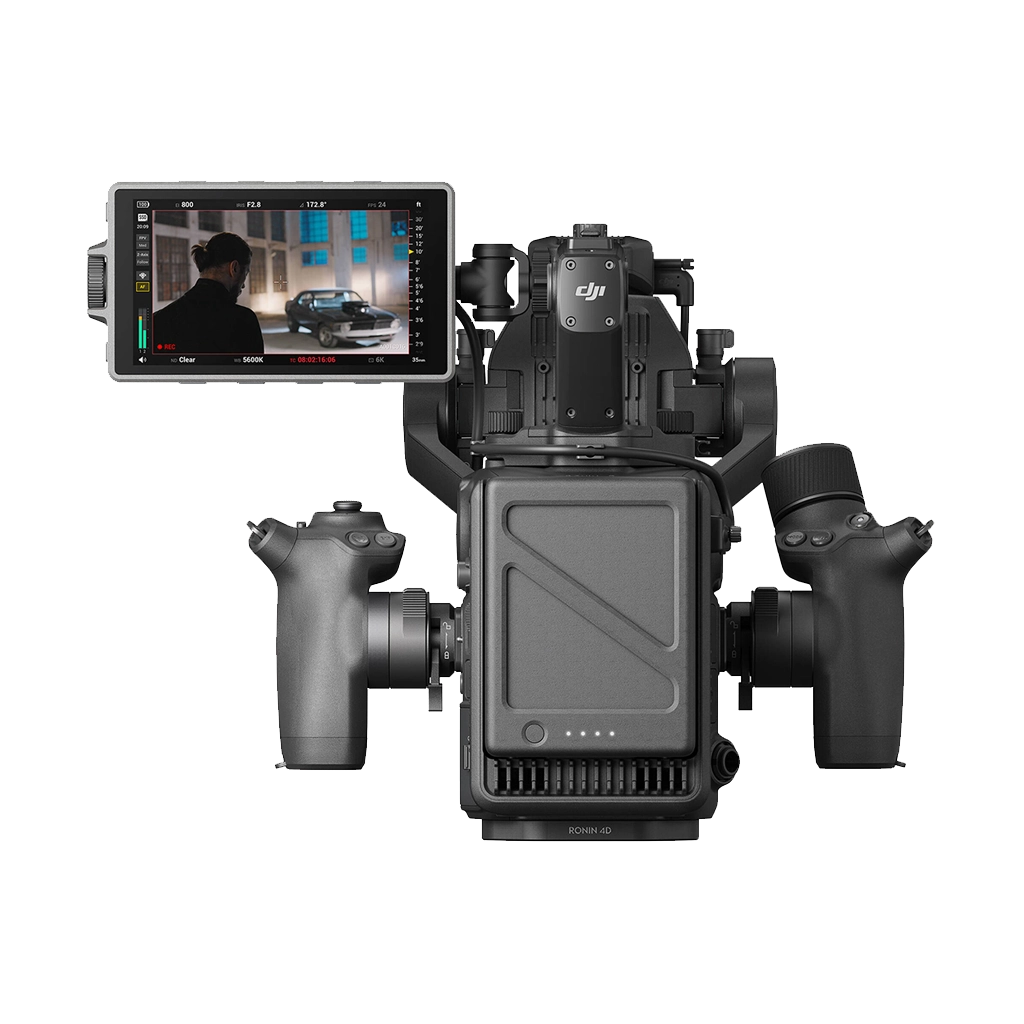

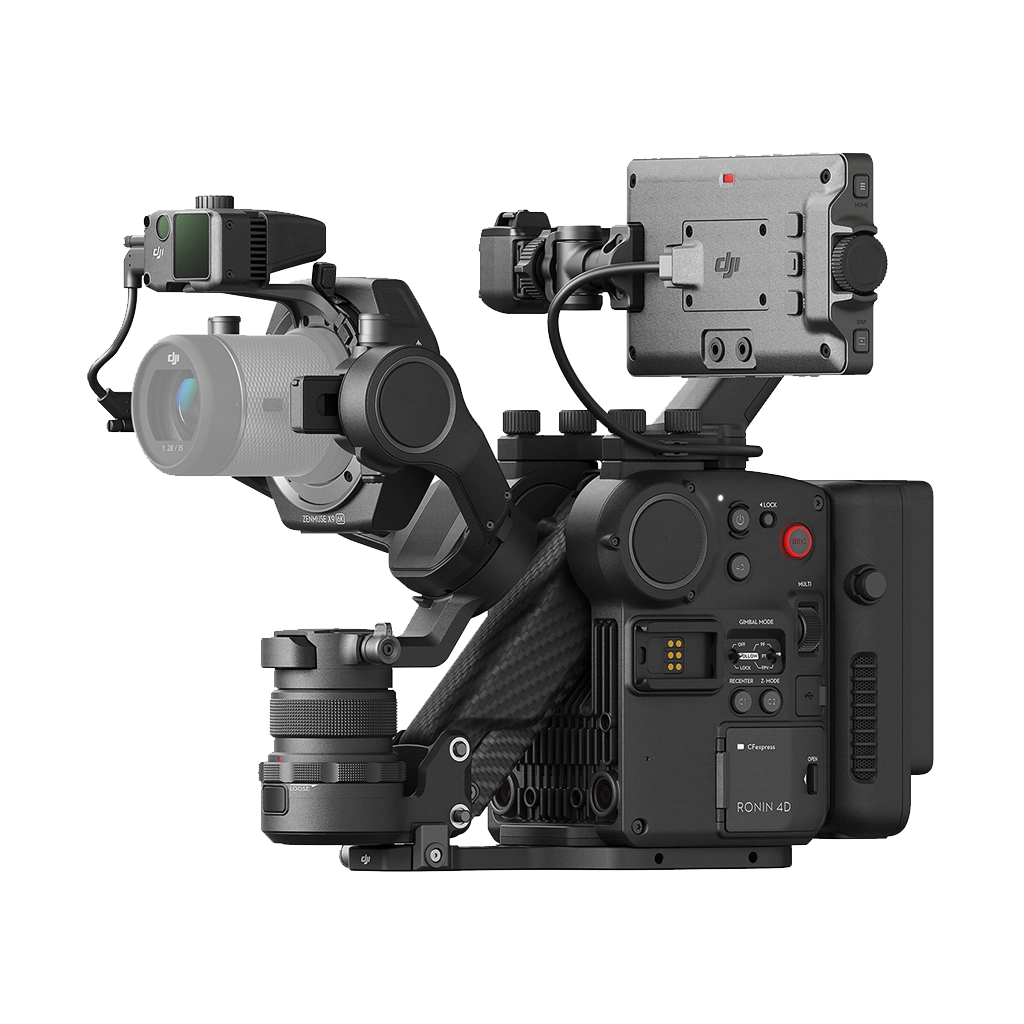

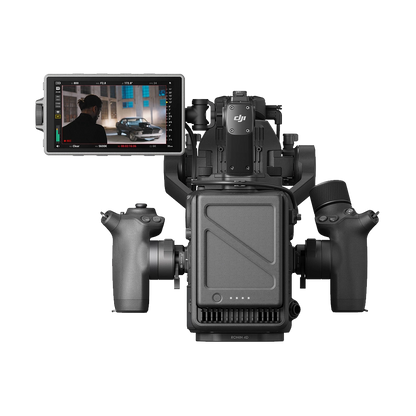

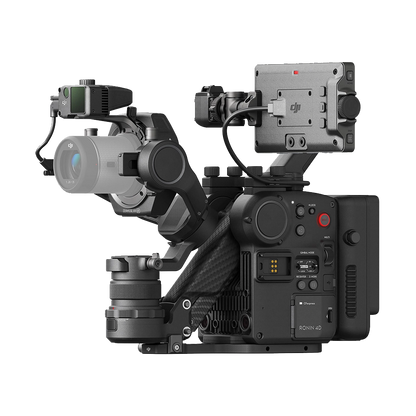

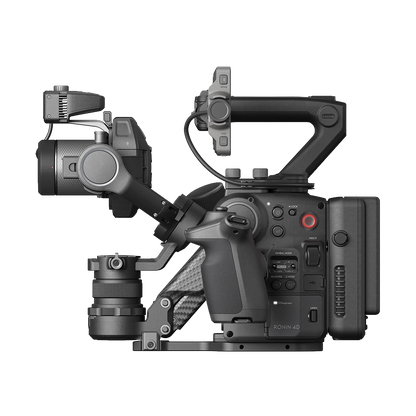

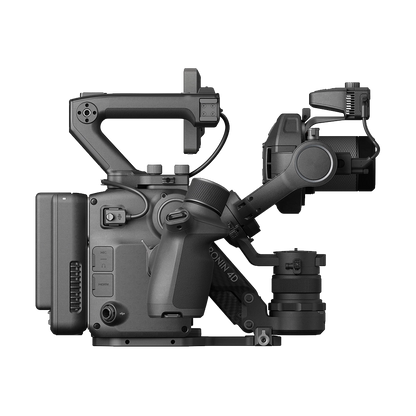

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

R 169,995.00
R 169,995.00 R 169,995.00
Tax included. Shipping calculated at checkout.

CP.RN.00000176.01

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Zenmuse X9-6K Camera Gimbal Combo
  • Z-Axis Camera/3-Axis Gimbal Stabilizing
  • ProRes HQ up to 6K60
  • Right Focus/Control, Left Pan/Tilt Grips
  • 5.5" 1000 cd/m² Touchscreen Display
  • LiDAR Range Finder/Focus Module
  • TB50 Intelligent Battery, Mount, Charger
  • Carbon Fiber, Aluminum Magnesium Alloy
  • Cables, Tools & Carrying Case

    The DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit is an all-in-one camera/gimbal solution designed for the solo use creator as well as dynamic pro video productions.
    The X9-6K camera features Z-axis stabilisation built into the camera and the three-axis gimbal stabilisation.

    The DJI Ronin 4D-6K features lightweight carbon fibre and an aluminium/magnesium alloy. Making the construction ideal for independent content creators, indie filmmakers, and event videographers.

    The Zenmuse X9-6K Full-Frame camera captures up to 6K60 in both ProRes HQ and Ronin's Cine Core 3.0. For the DJI Ronin 4D to be used as a second camera on larger cine-style productions, ACES workflow support is also available among many more functions.

    DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit includes the main Zenmuse X9-6K full-frame video camera and 3-axis gimbal, plus an array of modular monitor, focusing, and control components. Furthermore, this kit includes a DL lens mount, a LiDAR range finder, one TB50 battery, a charging hub, and left and right control handgrips.

    Note: A Wireless Video Transmitter is not included in this combo kit.

    Please note: In the event that a refund is requested on any DJI product for reasons not based on the rules set out in the Consumer Protection Act, and that product has been registered and/or activated, a 20% handling fee will be applicable.

    All-in-One Camera Gimbal System

    The DJI Ronin 4D-6K camera gimbal combines imaging, stabilisation and focusing in a lightweight carbon fibre and an aluminium/magnesium alloy. Making the construction ideal for independent content creators, indie filmmakers, and event videographers.
    The combination design reduces setup time as well as time between setups and locations.

    Included Modular Components

    • Left and Right Control Handgrips
    • LiDAR Range Finder
    • Top Handle
    • Baseplate

    CineCore 3.0 Imaging Processing System

    The Zenmuse X9-6K is DJI's full-frame camera, employing a proprietary chip for advanced processing and high-performance computing.
    The DJI Ronin 4D-6K kit features the CineCore 3.0 supporting internal recording of ProRes 422 HQ, and H.264 Video.

    Advanced 4-Axis Stabilization

    The DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit features Z-Axis stabilisation built into the Zenmuse X9-6K and 3-axis stabilisation in the gimbal. Tilt stabilisation uses dual, symmetrical motors and Pan and X axed with additional stiffness buffering.

    • Downward ToF (time of flight) sensor
    • Forward and downward-facing dual-vision sensors
    • Built-in IMU (inertial measurement unit) and barometer
    • New and improved stabilization algorithm

    Zenmuse X9-6K Camera with DL Lens Mount

    The Zenmuse X9-6K camera is compatible with a wide variety of lens mounts, Sony E-Mount or Leica M-Mounts. The DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit's DL lens mount supports DJI's current selection of lightweight, carbon fibre 16, 24, 35, and 50mm lenses. With full-frame capture in all lenses named, except for the 16mm DL-Mount lens.

    422 HQ, and H.264 Capture

    • Captures 6K raw at rates up to 60 fps in full-frame 2.39:1
    • Captures up to 4K raw at rates up to 120 fps in Super 35 2.39:1
    • Captures up to 4K raw at rates up to 96 fps in Super 35 17:9
    • Capture up to 6K60 ProRes 422 HQ video in full-frame 2.39:1
    • Capture up to 4K120 ProRes 422 HQ video in Super 35 2.39:1
    • Capture up to 2K120 ProRes 422 HQ or H.264 in 17:9 full-frame

    Dual Native ISO

    • 800/5000 dual native ISO
    • EI 200 to 12800
    • 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions

    In-Camera ND Filters

    The DJI Ronin 4D6K features built-in ND.03 to 2.7 filters that enable you to quickly change to different lighting conditions, especially for outdoor shoots with changing cloud cover. Changing between filters make us of a motorised system.

    LiDAR Focus Control

    Within a 3.3' range the LiDAR system uses up to 43,200 ranging points. The LiDAR system provides you with excellent focusing performance, even in low-light environments, focus pulling can be viewed graphically.
    The Modular LiDAR focusing module attaches to the front of the rig.

    Autofocus Features

    This system even maintains focus, even when motion blur is produced by fast-moving subjects.
    As a bonus for solo operators, the DJI Ronin 4D additionally features continued autofocus with ActiveTrack Pro.

    Automated Manual Focus

    The accuracy of manual focus and ease of autofocus is possible with the AMF function. This is as easy as grabbing the focus wheel on the right handgrip to manually focus.

    Dual Focus, Iris, and Control Grips

    Right-Hand Grip

    The right hand grip has the focus wheel that additionally doubles as a control for the main camera adjustments like, menus, exposure, and many more functions.

    Left-Hand Grip

    The left handgrip features a full-range joystick to control pan/tilt, and many more options.

    Media Storage Options

    In order to capture raw footage, the DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit requires a ProSSD 1TB (NOT included). The USB Type-C port can be used for external recording, no reader is needed to offload footage.
    Integrated CFexpress Type-B card slot.

    Built-In 5.5" Touchscreen Monitor

    • 5.5" 1920 x 1080 monitor
    • 1000 cd/m² display
    • Touchscreen control
    • Rotates for optimal viewing

    Audio Recording

    For audio recording, the DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit feature integrated microphones enabling you to capture dual-channel 24-bit audio. Furthermore a built-in 3.5mm audio input port and XLR port via expanded plate.

    Power Options

    • Uses the same TB50 intelligent batteries as the DJI Ronin 2 and DJI Inspire 2
    • Each battery provides up to 2.5 hours of capture time
    • Batteries charge fully in approximately 1.5 hours
    • Support auto-heating for cold weather use
    • AC adapter for uninterrupted shooting

    DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

    • Zenmuse X9-6K Gimbal Camera
    • Main Body
    • LiDAR Range Finder
    • DL Mount
    • Left-Hand Grip
    • Right-Hand Grip
    • Top Handle
    • Hight-Bright Main Monitor
    • TB50 Battery Mount
    • Power Adapter
    • TB50 Charging Adapter
    • 8 x AC Power Cable
    • USB-A to USB-C Cable
    • Base Plate
    • Hand Grip Extended Control Sticks
    • 3mm Ball-End Hex Key
    • 3 x 10mm 1/4"-20 Screw
    • DL Mount Body Cap
    • Flat Head Screwdriver
    • X9 Gimb

    Imaging

    Lens Mount DL
    Interchangeable Lens Mount Yes
    Sensor Resolution Effective: 24.1 Megapixel
    Sensor Type Full-Frame CMOS
    Image Stabilization Digital, 4-Axis
    Built-In ND Filter Mechanical Filter Wheel with Clear, 1 Stop (1/2), 2 Stop (1/4), 3 Stop (1/8), 4 Stop (1/16), 5 Stop (1/32), 6 Stop (1/64), 7 Stop (1/128), 8 Stop (1/256), 9 Stop (1/512) ND Filters
    Internal Filter Holder Yes
    ISO Sensitivity 200 to 12,800
    Shutter Type Rolling Shutter
    Shutter Speed 1/24 to 1/8000 sec
    Advertised Dynamic Range 14 Stops
    White Balance 2000 to 11,000K

    Gimbal

    Rotation Range Yaw (Pan): 285°
    Pitch (Tilt): 210° (-55 to 155°)
    Roll: 70° (-35 to 35°)
    Z-Axis Adjustment Range 5.1" / 130 mm
    Follow Speed Pan/Tilt/Roll: 360°/s using DJI Master Wheels or Pro-Force
    Pan/Tilt/Roll: 120°/s using Ronin 4D Handgrip
    Load Capacity 2.1 lb / 960 g

    Internal Recording

    Raw Recording Raw:
    6008 x 3168 at 23.98/24/25/29.97/30/48 fps (3.4 Gb/s)
    Recording Modes ProRes 422HQ:
    6008 x 3168p at 23.98/24/25/29.97/30/50/59.94/60 fps
    4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
    2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
    H.264 4:2:0 10-Bit:
    4096 x 2160p at 23.98/24/25/29.97/30/48/50/59.94/60/72/96/100/120 fps
    2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60/72/100/120 fps
    Gamma Curve HDR-HLG, Rec709
    Audio Recording 2-Channel 48 kHz LPCM Audio
    Still Image Support None

    External Recording

    Video Output USB:
    4096 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps
    USB:
    2048 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    HDMI:
    1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
    Raw Output External Recorder:
    6008 x 3168 at 23.98/24/25/29.97/30/50/59.94/60/100/120 fps
    4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60/100/120 fps
    2048 x 1080 at 23.98/24/25/29.97/30/50/59.94/60/100/120 fps
    IP Streaming None

    Interface

    Media/Memory Card Slot Single Slot: DJI ProSSD
    Single Slot: CFexpress Type B
    Video Connectors 1 x HDMI (HDMI 1.4) Output
    Audio Connectors 1 x 3.5 mm Stereo Mic/Line Level Input
    1 x 3.5 mm Stereo Headphone Output
    Built-In Microphone Type Stereo
    Other I/O 1 x USB Type-C USB 3.1 Gen 1 Data, Video Input/Output
    1 x Proprietary Monitor Output

    Monitor

    Size 5.5"
    Resolution 1920 x 1080
    Display Type Tilting Touchscreen LCD

    EVF

    EVF Optional, Not Included

    Power

    Battery Type DJI TB50
    Power Connectors 1 x Barrel (12 to 30 VDC) Input

    Environmental

    Operating Temperature -10 to 40°C
    Storage Temperature -20 to 60°C

    Physical

    Material of Construction Carbon Fiber, Aluminum, Magnesium Alloy
    Dimensions 309 x 290 x 277 mm (With Protrusions)
    235 x 160 x 115 mm (Without Protrusions)
    Weight 4.67 kg
    1.45 kg
    1.04 kg
