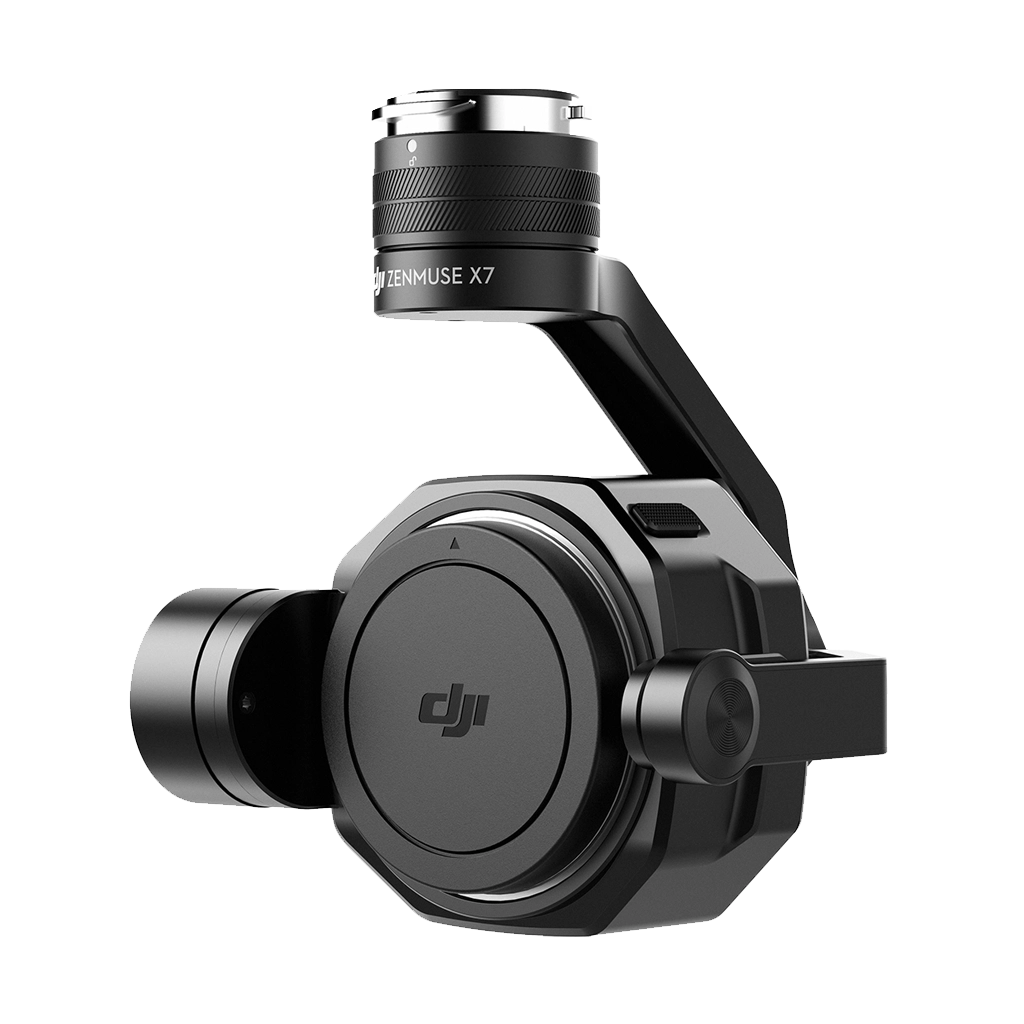

DJI ZENMUSE X7
CP.BX.00000028.02
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
SHORT DESCRIPTION
SHORT DESCRIPTION
The DJI Zenmuse X7 is a 24MP Super 35 format camera and 3-axis gimbal for the DJI Inspire 2 drone. The camera features a very large Super 35mm that is capable of capturing 6K 60163200/57603240 video at 30fps in 4.7Gbps RAW with no crop; and the because the sensor in the camera is much larger than the X5S, it provides a much greater dynamic range (up to 14 stops), and better low light performance (up to ISO 25600).The DJI X7 also introduces the DL-mount, an integrated aerial lens mount with currently four available prime lenses covering 16-50mm. Made of lightweight carbon fiber and designed by world-leading optics teams, the four lenses have been embedded with advanced technologies and optics crafted specifically for the X7s high-end image sensor. Lenses not includedFor seamless editing, a new DJI Cinema Colour System preserves accurate colors for easier post-processing.
Please note: In the event that a refund is requested on any DJI product for reasons not based on the rules set out in the Consumer Protection Act, and that product has been registered and/or activated, a 20% handling fee will be applicable.
Lossless Cinema RAW 6K 60163200/57603240 recording at 30 fps
When mounted to the Inspire 2 drone, the DJI Zenmuse X7 camera can record lossless Cinema RAW videos at insane bitrates in either 6K, 4.7Gbps, 12-bit video at up to 29.97p; or 3.9K CinemaDNG, 12-bit video at 59.94p. The massive bitrates keeps original data intact, giving you complete control to edit every single frame in post as a RAW file. Recording can be done at aspect ratio's of 17:9, 16:9, or 2.44:1
14 stops of dynamic range
The new DJI X7 camera's larger sensor provides a wide dynamic range of 14 stops. This means that the camera can record more shades of colours and will capture more detail in bright highlights and dark shadows before blowing colours out.
Exceptional low light performance
Exceptional low light video recording is made possible by large Super 35 sensor's light sensitivity of ISO 100-25600. This enables capturing low light scenes such as nightscapes with little to no noise
CineCore 2.1 processing engine with El mode
A brand new EI Mode has been integrated into the CineCore 2.1 processing engine. This mode can record high-quality footage at various levels of sensitivity while reducing image artifacts and noise, preserving more details while adopting an improved dark level correction system for pro-level cinematic images. Apart from improved image processing performance, CineCore 2.1 also features a new colour system, giving professional filmmakers more creative flexibility in post-production.
24 megapixel camera with RAW image capture
The Zenmuse X7 camera features a picture resolution of 24 megapixels and an amazing image ISO range of ISO 100 25600. The camera can also capture 12-bit RAW images for even greater image control during post production.
3-axis stabilising gimbal
A new 3-axis gimbal stabilises the camera of the Zenmuse X7. The new gimbal has been highly optimised to support the new camera and lens and has a pinpoint-precise motor rotation with a control accuracy of 0.01 that is powered by a dedicated processor.
20 fps DNG RAW burst
When used with a DJI CINESSD, the X7 can capture 24 megapixel DNG RAW stills at a fast continuous rate of 20 frames per second. When using only an microSD card, 24MP DNG stills can be captured at 14fps.
Lens options
The DJI X7 features DJI's very own DL-mount, a short 17mm flange distance mount designed specifically for aerial use. Such a compact mount means that the X7 weighs only about 630g with a lens mounted. Together, the X7 and Inspire 2 weigh around just 4 kg with the ability to capture the same challenging shots as more heavy-duty setups weighing up to 40 kg. The official lenses (at time of writing) can be found below.
- DL-S 16mm F2.8 ND ASPH
- DL 24mm F2.8 LS ASPH
- DL 35mm F2.8 LS ASPH
- DL 50mm F2.8 LS ASPH
- DJI Zenmuse X7 Super 35 Camera and Gimbal
- Body cap
General
| Product Name | Zenmuse X7 |
|---|---|
| Dimensions | 151 × 108 × 132 mm |
| Weight (Lens Excluded) | 449 g |
Camera
| Sensor | Sensor Size (Still): 23.5×15.7 mm Sensor Size (Max video recording area): 23.5×12.5 mm Effective Pixels: 24 MP |
|---|---|
| Supported Lenses | DJI DL-S 16mm F2.8 ND ASPH (with lens hood and balancing ring/filter) DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter) DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter) DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter |
| Supported Micro SD/SSD Cards | MicroSD: Class 10 or UHS-1 rating with a writing speed of 15 MB/s required; Max capacity: 64 GB SSD: DJI CINESSD |
| Photo Sizes | 3:2, 4:3, 16:9 |
| Photo Formats | DJI CINESSD: DNG Micro SD: DNG, JPEG, DNG+JPEG |
| Operation Modes | Capture, Record, Playback |
| Still Photography Modes | Micro SD: Single Shot, Burst Shooting (3/5/7/10 shots), Auto Exposure Bracketing (3/5 bracketed shots at 0.7 EV bias), Interval SSD: RAW Burst (3/5/7/10/14/∞ frames), up to 20 fps when using RAW Burst (exact quantity is determined by storage card capacity and battery power level) |
| Shutter Speed | Electronic Shutter Speed: 1/8000 – 8s Mechanical Shutter Speed: 1/1000 – 8s (DJI DL-S 16mm F2.8 ND ASPH not supported) |
| ISO Range | Photo: 100 – 25600 Video: 100 – 1600 (EI mode on); 100 – 6400 (EI mode off) |
Video
| Video Formats | CINESSD: CinemaDNG, ProRes Micro SD: MOV, MP4 |
|---|---|
| Video Resolution | Aspect Ratio 17:9
CinemaDNG 6K: 6016×3200, 23.976/24/25/29.97/30p, 12-bit, full FOV
ProRes
H.264
H.265 Aspect Ratio 16:9
CinemaDNG 6K: 5760×3240, 23.976/24/25/29.97/30p, 12-bit, full FOV
ProRes 4K Ultra HD: 3840×2160, 23.976/24/25/29.97p, 10-bit, HQ/XQ, full FOV
H.264
H.265
Aspect Ratio 2.44:1
ProRes
H.264/H.265 Refer to the User Manual for more information. |
Temperature
| Operating Temperature Range | -4 to 104° F (-20 to 40° C) |
|---|---|
| Storage Temperature Range | -4 to 140° F (-20 to 60° C) |
Gimbal
| Angular Vibration Range | ±0.005° |
|---|---|
| Mount | Detachable |
| Controllable Range | Tilt: +40° to -125°; Pan: ±300°; Roll: ±20° |
| Mechanical Range | Tilt: +50° to -130°; Pan: ±330°; Roll: +90° to -50° |
| Max Controllable Speed | Tilt: 180°/s; Roll: 180°/s; Pan: 360°/s |
Camera Features
| Exposure Mode | Auto, Manual, Shutter Priority, Aperture Priority |
|---|---|
| Exposure Compensation | ±3.0 (3 stops of light) |
| Metering | Center-Weighted Metering, Spot Metering (12 × 8 area selection) |
| AE Lock | Supported |
| White Balance | Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000 K – 10000 K) |
| Video Caption | Supported (AVC/HEVC) |
| PAL/NTSC | Supported |
| Ultrasonic Dust Removal | Supported |
