Elinchrom EL-Skyport USB Transceiver RX MKII (19363)
Choose PayGate at checkout for MobiCred Payments.
- Wireless Control for Mac or Windows
- Can Control all RX Flash Units
- 4 Selectable Trigger Groups
- 8 Frequency Channels
- 40 Bit Security Encryption
- Software Updates via USB
Orms Bellville
Orms Cape Town
Orms Somerset West
Elinchrom EL-Skyport USB Transceiver RX MKII (19363)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Orms Somerset West
Shop 25, Waterstone Village Shopping Centre
Somerset West
Cape Town
Western Cape
7130
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Wireless Control for Mac or Windows
- Can Control all RX Flash Units
- 4 Selectable Trigger Groups
- 8 Frequency Channels
- 40 Bit Security Encryption
- Software Updates via USB
Choose PayGate at checkout for MobiCred Payments.
- Wireless Control for Mac or Windows
- Can Control all RX Flash Units
- 4 Selectable Trigger Groups
- 8 Frequency Channels
- 40 Bit Security Encryption
- Software Updates via USB

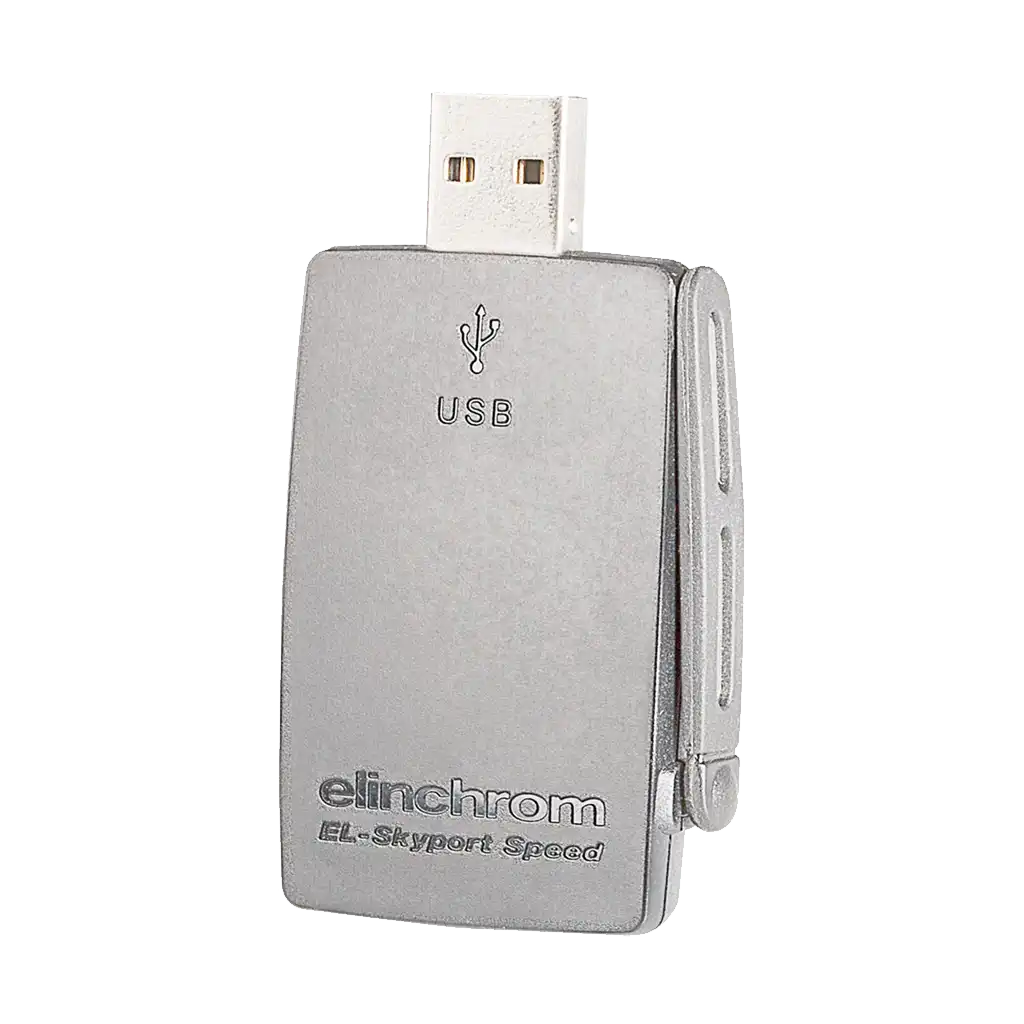

Part of the EL Skyport radio release system, this EL Skyport USB RX MKII Transceiver from Elinchrom automatically searches for units with Transceiver RX modules or with built-in Skyport RX receivers and allows computer control and monitoring of the flash's settings.
The USB Transceiver RX modules fit any MAC or WIN computer.
By installing the EL-Skyport Software 3.0 all Elinchrom RX units can be controlled. The program will automatically search for units with Transceiver RX modules or with built-in Skyport RX receivers. The Universal module can also be detected but only offers synchronization and strobing option.
The latest EL-Skyport software can be downloaded for free in Elinchrom's Support section at www.elinchrom.com.
Features include:
Control of Elinchrom RX & ELC functions; programmable timer; ON/OFF flash counter; flash delay; standby mode; firmware update; photo-job studio management; and pre-sets saving.
Note: ELS USB RX MKII is compatible with the latest Elinchrom Pro HD compacts.
19363 EL-Skyport USB RX MKII requires:
- The EL-Skyport Software, D-Lite RX, BRX, Ranger Quadra RX with serial numbers from 4001 onwards, or ELC PRO HD.
- The Transceiver RX module and a compatible RX flash unit: Style RX 300/600/1200, Digital RX 1200/2400, Ranger RX / Ranger RX Speed / Ranger RX Speed AS. Note: The Ranger RX requires the EL-Skyport Transceiver RX Adapter (19374)
- 19363 replaces 19348
- Elinchrom 19363 EL-Skyport USB Transceiver RX MKII
Compatibility | Mac or Windows systems RX Flash units and packs |
Channels and Groups | 8 Channels, 4 groups |
Security | 40 Bit encryption |
Connection | USB A |
Frequency | 2.4 GHz |
Range | Indoors: 50m Outdoors: 120m |
