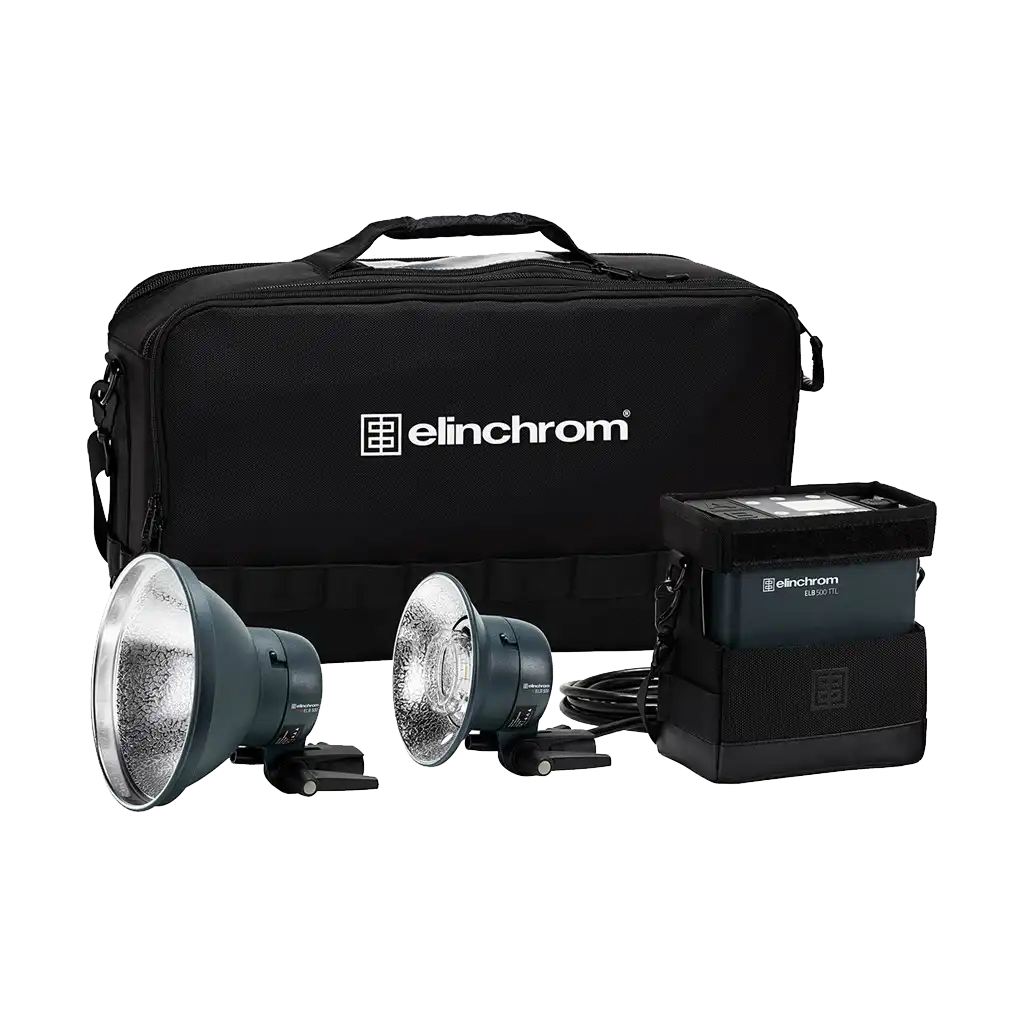

Elinchrom ELB 500 TTL Dual Head To Go Kit
PLEL10310.1
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
SHORT DESCRIPTION
SHORT DESCRIPTION
The Elinchrom ELB 500 TTL is a powerful, portable TTL 500w battery powered flash which can be used both on, or off camera. The Elinchrom ELB 500 TTL features full TTL with both Canon and Nikon cameras (Separate Camera brand specific Elinchrom Transmitter PRO required); is FP- and HSS-sync capable for flash syncs speeds of up to 1/8000 s; and features fast flash durations of up to 1/20000Sec.
Powerful 500w flash
The Elinchrom ELB 500 TTL flash features a max power rating of 500w at full power, making it up to 10 times more powerful than an average flashgun/speedlight. For on location work, the battery will give up to 400 full-power flashes per charge, and for shooting in studio you can use mains power while also providing an active charge.
Lightweight
The Elinchrom ELB 500 TTL head weighs just 600g, and the unit with the battery weighs 2.48 kg.
Full TTL functionality
The Elinchrom ELB 500 TTL features full TTL metering, enabling the head to automatically change flash output, simply point, shoot, and get correctly exposed pictures.
Fast
The Elinchrom ELB 500 TTL features a fast flash duration range of up to 1/20000 Sec. and features both HSS (Canon) and FP-sync (Nikon) compatibility to enable the flash head to be triggered at a flash sync speed of up to 1/8000 Sec. Additionally, the flash also features a fast recycling time of 0.05 - 2 seconds.
Two asymmetrical controllable flash heads
The Elinchrom ELB 500 TTL unit offers a wide variety of lighting possibilities when used with two asymmetrical controllable flash heads.
- Li-Ion Battery for ELB 500 TTL
- Battery Charger for ELB 500 TTL
- Multi-Plug Adapter Set
- Mains Supply Power Cable
- 2x ELB 500 TTL Flash Head
- 2x 8' Cable
- Flash Tube
- Protective Cap
- Snappy Carry Bag with Shoulder Strap for ELB 500 TTL
- 7" (17.8 cm) Grid Reflector for Quadra Heads
- 5.3" (13.5 cm) Standard Reflector for Quadra Flash Head
- ProTec Location Bag
- Shoulder Strap
| ELB 500 TTL (Without Battery) 10232.1 | |
|---|---|
| Auto Power Dumping | Yes |
| Battery | Li-Ion 14.4V / 5Ah / 72 Wh |
| Battery Life | 28000 (min power) / 400 (full power) |
| Battery Level Indicator | On Unit and Battery |
| Best Flash Duration at Power | 1/20000 (7.1 Ws / t0.1) |
| Primary | Grey |
| Colour Temperature at Max. Power | 5500 °K |
| Distance Range | 100 m |
| Energy | 500 Ws/J |
| F-Stop (1m, 100 ISO, reflector 48°) | 64.8 |
| Height | 18.1 cm |
| Hi-Sync | No |
| LED CRI | 90 |
| LED Modelling Lamp Watt / Lumens | 14 |
| Length | 16.3 cm |
| Material | Aluminium |
| Dimmable Modelling Lamp | 40 steps |
| Modelling Lamp Mode | On / Off, Free, Prop, Timer 1-60 s, VFC |
| Power Distribution | Full Asymmetry |
| Power Increments in F-Stop | 1/10th |
| Power Range | 7 to 500 Ws |
| Display | OLED, colored |
| Power Range F-Stop | 7 |
| Power Stability | +/- 0.05 % |
| Recharge Time | 1.4 h |
| Recycling (ECO) | 3.5 s |
| Recycling (FAST) | 0.05 s |
| Skyport Type | Built-in Skyport / Phottix Odin 2 |
| Sync Socket | 3.5 mm Jack |
| Sync Voltage | 5 V |
| Weight (max.) | 2.48 kg |
| Weight | 1.74 kg |
| Width | 9 cm |
| HSS | Yes, with Elinchrom Pro Transmitter |
| Color Stability | +/- 200 over 7 F-stops |
| ELB 500 Head 20190 | |
|---|---|
| Best Flash Duration at Power | 1/20000 (Action) - 1/3400 (Normal) |
| Primary | Grey |
| Colour Temperature at Max. Power | 5500 °K |
| Energy | 500 Ws/J |
| F-Stop (1m, 100 ISO, reflector 48°) | 64.8 |
| Shortest Flash at Power Setting | 7.1 |
| Flashtube | N° 24090 : Plug-in, Replaceable |
| Flash Duration | 20000 s |
| Height | 8 cm |
| Hi-Sync | No |
| LED CRI | 90 |
| LED Modelling Lamp Watt / Lumens | 14 W |
| Length | 16 cm |
| Material | ABS plastics |
| Dimmable Modelling Lamp | 40 Steps |
| Modelling Lamp Mode | On / Off, free, prop, timer 1-60 s, VFC |
| Power Range F-Stop | 7 |
| Supplied With | 2.5 m cable, flash tube, LED modelling lamp, protective cap |
| Tilt Head Adapter | 5/8" |
| Umbrella Fitting | Centered Tube - 7 mm |
| Weight (max.) | 0.660 kg |
| Weight | 0.610 kg |
| Width | 9 cm |
| HSS | Yes |
