Godox

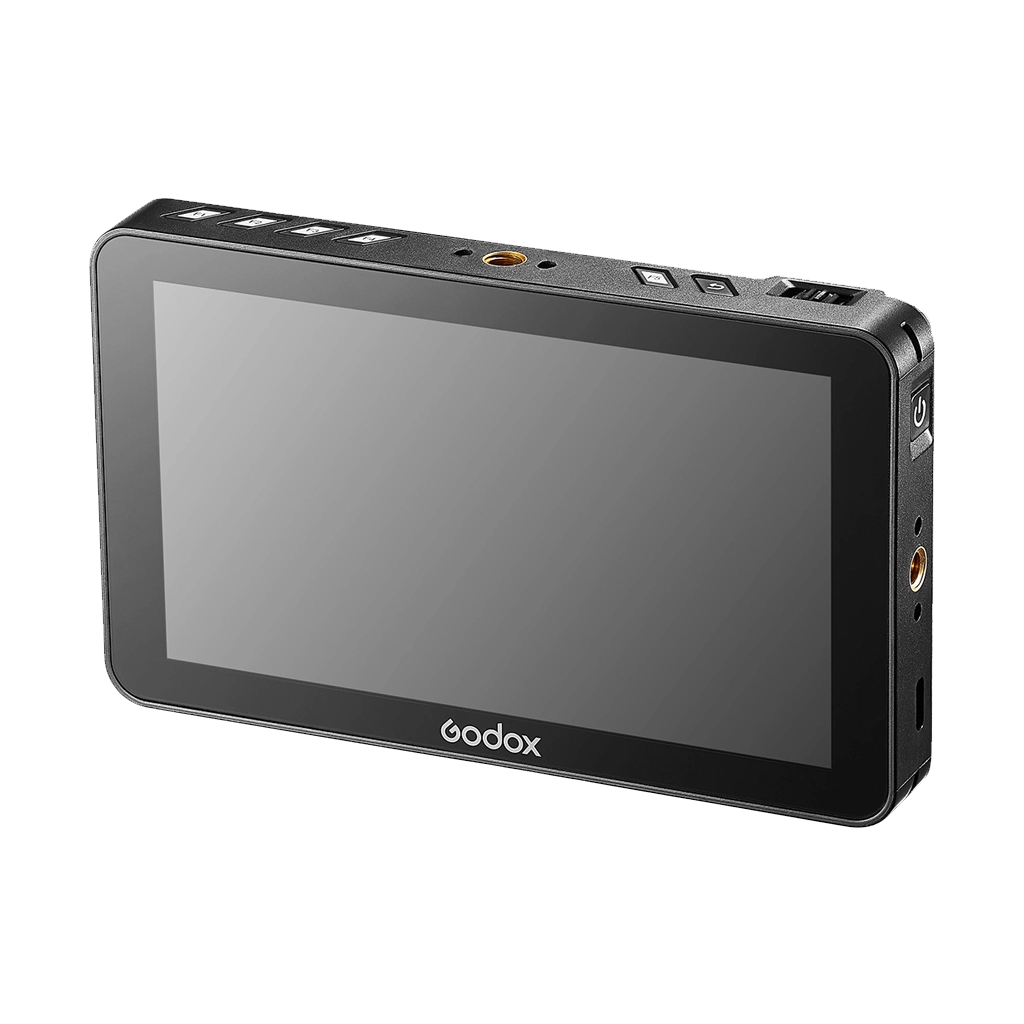

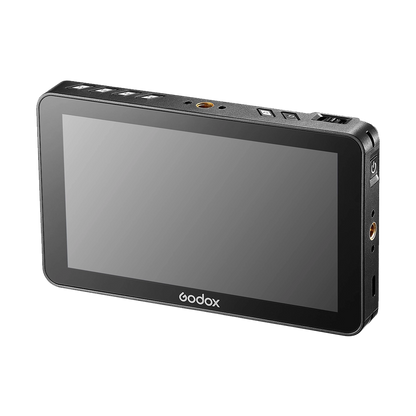

Godox GM6S 5.5" 4K HDMI Touchscreen Ultrabright On-Camera Monitor

Regular price R 5,695.00
Sale price R 5,695.00 Regular price R 5,695.00
Tax included. Shipping calculated at checkout.

G/GM6S

Low stock

Choose PayGate at checkout for MobiCred Payments.

SHORT DESCRIPTION

  • 1200 cd/m² Brightness
  • 5.5" IPS Touchscreen Display
  • DCI and UHD 4K Video Support
  • HDMI Input and Output
  • Headphone and Camera Control Ports
  • 3D LUT Import via SD Card Slot
  • Various Image Monitoring Tools
  • L-Series Battery Plate, USB-C Port
  • DC Input and Output Power Ports
  • Sun Hood and Cold Shoe Mount Included

Payment methods
    Godox GM6S 5.5" 4K HDMI Touchscreen Ultrabright On-Camera Monitor

    R 5,695.00

    The Godox GM6S 5.5" 4K HDMI Touchscreen Ultrabright On-Camera Monitor features a compact and lightweight form factor with an updated screen with 1200 cd/m² brightness.

    Both DCI and UHD 4K video is supported in HDMI input as well as output. With separately available priority cables, it is possible to control your camera from the Godox GM 6S On-Camera Monitor. A 3.5mm headphone jack outputs audio enabling you to monitor audio on set. Up to 25 3D LUTS can be loaded into the monitor using the SD card slot.

    Ultrabright Screen

    The Godox GM6S On-Camera Monitor features a 5.5" touchscreen with a maximum brightness of 1200 cd/m² for maximum brightness in daylight applications. An included sun hood can be used to reduce glare and block sunlight.

    Rec.709 Colour, 3D LUT Support

    Accurate reliable colour is always created with a Rec.709 colour calibration. It is also able to convert Log into Rec.709.
    Supports up to twenty-five 3D LUTs via SD card compatible 17/32/33/64/65 cubic files.

    Interface and Control

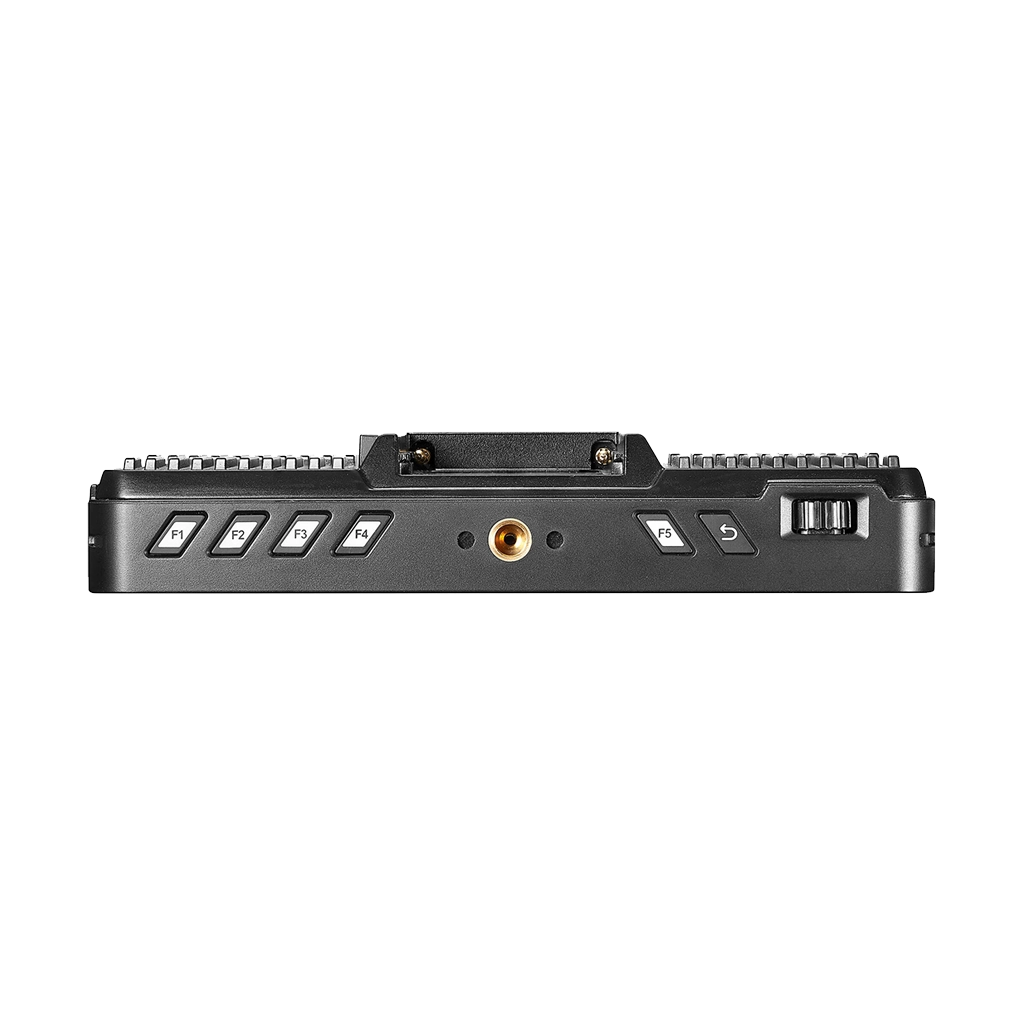

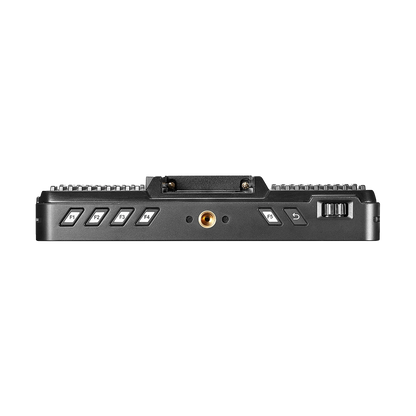

    The Godox GM6S 5.5" 4K HDMI Touchscreen Ultrabright On-Camera Monitor features five function keys that can be custom-programmed to enable you to toggle between various settings.
    With separately available priority cables, it is possible to control your camera from the Godox GM 6S. With improved UI design and layout. It also features HDMI input and output.
    Around the monitor, you will find three 1/4"-20 mounting threads for adding additional accessories.

    Image Monitoring Tools

    • Focus assist
    • Zebra
    • Waveform
    • LUT management
    • Video aspect ratio
    • Center marker
    • Safety marker
    • Image flip
    • Grid
    • Audio meter
    • False colors
    • Monochrome
    • Pixel-to-pixel
    • Zoom

    Multiple Power Options

    • DC power input
    • 7.8V DC output port for accessories
    • USB-C power input

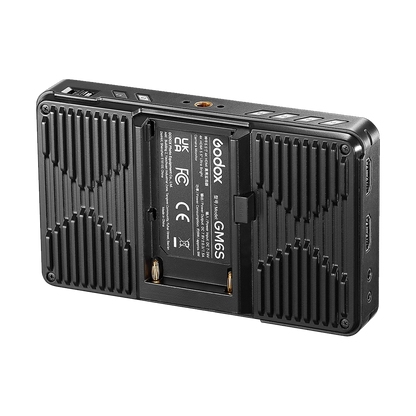

    • L-series battery plate

    • Godox GM6S 5.5" 4K HDMI Touchscreen Ultrabright On-Camera Monitor
    • Sun Hood
    • Tilting Cold Shoe Mount
    • HDMI to HDMI Cable
    • HDMI to Micro-HDMI Cable
    • HDMI to Mini-HDMI Cable
    • Screen Cloth

    Display
    Panel Type
    IPS-Type LCD
    Display Size
    5.5" / 14.0 cm
    Resolution
    1920 x 1080
    Aspect Ratio
    16:9
    Viewing Angle
    Horizontal: 160°
    Vertical: 160°
    Touchscreen
    Yes
    Maximum Brightness
    1200 nits / cd/m2
    Contrast Ratio
    1000:1
    Bit Depth / Color Support
    8-Bit (16.7 Million Colors)
    HDR Compatibility
    None
    Pixels Per Inch (ppi)
    400 ppi
    Image Controls
    Focus Assist, Image Flip, Waveform, Zebra

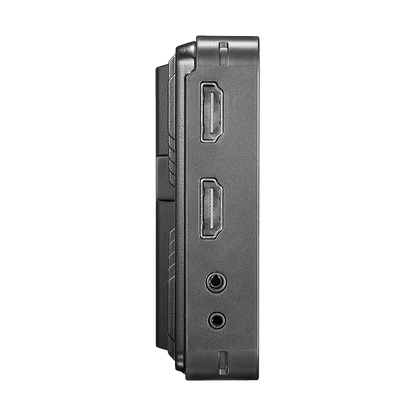

    Video I/O
    1 x HDMI 1.4 Input
    1 x HDMI 1.4 Output
    Embedded Audio
    HDMI
    Audio I/O
    1 x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker
    None

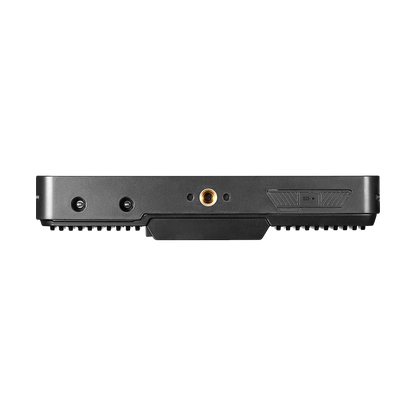

    Power I/O
    1 x USB-C Input
    1 x Barrel 5.5 mm (24 VDC) Input
    1 x Barrel 5.5 mm (1.5 A / 7.8 VDC) Output
    Other I/O
    1 x 2.5 mm Input
    Media/Memory Card Slot
    Single Slot: SD/SDHC
    Wi-Fi
    None
    Format Support
    Video Format
    HDMI
    DCI 4K: 30/29.97/25/24/23.98
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/50
    720p: 60/50
    576p: 60/50
    576i: 60/50
    Gamma Curve
    Rec709
    Power
    DC Input Power
    7 to 24 VDC
    Battery Type
    1 x L-Series
    Power Consumption
    9 W
    Mounting
    Mounting
    3 x 1/4"-20 Female
    Environmental
    Operating Temperature
    -10 to 50°C
    General
    Material of Construction
    Metal, Plastic
    Dimensions
    14.5 x 8.7 x 2.8 cm
    Weight
    273 g
