Hollyland Pyro 5 Wireless Transceiver Monitor
Choose PayGate at checkout for MobiCred Payments.
- Monitor Wireless Video up to 400m Away
- 5.5" Touchscreen 1920 x 1080 Display
- Transmitter and Receiver Mode Switching
- One Transmitter Can Send to 4 Receivers
- Up to 1080p60 SDI/HDMI Video
- High 1500 cd/m² Brightness
- Auto Frequency Hopping, 2.4/5 GHz Bands
- RTMP Streaming, USB/SD Card Import/Save
- Built-In L-Series Battery Plate
Orms Bellville
Orms Cape Town
Orms Somerset West
Hollyland Pyro 5 Wireless Transceiver Monitor
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Orms Somerset West
Shop 25, Waterstone Village Shopping Centre
Somerset West
Cape Town
Western Cape
7130
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Monitor Wireless Video up to 400m Away
- 5.5" Touchscreen 1920 x 1080 Display
- Transmitter and Receiver Mode Switching
- One Transmitter Can Send to 4 Receivers
- Up to 1080p60 SDI/HDMI Video
- High 1500 cd/m² Brightness
- Auto Frequency Hopping, 2.4/5 GHz Bands
- RTMP Streaming, USB/SD Card Import/Save
- Built-In L-Series Battery Plate
Choose PayGate at checkout for MobiCred Payments.
- Monitor Wireless Video up to 400m Away
- 5.5" Touchscreen 1920 x 1080 Display
- Transmitter and Receiver Mode Switching
- One Transmitter Can Send to 4 Receivers
- Up to 1080p60 SDI/HDMI Video
- High 1500 cd/m² Brightness
- Auto Frequency Hopping, 2.4/5 GHz Bands
- RTMP Streaming, USB/SD Card Import/Save
- Built-In L-Series Battery Plate
The Hollyland Pyro 5 Wireless Transceiver Monitor enables you to transmit, receive, and monitor high-quality wireless video transmissions. Taking its predecessor and making it even bigger and better than ever. Some upgrades include a 5.5" bright touchscreen with a brightness of 1500 cd/m², a L-series battery plate, wireless transmission range of up to 400m away, SD card video recording, HDMI/SDI input/output, RTMP streaming, one Pyro 5 sends to up to four receivers, as well as auto dual-band 2.4/5 GHz hopping and auto-frequency hopping.
Broadcast Mode
The Hollyland Pyro 5 Wireless Transceiver Monitor features wireless broadcast technology enabling a single transmitter to connect up to four receivers with a stable, line-of-sight signal.
In broadcast mode, it can transmit signals to a maximum of 4 receivers. And when deactivated, the transmitter can transmit signals to up to two receivers and up to two mobile devices.

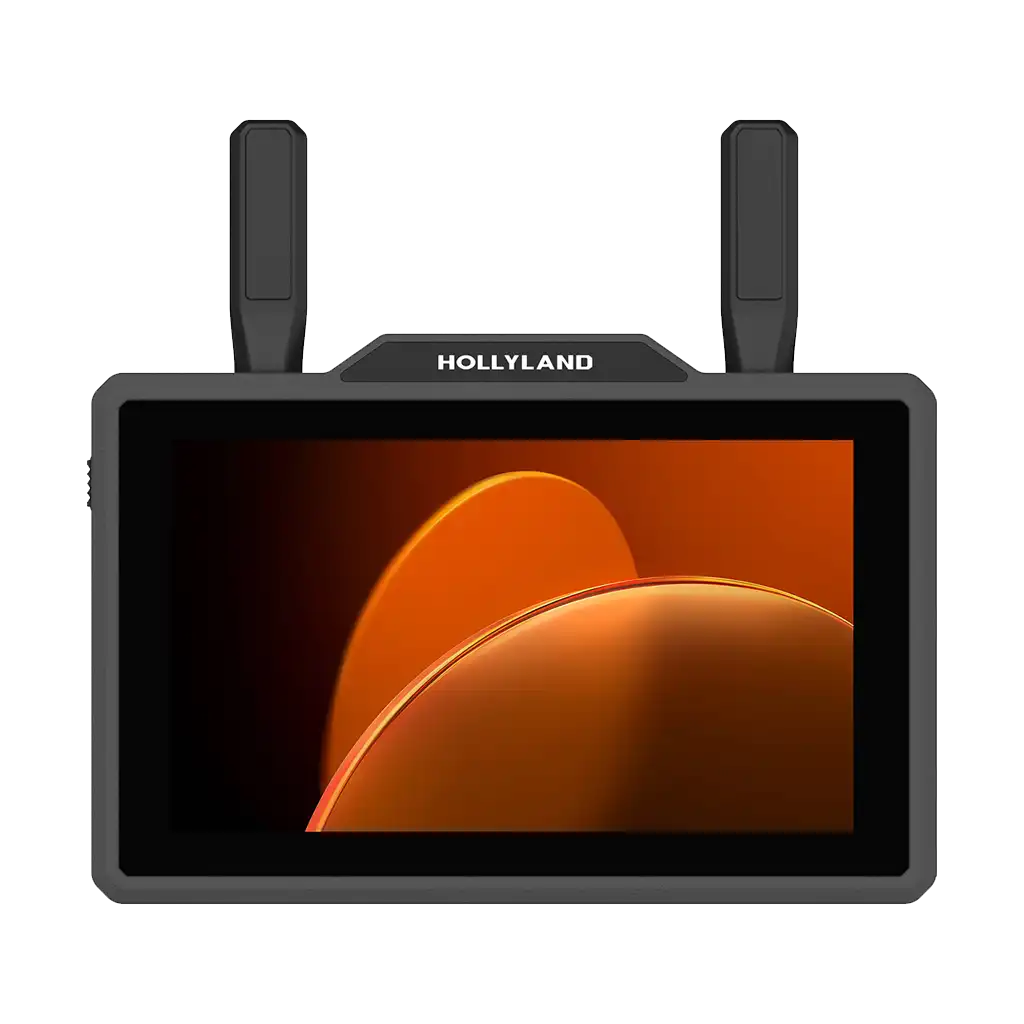

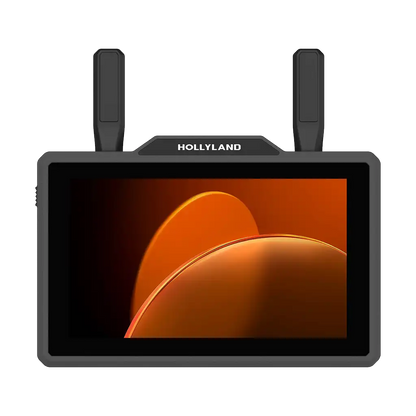

Large, Bright Monitor
The large 5.5" Display on the Pyro5 features a maximum brightness of 1500 cd/m² enables a clear viewing experience in all environments, from bright sunlight to dim environments.

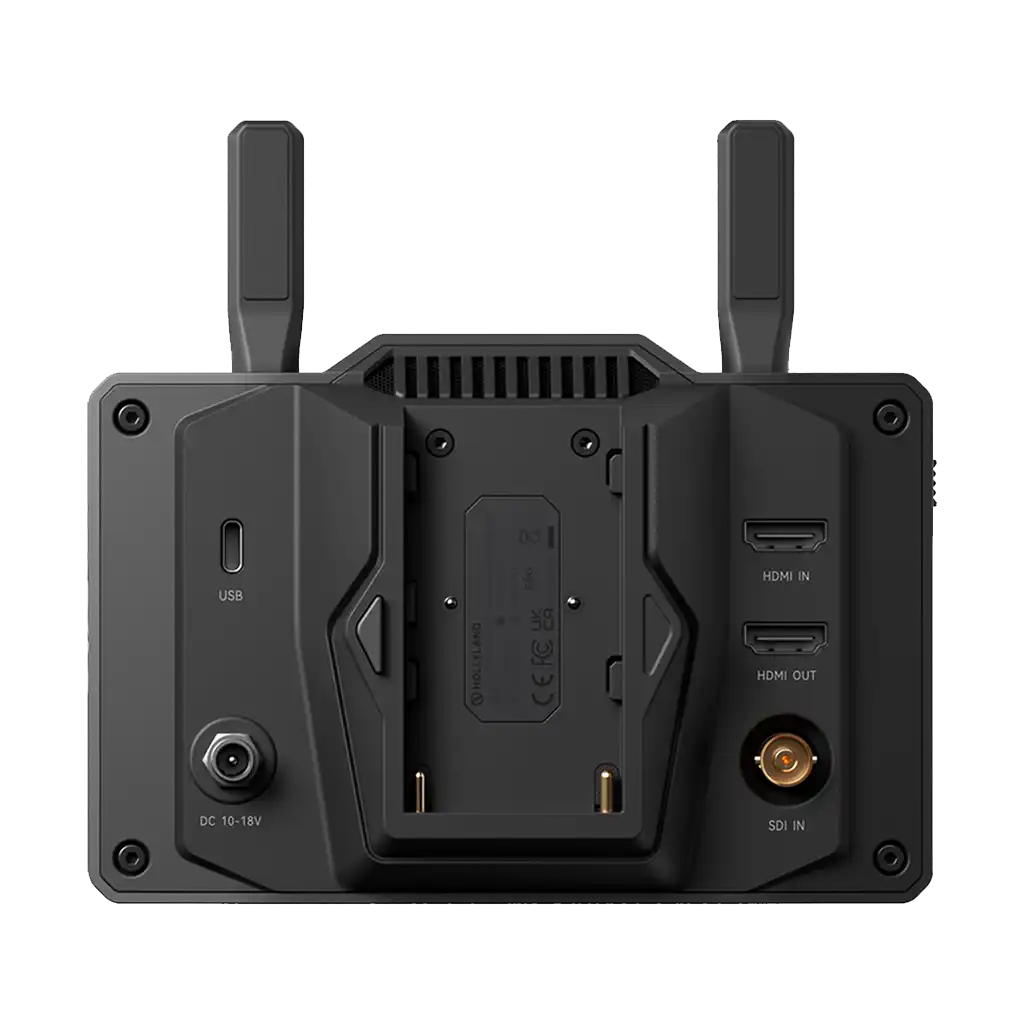

Versatile I/O

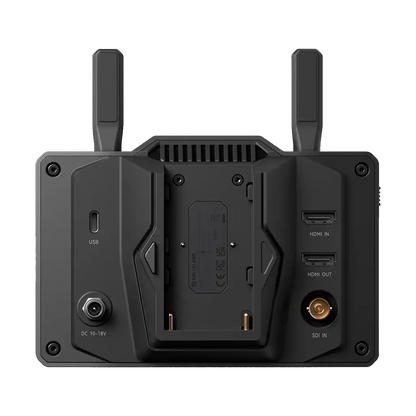

Operate the Pyro as either a transmitter or receiver. When used in transmitter mode, it features one HDMI input, one SDI input and one HDMI loop output. Then, in receiver mode, one HDMI output is featured.
Quick Source Switching
The Hollyland Pyro5 Wireless Transceiver Monitor enables seamless connection with all Pyro series units using the grouping preset.
Using two customisable buttons, multiple devices can be grouped and instantly switched between cameras.
Long Transmission Range
Dual-band 2.4/5 GHz technology provides a stable line-of-sight transmission range of up to 400 meters with a minimal transmission latency of 60ms with no image degradation.
You have the option to choose between two transmission modes. In Smooth Mode, adjust to the lowest latency for longer distances, while HD modeoptimises your image for a bit rate of up to 12 Mb/s.
Auto Dual-Band Hopping and Smart Channel Selection
Both Auto Dual-Band Hopping (ADH) and Auto Frequency Hopping (AFH) operate at 2.4 and 5 GHz bands. Now the clearest channel for reliable and uninterrupted wireless video transmission is automatically chosen. The included omnidirectional high-gain antennas also assist in ensuring a stable signal in all directions.
Smart Channel Selection makes it possible for you to manually scan and switch frequencies using visual signal strength indicators.
Efficient Proxy Recording
With the Hollyland Pyro5 you are able to record Proxy files directly to your SD card or USB drive while monitoring. For improved camera sync, files do include timecode.
HD Mode and Smooth Mode
- HD mode delivers 12 Mb/s bit rate video at a 75 ms latency
- Smooth mode dynamically adjusts the bit rate and delivers video at 60 ms for longer distance transmission
RTMP Streaming
The Hollyland Pyro 5 Wireless Transceiver Monitor features built-in RTMP streaming, which allows you to easily stream video to platforms such as Zoom, YouTube Live, Twitch, TikTok, and more.
Video Recording to SD Card
A single SD card slot allows for extended MP4 video recording up to 40 minutes in a single session. The Sd card slot can also be used to apply custom LUTs during video exports.
Use the SD card slot to import data from external devices and ingest on-set screenshots, and then overlaying it onto the current recording screen for scene restoration or replication purposes.
Image Tools
The Hollyland Pyro 5 Wireless Transceiver Monitor features a custom key option, which can be used for dual-view monitoring.
The custom key feature can also be used to quickly launch tools such as waveform, recording, focus assist, and more image analysis functions.
- Hollyland Pyro 5 Wireless Transceiver Monitor
- 2 x Hollyland Antenna
- Hollyland Tempered Glass Screen Protector
- Hollyland USB-C OTG Adapter
| Panel Type | |
| Display Size | |
| Native Resolution | |
| Aspect Ratio | |
| Touchscreen | |
| Maximum Brightness | |
| Contrast Ratio | |
| HDR Support | |
| LUT Support | |
| Image Controls |
| Antenna I/O | |
| Video I/O | |
| Embedded Audio | |
| Audio I/O | |
| Built-In Speaker | |
| Power I/O | |
| Other I/O | |
| Media/Memory Card Slot |
| Wireless Range | |
| Channel Bandwidth | |
| Latency | |
| RF Power | |
| RF Sensitivity | |
| Wi-Fi | |
| Bluetooth | |
| Mobile App Compatible |
| Video Format | |
| Audio Format | |
| Timecode Support |
| Pulldown Conversion | |
| Camera Trigger | |
| Pre-Roll Record | |
| Encoding Formats | |
| Closed Caption Support | |
| Reference Input |
| Input Power | |
| Battery | |
| Power Consumption |
| Tripod/Accessory Mounting |
| Environmental Resistance | |
| Operating Conditions | |
| Storage Conditions | |
| Dimensions | |
| Weight |
