Hollyland

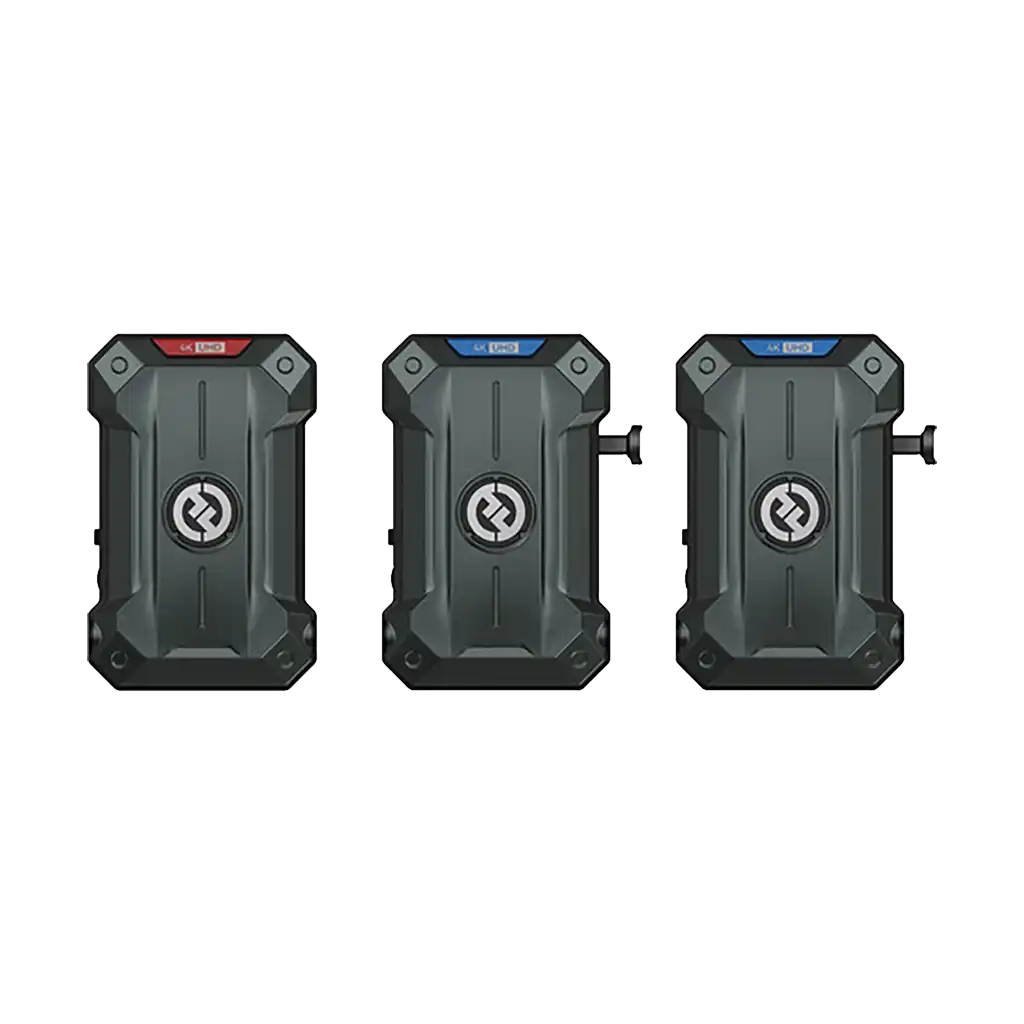

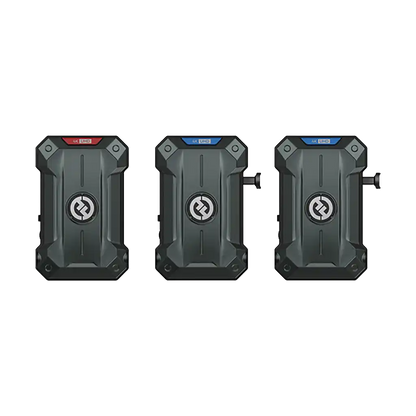

Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System

R 34,640.00
R 34,640.00 R 38,495.00
Tax included. Shipping calculated at checkout.

HOLPYROU

Up to 10% off
Low stock

Choose PayGate at checkout for MobiCred Payments.

SHORT DESCRIPTION

  • Wireless Transmitter and Dual-Receiver Set
  • Transmit UHD 4K60 Video up to 1.5km
  • HDMI/SDI Inputs and Outputs
  • TWiFi Technology with Frequency Hopping
  • Broadcast and Focus Modes
  • Supports UVC and RTMP for Streaming
    Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System

    R 34,640.00

    The Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System allows you to transmit up to 4k60 wirelessly, where the SDI/HDMI ports support line-of-sight transmissions at up to 1500 meters. This kit includes a wireless transmitter, two wireless receivers, different-sized antennas, a USB-C adapter, a D-Tap to DC cable, a DC power adapter, and a dual ball head to cold shoe mount adapter.

    Exceptional clarity and a latency as low as 20 ms is created with the TWiFi transmission technology that creates a composite link with automatic frequency hopping. The Pyro Ultra is backwards compatible with the entire Pyro family to work seamlessly with your preexisting workflows.

    Unlimited Linking

    The Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System is capable of being expanded to include unlimited receivers getting footage from a single transmitter. Delivering stable wireless signals.

    TWiFi Transmission Technology

    Making use of Hollyland's proprietary codec that creates a composite link out of 2.4 and 5 HJz wireless signals for secure communications.
    TWiFi ensure line-of-sight transmissions of up to 335 meters. Dynamic Frequency Selection unlocks more of the wireless spectrum in regulated regions for additional flexibility.

    Focus Mode

    The Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System maintains low latency to ensure a responsive monitoring environment when trying to complete precise focus pulls.
    Latency varies depending on the output resolution of your footage, measuring 20 ms at 1080p30, 40 ms at 1080p60, and 45 ms at 4K60.

    Flexible Streaming>/h3>

    Both UVC and RTMP streaming are featured. The receiver is ideal for live production and remote collaboration work, due to the plug-and-play functionality and flexible platform compatibility.

    Freeze Frame

    In case unexpected cuts occur, the Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System automatically freeze the last frame to allow production crews to recover.

    Adaptive Output Resolution

    The receiver automatically adapts its HDMI or SDI output resolutions to match downstream devices, ensuring compatibility across setups.

    Multiple Power Options

    For continuous use, both the receiver and transmitter feature a DC power output to be connected to the DC power adapter
    Then the receiver features a V-mount plate, and the transmitter features an NP-F power adapter to expand power options and allow for longer shooting times.

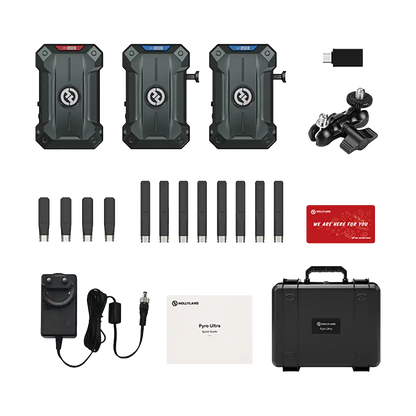

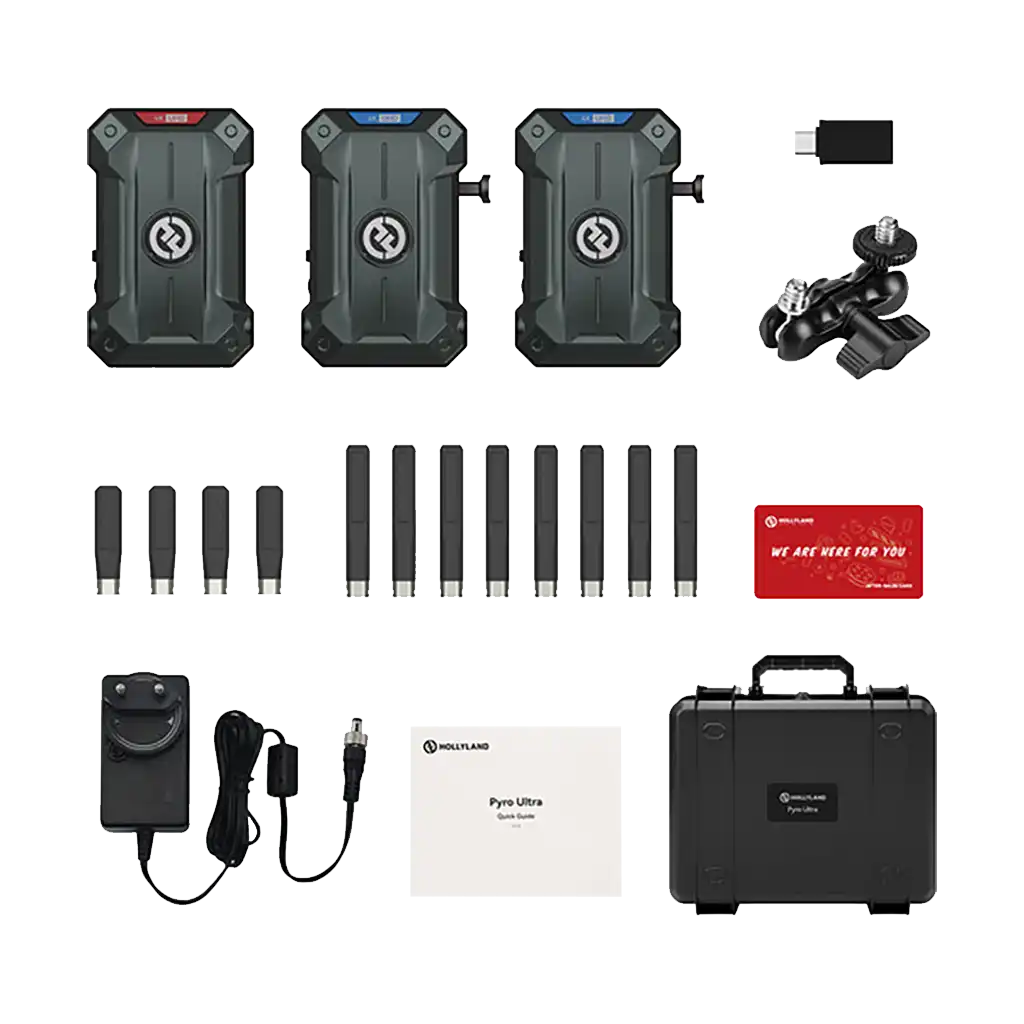

    Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System

    • Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Transmitter
    • 2x Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Receiver
    • 4 x Hollyland Short Antenna
    • 8 x Hollyland Antenna
    • Hollyland USB-C OTG Adapter
    • Hollyland Dual Ball Head with Cold Shoe Mount
    • Hollyland D-Tap to Locking DC Power Cable
    • Hollyland DC Power Adapter (12V, 2A)

    Inputs/Outputs
    Antenna I/O
    Transmitter/Receiver: 4x RP-SMA Male
    Video I/O
    Transmitter: 1x HDMI 2.0 Input
    Transmitter: 1x HDMI 2.0 Loop Output
    Transmitter: 1x BNC (3G-SDI) Input
    Receiver: 1x HDMI 2.0 Output
    Receiver: 1x BNC (3G-SDI) Output
    Embedded Audio
    Not Specified by Manufacturer
    Audio I/O
    No
    Power I/O
    Transmitter/Receiver: 1x Barrel Input
    Other I/O
    Transmitter/Receiver: 1x USB-C
    Wireless
    Wireless
    2.4 GHz Radio/RF / 5.1 GHz Radio/RF / 5.8 GHz Radio/RF
    Wireless Range
    1500 m
    Channel Bandwidth
    40 MHz, 20 MHz
    Latency
    20 ms
    RF Power
    ≤ 23 dBm
    RF Sensitivity
    -85 dBm
    Wi-Fi
    Yes
    Bluetooth
    No
    Mobile App Compatible
    No
    Cellular Support
    No
    Format Support
    Video Format
    HDMI
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    720p: 60/59.94/50
    SDI
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    Audio Format
    Not Specified by Manufacturer
    Timecode Support
    No
    Power
    Input Power
    6 to 16 VDC
    Battery
    Transmitter: 1x L-Series Mount on Fixed Plate
    Receiver: 1x V-Mount on Fixed Plate
    Power Consumption
    Transmitter: 11 W
    Transmitter: 14 W
    Receiver: 7 W
    Mounting
    Tripod/Accessory Mounting
    Not Specified by Manufacturer
    General
    Status Display
    On Transmitter and Receiver
    Environmental Resistance
    No
    Dimensions
    Transmitter/Receiver: 124.5 x 80 x 34.9 mm
    Weight
    Transmitter/Receiver: 320.00 g
