Leica

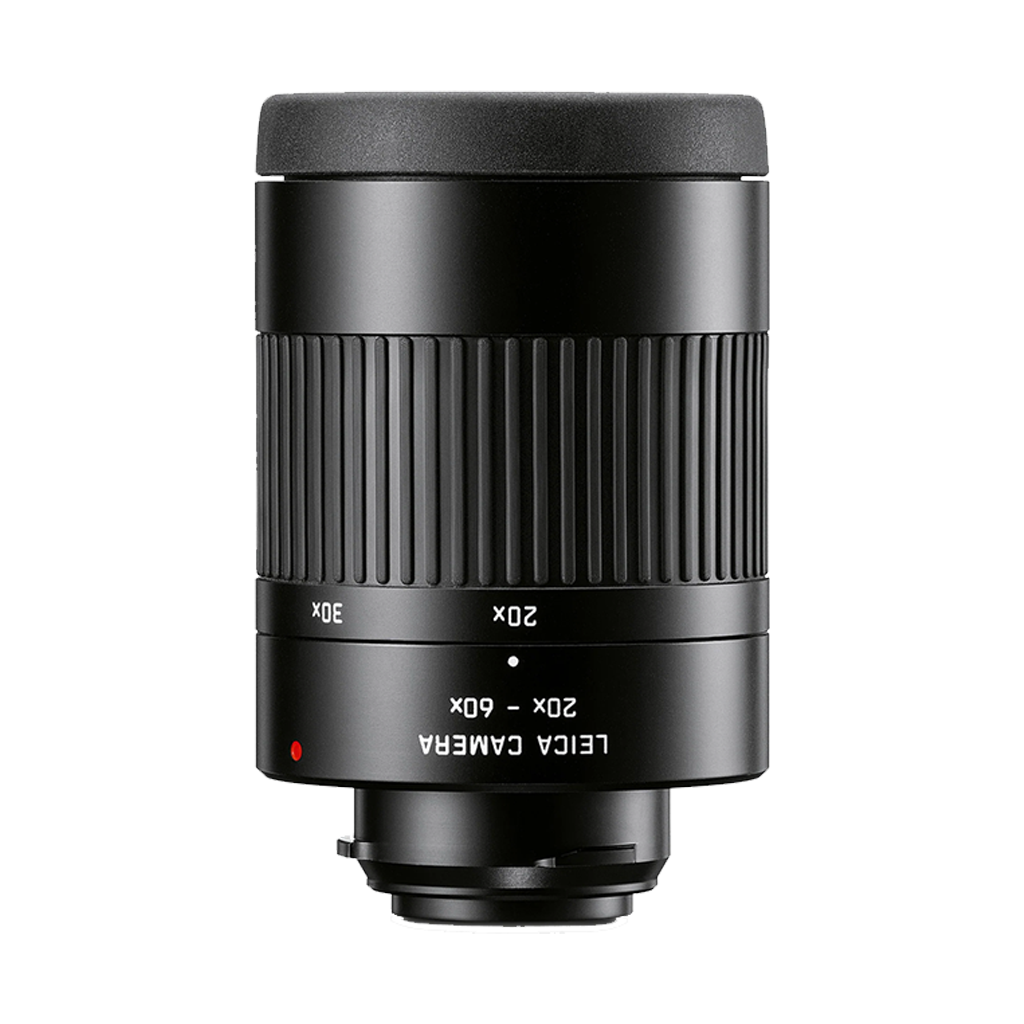

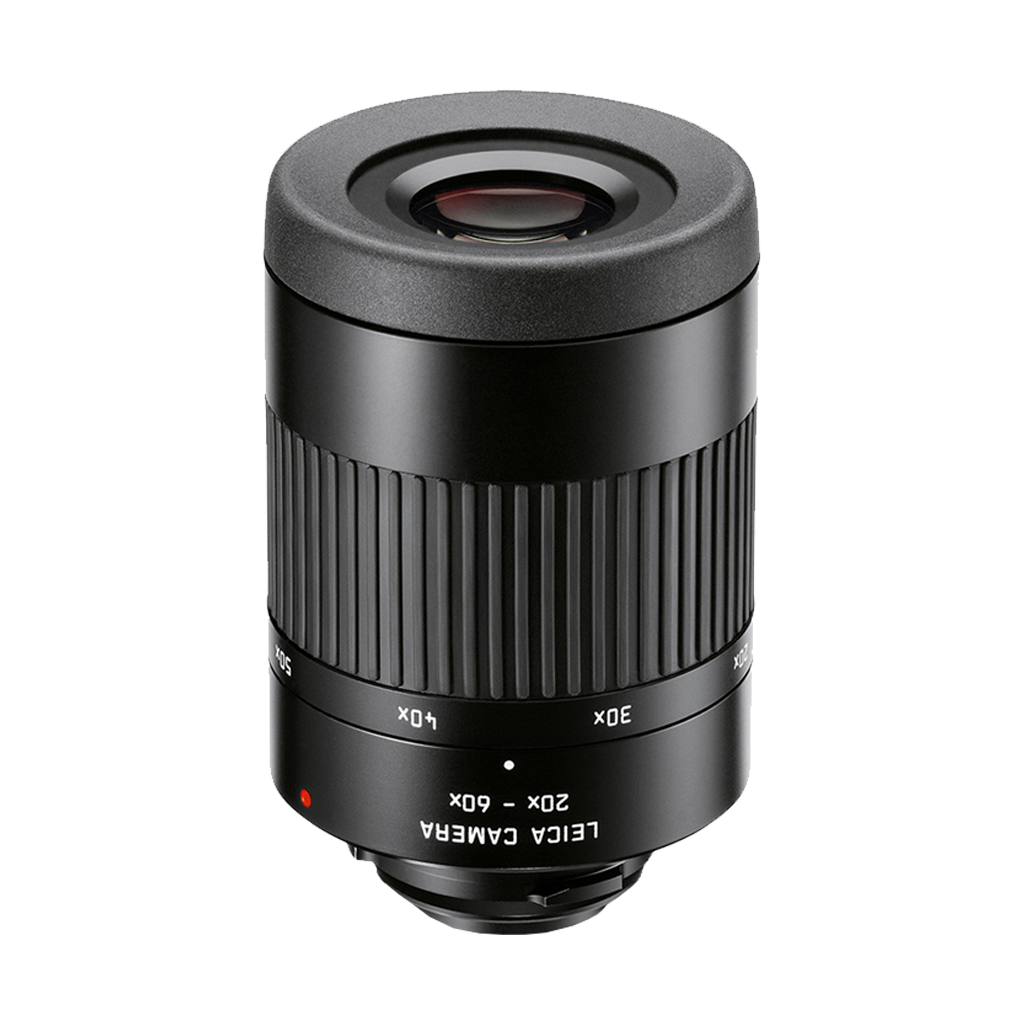

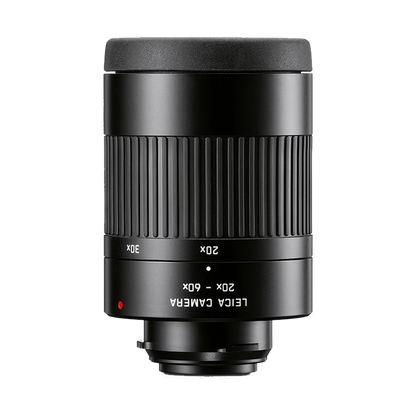

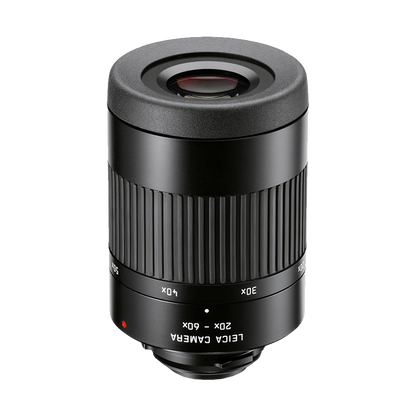

Leica 20-60x Vario Eyepiece for Televid Spotting Scopes

R 13,695.00
R 13,695.00 R 13,695.00
Tax included. Shipping calculated at checkout.

41023

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 20-60x Magnification
  • 19.9 to 34.9 m @ 1000 m
  • Close Focus 3 Meters
  • Waterproof Up to 4 Meters
  • Twist-Up Eyecup

    The Leica 20-60x Vario Eyepiece for Televid Spotting Scopes provide you with fine details of distant subjects as well as objects only a couple of meters away.

    A wide field of view from 20 to 35 meters at 1000 meters can be expected from the Leica 20-60x Vario Eyepiece for Televid Spotting Scopes. The rugged, waterproof design ensures you can use your eyepiece in any weather condition, it can even be submerged up to 4 meters. Even if you are wearing eyeglasses, the twist-up eyecup ensures a comfortable viewing experience. The bayonet mount snaps easily and securely in place on your scope.

    Optical Performance

    A wide field of view from 20 to 35 meters at 1000 meters can be expected from the Leica 20-60x Vario Eyepiece for Televid Spotting Scopes, along with an 18mm comfortable eye relief.
    When mounted to a Leica Televid 65 Spotting Scope, you will have an exit pupil of 3.25-1.1mm, and when mounted to a Leica Televid 82 Spotting Scope, you will have a 4-1.4mm exit pupil.

    Use and Handling

    The bayonet mount on the eyepiece easily and securely snaps in place. The twist-up eyecups ensure a comfortable viewing experience, even when wearing eyeglasses.
    When mounted to a Leica Televid 65 Spotting Scope, you will have a minimum focus distance of 2.9 meters, and when mounted on the Leica Televid 82 Spotting Scope, you will have a 3.9 meters.

    Construction Details

    The Leica 20-60x Vario Eyepiece for Televid Spotting Scopes features a rugged rubber-armoured housing for maximum protection to ensure the unit can be used in any weather condition, it features a design where it can be submerged up to 4 meters.

    • Leica 20-60x Vario Eyepiece for Televid Spotting Scopes
    • Leica Eyepiece Case
    • Leica Bayonet Cap
    • Leica Eyepiece Cap

    Magnification
    20 to 60x
    Angle of View
    37 to 65° (Apparent)
    Field of View
    19.9 to 34.9 m @ 1000 m
    Minimum Focus Distance
    With 65mm Scopes: 2.9 m
    With 82mm Scopes: 3.9 m
    Exit Pupil Diameter
    With 65mm Scopes: 3.2 to 1.1 mm
    With 82mm Scopes: 4 to 1.4 mm
    Eye Relief
    18.0 mm
    Environmental Resistance
    Water-Resistant to 4.0 m (Unrated)
    Dimensions
    ø: 5.6 x L: 8.9 cm (with Mount)
    ø: 5.6 x L: 7.6 cm (without Mount)
    Weight
    371 g
