Nanlite PavoSlim 60B Bi-Color LED Panel

R 8,390.00
R 8,390.00
Tax included. Shipping calculated at checkout.

PavoSlim 60B

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • For Studio, Film and TV Production
  • Output: 8156 Lux at 1 Meter (5600K)
  • 2700-6500K
  • 12.1 x 11.8" Panel; AC/DC Operation
  • CRI 95 | TLCI 97
  • Onboard, DMX/RDM and Bluetooth App Control
  • 12 Special Effects; 0-100% Dimming
  • Silent Passive Cooling Design
  • Includes Standard and Lite Diffuser
  • Includes Softbox and Eggcrate

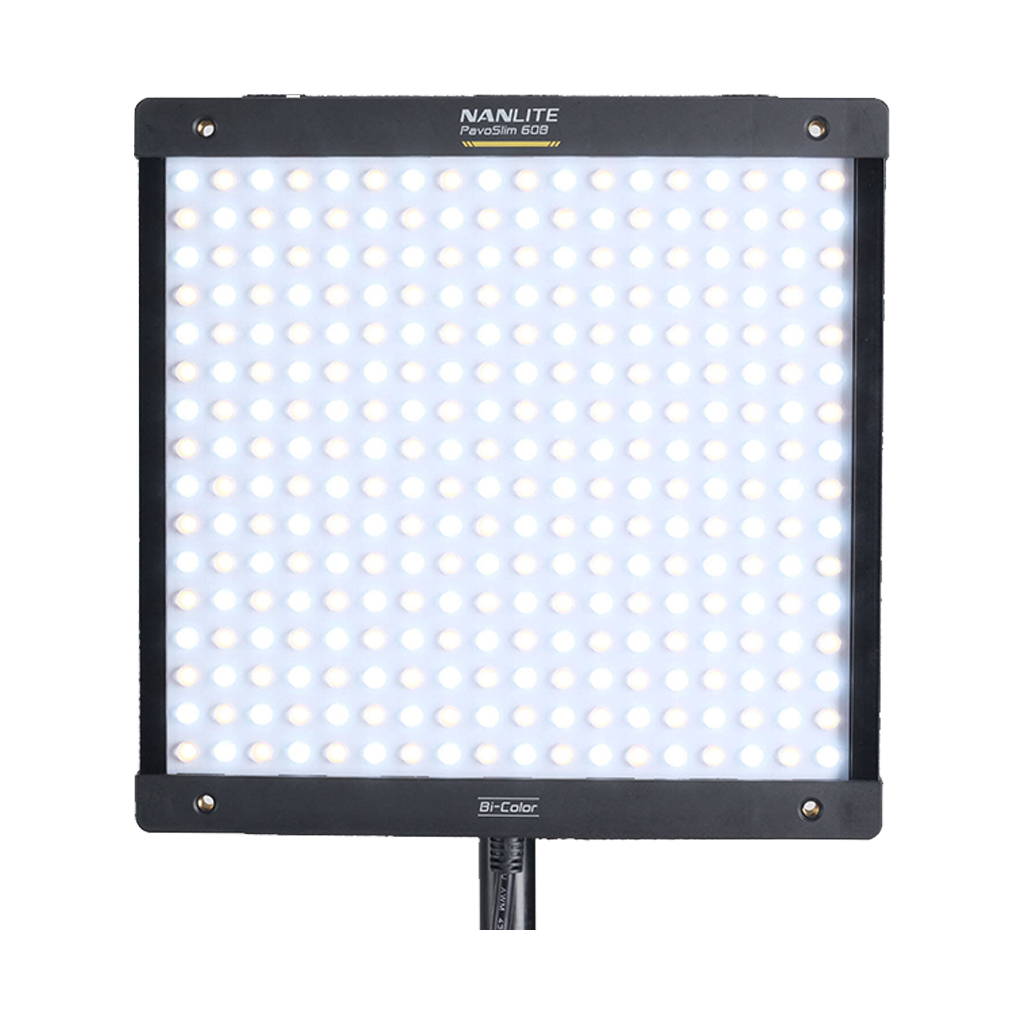

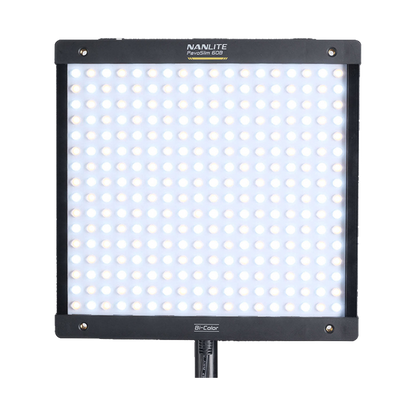

    The Nanlite PavoSlim 60B Bi-Color LED Panel is a thin, bright and lightweight bi-colour LED panel ideal for video production where colour accuracy and precise control are needed.

    This panel offers a wider colour temperature range from 2700 to 6500K and are able to be dimmed from 0% right through to 100%, seamlessly integrating in ambient lighting situations.

    With the Nanlite PavoSlim 60B Bi-Color LED Panel, you can shoot with confidence that colours will be accurately reproduced with a high CRI/TLCI of 95/97. On the light fixture itself, you will find multiple on-board control options, as well as wireless options to allow for easy creative adjustments.

    Twelve built-in special effects are included for CCT loop, intensity loop, flash, pulse, storm, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding. Additionally, two diffusers, a softbox, and an eggcrate are also included for modifying and adjusting the panel's output.

    • Designed for studio, film, and TV productions, this thin and lightweight LED panel provides a bright illumination of 8156 lux at 1 meter.
    • Variable colour temperature range of 2700 to 6500K and 0 to 100% dimming.
    • High CRI/TLCI ratings of 95/97 provide high colour accuracy and rendering.
    • 12 built-in special effects for CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.
    • Multiple presets for LEE filters.
    • Silent passive cooling for working on sets with sound recording
    • Built-in battery plates for one NP-F battery and one V-mount battery.
    • DMX/RDM port, Bluetooth, and wireless RF control options.
    • 4-pin locking plate design to combine panels together to make a larger light source.

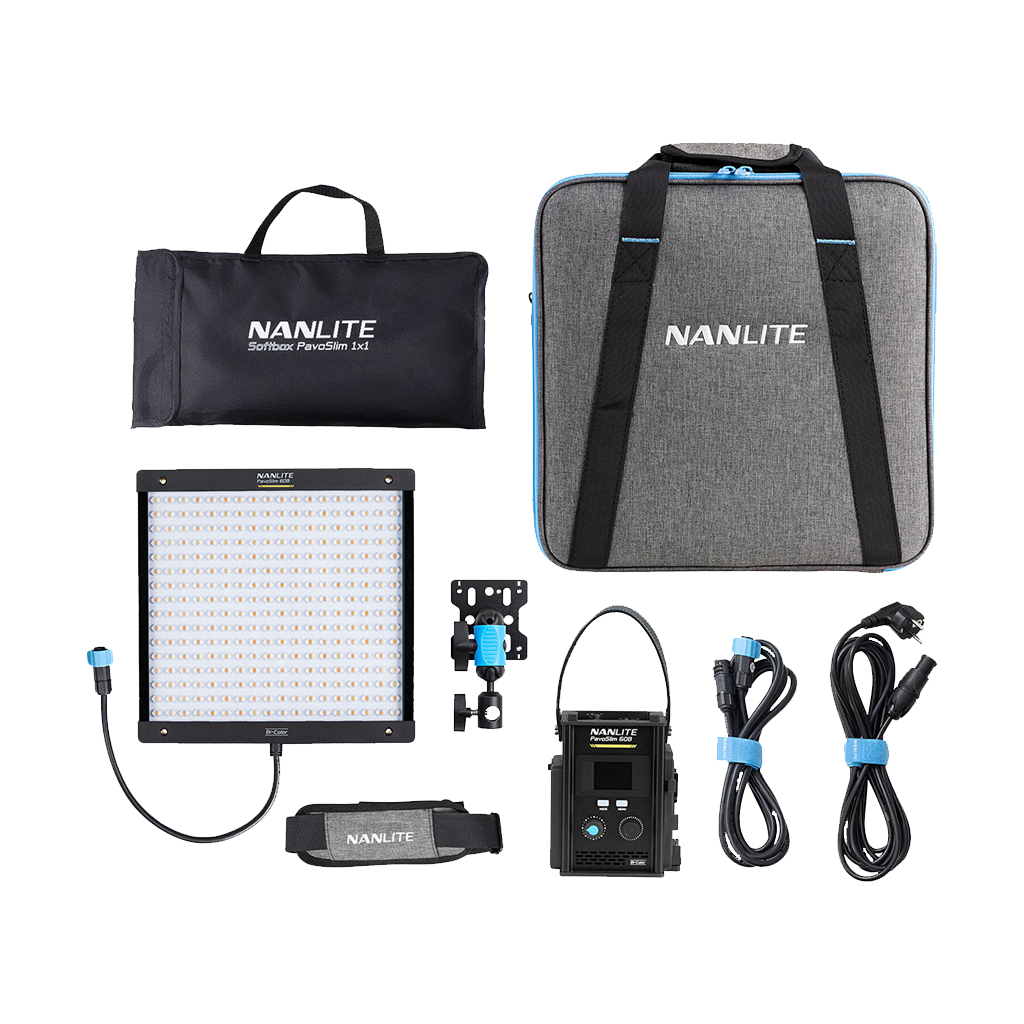

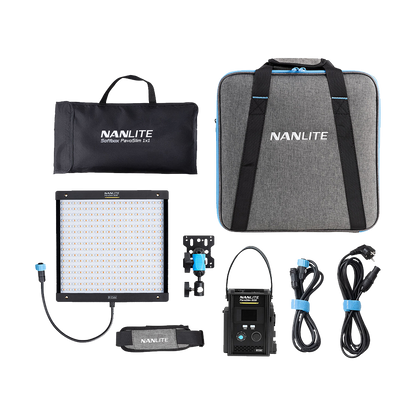

    • Includes two diffusers, a softbox, an eggcrate, and a soft case.
    • Dual-voltage design for worldwide use.

    • Nanlite PavoSlim 60B Bi-Color LED Panel

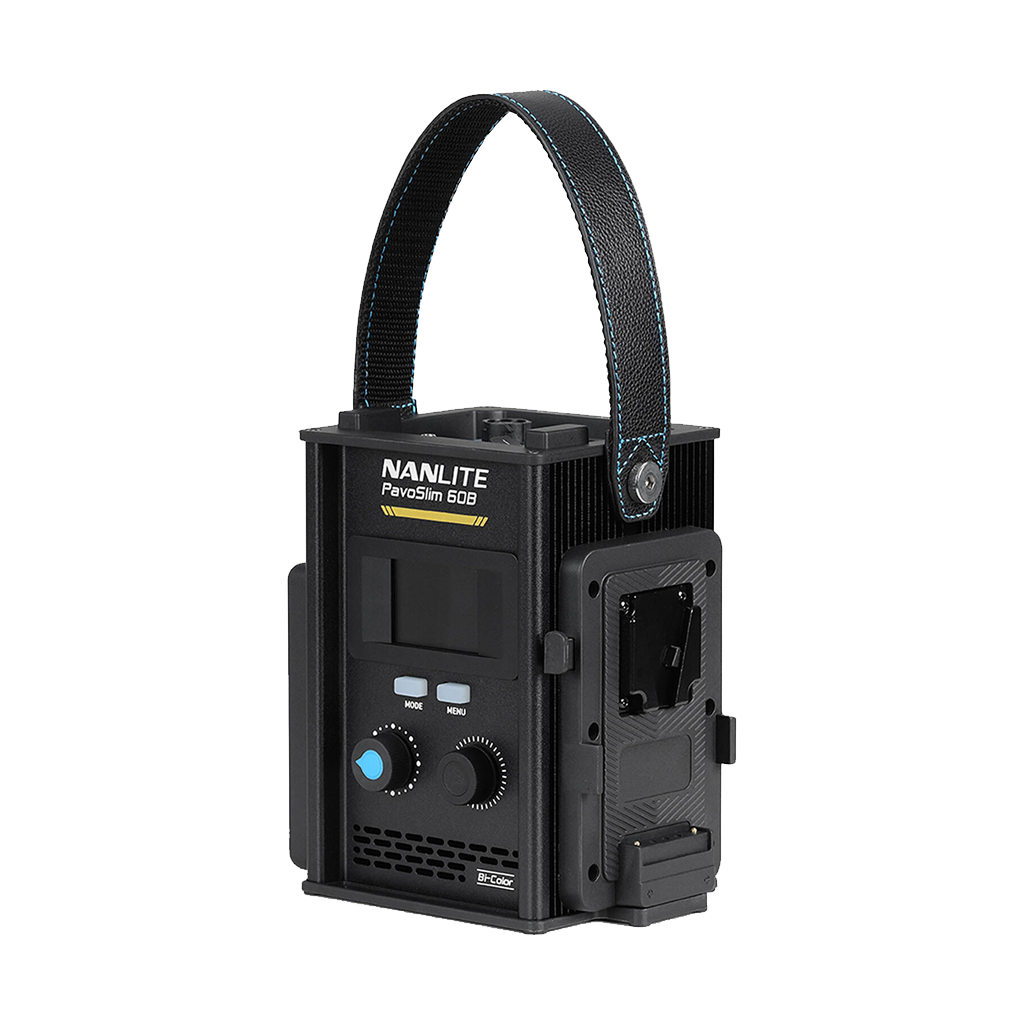

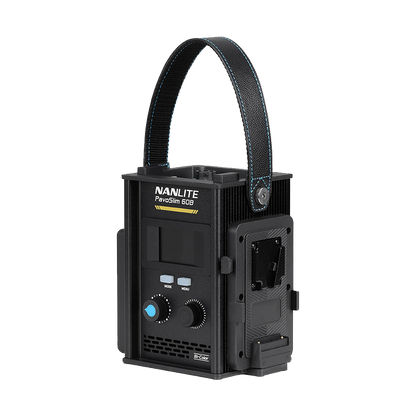

    • Nanlite Control Unit
    • Nanlite Universal Holder
    • Nanlite DC Connection Cable
    • Nanlite AC Power Cable
    • Nanlite Lite Diffuser
    • Nanlite Standard Diffuser
    • Nanlite Eggcrate
    • Nanlite Softbox

    Light Fixture
    Item Type
    1x LED Array LED Light Panel
    Included Light Modifier
    1x Softbox
    1x Grid/Louver
    Included Filters
    Diffusion, Soft Diffusion
    Included Storage Case
    Yes
    Photometrics
    60° at 3200K:
    690 fc / 7433 Lux at 1 m
    80 fc / 871 Lux at 3 m
    60° at 5600K:
    757 fc / 8156 Lux at 1 m
    88 fc / 955 Lux at 9.8' / 3 m
    Colour Temperature
    2700 to 6500K
    Colour Modes
    Daylight, Tungsten
    Colour Accuracy Standard
    CRI 95
    TLCI 97
    Dimming
    App-Controlled / Controller Included / DMX / RDM
     • 0 to 100%
    Cooling System
    No
    Beam Angle
    60° Unmodified
    Built-In Flash
    No
    Preprogrammed Effects
    Yes
    Umbrella Mount
    No
    Front Accessory Mount
    No
    Connectivity
    Wireless Remote Control Type
    Bluetooth (Nanlink)
    Radio/RF *Remote Not Included
    Wireless DMX
    Mobile App Compatible
    Yes: Android & iOS
    App Name: Nanlink
    Functionality: Adjust Settings, Remote Control, Setup
    Wireless Frequency
    2.4 GHz
    Power & I/O
    Power Source
    AC Power (Cable Included)
    Battery (Not Included)
    Inputs/Outputs
    Light Fixture
    To Power Supply/Controller: 1x Proprietary Power Input
    Power Supply/Controller
    1x Proprietary Power Output
    1x powerCON AC Power Input
    1x Unspecified DMX Input
    Battery Plate Type
    2x Sony L-Series / NP-F (Built-In)
    1x V-Mount (Built-In)
    Battery
    1x V-Mount Rechargeable (Not Included)
    or
    2x Sony-Type L-Series / NP-F Rechargeable (Not Included)
    Input Power
    14.4 to 26 VDC
    100 to 240 VAC, 50 / 60 Hz
    Included Adapter / Cable
    1x Proprietary to Proprietary Cable
    1x USA Type-A/B to powerCON Cable
    Inline Switch
    No
    Power Pass-Thru
    No
    Power Consumption
    60 W
    Mounting
    Fixture Mounting
    1x 5/8" Receiver (Via Bracket)
    General
    Display
    Yes
    Environmental Resistance
    No
    Operating Conditions
    -20 to 45°C
    Materials
    Metal, Plastic
    Dimensions
    30.6 x 30 x 1.9 cm (Fixture)
    17.5 x 14.6 x 11.1 cm (Power Supply/Controller)
    Weight
    0.91 kg (Fixture)
    1.4 kg (Power Supply/Controller)
