SHORT DESCRIPTION
SHORT DESCRIPTION
The OM SYSTEM OM-5 Mirrorless Camera is designed to be suitable for a variety of still and video needs in a compact and durable Micro Four Thirds mirrorless body.
The OM SYSTEM OM-5 Mirrorless Camera features a 20.4MP Live MOS sensor as well as an updated TruePix IX image processor with quick continuous shooting up to 30 fps as well as DCI and UHD video recording.
Offering a sensitivity range of up to ISO 25600, the sophisticated 5-axis sensor-shift image stabilisation system compensates for 6.5 stops of camera shake enabling sharper handheld shooting.
The sensor's design incorporates 121 phase-detection points, all of which are cross-type, along with 121 contrast-detection areas for fast and precise focusing and subject-tracking performance.
20.4MP Live MOS Sensor and TruePic IX Image Processor
The OM SYSTEM OM-5 Mirrorless Camera features a 20.4MP Live MOS sensor as well as an updated TruePix IX image processor with quick continuous shooting up to 30 fps as well as DCI and UHD video recording.
Offering a sensitivity range of up to ISO 25600, as well as 4K recording capabilities.
121-Point All Cross-Type Phase-Detection AF
The OM SYSTEM OM-5 Mirrorless Camera features quick and accurate 121 phase- as well as a contrast-detection autofocus points. For tracking moving projects, you will find Group Target 25 when shooting moving subjects like birds and wildlife. The Face and Eye Detection has also been upgraded.
5-Axis Sensor-Shift Image Stabilization
The OM SYSTEM OM-5 Mirrorless Camera features in-body, sensor-shift image stabilization. This assists in minimizing camera shake for shooting video handheld by up to 6.5 stops.
This image stabilisation system provides 5-Assis Sensor-Shift Stabilisation. This compensates for vertical angle rotation, horizontal angle rotation, horizontal shift, vertical shift, and rolling camera shake movement.
DCI and UHD 4K Video Recording and OM-Log400
The OM SYSTEM OM-5 Mirrorless Cameras sensor is capable of recording both DCI (4096 x 2160) and UHD (3840 x 2160) 4K movies. For working in DCI, a true 24p frame rate is used, and UHD 4K is available in frame rates of up to 30p.
You will have a Time-Laps Movie mode in recording up to 4K UHD resolution. For better external audio quality capture, you will find a microphone jack, or you can use the built-in stereo microphone.
Body Design and Connectivity

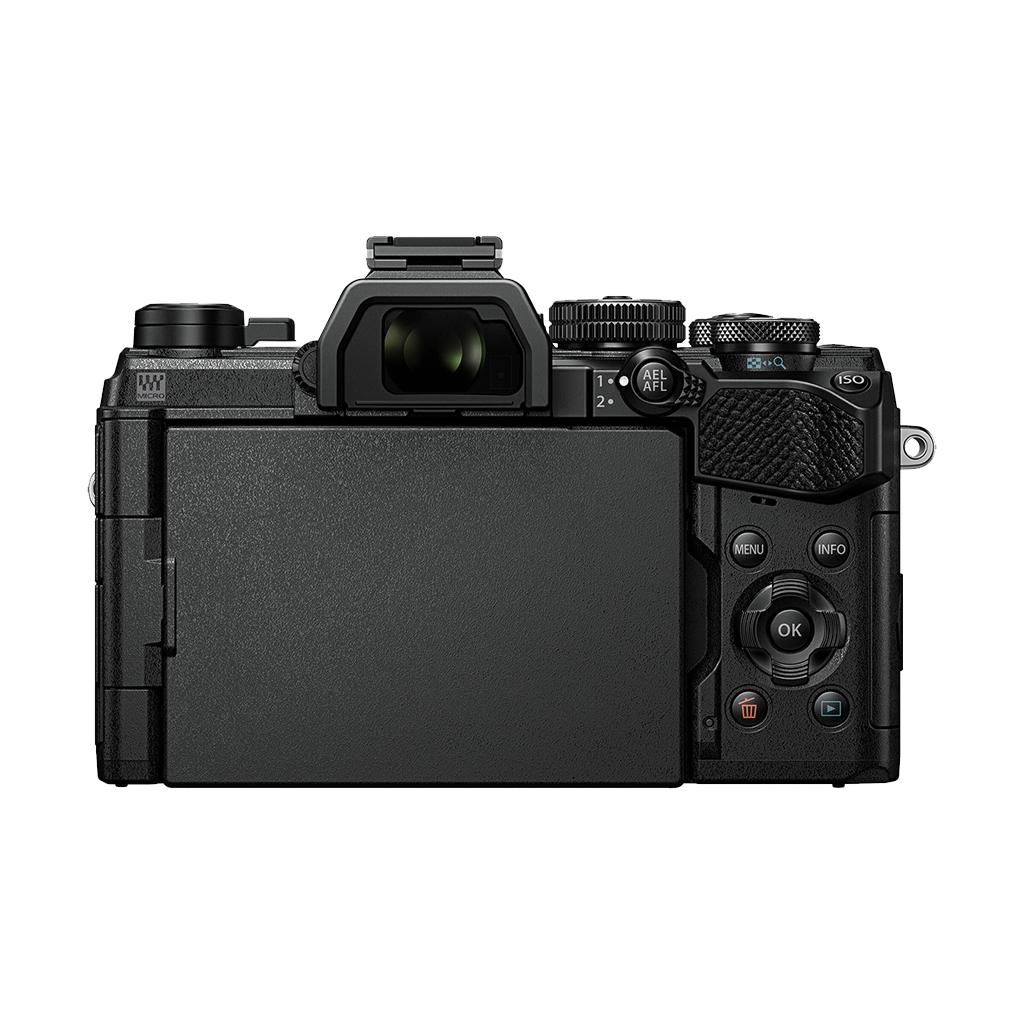

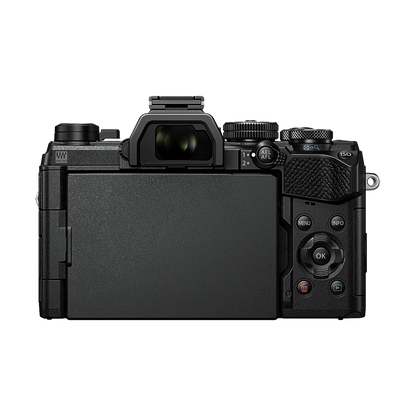

The OM SYSTEM OM-5 Mirrorless Camera features a high-resolution 2.36m-dot electronic viewfinder for eye-level shooting. On the back of the unit, you will find a 3.0" 1.04m-dot LCD monitor with a vari-angle design enabling you to view the screen from a variety of angles and access the menu options.
In-body battery charging is supported via the micro-USM port and the included BLS-50 battery can provide you with approximately 310 shots per charge.
For fast read and write speeds, the single SD card slot is UHS-II compatible. You will also find a microphone port, a top hot shoe, micro-USB as well as micro-HDMI ports. You will also find a 2.5mm port for optional remotes.
The OM SYSTEM OM-5 Mirrorless Camera offers you a rugged splashproof, dustproof, and freezeproof body construction incorporating sealing throughout the body design. Making it perfect for working in inclement weather conditions.
Built-in Wi-Fi, as well as Bluetooth, enables easy sharing of content to a linked device.
- OM SYSTEM OM-5 Mirrorless Camera (Black)
- BLS-50 Lithium-Ion Battery
- F-5AC Adapter
- USB Cable
- Shoulder Strap
Imaging
| Lens Mount | Micro Four Thirds |
| Sensor Resolution | Actual: 21.8 Megapixel Effective: 20.4 Megapixel |
| Sensor Type | 17.4 x 13 mm (Four Thirds) MOS |
| Crop Factor | 2x |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Built-In ND Filter | 4-Stop Electronic ND Filter |
| Capture Type | Stills & Video |
Extreme Control
| Shutter Type | Electronic Shutter, Mechanical Focal Plane Shutter |
| Shutter Speed | Mechanical Shutter 1/8000 to 60 Seconds Electronic Front Curtain Shutter 1/320 to 60 Seconds Electronic Shutter 1/32000 to 60 Seconds |
| Bulb/Time Mode | Bulb Mode, Time Mode |
| ISO Sensitivity | 200 to 25,600 (Extended: 64 to 25,600) |
| Metering Method | Centre-Weighted Average, Multi-Zone, Spot |
| Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority |
| Exposure Compensation | -5 to +5 EV (1/3, 1/2, 1 EV Steps) |
| Metering Range | -2 to 20 EV |
| White Balance | Presets: Auto, Color Temperature, Custom |
| Continuous Shooting | Up to 10 fps at 20.4 MP for up to 149 Frames (Raw) / Unlimited Frames (JPEG) Up to 6 fps at 20.4 MP for Unlimited Frames (Raw) / Unlimited Frames (JPEG) Up to 30 fps at 20.4 MP for up to 18 Frames (Raw) / 20 Frames (JPEG) Up to 10 fps at 20.4 MP for up to 138 Frames (Raw) / Unlimited Frames (JPEG) |
| Interval Recording | Yes |
Still Image Capture
| Image Sizes | 4:3 JPEG / Raw 20.4 MP (5184 x 3888) 4:3 JPEG 20.4 MP (1024 x 768) 4:3 JPEG 50 MP (8160 x 6120) |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Image File Format | JPEG, Raw |
| Bit Depth | 12-Bit |
Video Capture
| Internal Recording Modes | H.264/MOV/MPEG-4 AVC DCI 4K (4096 x 2160) at 24.00 fps [237 Mb/s] H.264/MOV/MPEG-4 AVC UHD 4K (3840 x 2160) at 24.00/25/29.97 fps [102 Mb/s] H.264/MOV/MPEG-4 AVC 1920 x 1080 at 24.00/25/29.97 fps [18 to 202 Mb/s] H.264/MOV/MPEG-4 AVC 1280 x 720 at 24.00/25/29.97/50/59.94 fps [102 Mb/s] MOV 1920 x 1080 at 119.88 fps |
| Recording Limit | None |
| Broadcast Output | NTSC/PAL |
| Built-In Microphone Type | Stereo |
Interface
| Media/Memory Card Slot | Single Slot: SD/SDHC (UHS-II) |
| Video I/O | 1 x Micro-HDMI Output |
| Audio I/O | 1 x 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1 x Micro-USB Input/Output |
| Other I/O | 1 x 2.5 mm Sub-Mini Control |
| Wireless | Wi-Fi (802.11b/g), Bluetooth |
| Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
| Size | 3" |
| Resolution | 1,040,000 Dot |
| Display Type | Articulating Touchscreen LCD |
Viewfinder
| Type | Built-In Electronic (OLED) |
| Resolution | 2,360,000 Dot |
| Eye Point | 27 mm |
| Coverage | 100% |
| Diopter Adjustment | -4 to +2 |
Focus
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points | Contrast Detection, Phase Detection: 121 (121 Cross-Type) |
Flash
| Built-In Flash | No |
| Flash Modes | Fill Flash, Manual, Off, Red-Eye Reduction, Second-Curtain Sync, Slow Sync, Slow Sync/Red-Eye Reduction |
| Maximum Sync Speed | 1/250 Second |
| Flash Compensation | -3 to +3 EV (1/3, 1 EV Steps) |
| Dedicated Flash System | TTL |
| External Flash Connection | Hot Shoe |
Environmental
| Operating Temperature | -10 to 40°C |
| Storage Temperature | -20 to 60°C |
| Operating Humidity | 30 to 90% |
| Storage Humidity | 10 to 90% |
General
| Battery Type | 1 x BLS-50 Rechargeable Lithium-Ion (Approx. 310 Shots) |
| Tripod Mounting Thread | 1 x 1/4"-20 Female (Bottom) |
| Dimensions (W x H x D) | 125.3 x 85.2 x 49.7 mm |
| Weight | 366 g (Body Only) 414 g (With Battery) |
