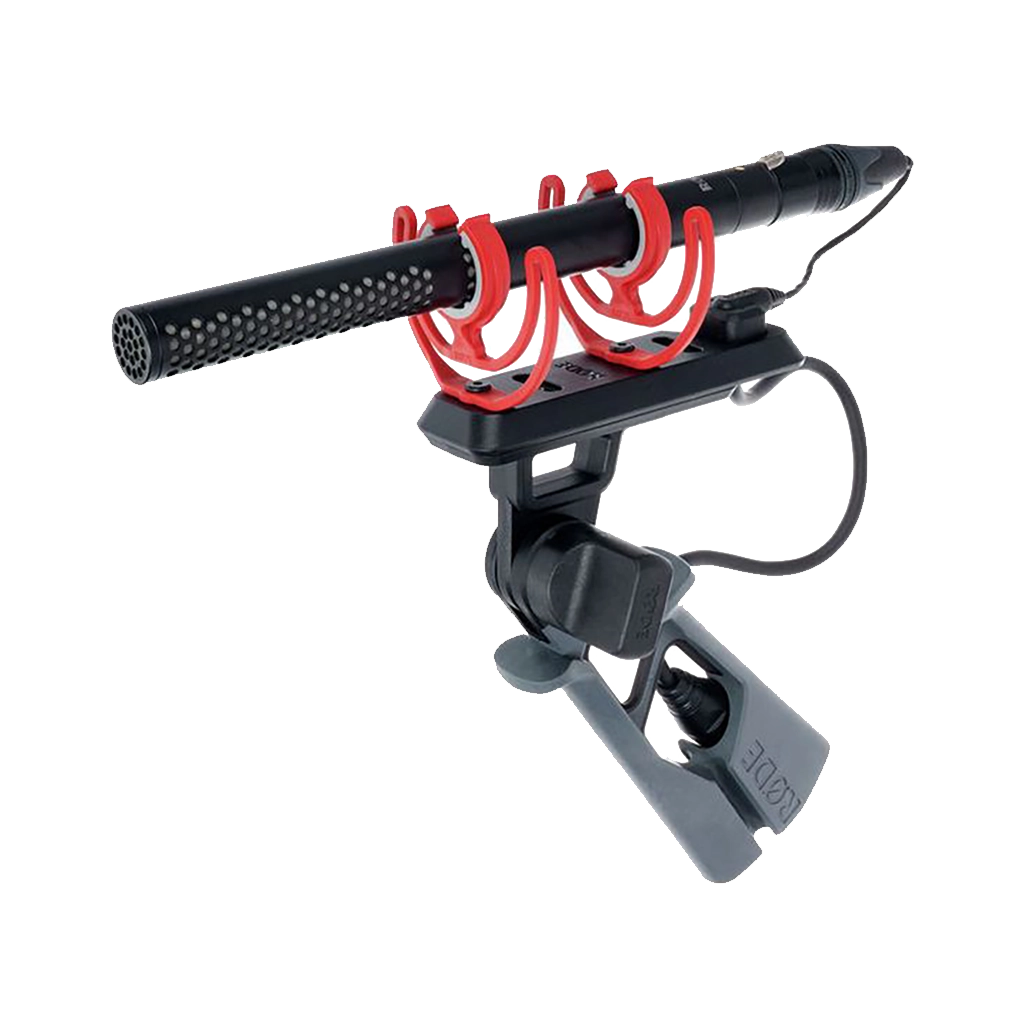

The Rode NTG5 Moisture-Resistant Short Shotgun Microphone features a revolutionary acoustic design, to deliver uncoloured and natural sound at all times, and can be used for all demanding recording applications, such as films, TV & documentaries.
The microphone features an extremely lightweight design of only 76g, thats highly directional supercardioid polar pattern and smooth off-axis response; and also incorporates RF-bias technology and conformal coating to ensure quality and superior performance in adverse environmental conditions. The NTG5 microphone from Rode is spectacular in a wide variety of applications and environments, making it the ideal location recording mic.
Key Features:
- The Rode NTG5 Moisture-Resistant Short Shotgun Microphone is designed to deliver superior Broadcast-quality sound, and for transparency and all-weather performance.
- The NTG5 is compatible with a variety of handheld audio recorders all thanks to its 3-pin XLR output and compliance with 48 VDC phantom power.
- The microphone also incorporates professional-level features such as ultra low-noise circuitry, a smooth off-axis response, and a tightly controlled low end makes it the perfect companion for a variety of location recording scenarios.
- The perfect microphone to do handheld recording, as it includes the PG2-R pistol grip shockmount. This shockmount is ideal for preventing any transfer vibrations to the microphone, and at the same time, it provides comfortable handle operation or placement on a boompole.
- A windshield and windscreen is included in the kit to help reduce unnecessary wind noise from entering into the microphone, such as fans, air conditioners, or any background noise.
- Rode NTG5 Moisture-Resistant Short Shotgun Microphone
- Rode PG2-R Pistol Grip Shockmount
- Rode PG2-R Pro Cable for Rode Shockmounts
- Rode RM5 Stand Mount for the NT5 Microphone
- WS10 Furry Windshield
- Foam Windscreen
- Rode ZP1 Zip Pouch - for Rode S1, NT1-A, NT2-A, NT3, NT1000, NTG1 or Broadcaster microphones
Microphone
| Form Factor | Stand/Boom-Mount |
| Sound Field | Mono |
| Operating Principle | Line Gradient |
| Capsule | Condenser |
| Polar Pattern | Supercardioid |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | Foam, Windsock/Windjammer (Included) |
Performance
| Frequency Range | 20 Hz to 20 kHz 80 Hz to 20 kHz ±3 dB |
| Maximum SPL | 130 dB SPL |
| Off-Axis Rejection | 4 dB at 60° 20 dB at 120° 24 dB at 180° |
| Impedance | 25 Ohms |
| Sensitivity | -23.5 dBV/Pa at 1 kHz |
| Signal-to-Noise Ratio | 84 dB |
| Equivalent Noise Level | 10 dB A-Weighted |
Connectivity
| Output Connectors | 1 x XLR 3-Pin Male (on Mic) |
| Wireless Connectivity | None |
Power
| Operating Voltage | 48 V |
| Operating Current Consumption | 2 mA |
Physical
| Color | Black |
| Mounting | Mic Clip, Shockmount (with Included Hardware) |
| Construction Material | Aluminum |
| Dimensions | ø: 19 x L: 203 mm (Microphone) H: 240 x W: 60 x L: 117 mm (Mount) |
| Weight | 76 g (Microphone) 224 g (Mount) |
