The Rode TF-5 MP Cardioid Condenser Microphones with Stereo Mount were designed in collaboration with the venerable classical producer Tony Faulkner. Well-optimized for sonic transparency, accurate imaging, and unobtrusive placement.
The Rode TF-5 MP Cardioid Condenser Microphone is designed with the ability to capture timbre and dynamic range in precise detail, whether it is orchestral instruments, piano, acoustic guitar, percussion, or drums.
Each microphone capsule employs a cardioid pattern enhancing directionally and reducing ambience. The JFET active electronics and the ability to handle high SPLs up to 120 dB, and deliver a wide, flat frequency response.
Using the included mic clips and the Rode SB20 stereo bar featuring angled indicators for ORTF and X/Y configurations you are able to mount both microphones on a single mic stand. Included you will also find windscreens included to reduce wind or HVAC systems.
- Matched small-diaphragm condenser microphones
- Precision engineered in collaboration with producer/engineer Tony Faulkner
- Ideal for spot-miking individual instruments, overhead-miking drum/percussion kits, or distant-miking ensembles or orchestras
- JFET impedance converter with bipolar output buffer
- Low noise of 14 dBA
- Compact for easy setup in tight spaces

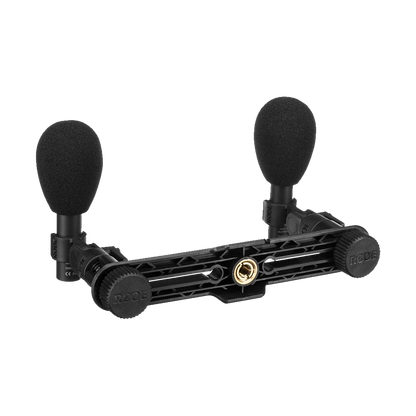

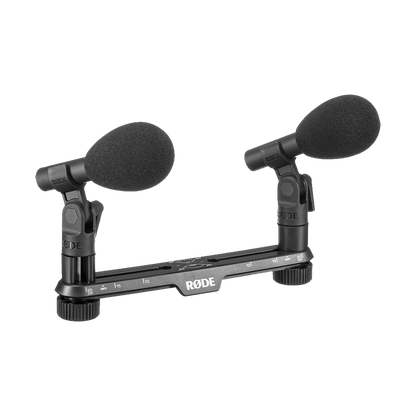

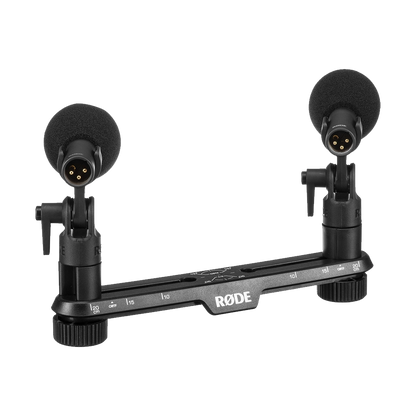

- Rode TF-5 MP Cardioid Condenser Microphones with Stereo Mount (Black, Matched Pair)
- Rode SB20 Stereo Bar
- 2 x Windscreens
- 2 x Microphone Clips
- 2 x 3/8" to 5/8" Thread Adapters
| Sound Field | Mono |
| Operating Principle | Pressure Gradient |
| Capsule | Condenser |
| Polar Pattern | Cardioid |
| Pad | None |
| High-Pass Filter | None |
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 120 dB SPL |
| Impedance | 63 Ohms |
| Sensitivity | -29 dBV/Pa at 1 kHz |
| Dynamic Range | 112.6 dB |
| Signal-to-Noise Ratio | 80 dB |
| Equivalent Noise Level | 14 dB A-Weighted |
| Operating Voltage | 48 V |
| Operating Current Consumption | 7 mA |
| Dimensions | ø: 20 x L: 98.7 mm |
| Weight | 114 g |
