The Rode X Streamer X Audio Interface and Video Streaming Console combine a professional audio interface with a video capture card in one compact intuitive package, representing a new way of live streaming in broadcast quality. Offering a studio-grade input for mic- or line-level sources, low-noise, high-gain Revolution preamp with selectable phantom power. The Rode X Streamer features powerful onboard APHEX audio processing. It is also compatible with any Rode Series IV wireless microphone and transmitter due to the wireless receiver built-in.

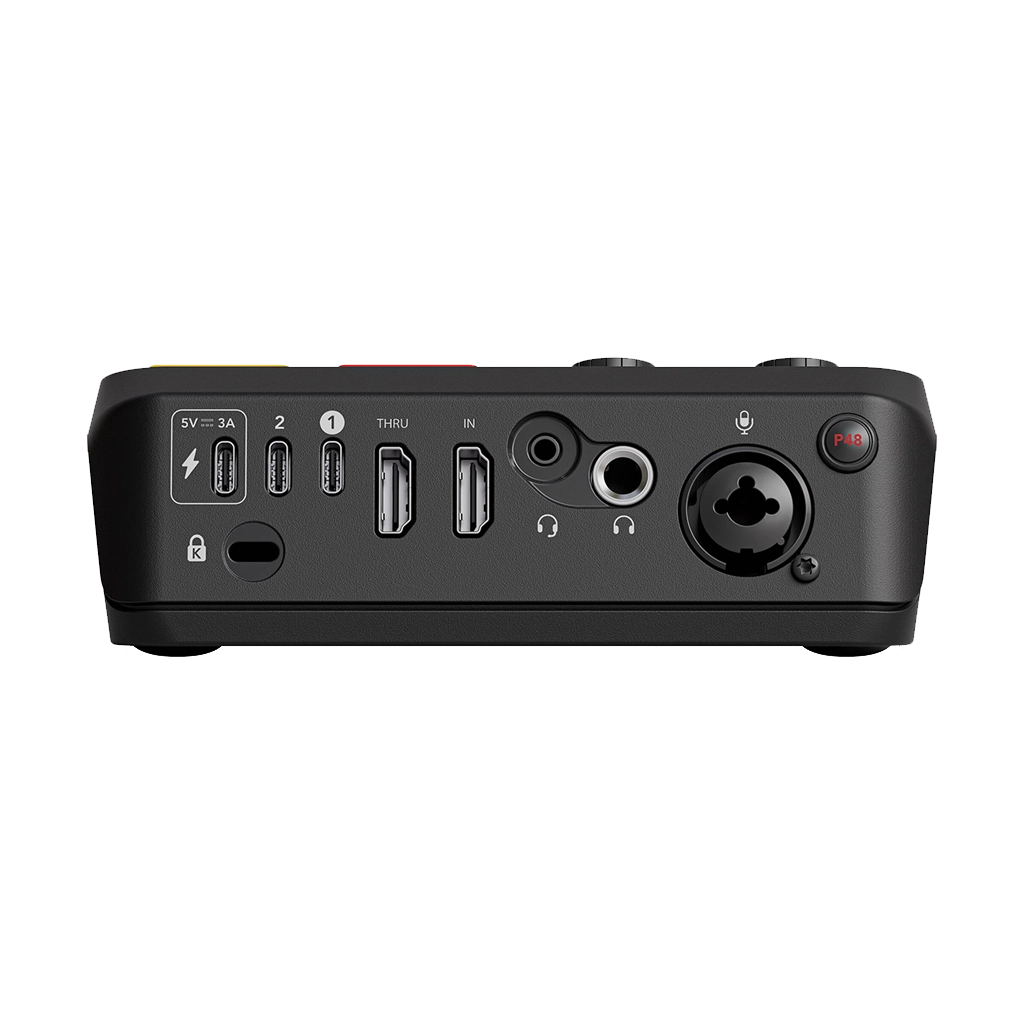

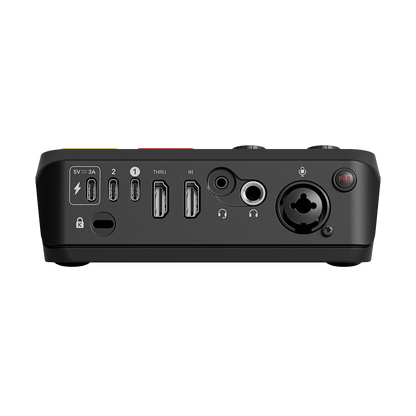

For keeping up with the competition, the Rode X Streamer X Audio Interface and Video Streaming Console offer HDMI I/O that supports up to 4K 30fps and 2K60 fps streaming, and up to 2K 120 fps and 4K 60 fps pass-through for exceptional video quality that will enhance any modern application from gaming, streaming, and podcasting to video content creation and corporate presentations. At the back of the Rode X Streamer X Audio Interface and Video Streaming Console, you will find two dedicated USB-C ports for dual-PC setups. With the four customizable SMART pads, you can trigger sounds, voice FX, and other types of engaging material on the fly.
Flexible I/O
The Rode X Streamer X Audio Interface and Video Streaming Console features just the right amount of connections to facilitate most of your live streaming applications, these include:
- An XLR-1/4" combo input jack with a Revolution preamp and selectable 48V phantom power
- A 1/4" headphone output for monitoring your streams
- A 3.5mm headset output to join in on your streaming and produce more engaging content
- HDMI input and output/through for streaming and passing through high-quality, 4K video
- Two USB-C connections for dual-computer setups
- A third USB-C connection for convenient bus power
- A Kensington security slot to keep your Streamer X secure during use in public spaces
Intuitive Interface

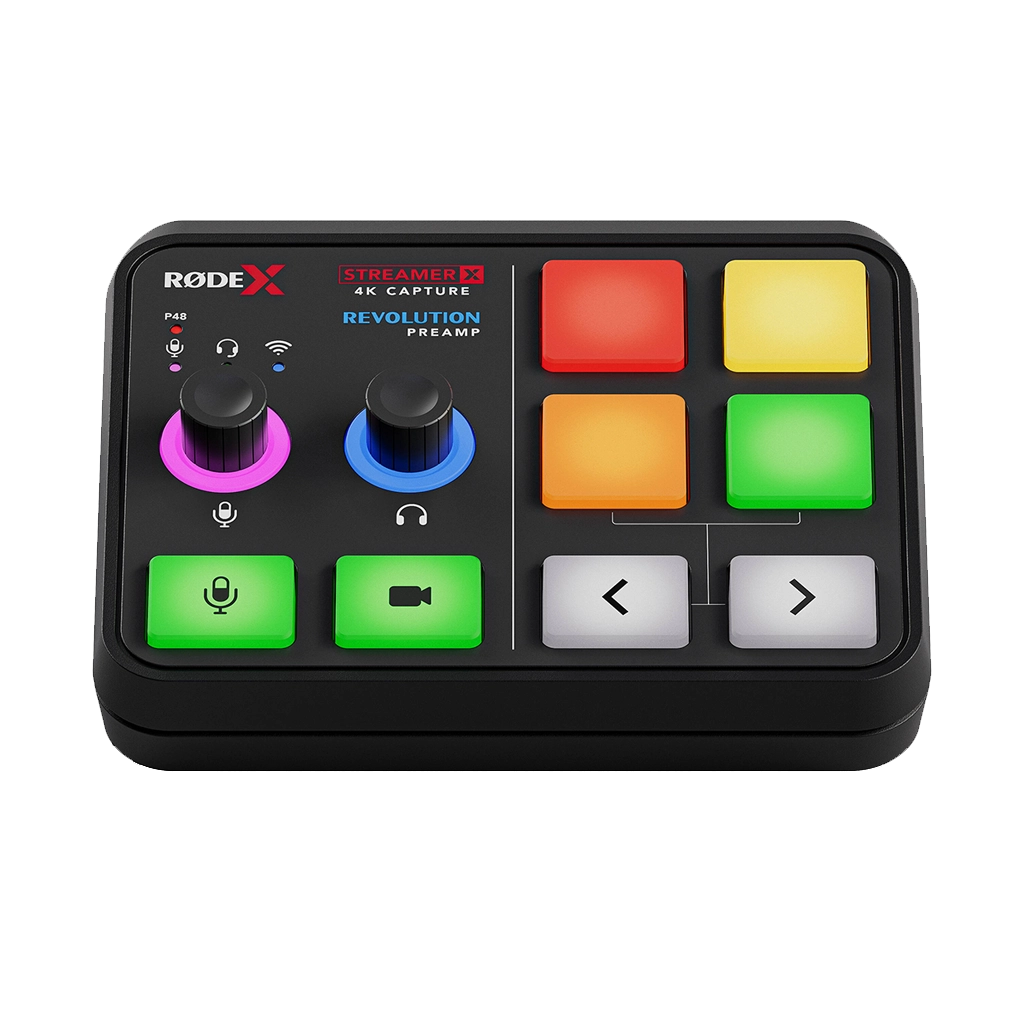

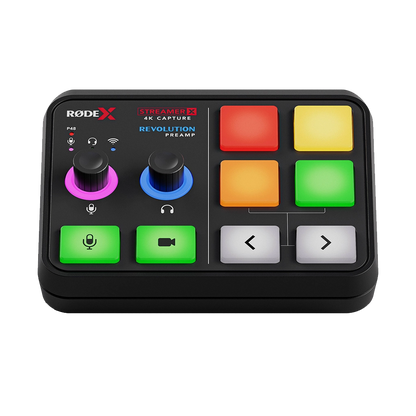

The main layout is easy to use and the colour-coded buttons make it easy to control audio input and headphone output.
Multicolour customizable SMART pads allow you to trigger sounds and vocal FX in real-time, and you can switch through multiple banks of sounds via the arrow buttons. You can activate or deactivate audio or video content directly with the two dedicated front-panel buttons.
Tiny Footprint, Huge Potential
The Rode X Streamer X Audio Interface and Video Streaming Console provides you with incredible streaming potential with a compact form factor making it easy to transport and taking minimal space on your workspace.
Rode X Streamer X Audio Interface and Video Streaming Console
| Form Factor | Desktop |
| Display | None |
| Channels of I/O | 2 Inputs / 2 Outputs |
| Built-In DSP | None |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Number of Microphone Preamps | 1 Preamp |
| Built-In Microphone | None |
| Expansion Slots | None |
| Pad | None |
| High-Pass Filter | None |
| Solo/Mute | Mute per Input Channel |
| Analog Audio I/O | 1 x Combo XLR-1/4" TRS Mic/Line Input 1 x 3.5 mm TRRS Headset In/Out 1 x 1/4" TRS Headphone Output |
| Digital Audio I/O | None |
| Host Connection / USB | 2 x USB-C |
| Host Connection Protocol | USB 3.0 / 3.1/3.2 Gen 1 |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Other I/O | 1 x HDMI Expansion Input 1 x HDMI Expansion Thru |
| Sample Rates | 48 kHz |
| Bit Depths | 24-Bit |
| Sync Sources | None |
| Memory Card Slot | None |
| OS Compatibility | macOS Windows |
| Included Software | None |
| Included Plug-Ins | None |
| Mobile App Compatible | No |
| Mobile Device Compatibility | None |
| Required Hardware | USB-C Port |
| Internet Connection | Required for Software/Driver Download |
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | Included |
| Anti-Theft Features | Kensington Security Slot |
