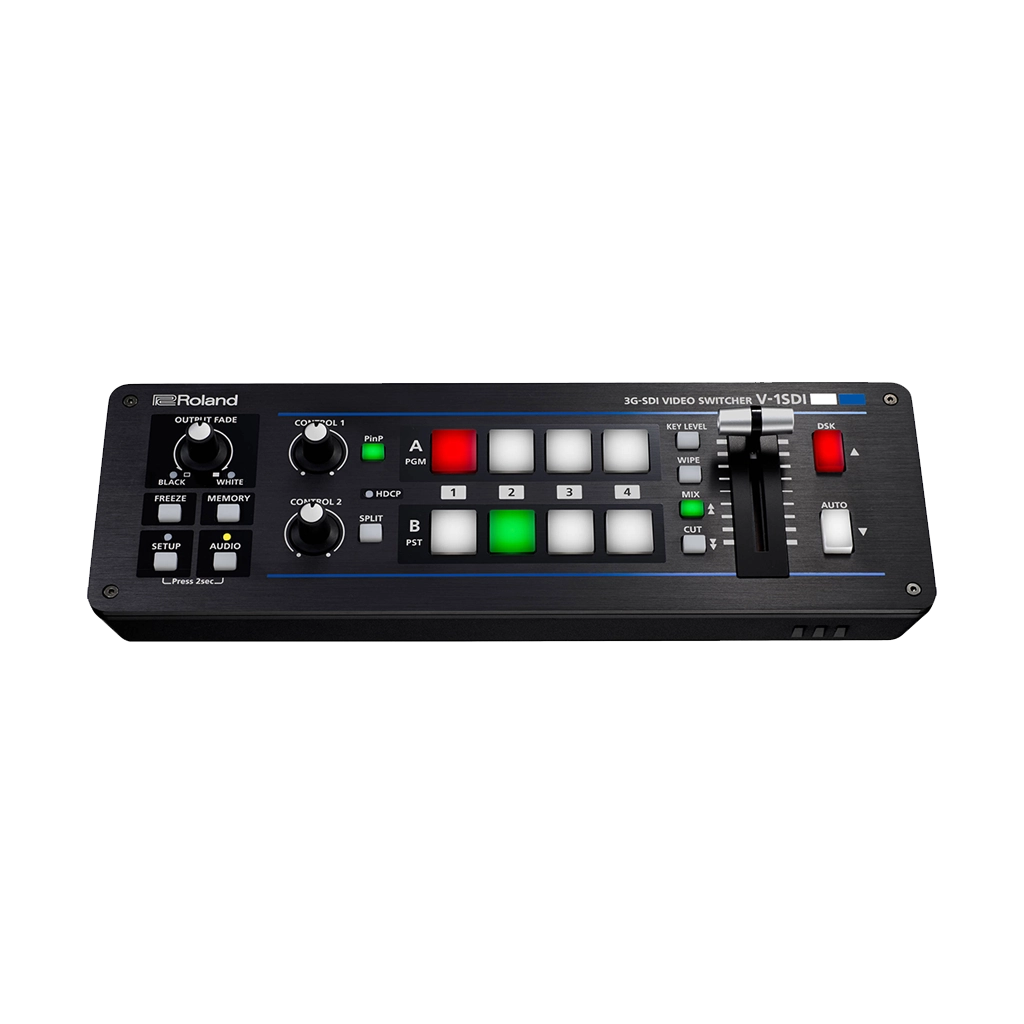

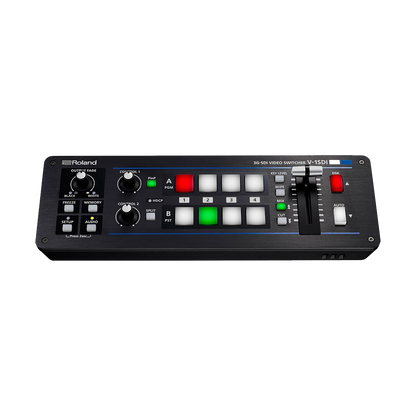

Roland V-1SDI 4-Channel HD Video Switcher

R 34,495.00
R 34,495.00
Tax included. Shipping calculated at checkout.

V-1SDI

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 3 x SDI Inputs, 2 x HDMI Inputs
  • Internal I to P Processing
  • Multiview HDMI Output
  • HDCP Compliant
  • USB and RS-232 Remote Control Ports
  • Eight Memory Functions
  • Freeze Input, and Output Fades

    The Roland V-1SDI is a must have at any large event such as concerts and even in news broadcast with a featuring compact design; it allows you to switch and connect professional 3G SDI cameras and playback sources through the 4-channel mixer, along with HDMI sources including cameras, smartphones, computers, tablets and Blu-ray players in order to deliver professional switching results as it features a unique hardware interface and easy-to-see backlit buttons. The Roland V-1SDI video switcher can operate at a Full 1080p resolution which can take full advantage of the longer cable distance of SDI.



    Main Features of the Roland V-1SDI Include:

    • Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
    • Easy to operate with hardware controls
    • Compact size
    • Supports up to Full HD 1080p
    • 3 x 3G-SDI and 2 x HDMI*1 inputs
    • 2 x 3G-SDI and 1 x HDMI*1 output
    • Input 4’s scaler now supports a wider range of video and VESA resolutions.*1 *2
    • Quad input multi-viewer with source labelling and audio metering
    • Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
    • Capturing a still Image from Input Video on channel 4*3[Ver.1.5]
    • Full 14 channel audio mixer included
    • Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
    • Sending a still image to the V-1SDI by V-1SDI RCS*3[Ver.1.5]

    • Roland V-1SDI 4-Channel HD Video Switcher
    • AC Adapter
    • Power Cord
    • Cord Hook

    Processing
    Video Processing8-bit 4:2:2 (YPbPr)
    Audio Processing24-bit at 48 kHz
    Input Signal Formats
    SDIInputs 1 to 3
    1080p: 59.94/50
    1080i: 59.94/50
    720p: 59.94/50

    Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
    HDMIInput 3
    1080p: 59.94/50
    1080i: 59.94/50
    720p: 59.94/50

    HDCP supported

    Input 4
    1080p: 59.94/50
    1080i: 59.94/50
    720p: 59.94/50
    480p: 59.94
    576p: 50
    480i: 59.94
    576i: 50
    WUXGA: 1920 x 1200 @ 60 Hz
    UXGA: 1600 x 1200 @ 60 Hz
    SXGA+: 1400 x 1050 @ 60 Hz
    FWXGA: 1366 x 768 @ 60 Hz
    SXGA: 1280 x 1024 @ 60 Hz
    WXGA: 1280 x 768 @ 60 Hz
    XGA: 1024 x 768 @ 60 Hz
    SVGA: 800 x 600 @ 60 Hz
    VGA: 640 x 480 @ 60 Hz

    HDCP supported
    Output Signal Formats
    Program & Preview OutputSDI
    1080p: 59.94/50
    1080i: 59.94/50
    720p: 59.94/50

    Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
    MultiViewHDMI
    HDCP supported
    Input LevelAudio In: -10 dBu (Maximum: +8 dBu)
    Mic: -41 to -13 dBu (Maximum: -1 dBu)
    Output LevelAudio Out: -10 dBu (Maximum: +8 dBu)
    Phones: 92 mW + 92 mW (32 Ohms)

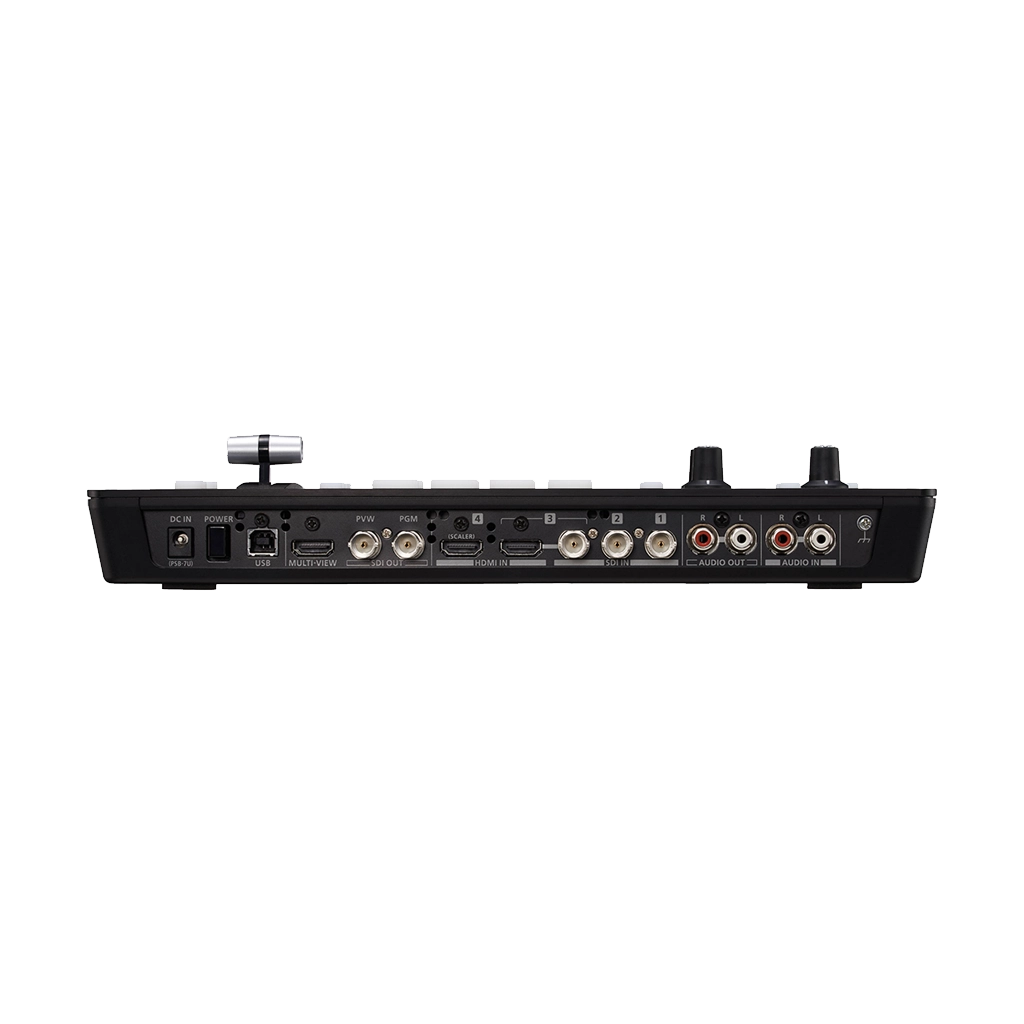

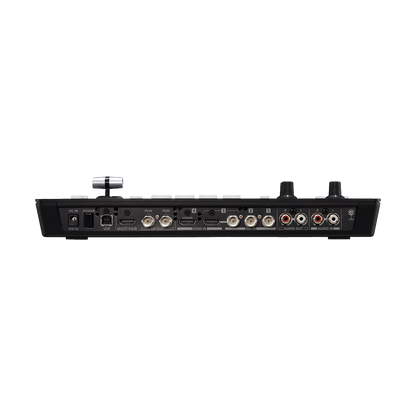

    Connectors
    InputVideo
    3 x SDI, BNC
    2 x HDMI Type-A

    Audio
    Analog: RCA phono

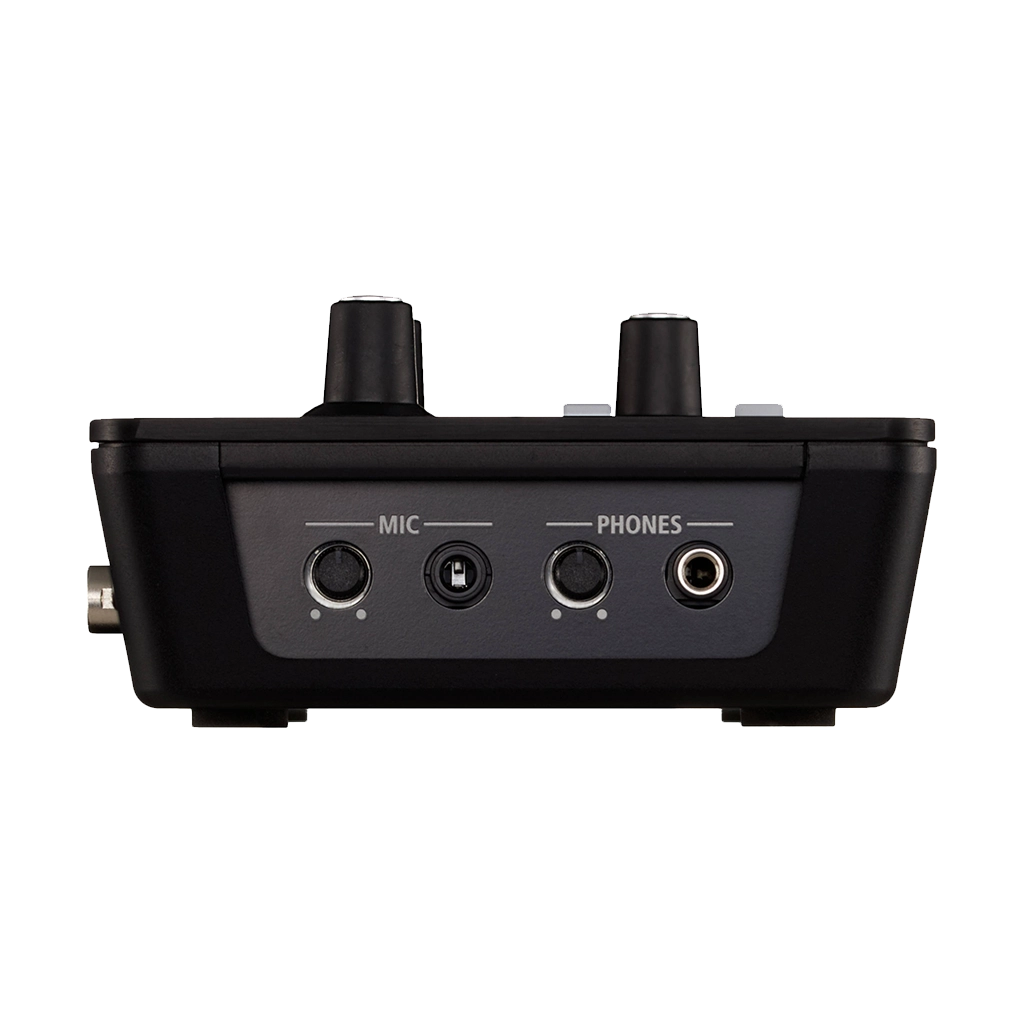

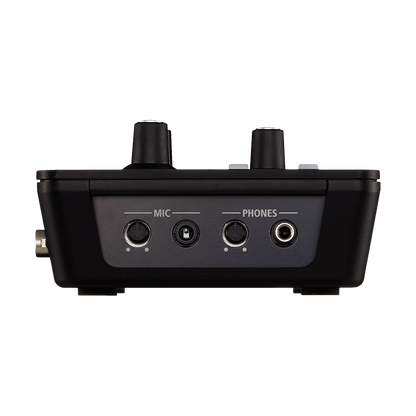

    Mic: Stereo mini jack
    OutputProgram
    1 x SDI, BNC

    Preview
    1 x SDI, BNC

    Multiview
    1 x HDMI Type-A

    Audio
    Analog: RCA phono
    Headphones: Stereo mini jack
    RemoteUSB Type-B (for remote control from PC)

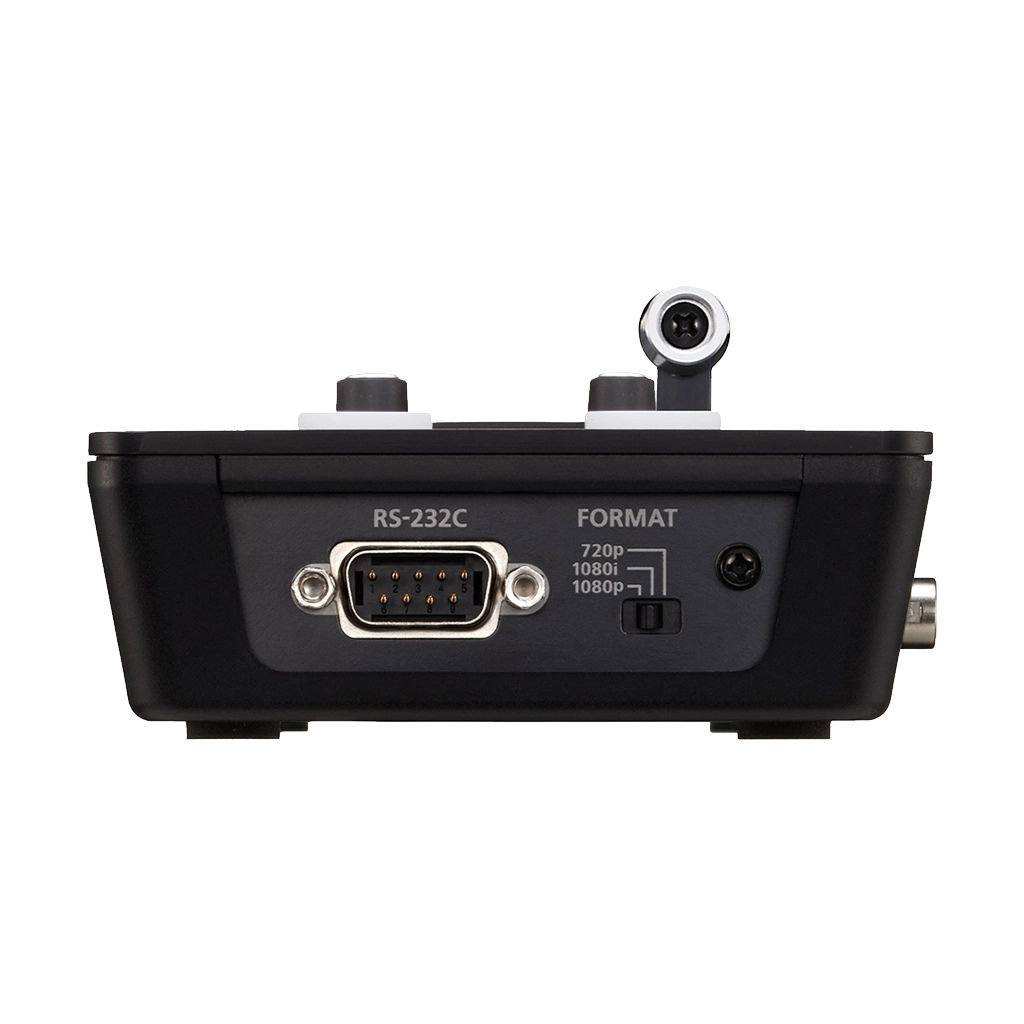

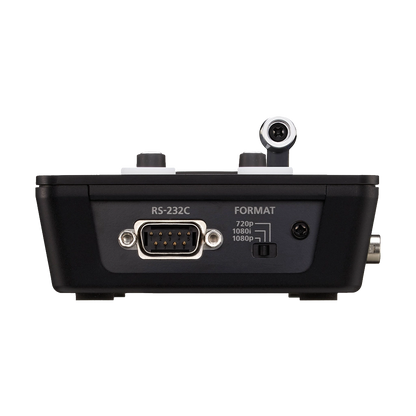

    RS-232: DB-9
    Audio ImpedanceInput
    Audio: 15 kOhms
    Mic: 10 kOhms

    Output
    Audio: 1 kOhms
    Phones: 10 Ohms
    General
    Power Supply (AC)AC adapter
    Current Draw2.1 A
    Power Consumption25 W
    Operating Temperature0 to 40°C
    Dimensions (H x W x D)12.3 x 4.3 x 2.3" / 31.3 x 10.8 x 5.9 cm
    Weight1.2 kg (excluding AC adapter)
