Roland

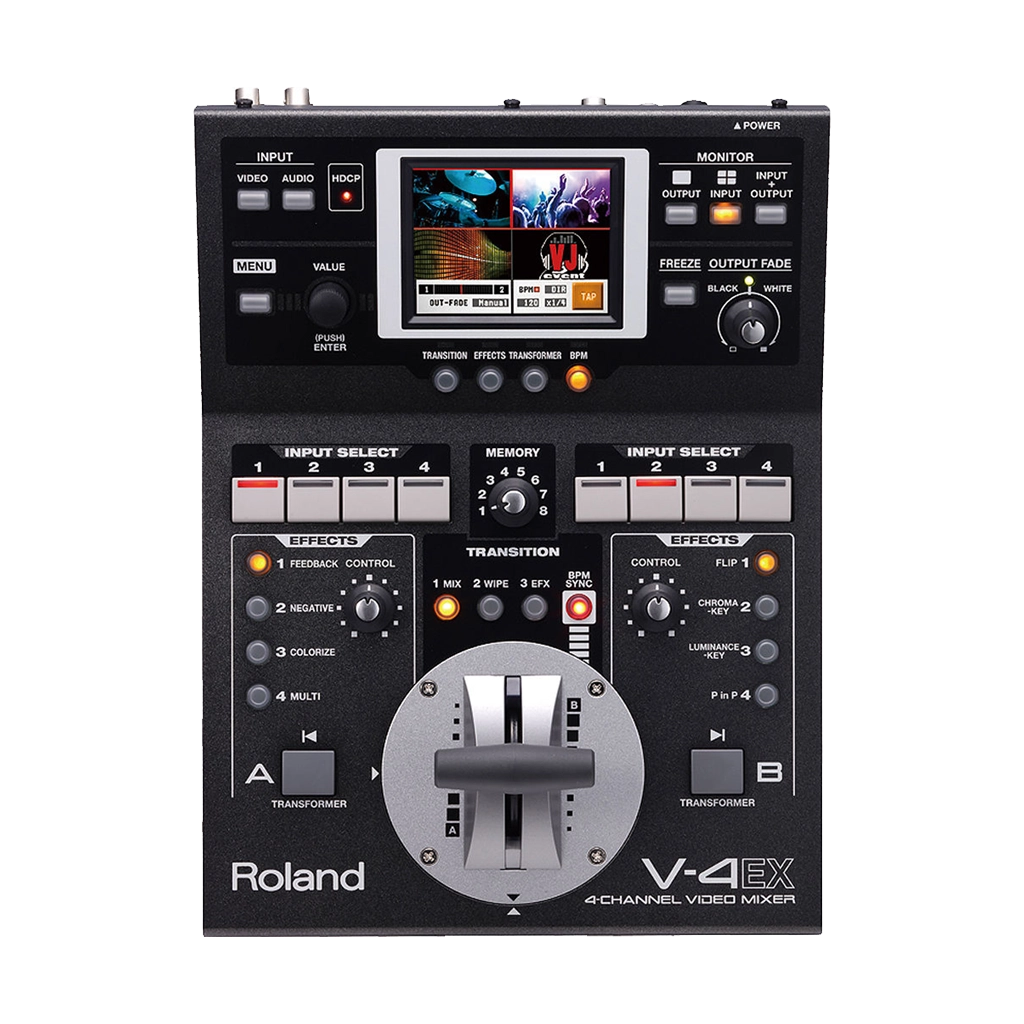

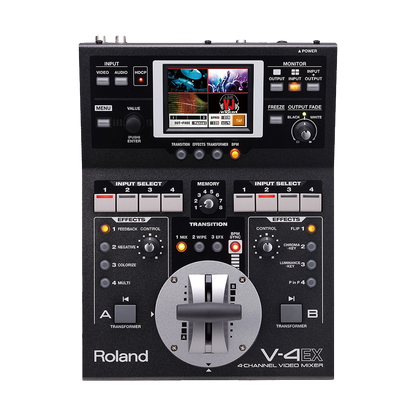

Roland V-4EX Four Channel Digital Video Mixer with Effects

R 39,995.00
R 39,995.00
Tax included. Shipping calculated at checkout.

V-4EX

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 3 x SD Video HDMI / 4 x Composite Inputs
  • 1 x 1080p HDMI Input with Scaler
  • PAL/NTSC Internal Progressive Processing
  • 4 x Built-in Frame Synchronizers

    With all the advanced and powerful features and effects, the Roland V-4EX is a four-channel video mixer with a unique interface that's specifically designed, being one of the bestselling video mixers around. The Roland four channel video mixer allows you to switch between four video sources of a resolution up to 1080p and deliver via HDMI, RGB Component, stream via the built-in USB port and composite video. In addition, it features a number of powerful video effects, dial controls that are incorporated on each bus and master output dial, a video switcher, audio embedding, preview monitor and streaming-ready USB output all in this powerful robust video mixer, making it perfect for live productions such as clubs, events, meetings, training, weddings, concerts, sport events and worship events.



    Main Features of the Roland V-4EX Video Mixer:

    • 3 Input (SD HDMI/Composite) + 1 Input (Up to 1080p HDMI/RGB/Component/Composite)
    • PGM Output (Up to 1080p HDMI + RGB/Component + Composite) + PVW Output (PVW/Multiviewer)
    • 480p/576p Progressive internal processing
    • Built-in multiviewer with touch control
    • Built-in frame synchronizers on all inputs
    • Scalers on CH 4 and Output
    • Packed with 259 Transitions and 148 Effects
    • The Roland V-4EX video mixer is HDCP compliant
    • Audio Embedding
    • Audio Mixer & Delay -up to 4 frames
    • USB Streaming Out for webstreaming

    • Roland V-4EX Four Channel Digital Video Mixer with Effects
    • AC Adapter
    • Power Cord
    • 2 x RCA to BNC Conversion Plug

    Processing
    Video Processing8-bit progressive processing at: 480/59.94p when set to NTSC, and 576/50p when set to PAL.
    Audio Processing24-bit at 48 KHz, 2 channel
    Input Signal Formats
    HDMIInputs 1 to 3
    NTSC: 480/59.94p
    PAL: 576/50p

    Input 4
    NTSC:
    480 59.94i/59.94p
    720 59.94p
    1080 59.94i/59.94p

    PAL:
    576 50i/50p
    720 50p
    1080 50i/50p
    CompositeInputs 1 to 4
    NTSC
    PAL
    S-VideoInput 4
    NTSC
    PAL
    RGBInput 4
    640 x 480/60 Hz
    800 x 600/60 Hz
    1024 x 768/60 Hz
    1280 x 768/60 Hz
    1280 x 1024/60 Hz
    1366 x 768/60 Hz
    1400 x 1050/60 Hz
    1600 x 1200/60 Hz
    1920 x 1200/60 Hz
    Output Format
    HDMI and RGB/ComponentNTSC:
    480 59.94i/59.94p
    720 59.94p
    1080 59.94i/59.94p
    PAL:
    576 50i/50p
    720 50p
    1080 50i/50p

    640 x 480
    800 x 600
    1024 x 768
    1280 x 768
    1280 x 1024
    1366 x 768
    1400 x 1050
    1600 x 1200
    1920 x 1200

    Notes:
    1: The output format of HDMI and RGB/Component is always the same.
    2: When an interlaced format is selected, component signal is output from the RGB/COMPONENT connector.
    3: When a non-interlaced format is selected, RGB signal is output from the RGB/COMPONENT connector.
    4: The refresh rates of RGB format is 60 Hz when set to NTSC.
    5: 75 Hz when set to PAL
    6: The refresh rate of 1600 x 1200 and 1920 x 1200 is 75 Hz when set to PAL.
    HDMI Audio Output2 Channel, linear PCM 24-bits/48 KHz
    Composite VideoNTSC
    PAL
    Preview (PVW) OutputVideo
    NTSC: 480 59.94p
    PAL: 576 50p

    Audio
    2 Channel, linear PCM 24-bits/48 KHz
    USB VideoMotion JPEG
    NTSC: 720 x 486
    PAL: 720 x 576
    USB Audio2 Channel, linear PCM 24-bits/48 KHz

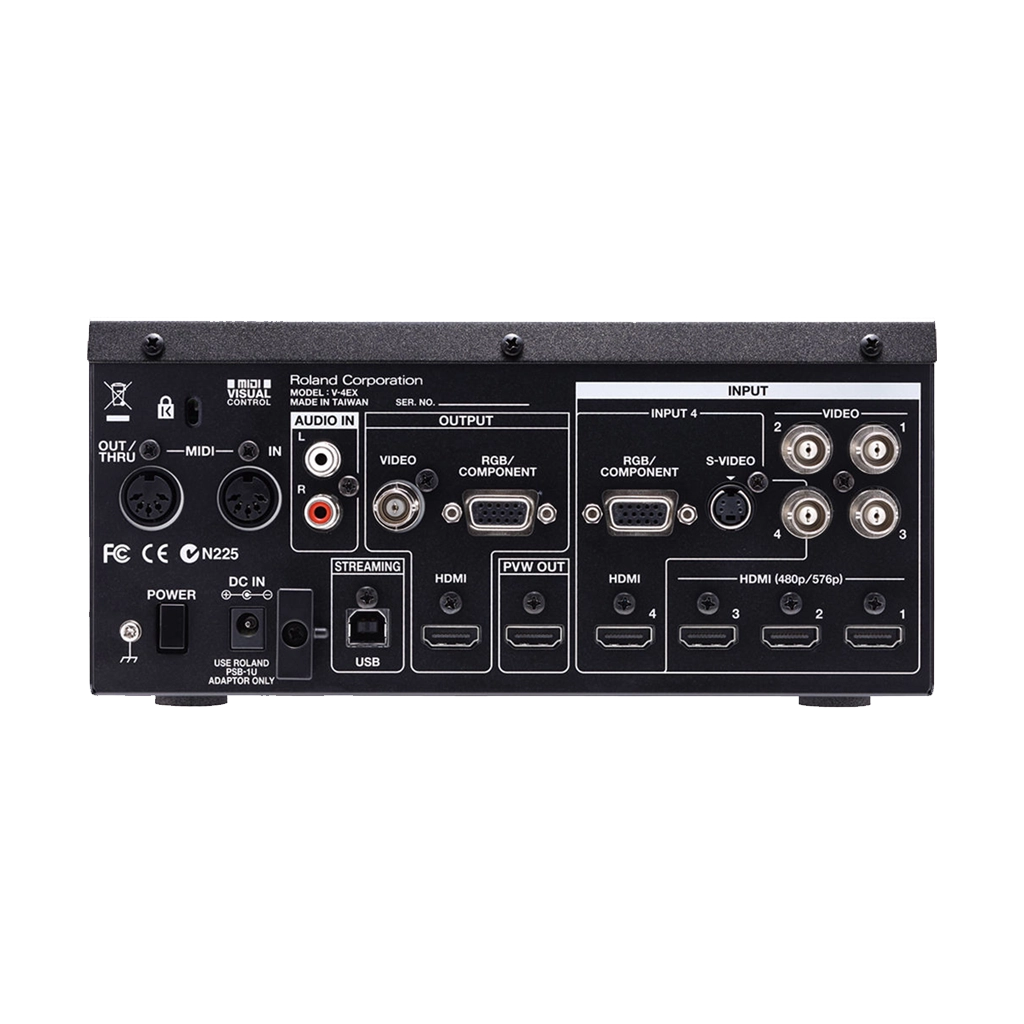

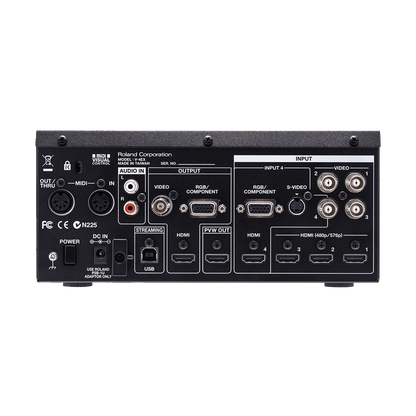

    Connectors
    InputVideo
    4 x HDMI Type A
    1 x HD DB-15 type (RGB/Component)
    4 x BNC (Composite)
    1 x 4-pin mini DIN (S-Video)

    Audio
    1 x pair RCA
    OutputProgram Output
    1 x HDMI Type A
    1 x HD DB-15 type (RGB/Component)
    1 x BNC (Composite)

    Preview Output
    1 x HDMI Type A
    OtherMIDI
    2 x 5-pin DIN (In, Out/Thru)

    USB
    1 x B type (for streaming and remote control)
    Signal Level / ImpedanceRGB/Component
    Signal Level: Luminance: 1.0 Vp-p, Chroma: 0.7 Vp-p
    Impedance: 75Ω

    Composite
    Signal Level: 1.0 Vp-p
    Impedance: 75Ω

    S-Video
    Signal Level: 1.0 Vp-p
    Impedance: 75Ω

    analog Audio
    Nominal Input Level: -10 dBu
    Maximum Input Level: +8 dBu
    Impedance: 15 kΩ
    General
    DisplayGraphic Color LCD, 320 x 240 dots, touch panel
    Power Supply (AC)AC adapter
    Current Draw2.0 A
    Dimensions (H x W x D)4.1 x 8.6 x 11.7" (105 x 225 x 296 mm)
    Weight2.6 kg
