Roland V-60HD Multi-Format HD Video Switcher
Choose PayGate at checkout for MobiCred Payments.
- 8 x Multi-Format Channels; 6 x Inputs
- 4 x SDI Inputs with Deinterlace
- 2 x HDMI Inputs with Scalers
- 1 x RGB/Component Input Shared with HDMI
- 2 x SDI and 2 x HDMI Assignable Outputs
- Program, Preview, and Aux Outputs
- 1 x HDMI Multiview Output
- PGM/PST LED Color Buttons and T-Bar
- Embedded Audio and Analog Audio Inputs
- Smart Tally/GPI/RS-232 Interface
Orms Bellville
Orms Cape Town
Roland V-60HD Multi-Format HD Video Switcher
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 8 x Multi-Format Channels; 6 x Inputs
- 4 x SDI Inputs with Deinterlace
- 2 x HDMI Inputs with Scalers
- 1 x RGB/Component Input Shared with HDMI
- 2 x SDI and 2 x HDMI Assignable Outputs
- Program, Preview, and Aux Outputs
- 1 x HDMI Multiview Output
- PGM/PST LED Color Buttons and T-Bar
- Embedded Audio and Analog Audio Inputs
- Smart Tally/GPI/RS-232 Interface
Choose PayGate at checkout for MobiCred Payments.
- 8 x Multi-Format Channels; 6 x Inputs
- 4 x SDI Inputs with Deinterlace
- 2 x HDMI Inputs with Scalers
- 1 x RGB/Component Input Shared with HDMI
- 2 x SDI and 2 x HDMI Assignable Outputs
- Program, Preview, and Aux Outputs
- 1 x HDMI Multiview Output
- PGM/PST LED Color Buttons and T-Bar
- Embedded Audio and Analog Audio Inputs
- Smart Tally/GPI/RS-232 Interface
The most suitable and sophisticated video switcher is the Roland V-60HD Multi-Format HD Video Production Switcher that can be used at any live events. The Roland V-60HD features consists of four SDI inputs with de-interlacer and two HDMI inputs scaled for simultaneously switching cameras and computers for dynamic presentations, even though your camera isn't full 1080p - the delacer on the SDI inputs makes it possible to mix and match 1080i and 1080p SDI video sources without any external converters, and a total of 4 SDI and HDMI outputs that that supports program, preview and auxiliary buses that allows you to send multiple outputs to separate displays. The HDMI Multiview output allows to view all eight inputs as well as program and preview on a single monitor display along with the audio level display.
Professional User Interface

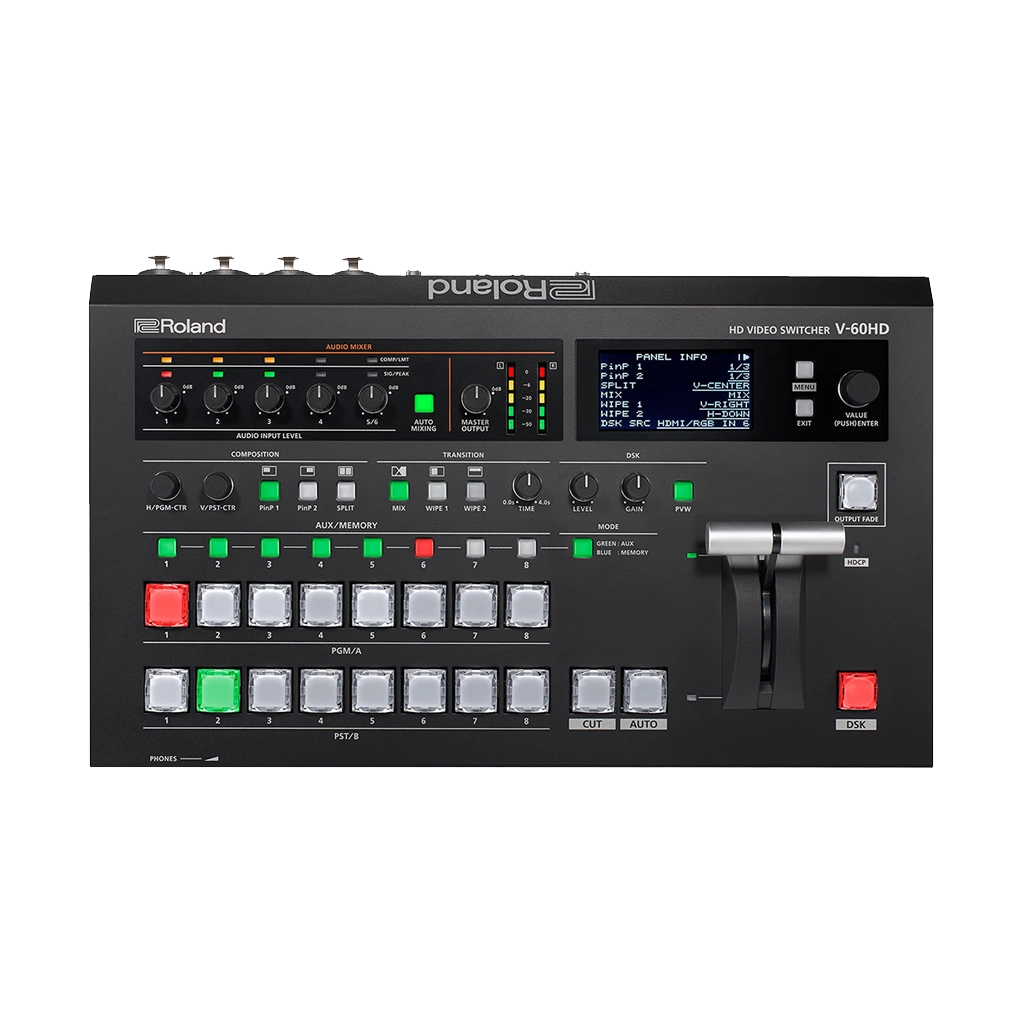

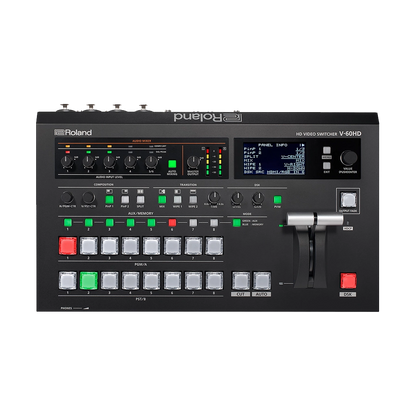

The Roland V-60HD is a professional broadcast video switcher that consists of cross point buttons with PGM/PST LED colour indicators; also, with rugged T-Bar, DSK quick editing knobs for key level and gain; two dedicated PinP and Split buttons with knobs for center framing of Split and Picture-in-Picture placement. You can even change transition by either using mix or two presets wipe buttons with dedicated transition dissolve time knob. The front panel is equipped with a 3-inch LCD display that gives you quick access to the menu navigation to adjust the switcher parameters.
Video Composition
Roland has packed a variety of effects in the V-60HD video switcher such as Downstream Keyer, Picture-in-Picture; Split composition effects which is perfect to make use of in news broadcast and cooperate presentations. The downstream Keyer supports both Luminance Keying and Chroma keying (Blue/Green Screen) for compositing two video sources plus an additional layer of picture-in-picture plus your background video to achieve creative live production environments.
AUX Bus
You can assign a dedicated AUX bus to any of the four discreet SDI or HDMI outputs that allows seamless switching from the 8-input channels. The unique AUX layer cross-point buttons ensures a reliable and quick operation and seamless switching.
Multi-View Output
The Roland V-60HD is equipped with advanced technology that enables you to preview all six video inputs and two still images, PGM and PVW to a single preview monitor via the Multi-view display in order to make setting changes without the need of changing your focus from the preview display.
Audio Mixer with Preamp and Dynamics (Compressor)
The Roland V-60HD with its powerful preamp and dynamic effects integrates a high-pass filter, gate, compressor, 3-band EQ, delay and ability to select audio follows video channel so that audio can pass through when a specific video source us selected. You can adjust the dynamics from the on-screen menu or you can access through the advanced Remote-Control Software which is compatible for Windows and Mac.
Audio Mixing
The audio-mixing function ensures that you’ll receive the correct mix for multiple panel participants at conferences by automatically adjusting levels across multiple audio sources.
Discreet Multi-Channel Audio Embedding
Connect up to as much as eight analog audio inputs and a separate audio embed channel on SDI 1 and 2 outputs to ensure a separate mix pre-effect or post effect in order to correct audio problems at live events. This feature is quite handy for multi-language events to record the voice-over or language translation on its individual channel to a separate master.
Smart Tally
Another powerful advantage to the Roland V-60HD is the wireless tally system that uses a wireless LAN router that’s connected up to the Roland V-60HD in order to send tally information to iOS and Android devices via the network.
Remote Control
The V-60HD RCS software for Mac or PC is an easy-to-use software that provides setup and control of information for the Roland V-60HD video production switcher via a network port. It allows you to copy, store and recall memory that’s been backup, and preset settings. Have full control and operation over your Roland V-60HD as it is equipped with an RS-232 port, which can be controlled via a touch panel or other programmable interface devices.
- Roland V-60HD Multi-Format HD Video Switcher
- Power Supply
